Name: Original VOCOM II for Volvo Renault UD Mack Trucks
Description:
Mini WiFi VOCOM 2 Dongle is produced by ACTIA in Germany which covers all the functions of the VOCOM2 VOCOM II 88890400. It does not need any cables accessories because it can be connected to the laptop via WiFi perfectly.
Made in Germany high quality interface support OBD2, 9-Pin, 6-Pin, FCI, MEFI, BNA, OBD2, 9-Pin, works on Volvo / Renault / UD / Mack trucks from year 2002.
Update: free update online
Features:
1. Small, light weight and powerful – fits in your pocket.
2. Secure and fast Wi-Fi communication.
3. Communicates over 2.4GHz and 5GHz Wi-Fi networks up to 300Mbit/s – no cables required.
4. Support vehicle diagnosis and programming.
5. Smart indicator lights to show device information.
Supported Vehicles Models:
Volvo Trucks - Older electrical system, Vehicle electrical system '98; VERSION2, VERSION3; VERSION4 - FH4/FM4
Volvo Buses - Conventional, Multiplexed, Multiplexed v2, Multiplexed v3
Volvo Construction Equipment
Volvo Marine Engines - VERSION2, VERSION3
Volvo OEM Component Customer - VERSION2, VERSION3
Mack Trucks - V-MACI/II/III, ITC, IV, IV+,I, DTI
UD Trucks - VERSION2, VERSION3
Renault Trucks - VERSION2, VERSION3, VERSION4 (EURO6, DXI, DTI)

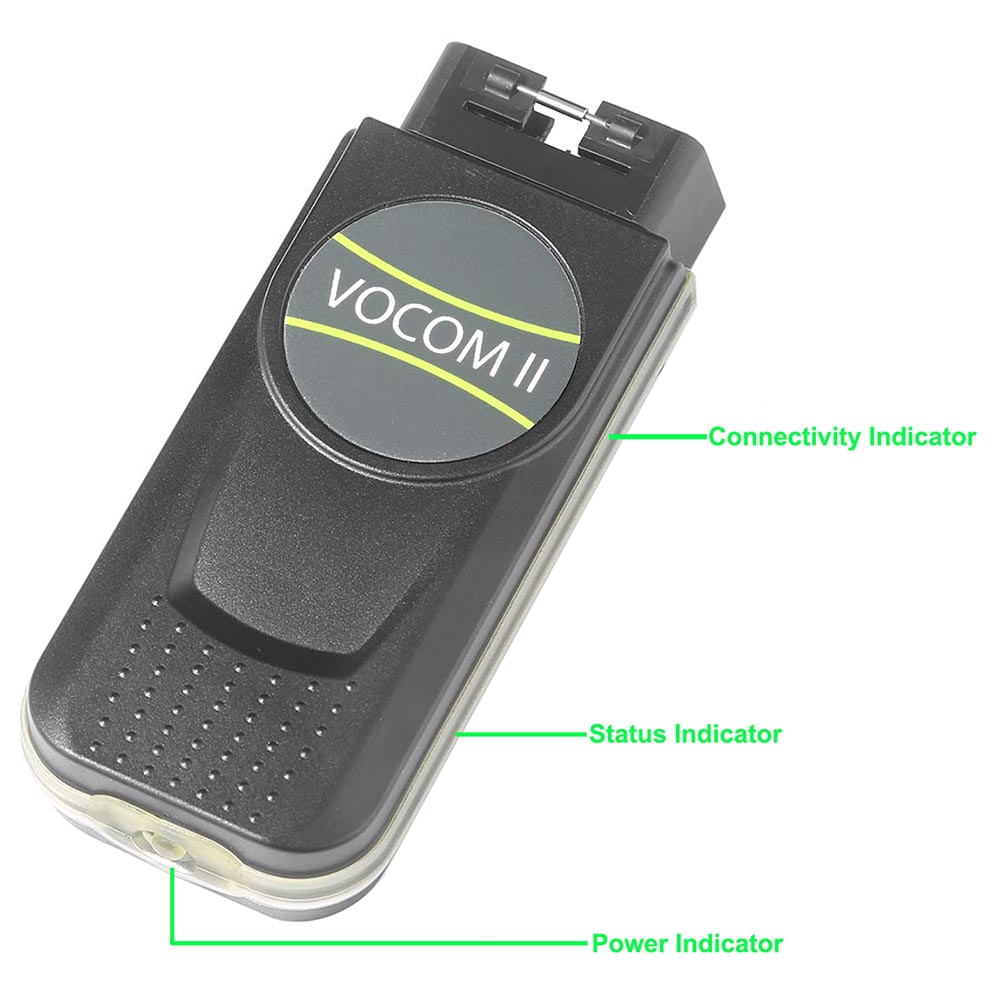

LED Indicators:
Connectivity Indicator:
Connecting: blinks blue
Connected: stable blue
Status Indicator:
Starting up: green
Device is ready to operate: light off
Errors are stored in the memory: red light
(Note: Stored errors does not prevent you from using the device.)

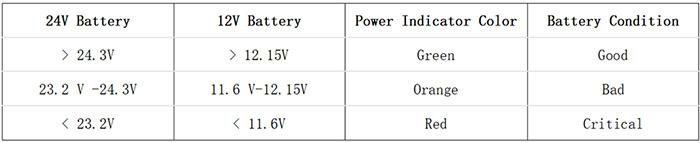

Power Indicator:
Starting up: blinks
Device ready to operate: stable
(Note: The color of the light indicates the battery condition of the connected vehicle. The device itself has no internal battery.)
Specifications:
Supported OS: Windows 10 32/64 bit
Computer Connection: Wi-Fi
Wi-Fi: IEEE 802.11 a/b/g/n 2.4GHz and 5GHz
Wi-Fi Security: PSK, EAP-PEAP, EAP-TLS, WPA, WPA2
Diagnostic Interfaces: RP1210C, J2534, J2534-1
Vehicle Battery: 12V or 24V
Vehicle Electronic Architecture: version 2, version 3, version 4 T1
Vehicle Connection: OBD2, 9-pin
Vehicle Interfaces: 2*CAN (max. 1Mbps), 1*J1708 (max. 38 Kbps)
Vehicle Communication Protocols: ISO 11898, ISO 15765-2, SAE J1939, SAE J1708, SAE J1708
Operating Voltage: 6V to 32V (max. 36V)
IP Protection Rating: IP44
Operating Temperature: -40 to 70 degree centigrade
Weight: 85g

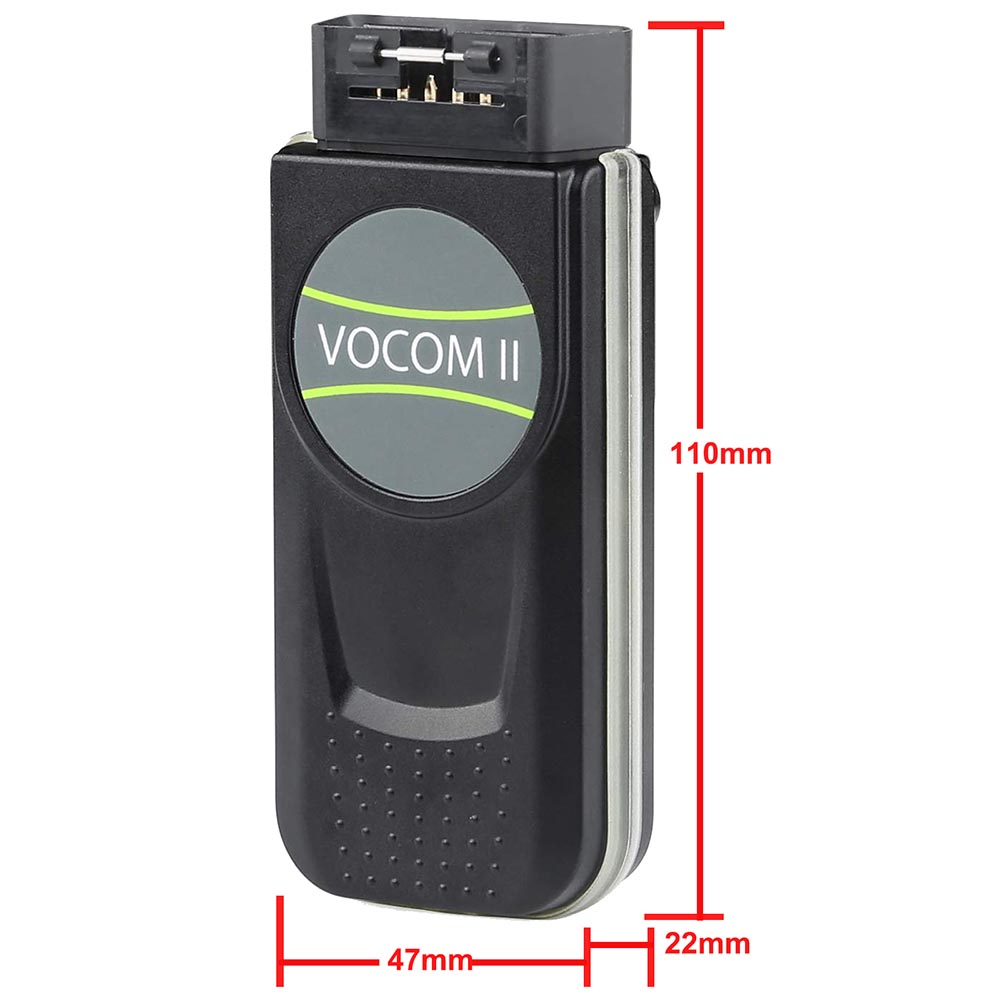

Dimensions (L*W*H): 110*47*22mm
FAQs:
1. What software version is recommended?
It is recommended to use software version 2.7.116. This version is relatively stable in testing. For latest version of the original 2.8.130, there is customer feedback that it is unstable (SS167-G Version 2.7.25 is not supported).
2. Does it support USB connection?
No, it only supports WiFi communication (You can use the WiFi network card that comes with the laptop, or use the matching USB WiFi adapter to connect), the WiFi password is v2d + device serial number (lowercase letters).
3. How many years of vehicle models does it support?
It can support vehicles models from the year of 1996 to 2021.
4. What cables does the product include?
The Mini VOCOM II comes with 8-pin cable, but it does NOT include 14-pin and Renault 12-pin cable, which need to be bought separately.

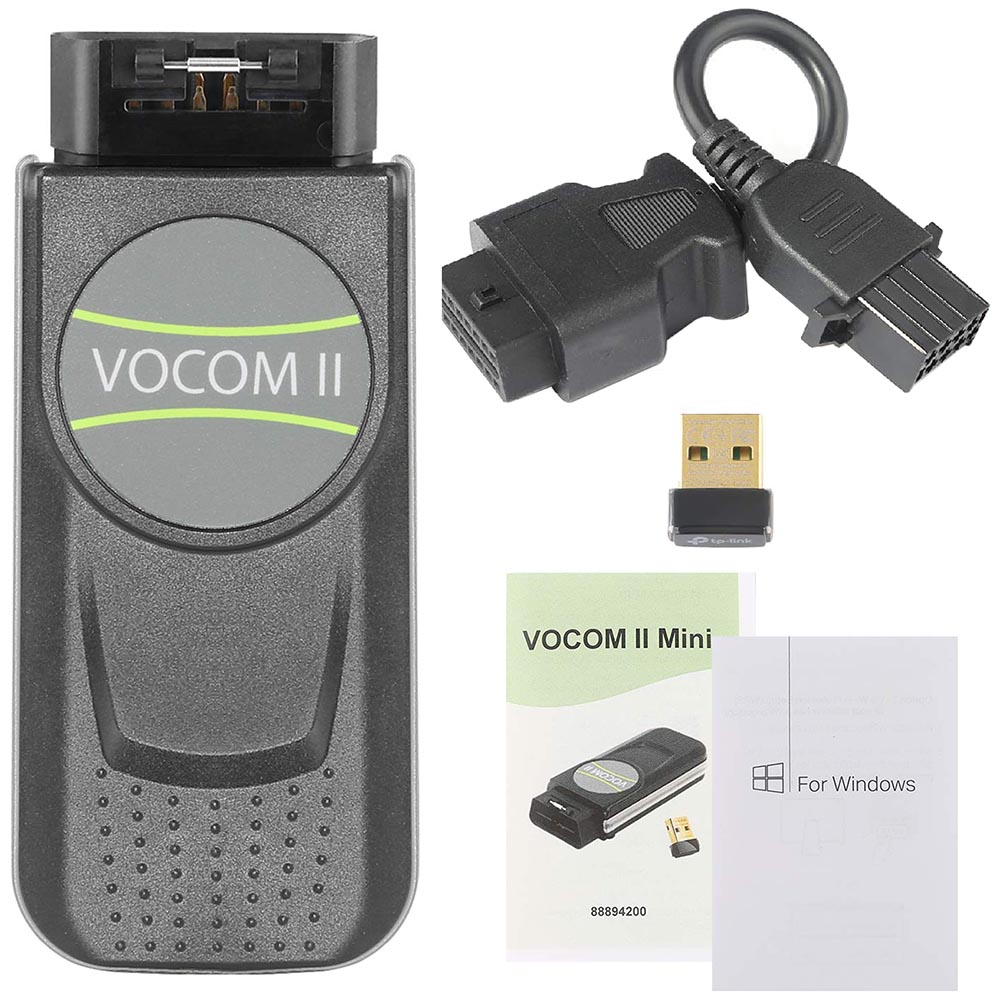

Packing List:
VOCOM II Mini Dongle
OBD2 Cable
WiFi Adapter
User Manual
Packing Box
|
