Description:

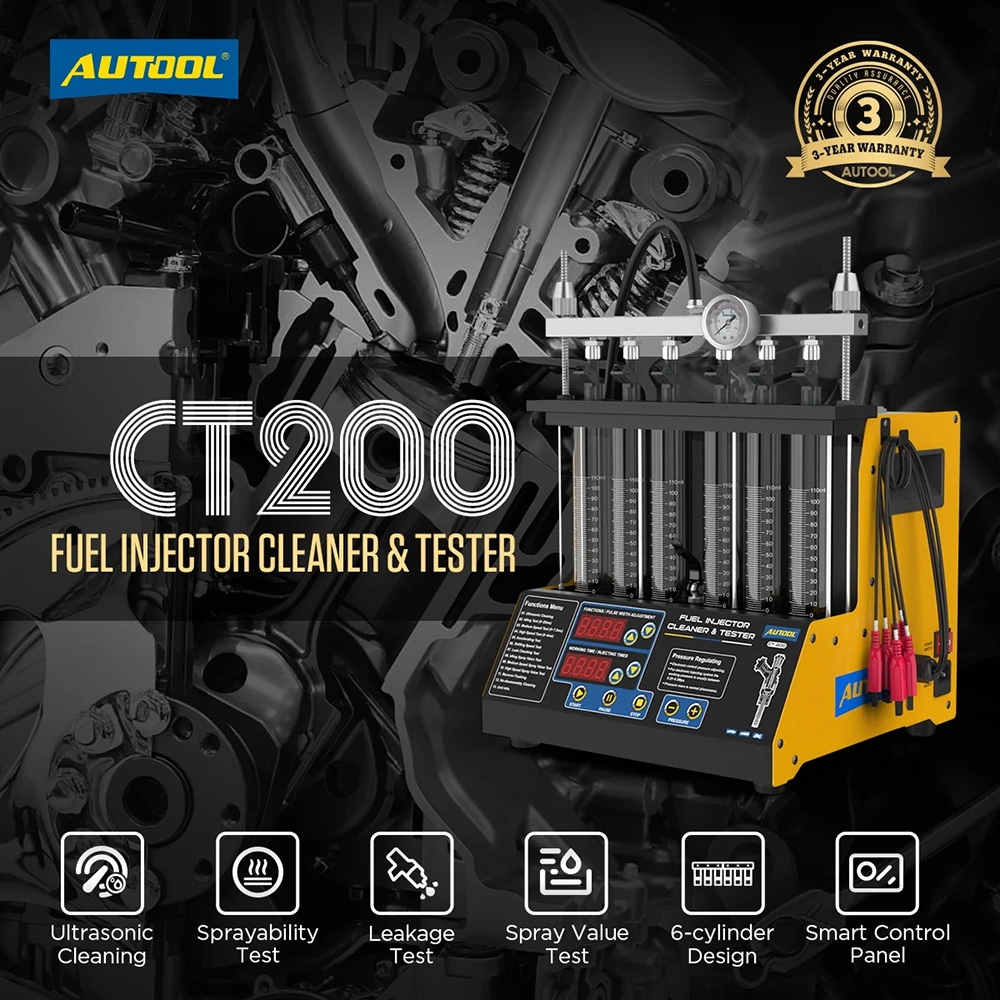

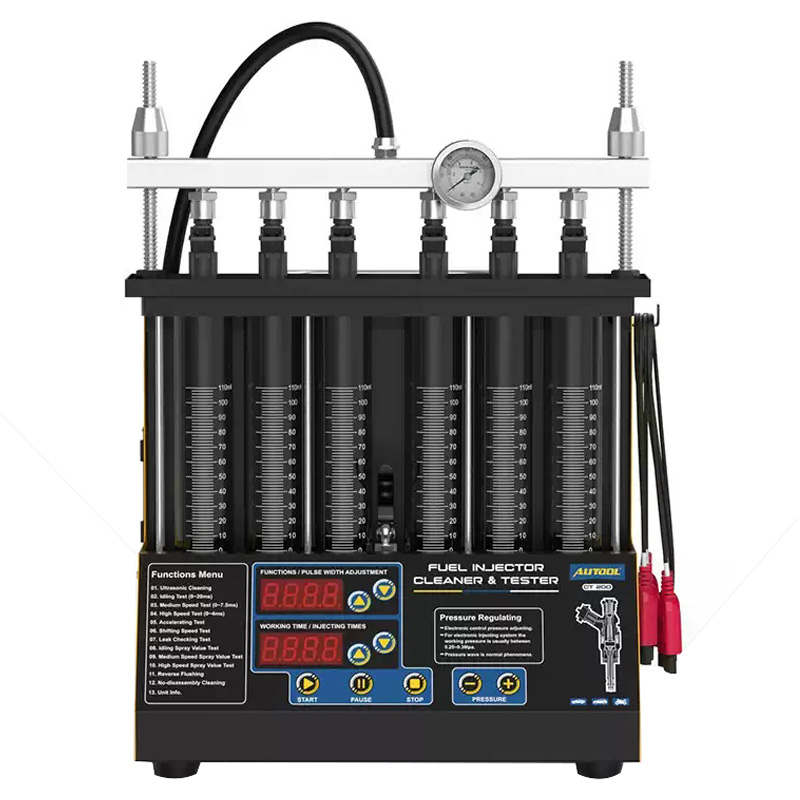

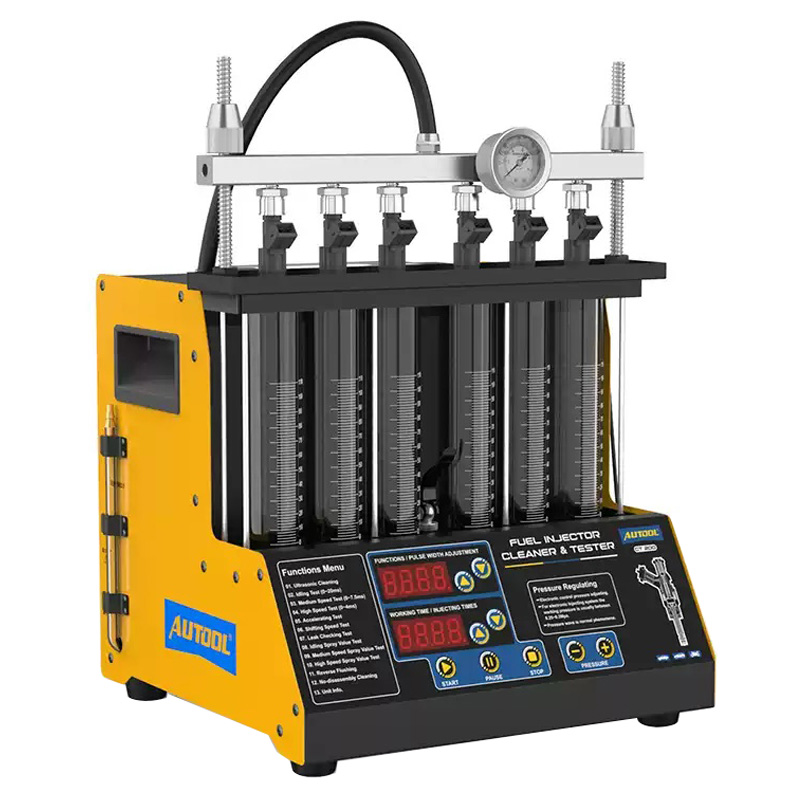

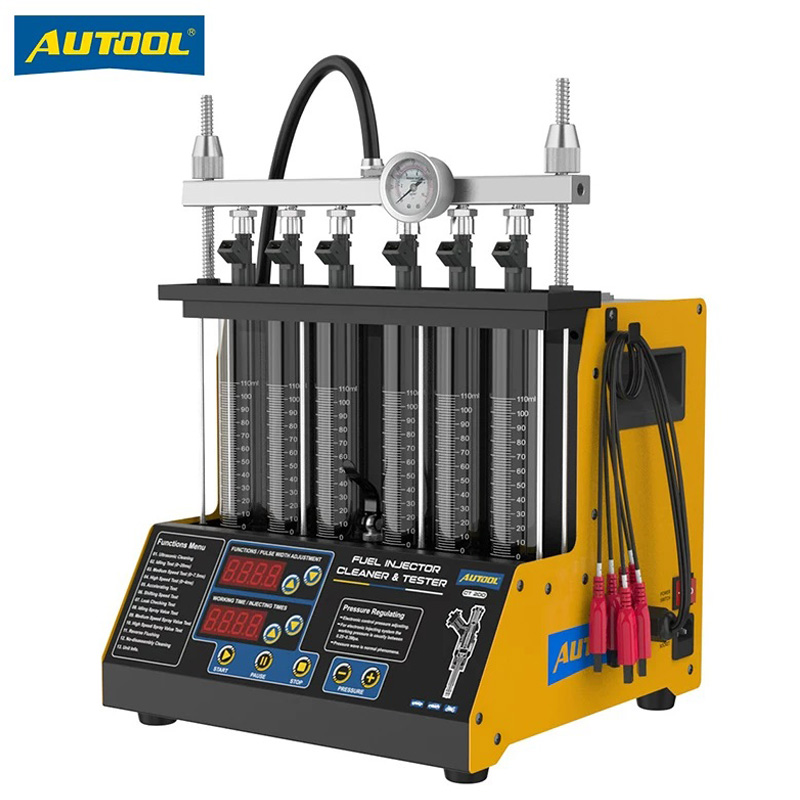

AUTOOL CT200 Fuel Injector Cleaner Ultrasonic Cleaning Machine is designed with wide voltage technology and is suitable for 110V and 220V voltage. Autool CT 200 is combined with ultrasonic cleaning technology and microprocessor hydraulic control cleaning detection technology. Fuel pump oil supply simulates low, medium and high engine conditions, cleaning and testing the fuel injectors of the automobile; ultrasonic cleaning can simultaneously clean multiple injectors, which can effectively and completely remove carbon deposit for the automobiles injectors.



Features:

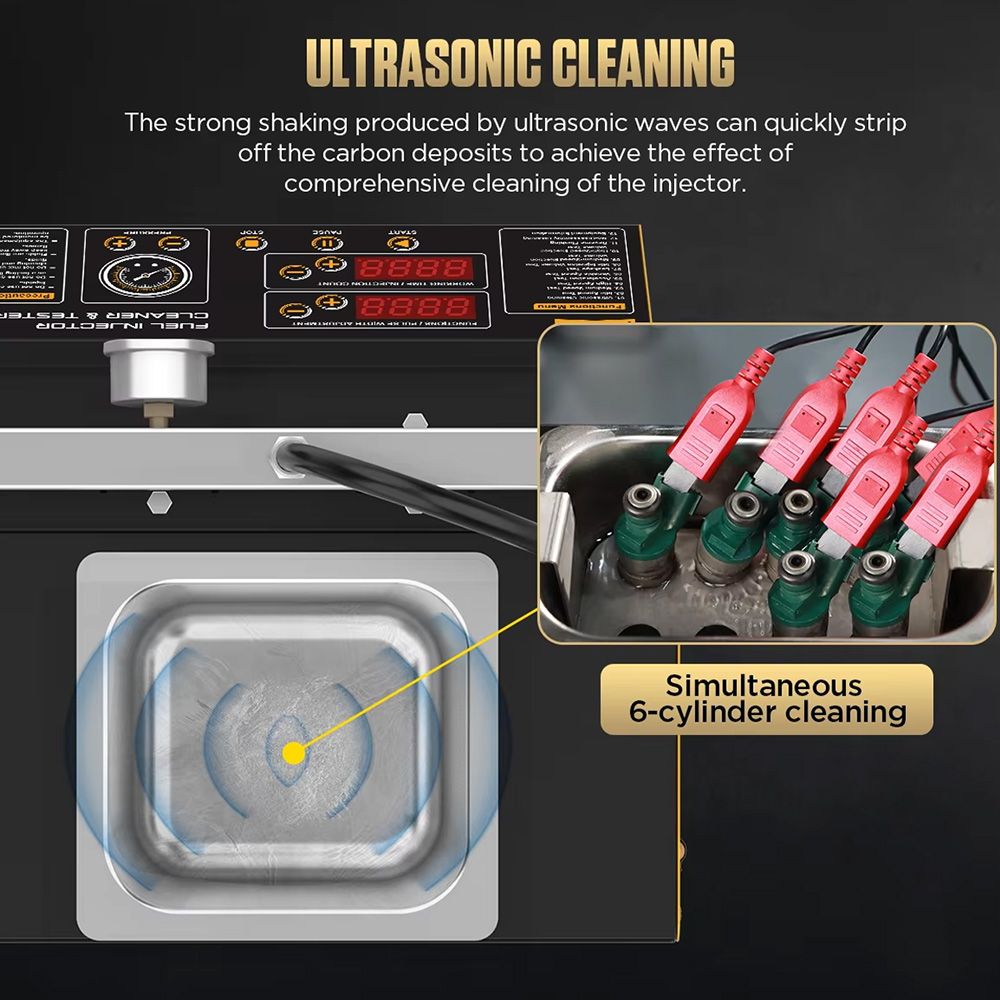

1. Ultrasonic Cleaning

The strong shaking produced by ultrasonic waves can quickly stripoff the carbon deposits to achieve the effect of comprehensive cleaning of the injector. (You can use the ultrasonic function to clean various metal tools.)

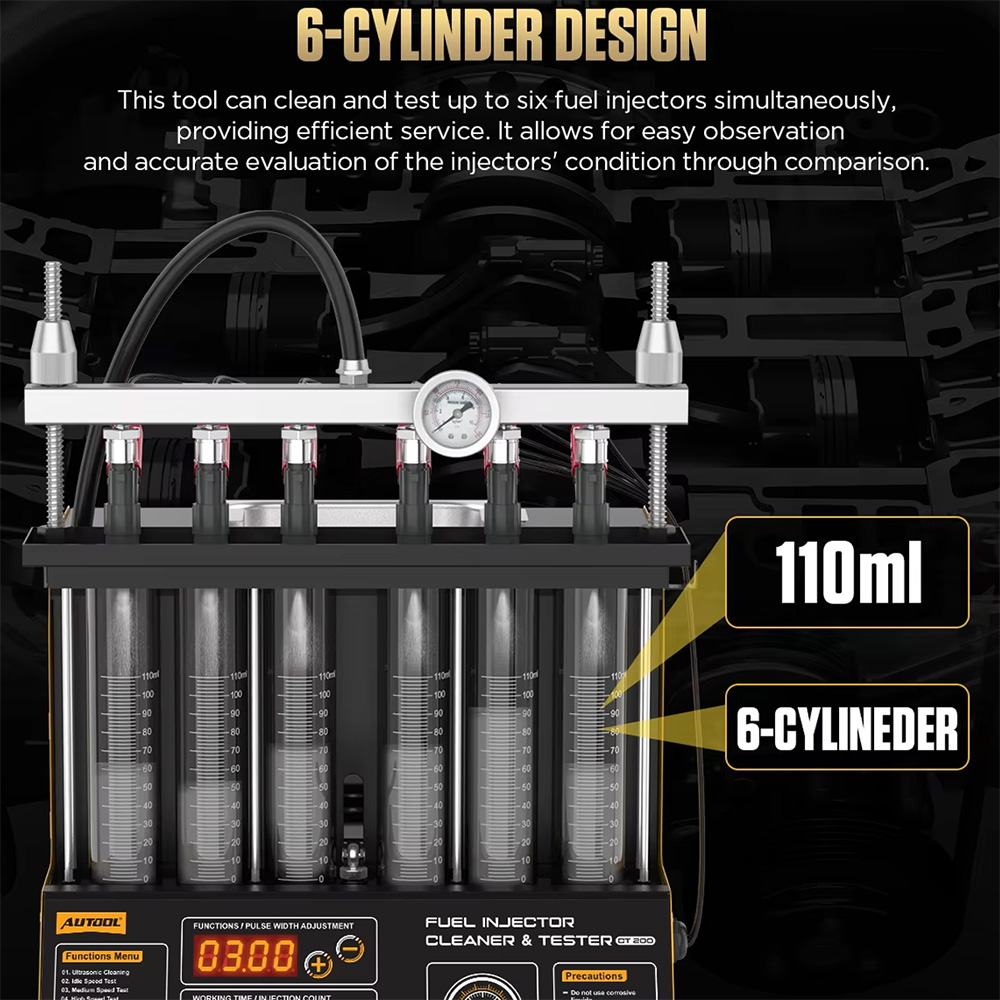

2. 6-Cylinder Design

CT200 Injector Cleaner Tester can clean and test up to 6 fuel injectors simultaneously,providing efficient service.



It allows for easy observation and accurate evaluation of the injectors' condition through comparison.

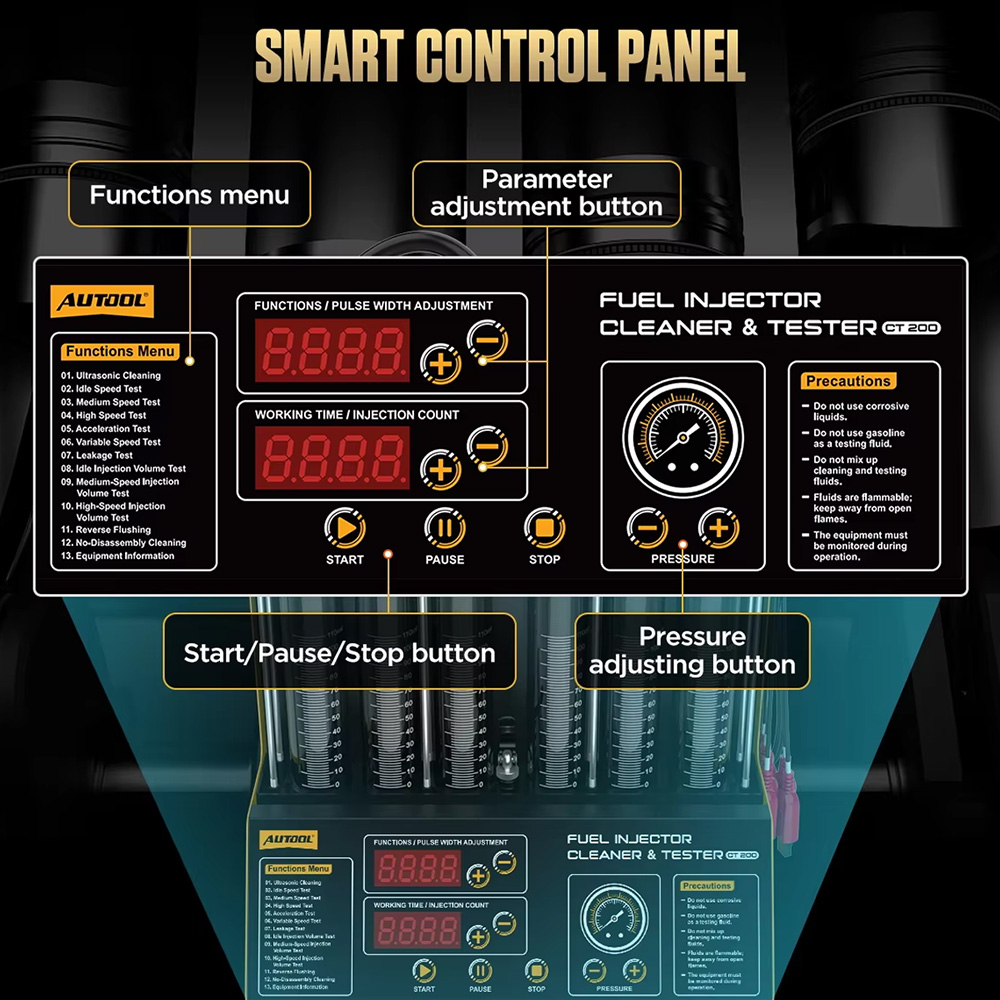

3. Smart Control Panel

AUTOOL CT 200 Fuel Injector Cleaner Tester design with HD color display, makes the operation clear and easy to read.

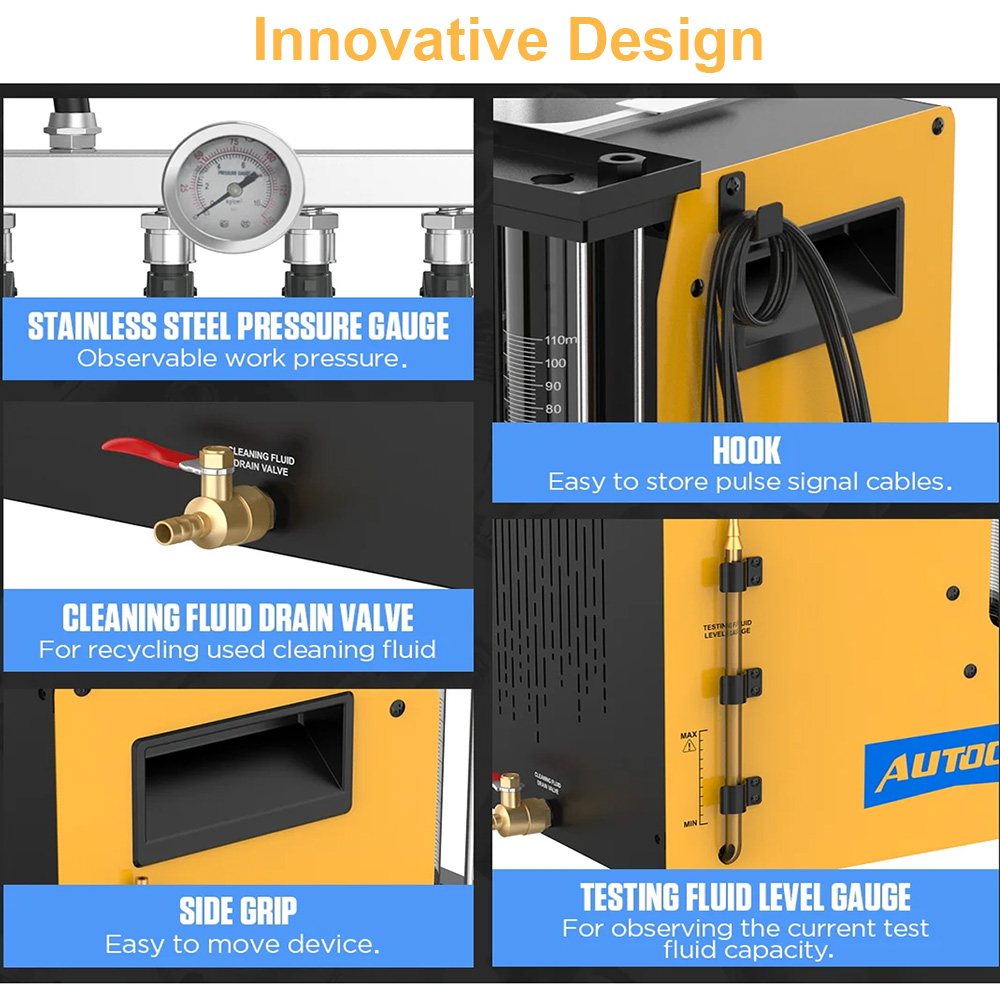

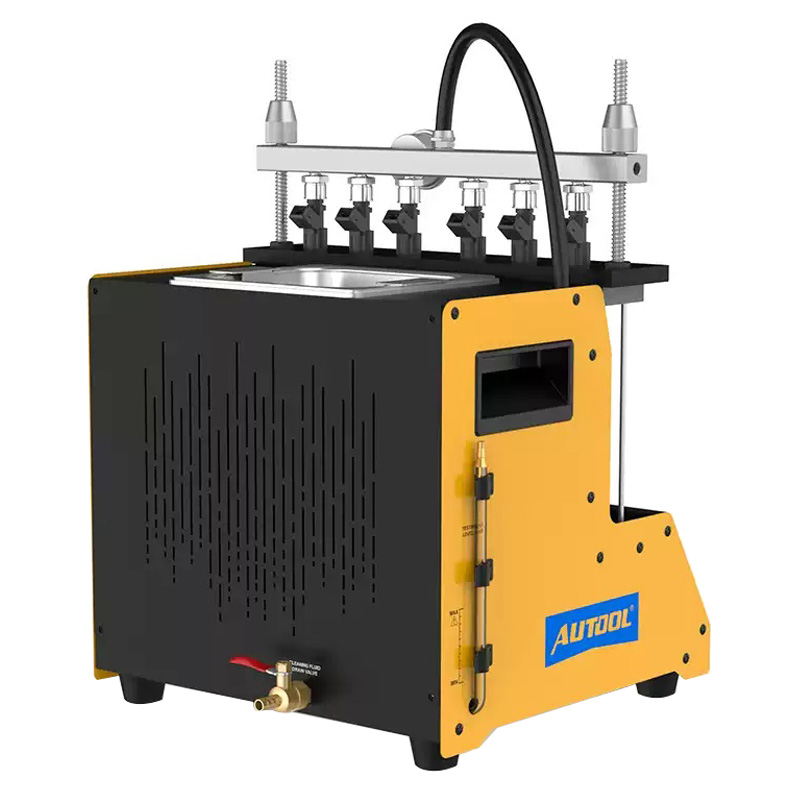

4. Cleaning Fluid Drain Valve

For recycling used cleaning fluid.

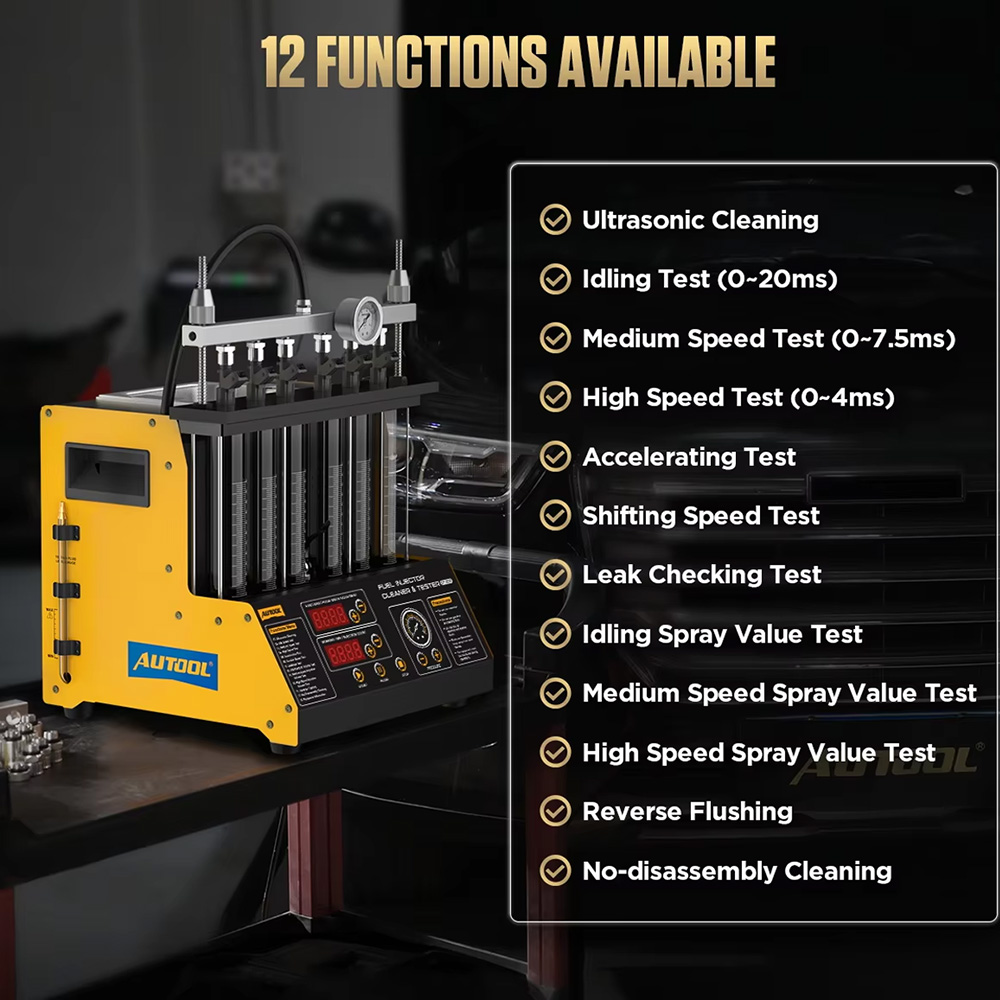

12 Specific Injector Functions:



01. Ultrasonic Cleaning:

CT200 sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.



02. Idle Speed Test (0-20ms):

Simulate the engine idling speed and test the state of the fuel injector.



03. Medium-Speed Test (0-7.5ms):

Simulate the engine running at medium speed and test the state of the fuel injector.



04. High-Speed Test (0-4ms):

Simulate the high-speed performance of the engine and test the state of the fuel injector.



05. Acceleration Test:

Simulate the acceleration state of the car and test the performance of the fuel injector.



06. Shift Speed Test:

Simulate the shifting state of the car and test the working performance of the fuel injector.



07. Leakage Test:

Test the sealing condition of the fuel injector.



08. Idle Speed Sprayability Test:

Simulate the engine idling state and test the spraying performance of the fuel injector.



09. Medium-Speed Sprayability Test:

Simulate the engine medium-speed state and test the spraying performance of the fuel injector.



10. High-Speed Sprayability Test:

Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.



11. Reverse Flush:

Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector.).



12. No-Disassembly Cleaning:

Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters.


How does the Autool CT200 work?


Ultrasonic Cleaning:

1. Add the cleaning fluid and put the injectors into the ultrasonic cleaning bath.

2. Connect the pulse signal lines and select item 1 Ultrasonic Cleaning function to start.



Injector Testing:

1. First add the test fluid, then install the injectors on the fuel distributor, and fix them with bolts.

2. Different functions can be selected to test to see if any of the injectors are leaking or blocked.

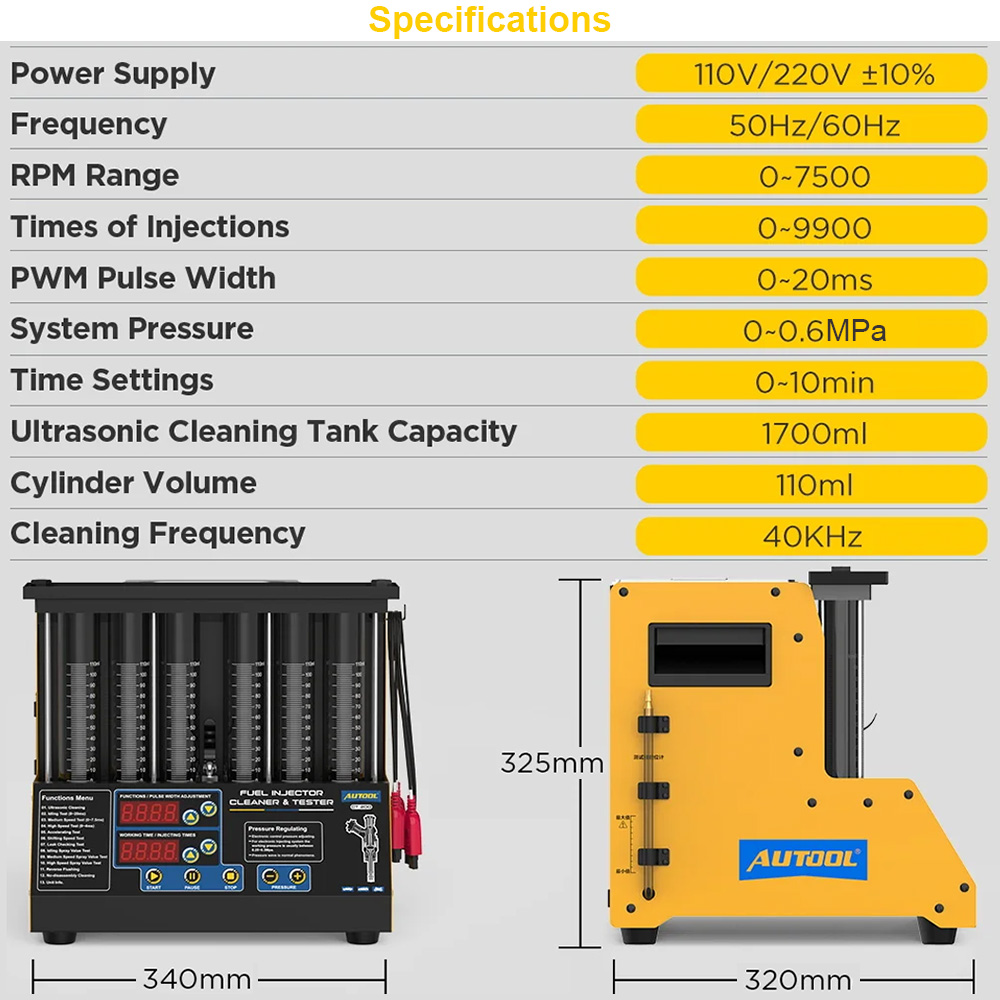

Specifications:



Power Supply: AC 110V/220V±10%

Frequency: 50/60Hz

Magnetic Field: <400A/m

Ultrasonic Cleaning Tank Capacity: 1700ml

Cylinder Volume: 110ml

RPM Range: 0 to 7500

Injecting Times: 0 to 9900

PWM Pulse: 0 to 20ms

System Pressure: 0 to 0.6Mpa

Time: 0 to 10min

Power of Ultrasonic Cleaning: 70W

Cleaning Frequency: 40KHz

Humidity: <85%

Environment Temperature: 0℃ to 40℃



Supports 99% Cars:



Audi, Australia Ford, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewo, Daihatsu, Demo, Fiat, Ford, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha, etc.

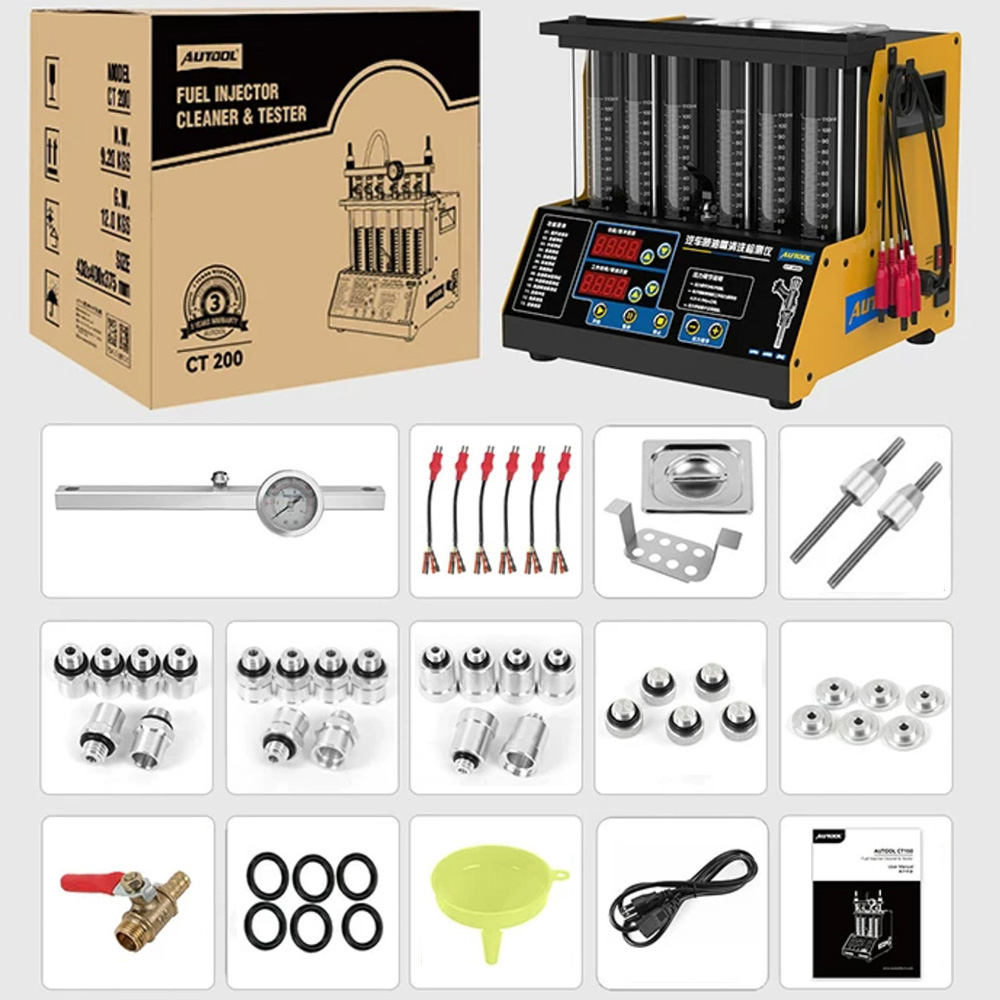

Packing List:
