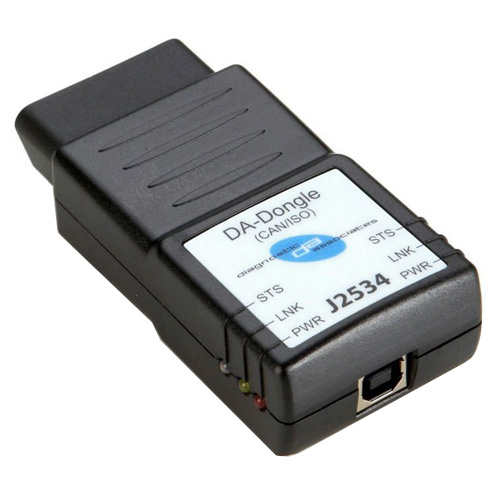

Name: DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover

Description:

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.

Features:

The DA-Dongle J2534 device is simple and easy to use
JLR approved device, replacement for JLR SDD VCM
Covers CAN & ISO9141 vehicle networks
12 feet USB cable as standard included
Easy to update for J2534 new functionality

Functions:

It will allow normal operation with the JLR SDD diagnostic tool, once the J2534 DLL files are loaded.
The DA-Dongle J2534 connects directly to the vehicle OBD-II (diagnostic) connector and then to a laptop via a USB cable for use with SDD.
Only SCP communications are not possible with this device.

How to operate in J2534 mode?

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.
2. Connect the J2534 device to the vehicle OBD-II connector (the device powers from the vehicle).
3. Connect the 12 feet USB cable to the J2534 device and the other end to the SDD laptop.
4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.
5. During communication with the vehicle the status (STS) LED will flash green.
6. The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

Set Includes:

DA-Dongle J2534 SDD VCI Device
USB cable
Software CD
Carrying case
