Name: Launch CReader 5001 Code Reader Full OBD-II/EOBD Diagnostic

Description:

Launch CReader CR5001 provides full OBD-II/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, and USB interface internet update, which facilitates car maintenance.

Brand-new process design.
Color screen and light weight.
Connector with unique protection design to prevent fracture.
User-friendly shortcut keys to enhance the work efficiency.

Supported Languages:

English, French, German, Spanish, Portuguese, Italian, Russian, Polish, Turkish, Czech, Chinese Simplified, Chinese Traditional

Features:

1. Support all 10 Test Modes of OBD-II
Read dynamic data streams and MIL
Read readiness status
Read freeze frame data
Read current DTCs
Clear DTCs
O2 sensor test
On-board monitor test
Read pending DTCs
On-board system or component control
Read vehicle information
Read permanent DTCs

2. Color Graphical Display of Data Streams
3. Built-in DTC Help Information
4. Free Update via Internet

Specifications:

Screen: 2.8 inch TFT 320*240 dpi
Voltage Range: 9-18V
Operating Temperature: 0 to 50 degree centigrade
Environment Temperature: -20 to 70 degree centigrade

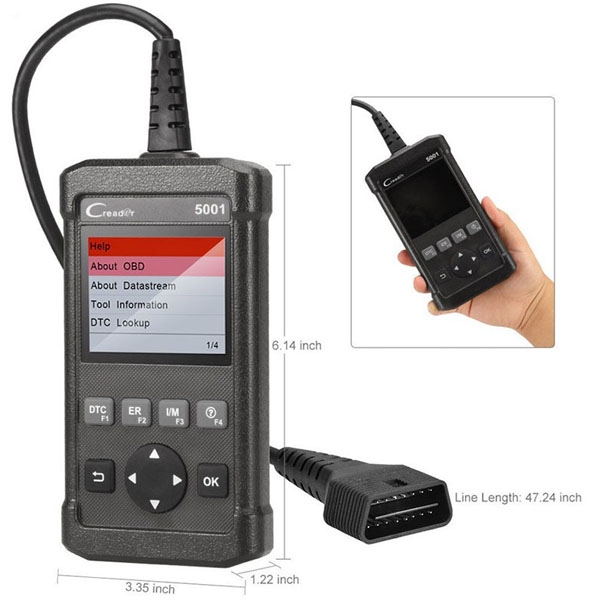

Dimension: 142*85*30mm
Weight: <320g
