Name: Ultra Small Chip Test Clip for for SOP SOIC TSSOP MSOP
Description:
Ultra Small IC Chip Test Clamp SDK08 for SOP SOIC TSSOP MSOP. Integrated Circuit Testing Clip with Cable.
Features:
1. Usage Scenarios and Operation:

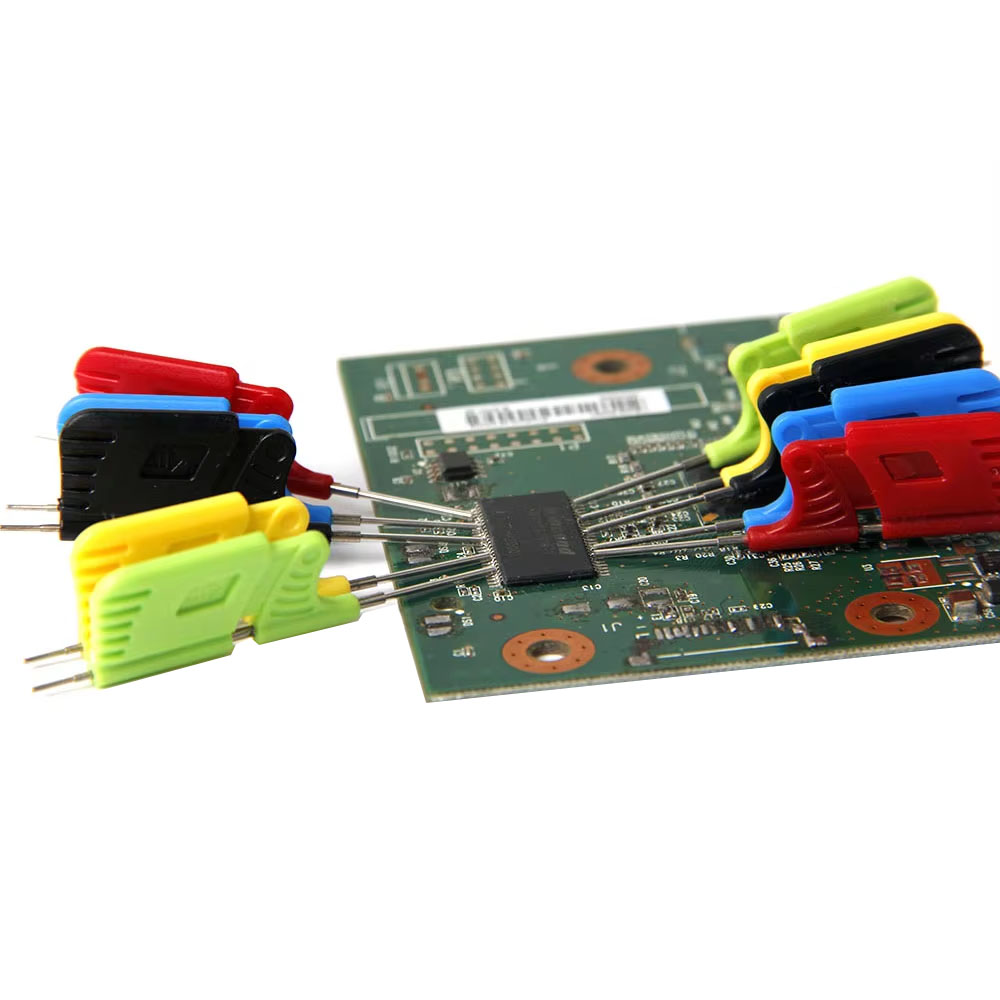

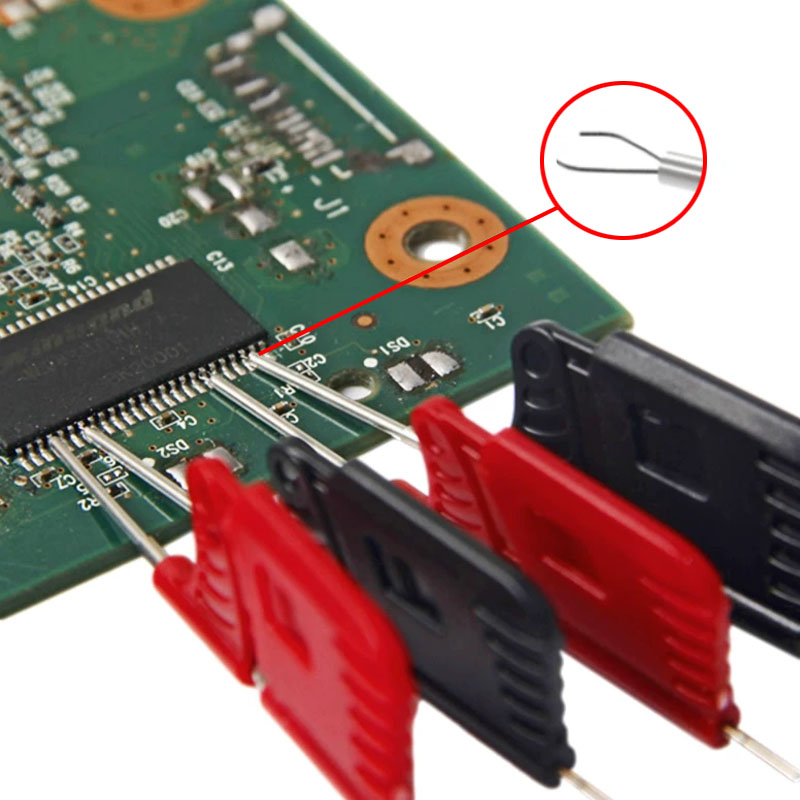

The SDK08 Test Clip is suitable for chips with pin pitch > 0.3mm. When operating, gently push forward with your hand to clamp the chip pin.
2. Post-Use Precautions:
Do not forcibly pry off the clamp head; gently push the clip to remove it from the chip pin.
3. Troubleshooting:

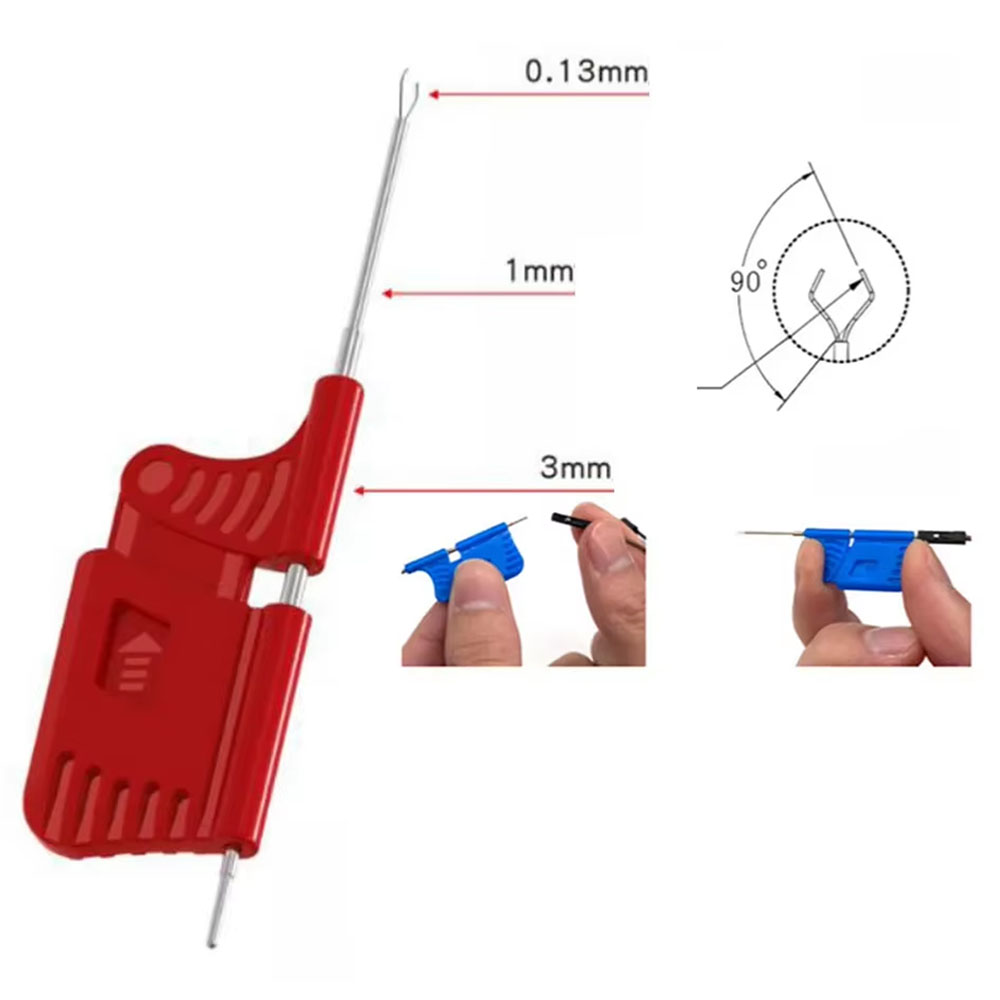

If the pin cannot be clamped, use tweezers to adjust the angle of the clamp head to approximately 90 degrees.

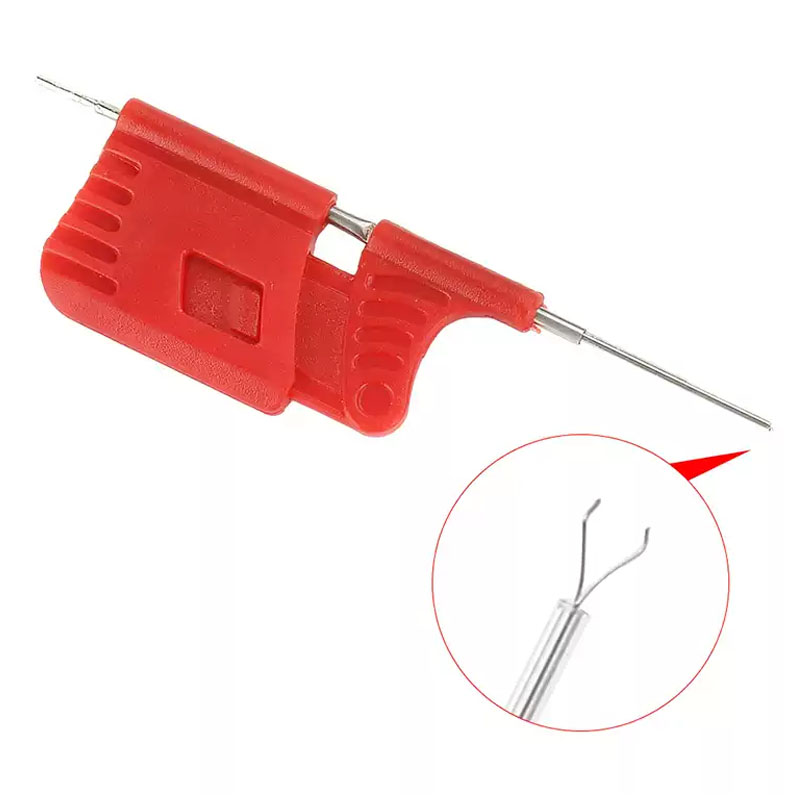

4. Not for reading/writing chip soldering. Clamp diameter 0.13mm, as thin as a hair. The outer tube is insulated to be non-conductive.

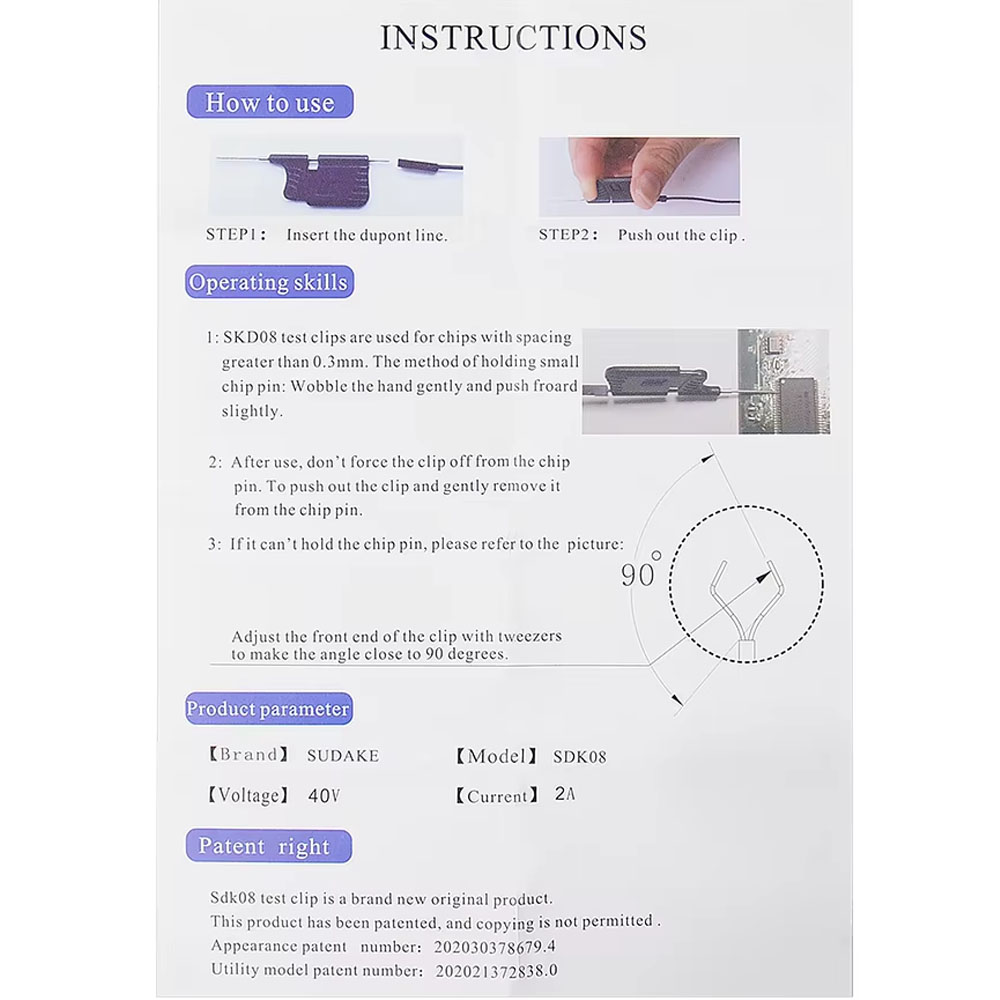

Operating Instructions:
1. The SKD08 test clip is suitable for chips with a pitch greater than 0.3mm. When clamping the chip pins: Gently shake your palm and push forward slightly.
2. After use, do not forcefully press the test clip into the chip pins. Gently press the test clip and then remove it from the chip pins.
3. If you cannot clamp the chip pins, please refer to the diagram: Use tweezers to adjust the front end of the test clip to an angle close to 90 degrees.

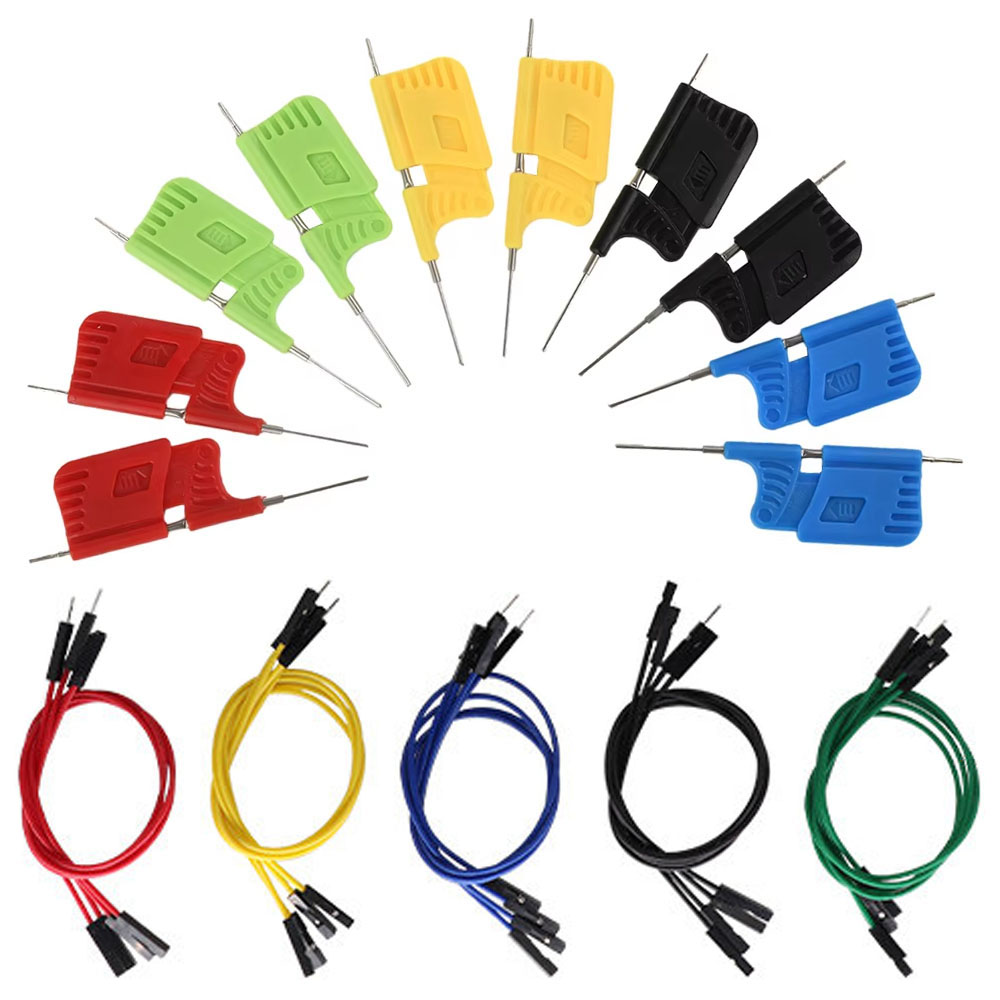

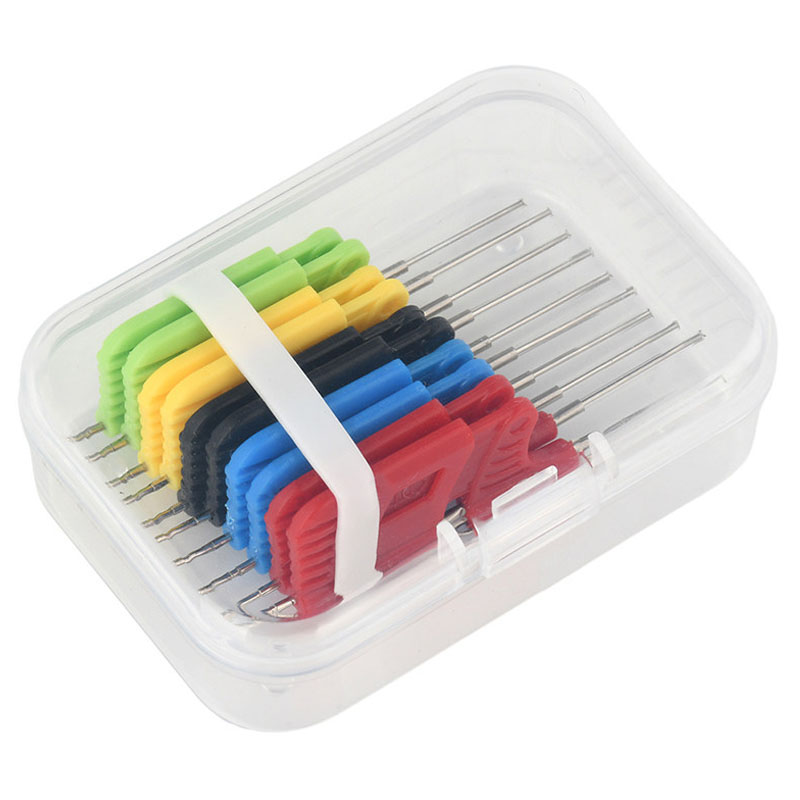

Packing List:

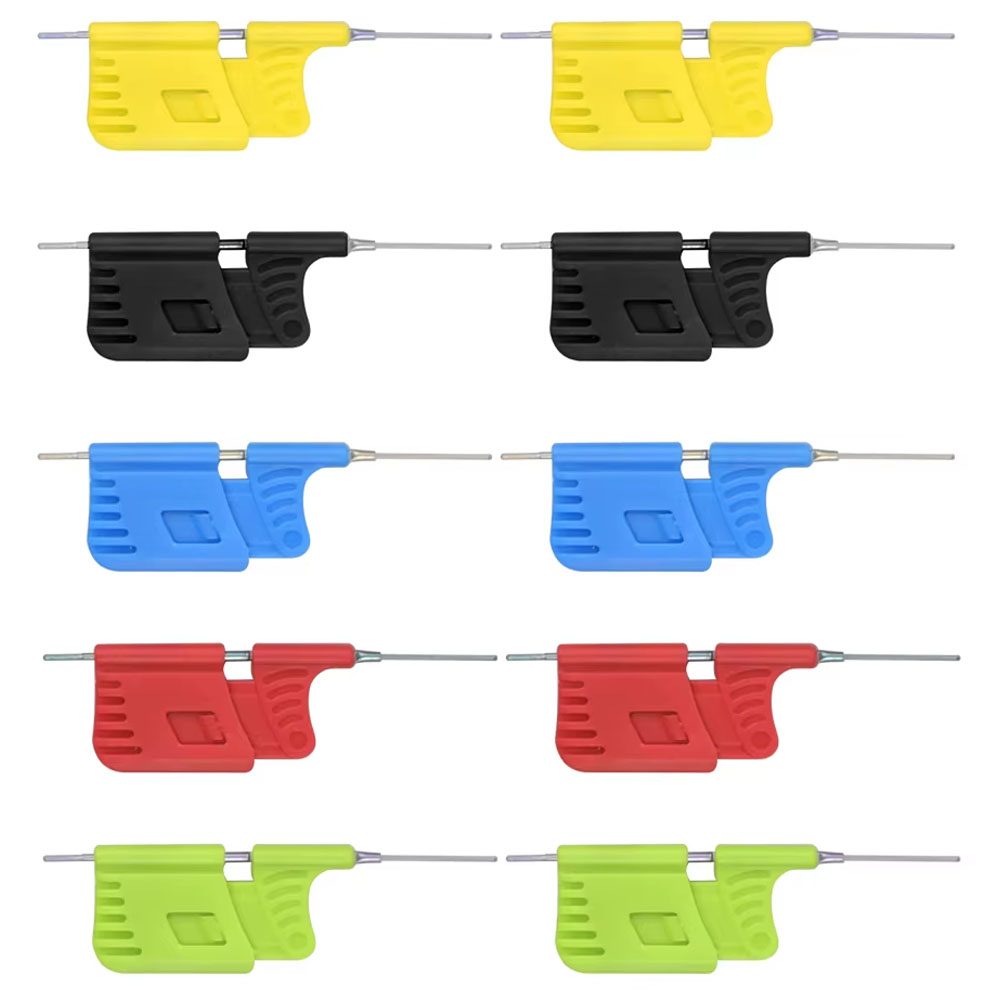

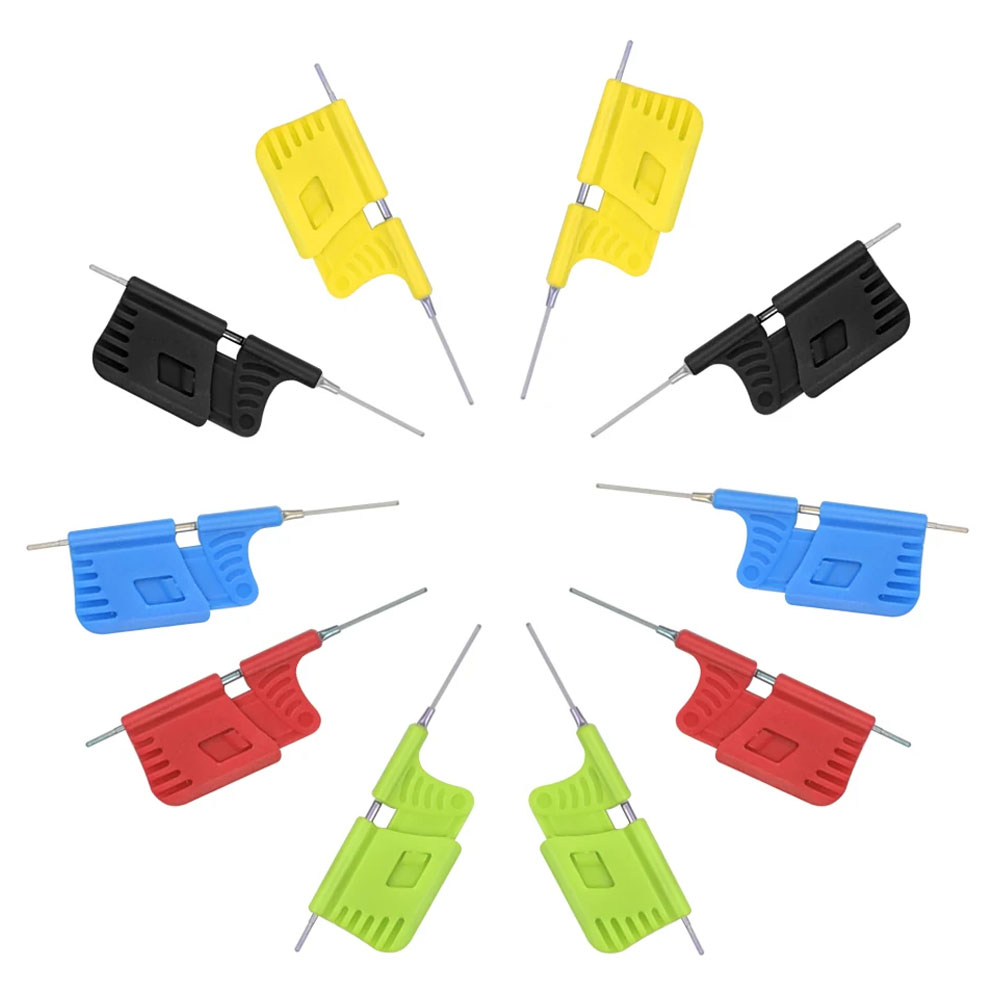

Ultra Small Universal Chip Clips (10 pcs)

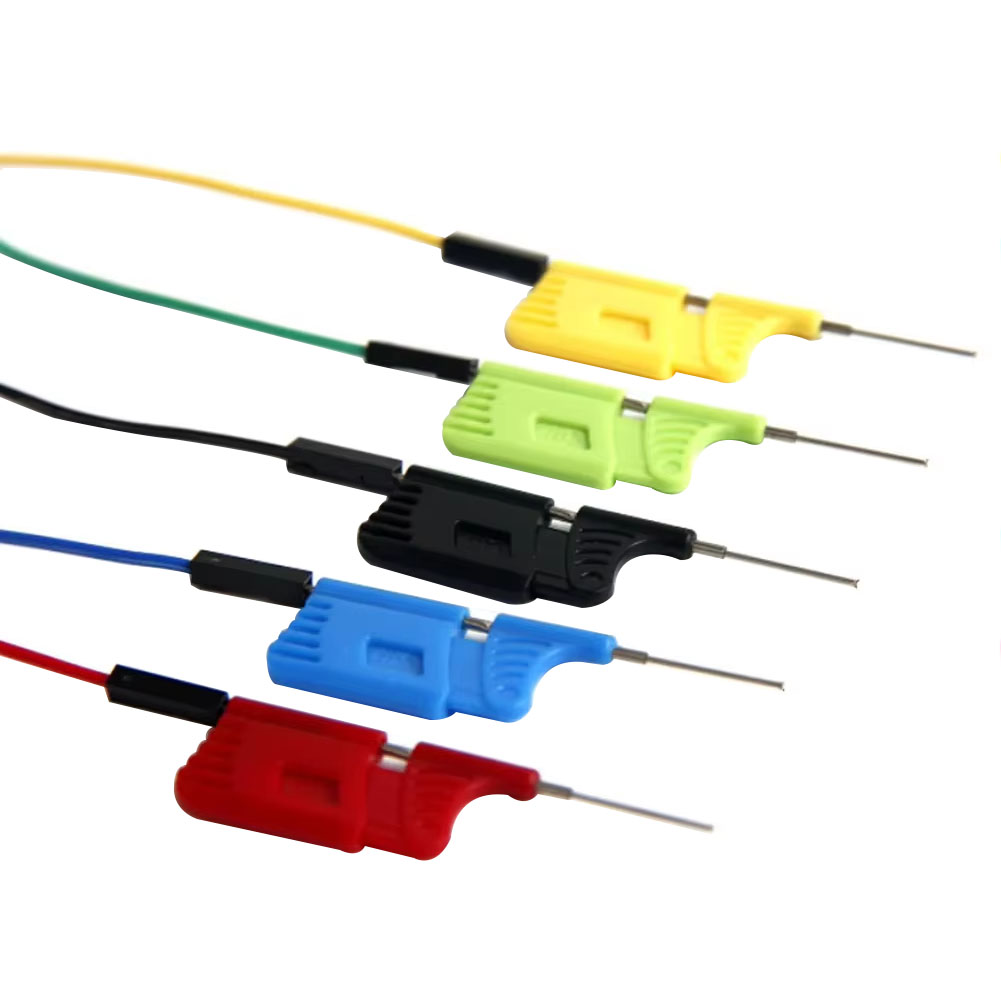

Connecting Cable (10 pcs)
User Instructions
Plastic Box
|
