Description:

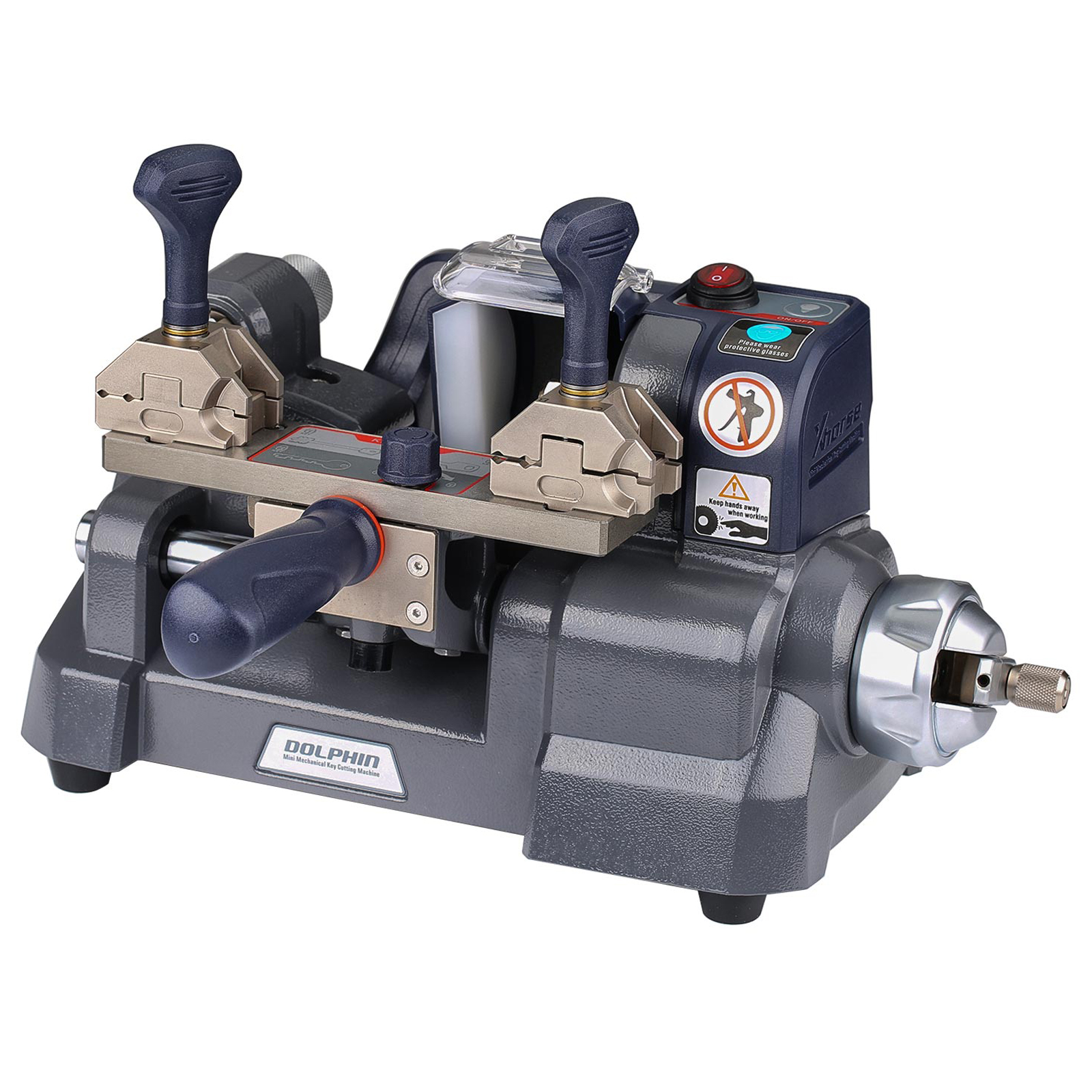

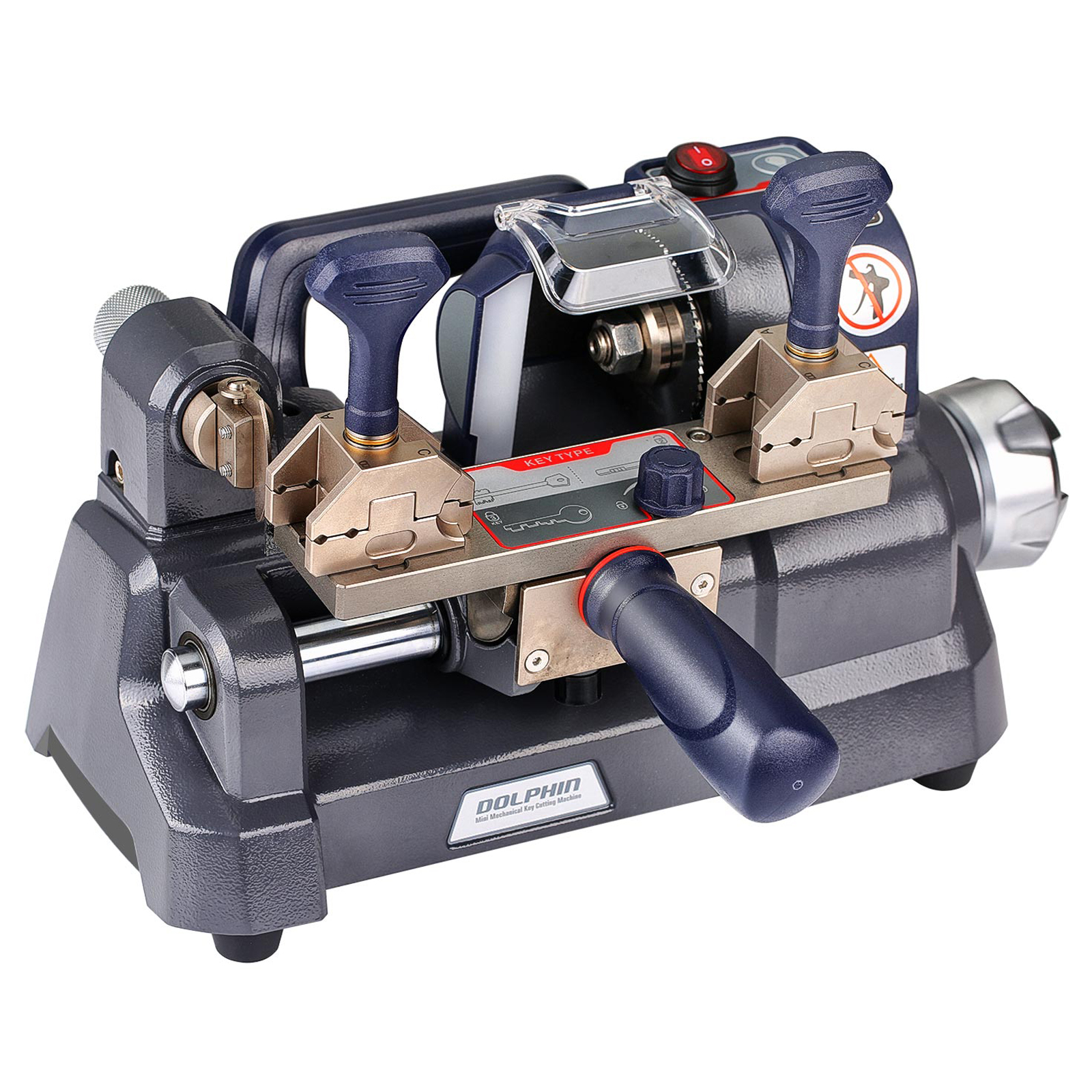

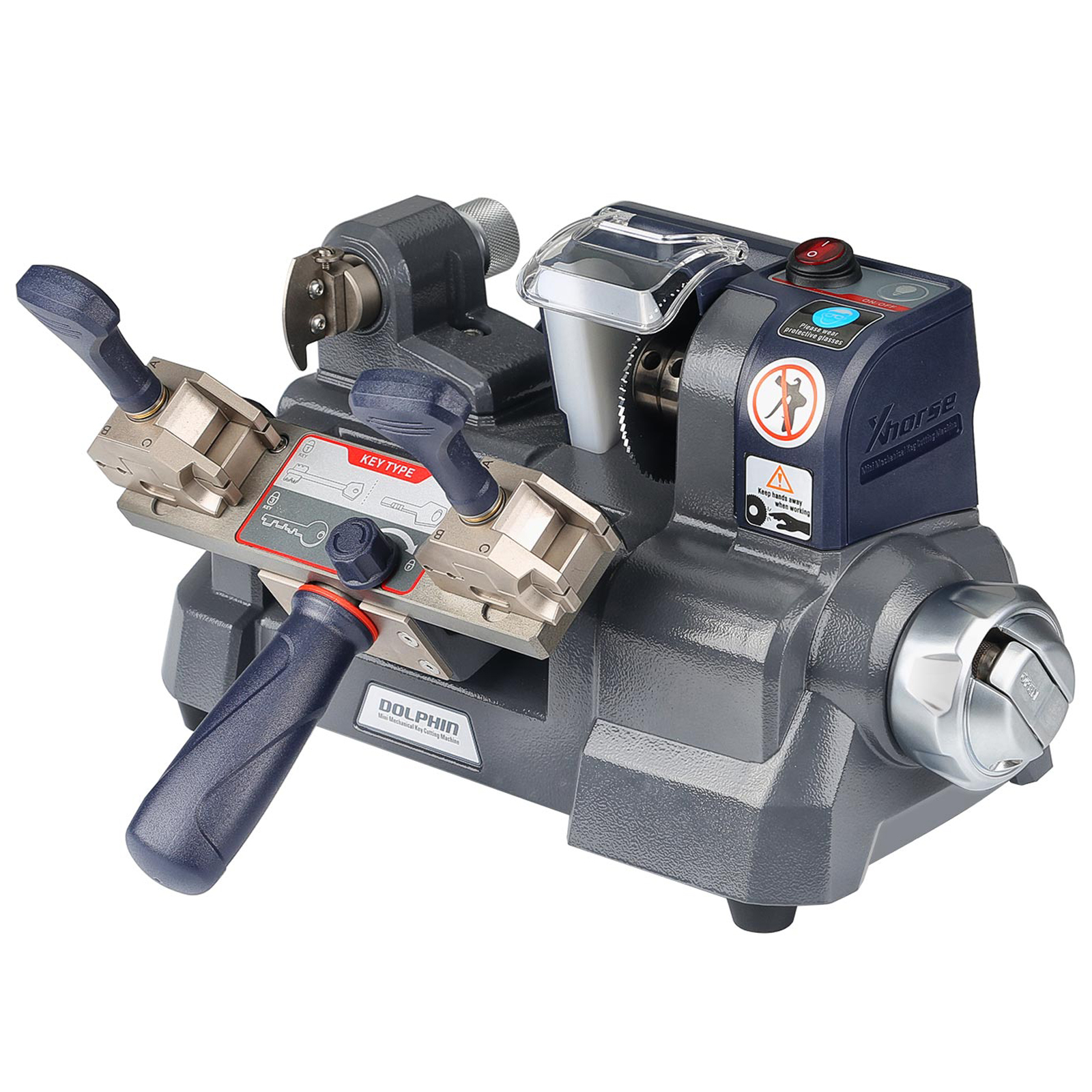

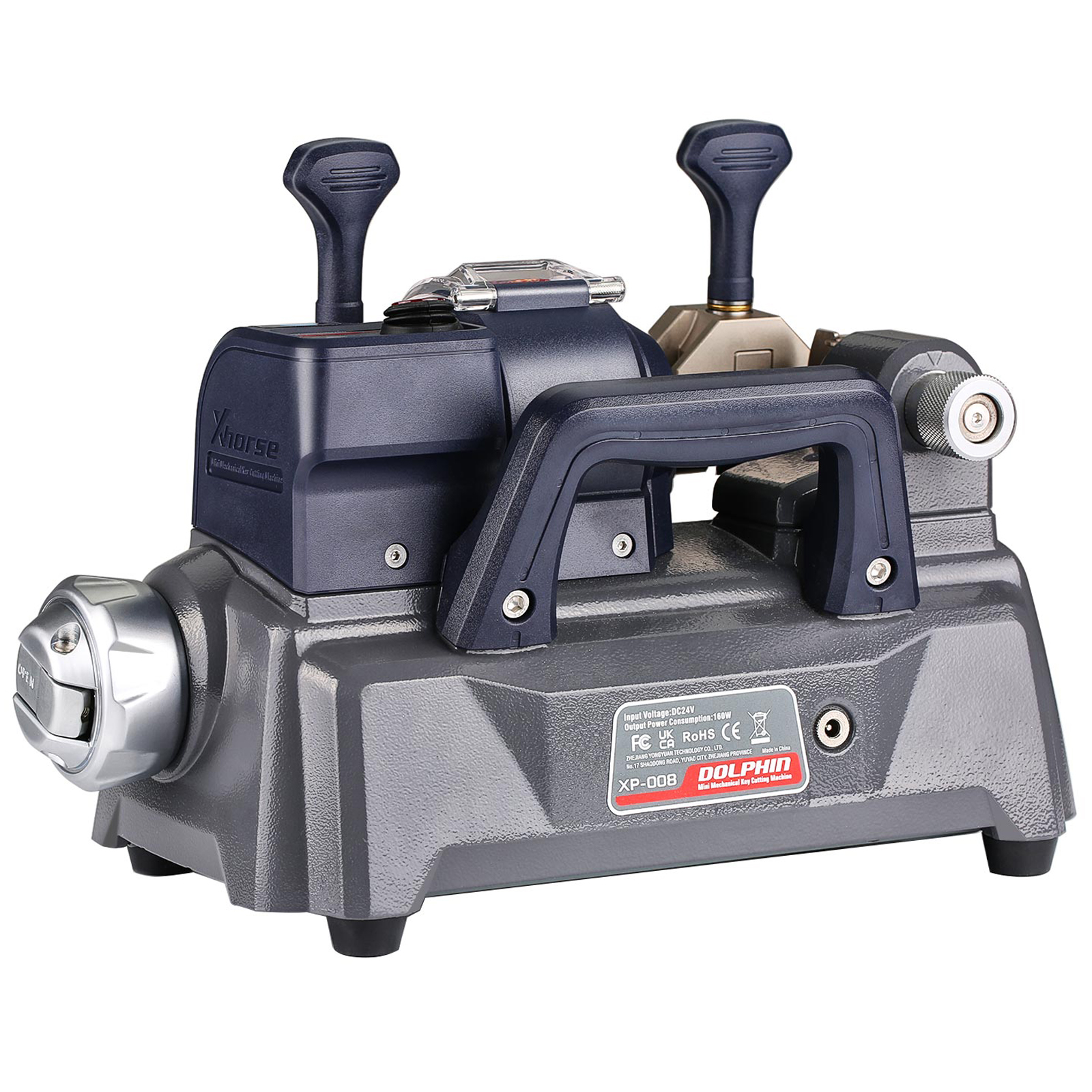

XHorse Dolphin XP008 Key Cutting Machine Mini Mechanical for Special Bit / Double Bit Keys.



XHorse Dolphin XP-008 Key Cutting Machine is XHorse new released mini mechanical key cutting machine designed for bit /pump and safe deposit box keys. It is with ergonomic design, all-purpose clamps, high precision processing and easy to carry.



Highlights:



Special Keys Cutting, Ergonomic Design.

Superior Mechanical Structure, All-Purpose Clamps.

Ultra-High Precision Processing, Built-in Lithium Battery.



Features:

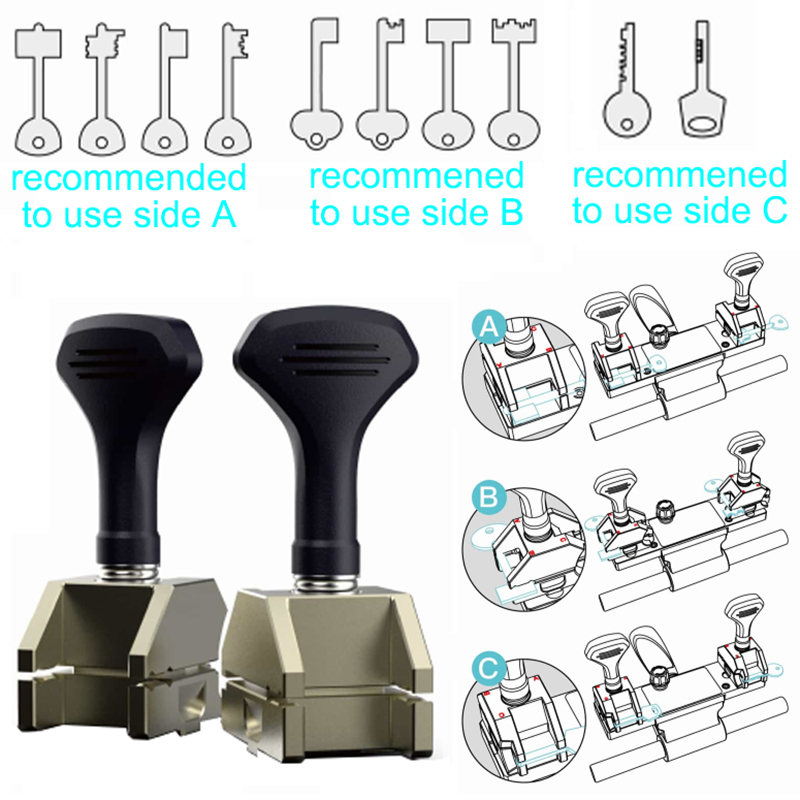

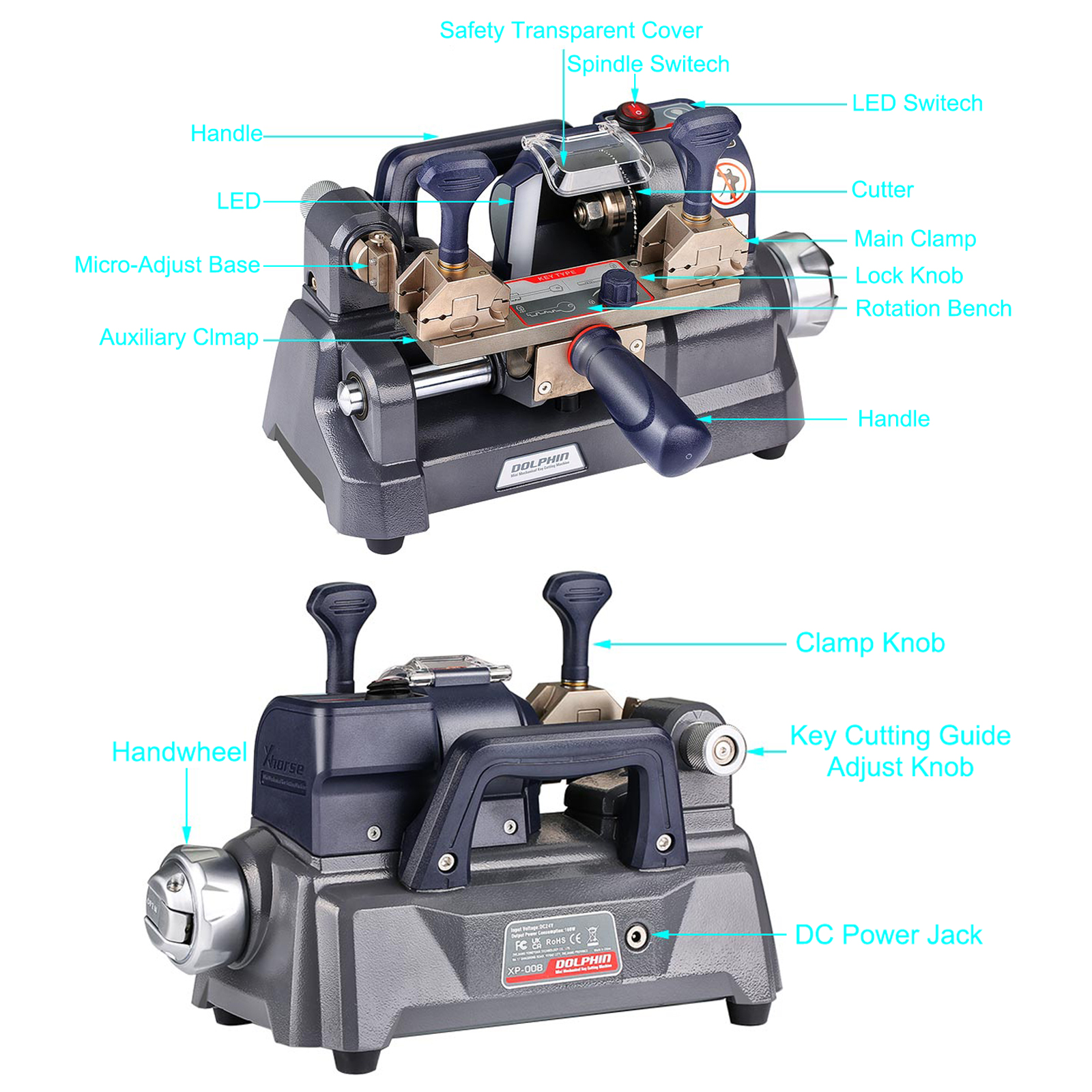

1. Flexible Clamps

XHorse XP-008 features a wide clamp space reaching 115mm, providing a more flexible experience to clamp different keys with no limits to the stem length. XHorse XP008 also offers a wide rotation range so the rotation bench can rotate 0-45 degree when turning the handle. This makes sure that keys with different titled angles can be perfectly cut.



2. Exceptional Design

Ergonomic design brings users an extraordinary working experience, XHorse Dolphine XP-008 comes with an LED light, helping users work in different scenes with ease. Users can complete the lateral cutting feed by simply turning the handwheel which can be entirely concealed inside after duplication.



3. Innovative Micro-Adjustment Base

To all-direction micro-adjustment base consisting of a key cutting guide and micro-adjustment knob is innovatively developed, making it possible to achieve ultra-high precision duplicating.



4. Efficient Cutting Guaranteed

The spindle speed reaching 1050 rpm guarantees high efficiency in cutting. More importantly, it helps minimize the wear and tear of the cutter and ensures high-quality cutting results.



5. Lifelong Free Technical Support

With "Customer Service" on XHorse APP, you will get live and free technical support from a professional and dedicated team to help you tackle any problems.



6. Worry-free Warranty

A one-year(365 days) warranty is offered from the data you purchased the product.



Specifications:



Input Frequency: 47-63Hz

Spindle Speed: 1050rpm

Travel of Table: 46mm

Clamp Rotation Angle: 0 - 45 degree

Power: 145W

Input Voltage: 12V/DC

Motor Torque: 1.32Nm

Net Weight: 10.8Kgs

Gross Weight: 12.5Kgs

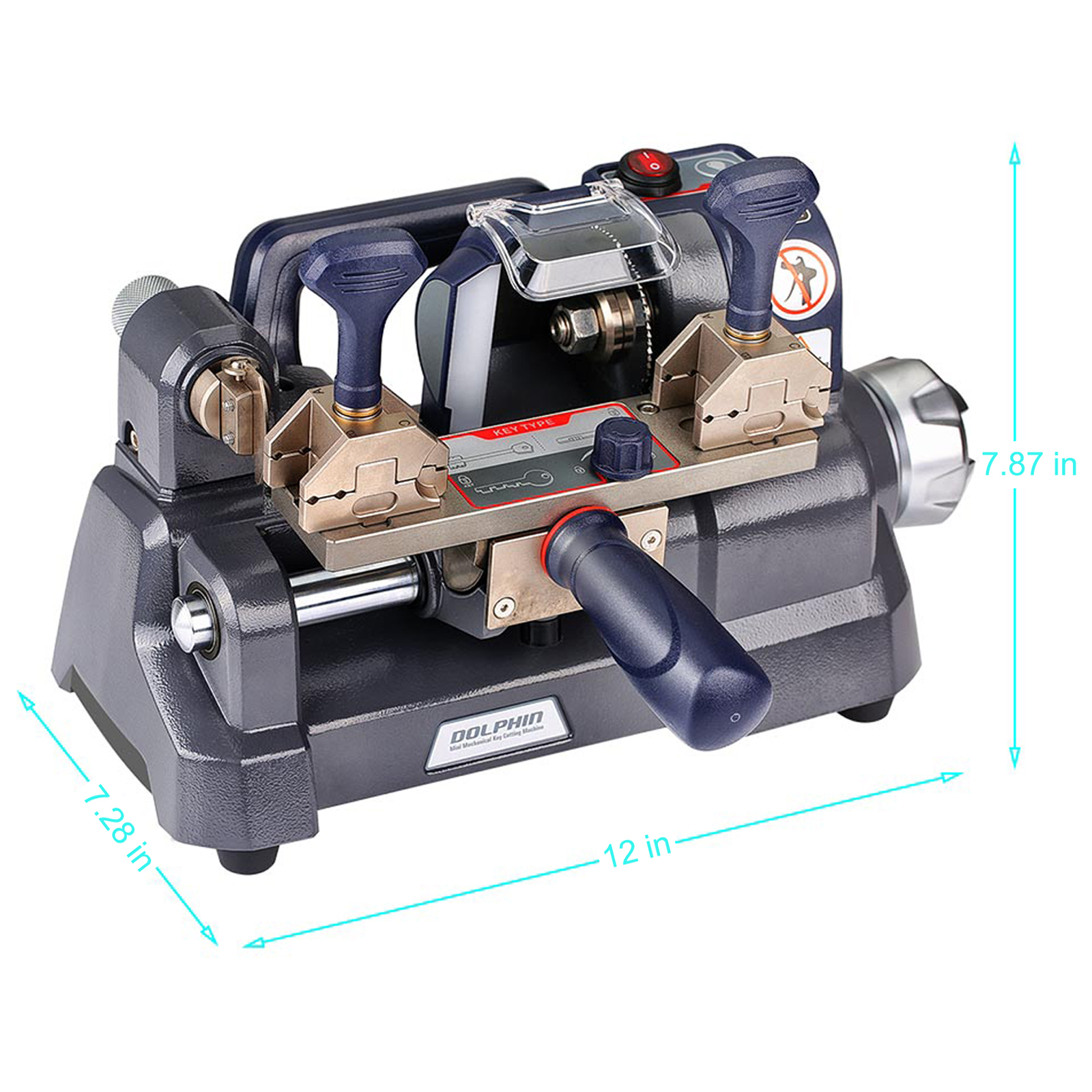

Machine Dimensions: 305*185*200mm

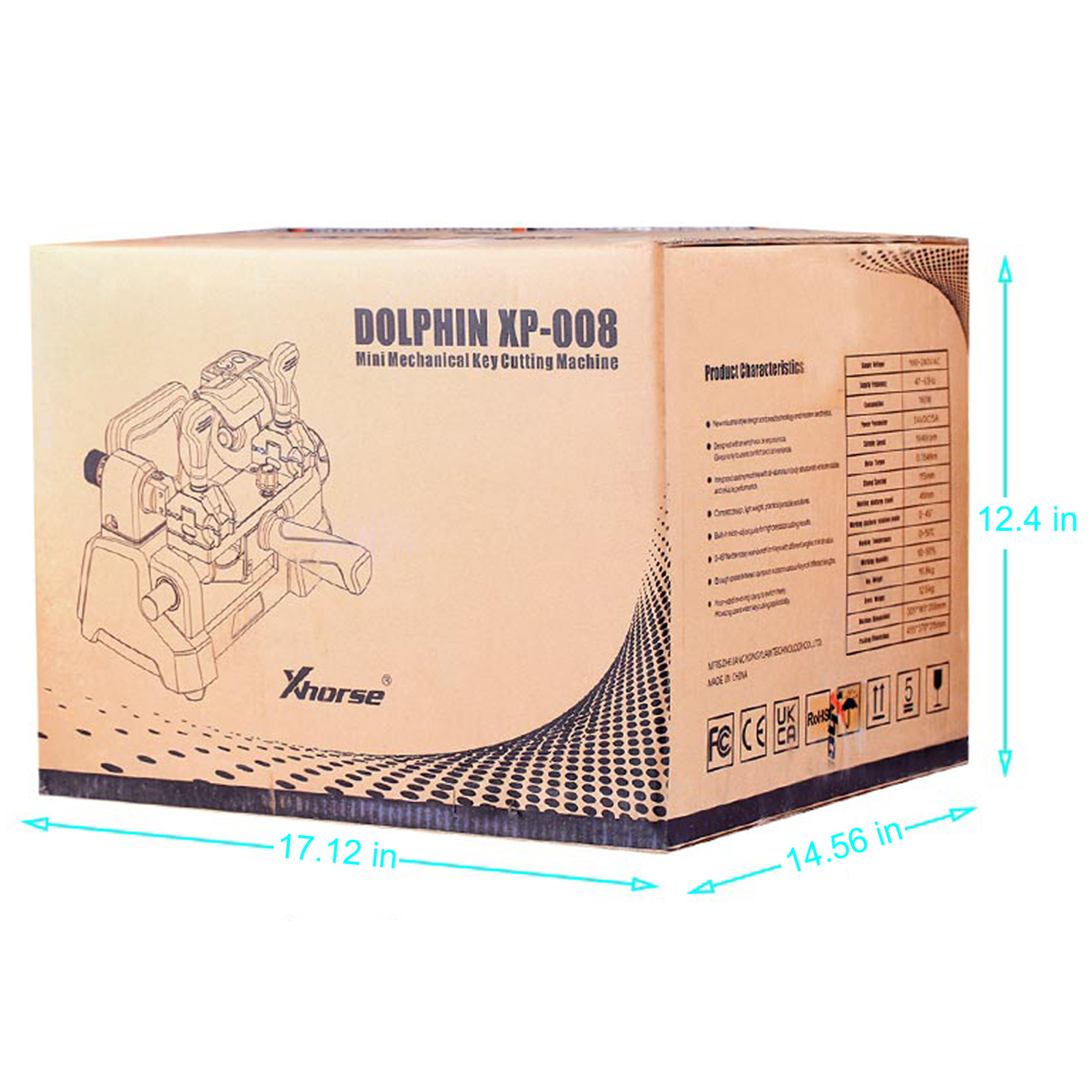

Package Dimensions: 435*370*315mm

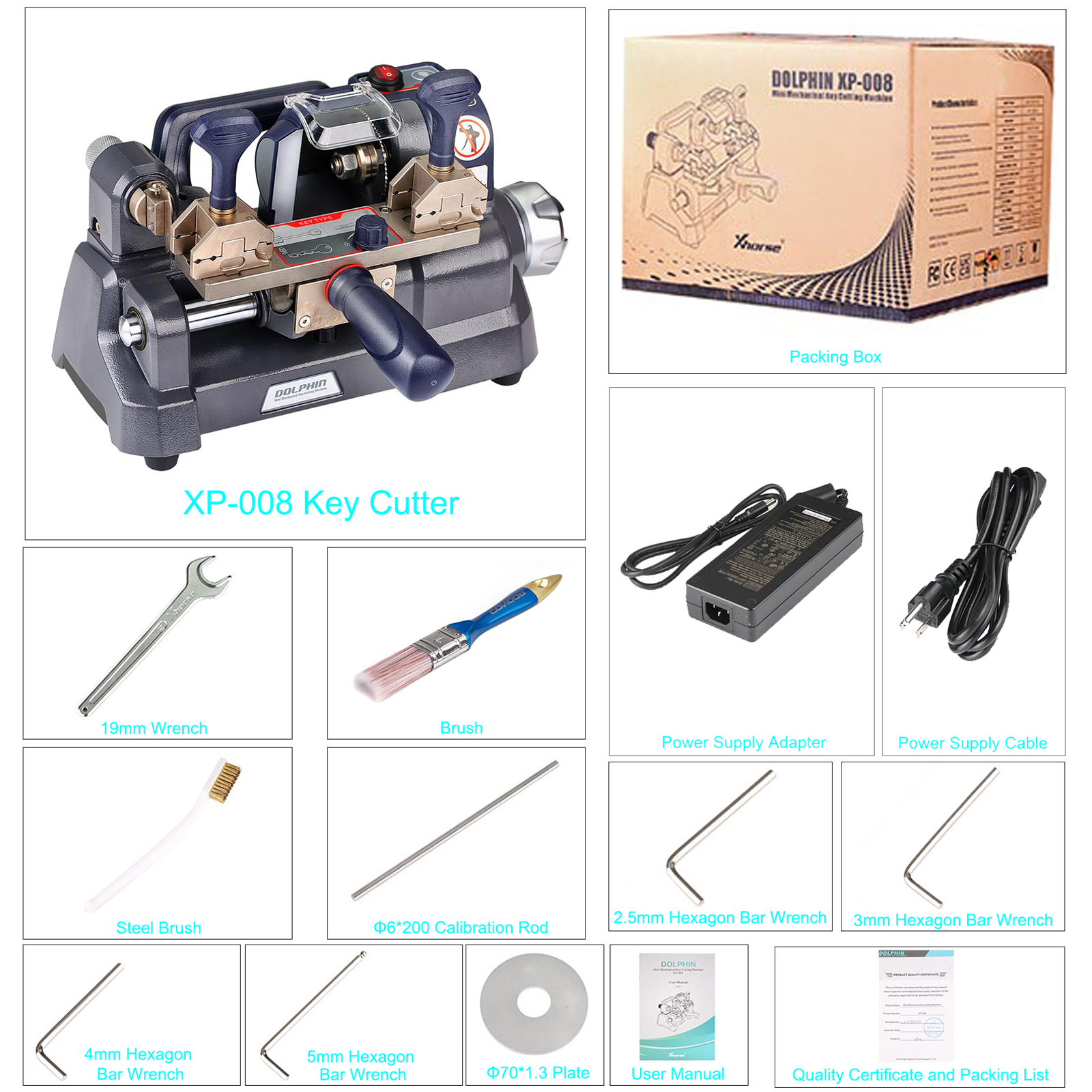

Packing List:



XHorse Dolphin XP008 Key Cutter
Main Clamp
Auxiliary Clamp

19mm Wrench

2.5mm Hexagon Bar Wrench

3mm Hexagon Bar Wrench

4mm Hexagon Bar Wrench

5mm Hexagon Bar Wrench

Steel Brush

Brush

Φ6*200 Calibration Rod

Φ70*1.3 Calibration Plate

Power Supply Adapter

Power Supply Cable

User Manual

Quality Certificate

Packing List

Packing Box
