Description:



SM3 Pro Scanmatik 3 Pro Pass-Thru Adapter is a updated version of SM2 Pro Scanmatik 2 Pro Adapter with CAN-FD and DoIP protocols. It offers widest support for SAE J2534-1/2 and TMC RP1210 standard features required by OEM vehicle diagnosis & reprogramming software, vehicle tuning and ECU reflash software like PCMFlash, BitBox, Combiloader, MDFlasher etc. Exclusive per-software features was implemented to extend vehicle and function coverage (Ignition State Emulation (VAG ODIS), K-Line Multiplexing (MB-DAS) and so on. J1850 VPW/PWM, Chrysler SCI interfaces were implemented to support legacy vehicles.



Features:



1. Supports USB or Wi-Fi connection to PC.

2. Galvanically isolated USB port.

3. Stable, easy-to-use Wi-Fi connection running on in-house developed Wi-Fi module firmware(no Serial Port emulation involved).

4. Fully protected transceiver cables (over-voltage, short-circuit).

5. Supports 24V onboard voltage(trucks & buses).

6. Load dump & over-voltage spike protection(withstand voltages up to 55V).

7. Full support for SAE J2534-1(V0404, V0202) and SAE J2534-2.

8. Full support for TMC RP1210C(heavy duty vehicles).



Specifications:



13*ISO-9141-2/ISO-14230-2 (K-Line)/Chrysler SCI channels multiplexed to J1962 OBD port pins [1,2,3,6,7,8,9,10,11,12,13,14,15].

1*J1850 VPW/PWM Channel

5*CAN2.0/CAN-FD Channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10

1*Single Wire CAN (GM)

1*10/100BASE-TX Channel(DoIP)

Programming Voltage (FEPS) generator (5-24V) multiplexed to OBD Port pins [6, 8, 11, 12, 13, 14]

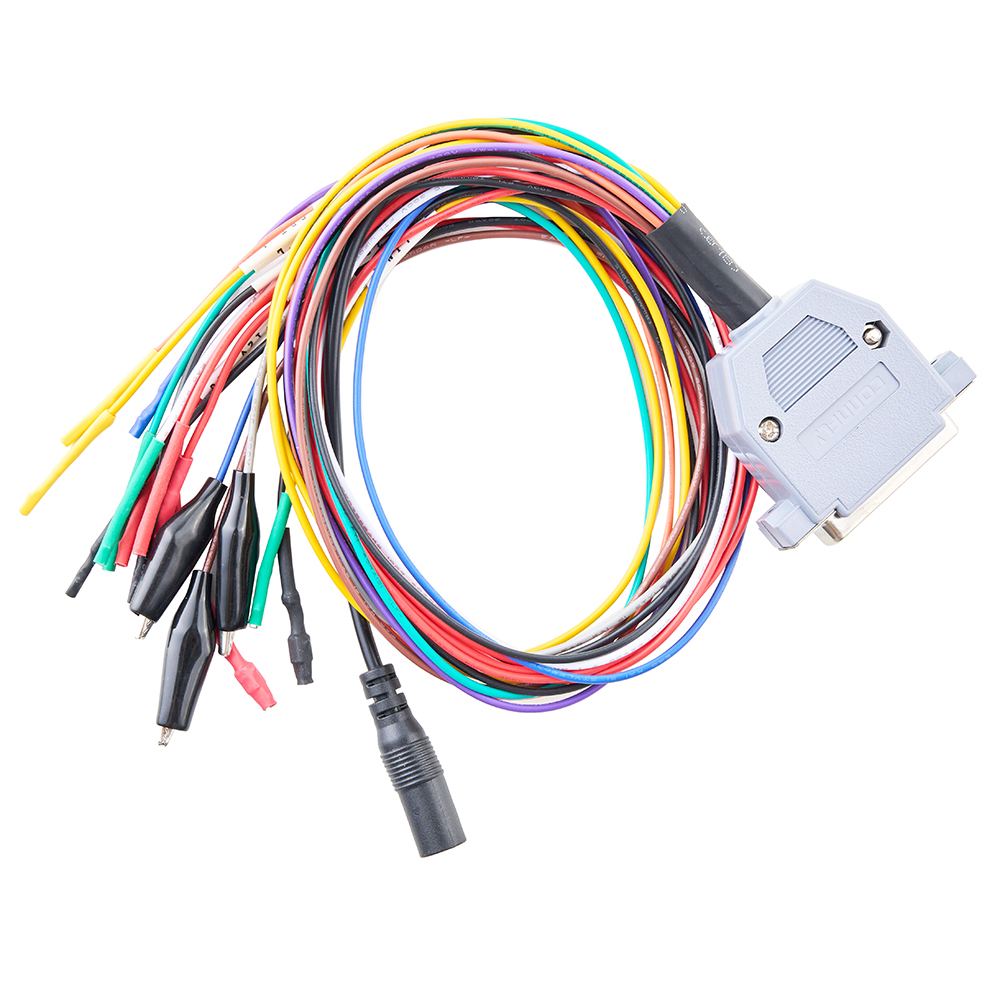

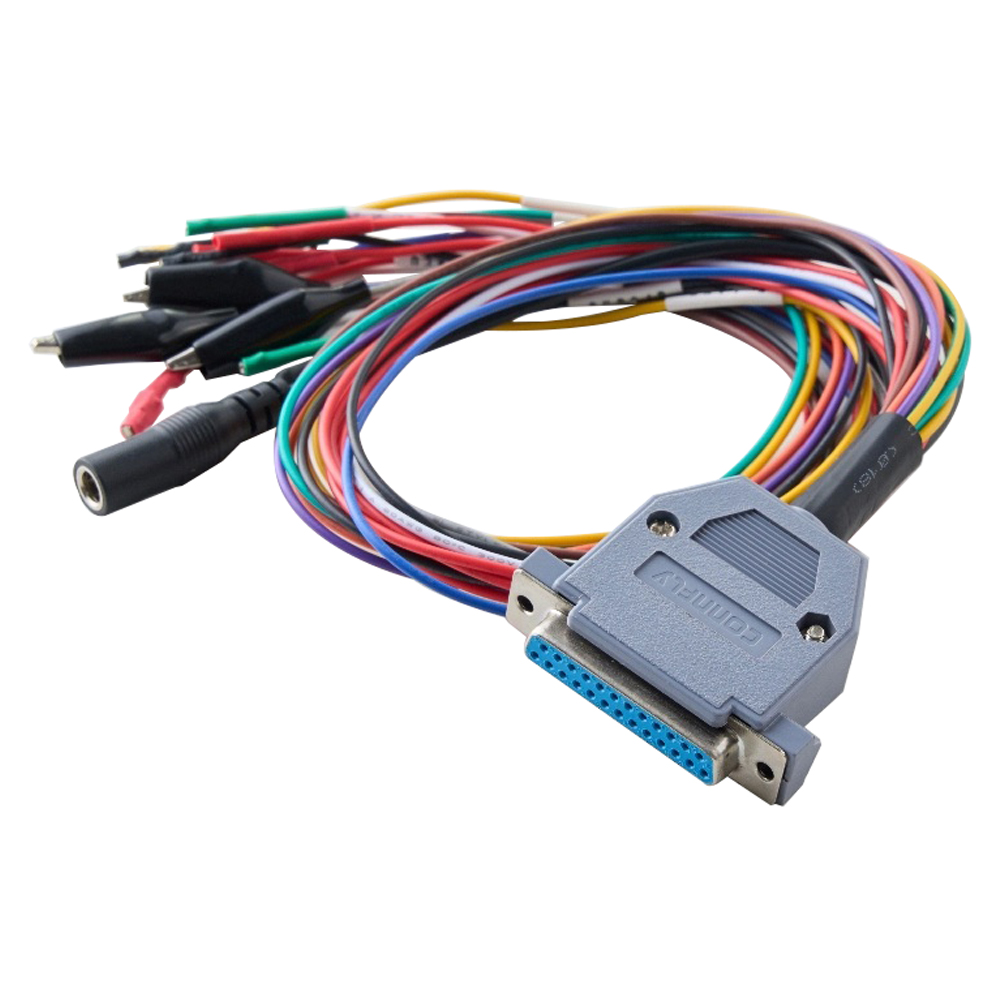

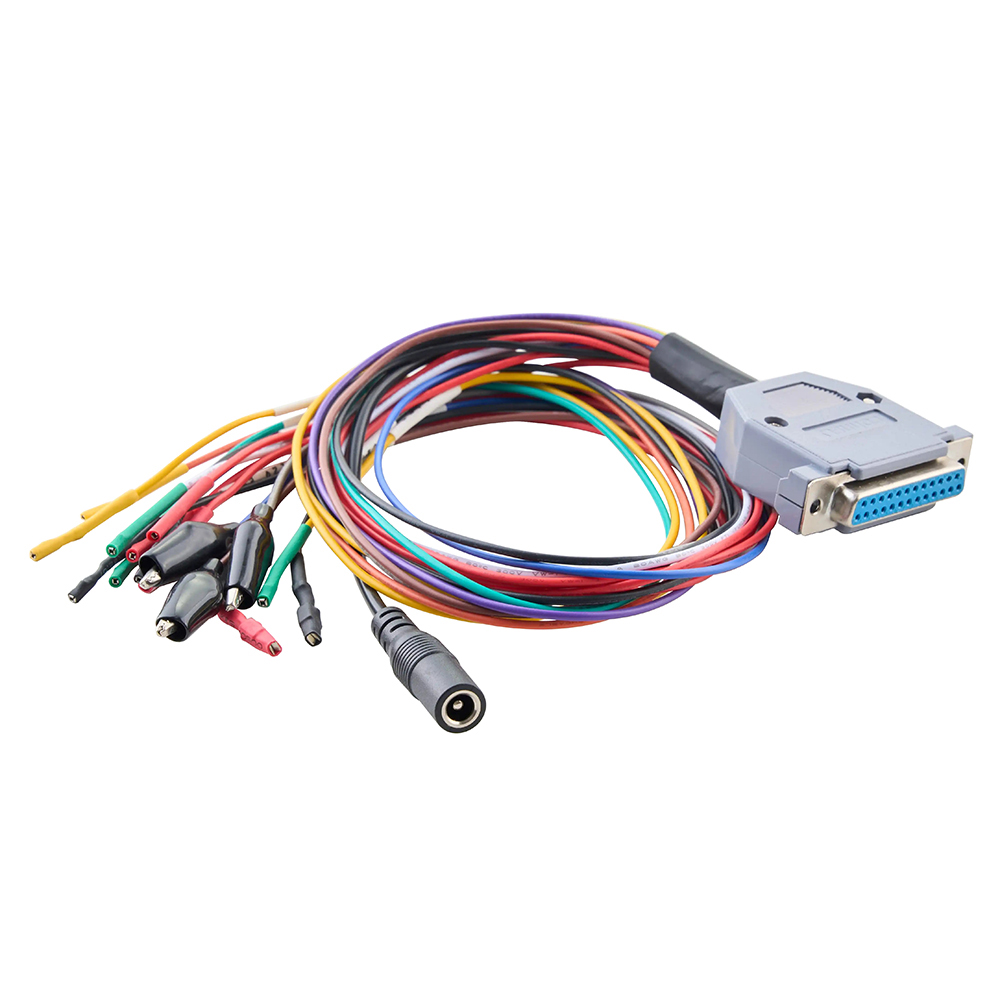

Separate AUX output for Programming Voltage to DB25 (Requires AUX-type main cable to convert to banana-jack.)

Bluetooth Range: <=10m(Class 2)



Documents & Software:



Software Test Report (V2.21.23)

Software Setup Package (V2.21.29)



Note:



Scanmatik 2 Pro SM2 Pro production has ended on 03.12.2024, but it will continue to get software and feature updates.

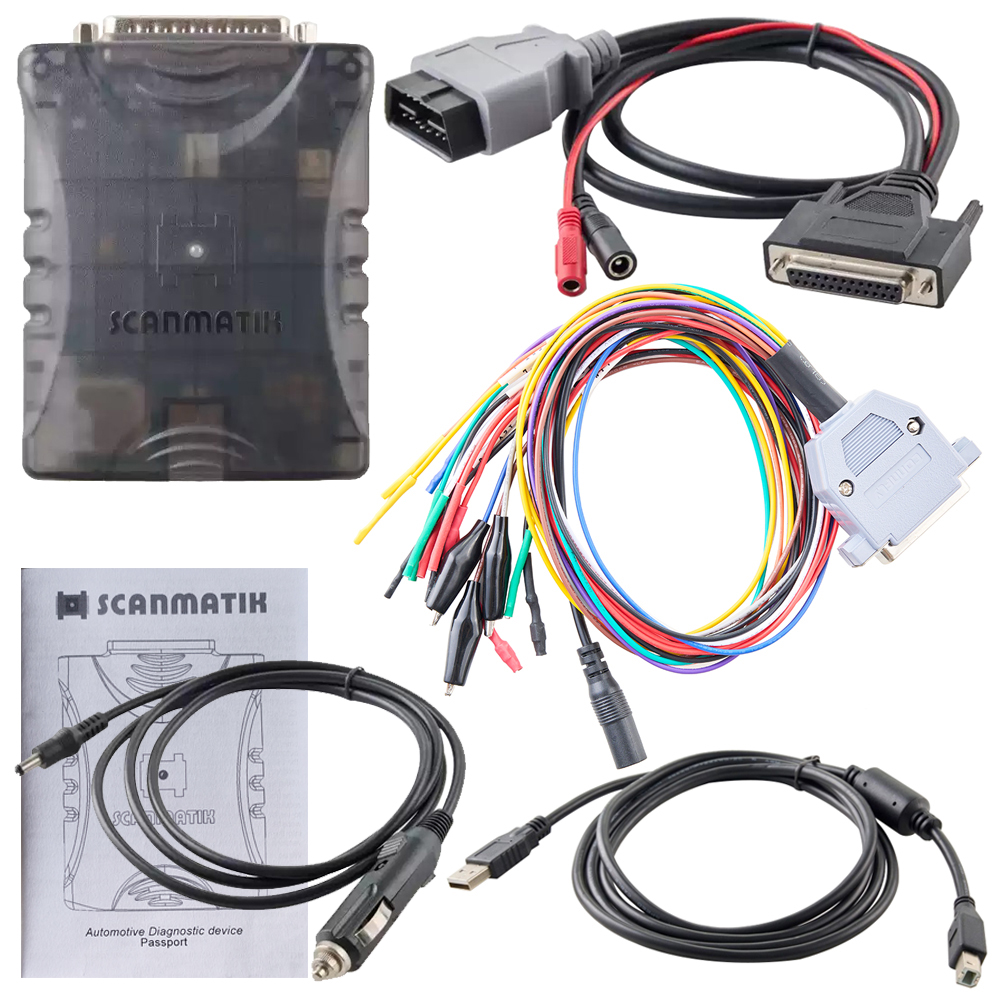

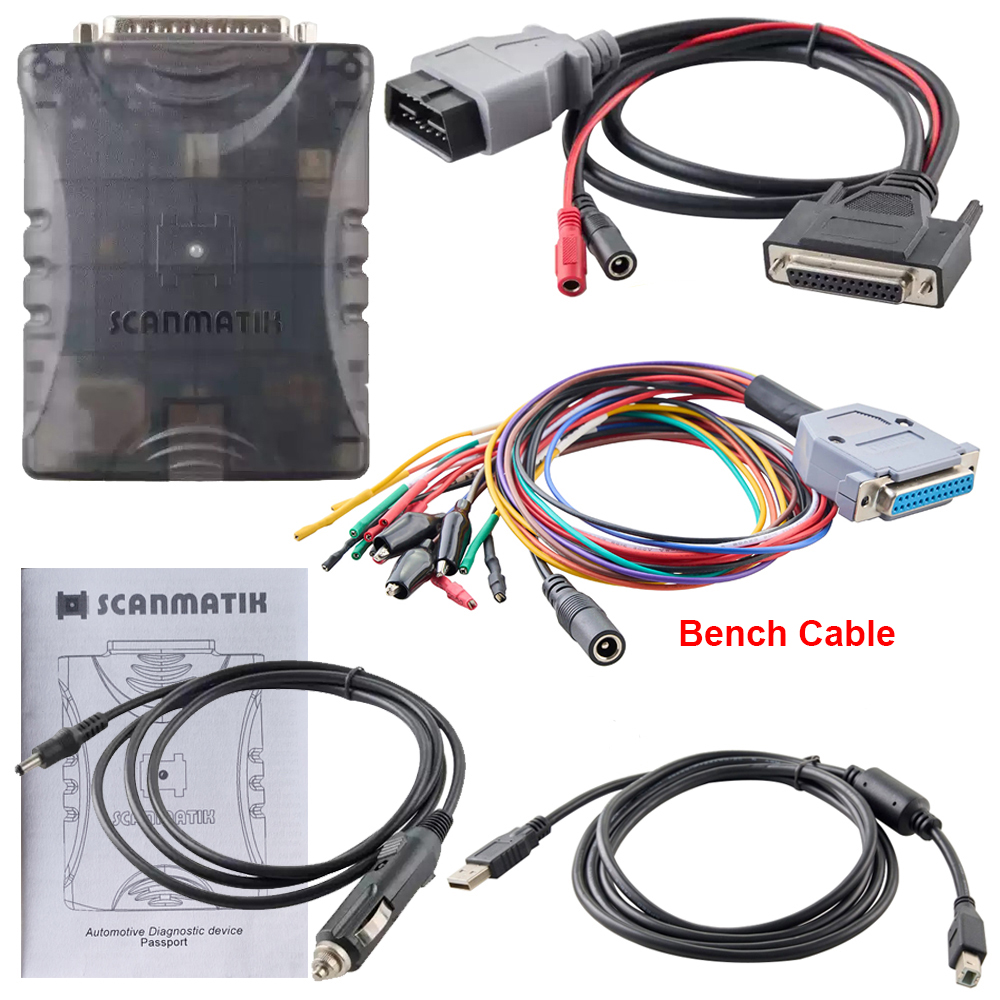

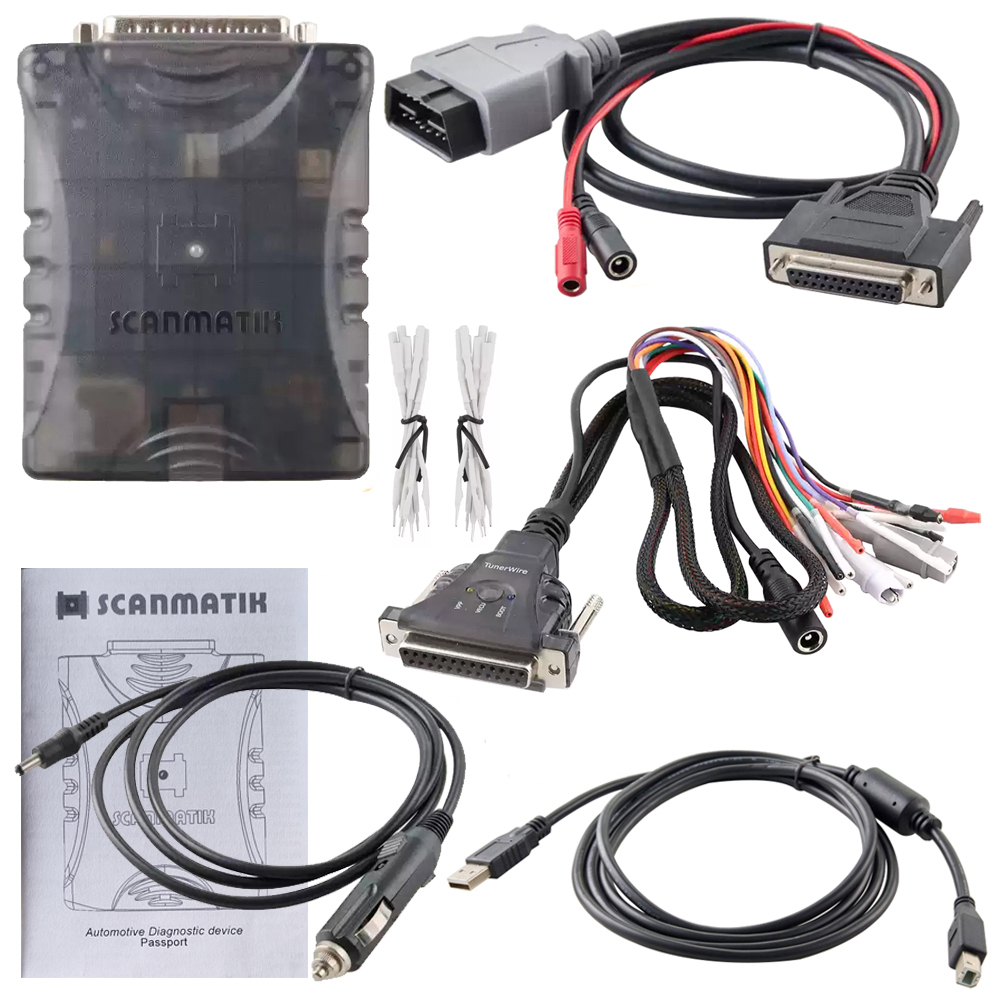

Packing List:



SM3 Pro Scanmatik3 Pro Professional Programming Device

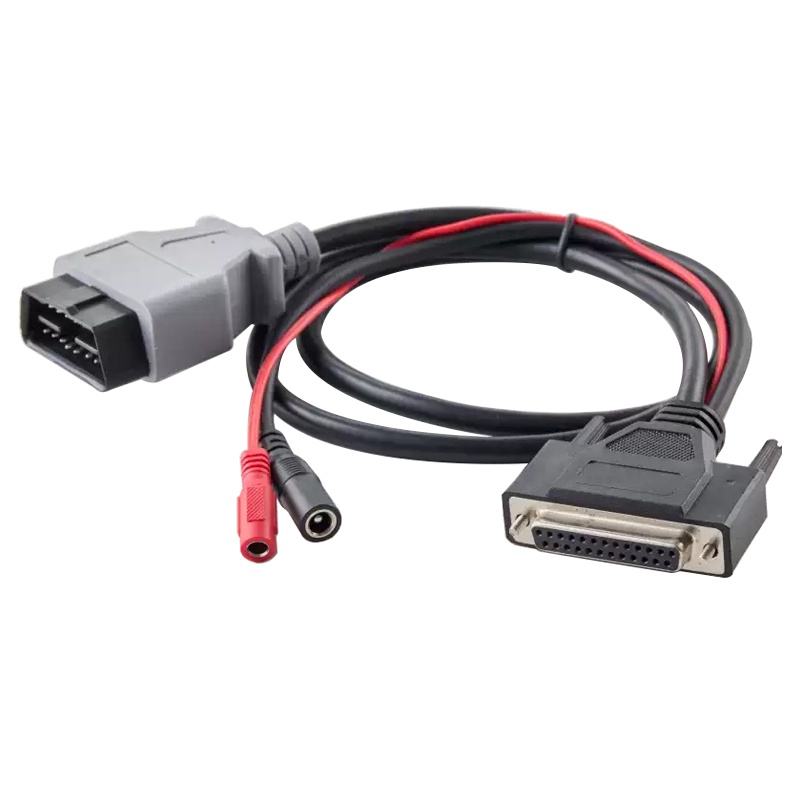

OBD-II to DB25 Main Cable with AUX Output

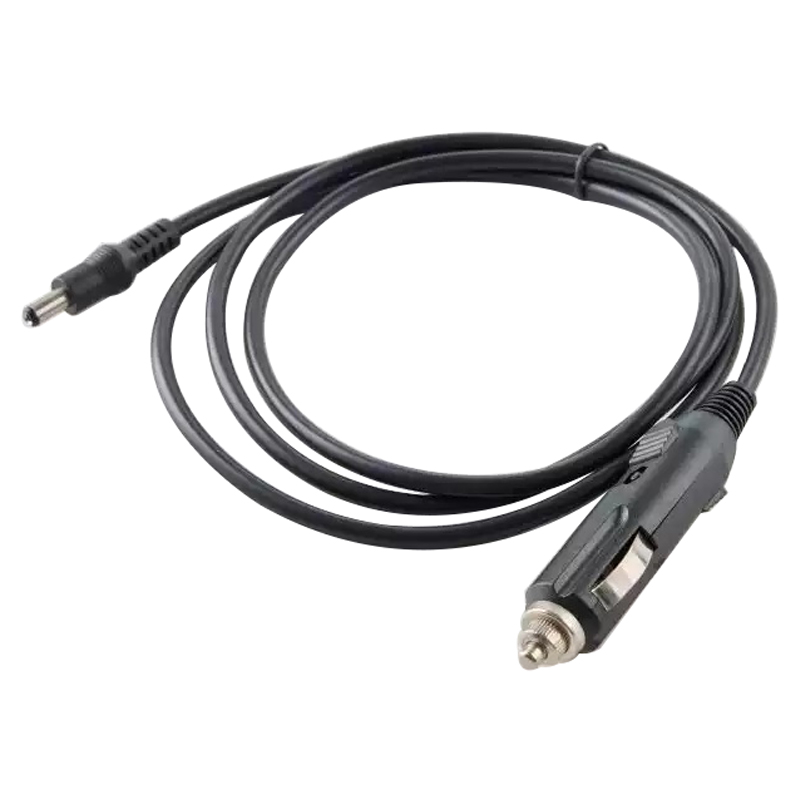

Cigarette Lighter Power Cable

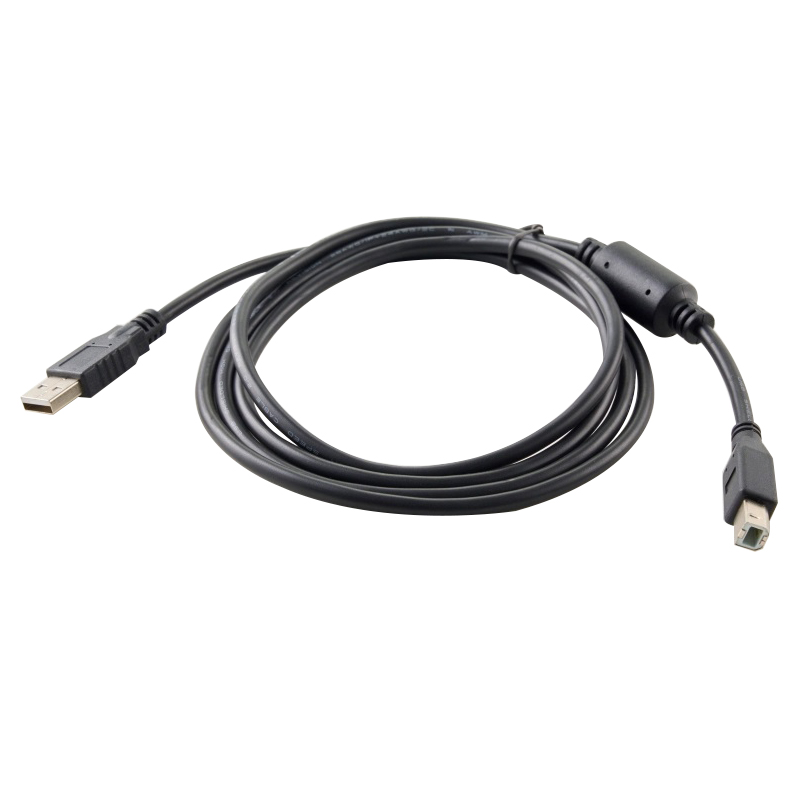

USB Type-B Cable
User Manual

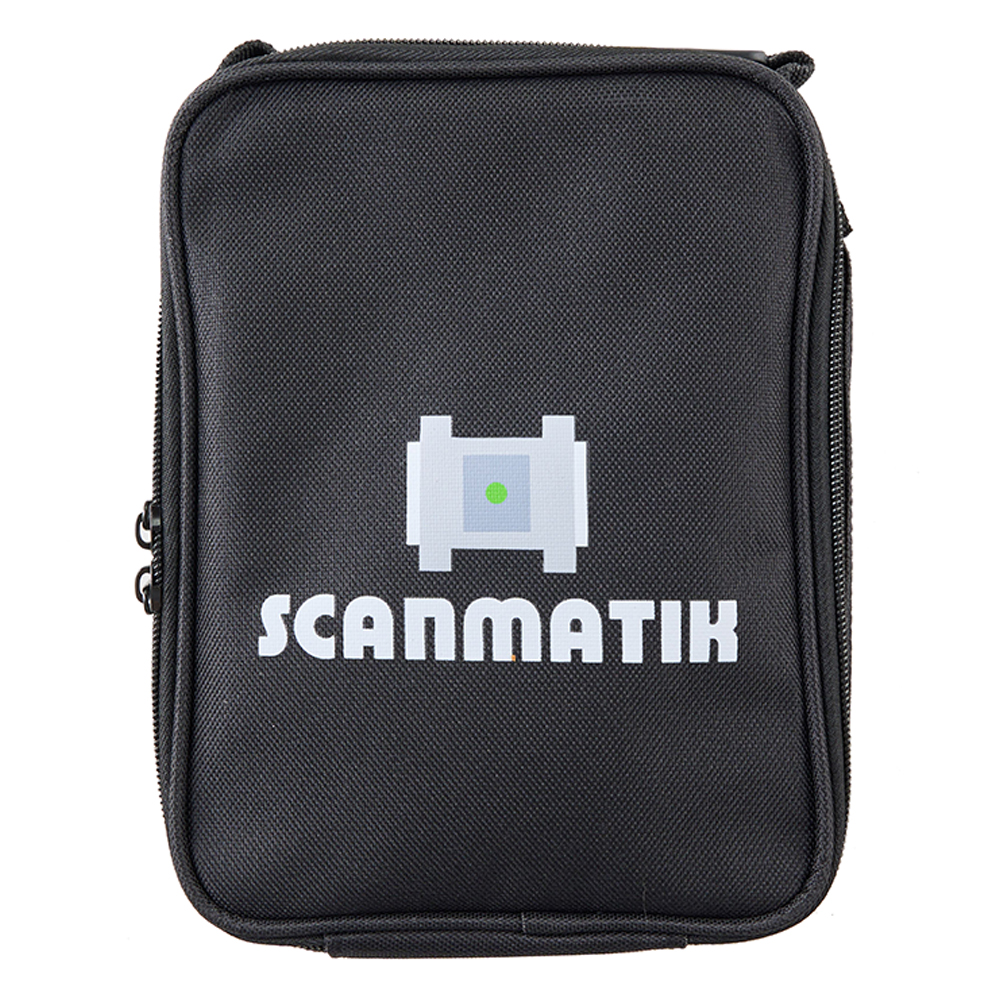

Carrying Pouch
