Description:

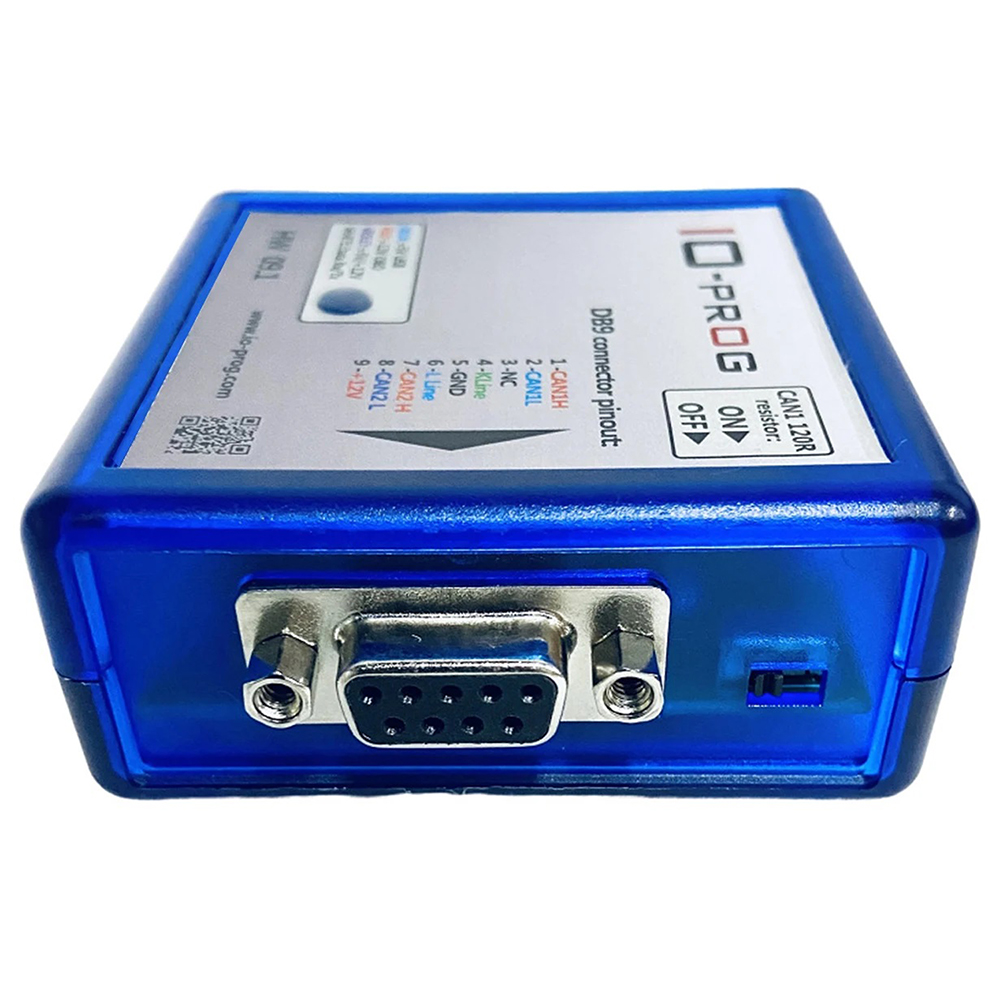

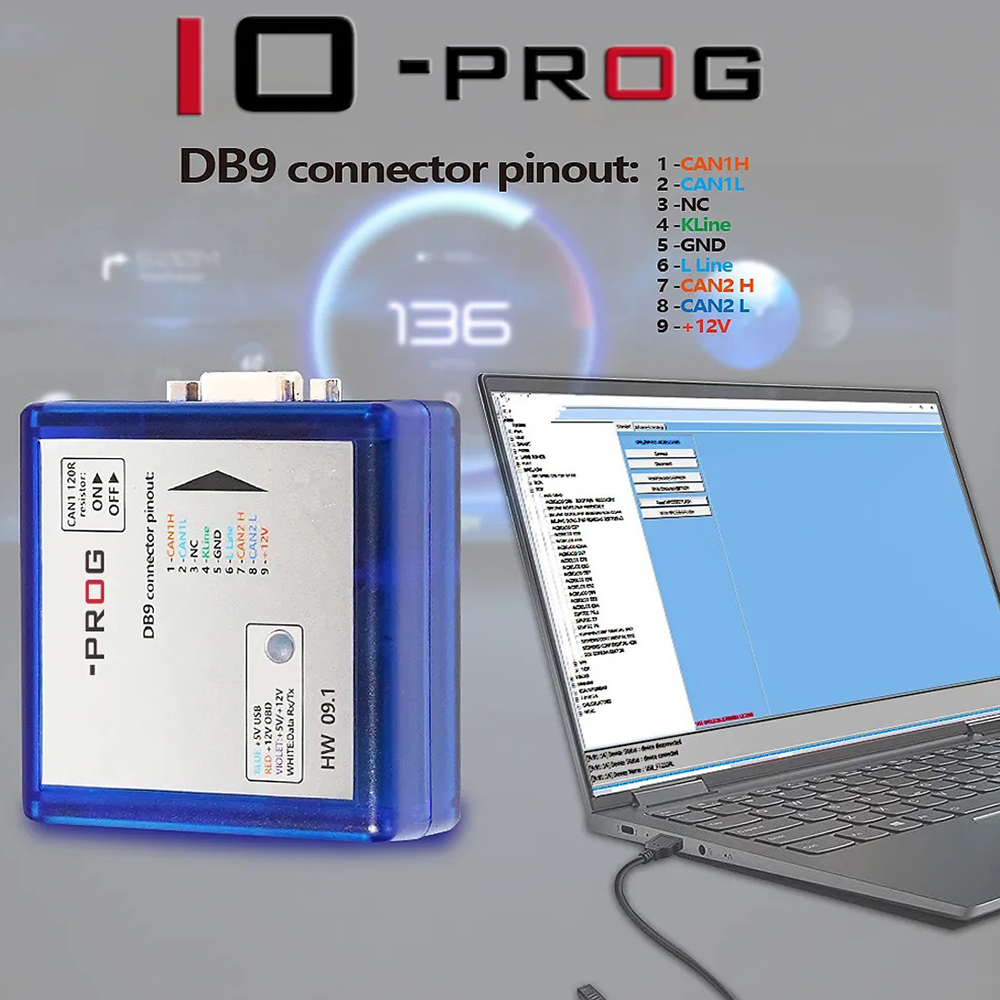

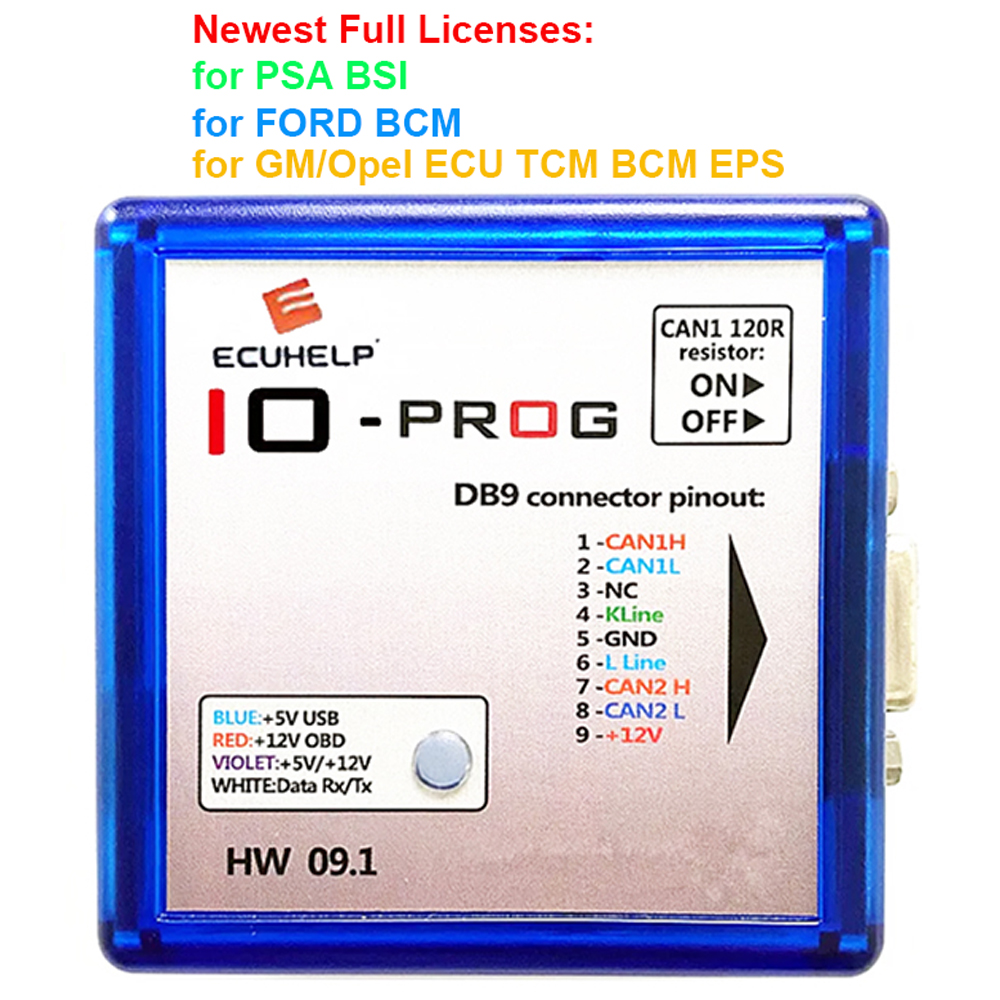

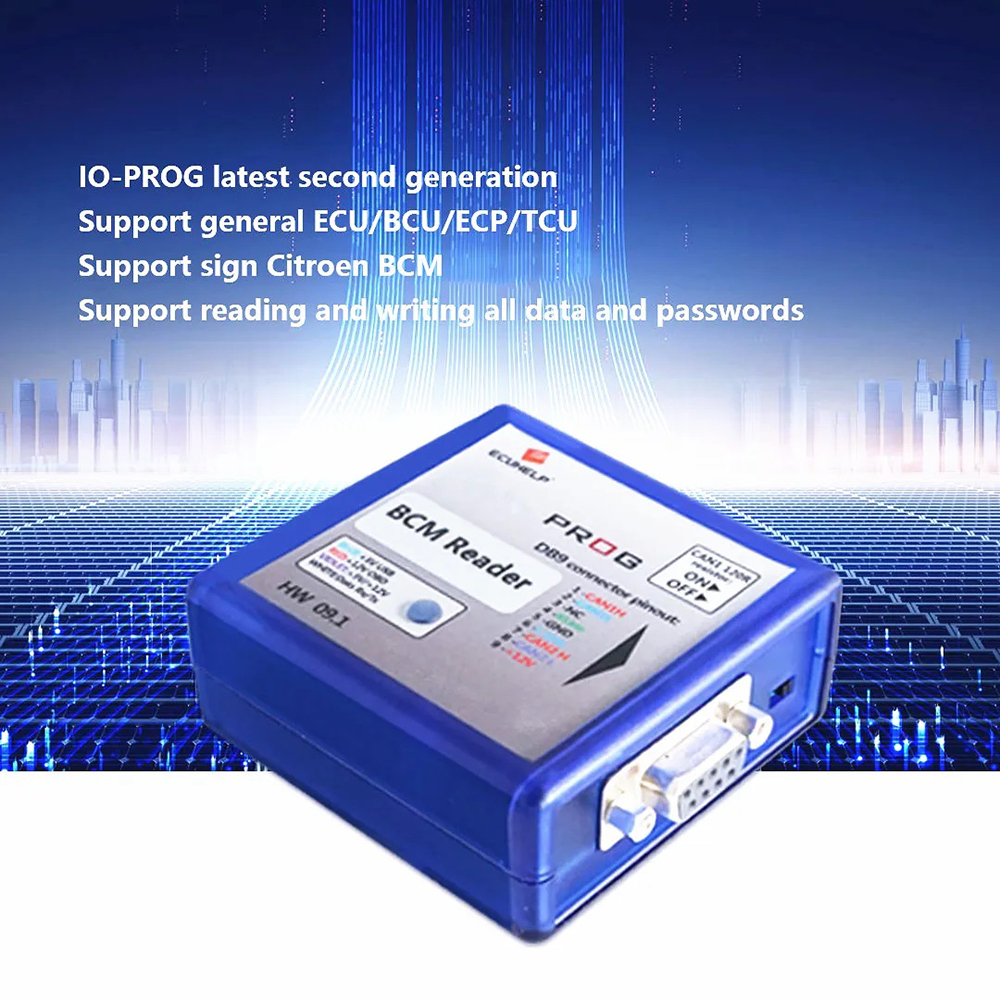

I/O Terminal (I O Prog / I/O Prog) is a software and hardware solution designed for work with a great number of ECUs, automatic transmissions, BSI installed in VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar,Land Rover, Lancia, Maseratti, Hyundai, Kia, Daewoo and other vehicles using the OBD-II data link connector.



Advantages:



1. Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device.



2. Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.



3. Checksums testing and correction.



4. Safe reading and flashing



Functions:



1. MULTITOOL for PSA BSI:

Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160

R/W, show PIN;

Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;

Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show

PIN, SC667050 FLASH R/W;

Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;

Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;

Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;

Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM

95128 R/W, show PIN,29LV400BB FLASH R/W;

Johnson Controls easy CAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM

95128 R/W, show PIN, Johnson Controls easy CAN4F1M-32 FLASH R/W; SPC560B60+95128 Support list as below: CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W



2. MULTITOOL for Ford BCM

For FORD LEAR BCM MC9S12XEP768. MC9S12XEP768



3. In addition, fixed the bug that Opel/GM Delphi BCM could not read. OPEL BCM DELPHI 70F3238 + 93C86

OPEL BCM DELPHI 70F3379 + 93C86

OPEL BCM DELPHI 70F3533/70F3634:

Also this set now can calculate seed key for Opel BCM that the seed is 5 bytes.



4. New Licenses Added For Opel/GM :

ECU+BCM+TCM+ESP for GM/Opel Wiring Diagrams

IO-PROG Terminal Multi Tool for reading and writing OPEL / GM ECU BCM TCM EPS

For reading / writing OPEL / GM ECUs BCM TCM EPS by CAN (OBD or on bench).

Also software has boot pin recovery mode.



Add Opel ECU E84 E98 Reading and Writing compared to the old version.

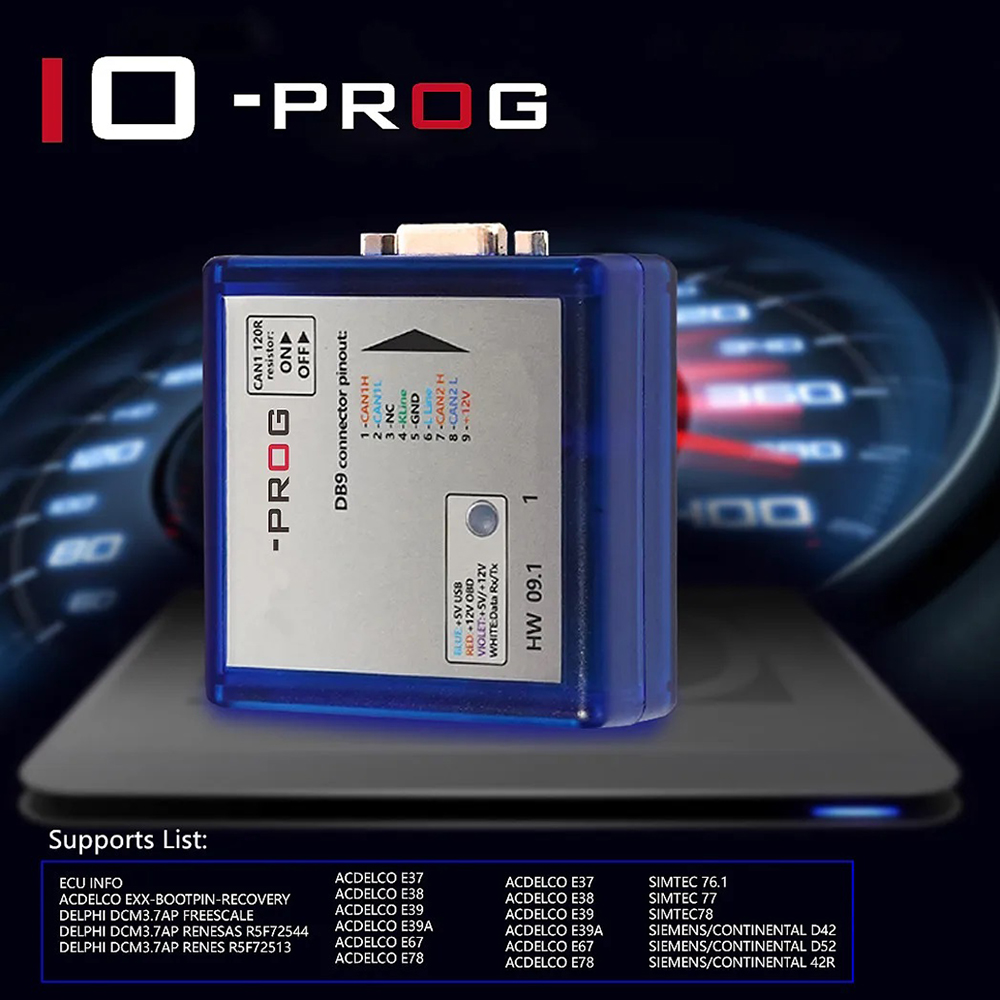

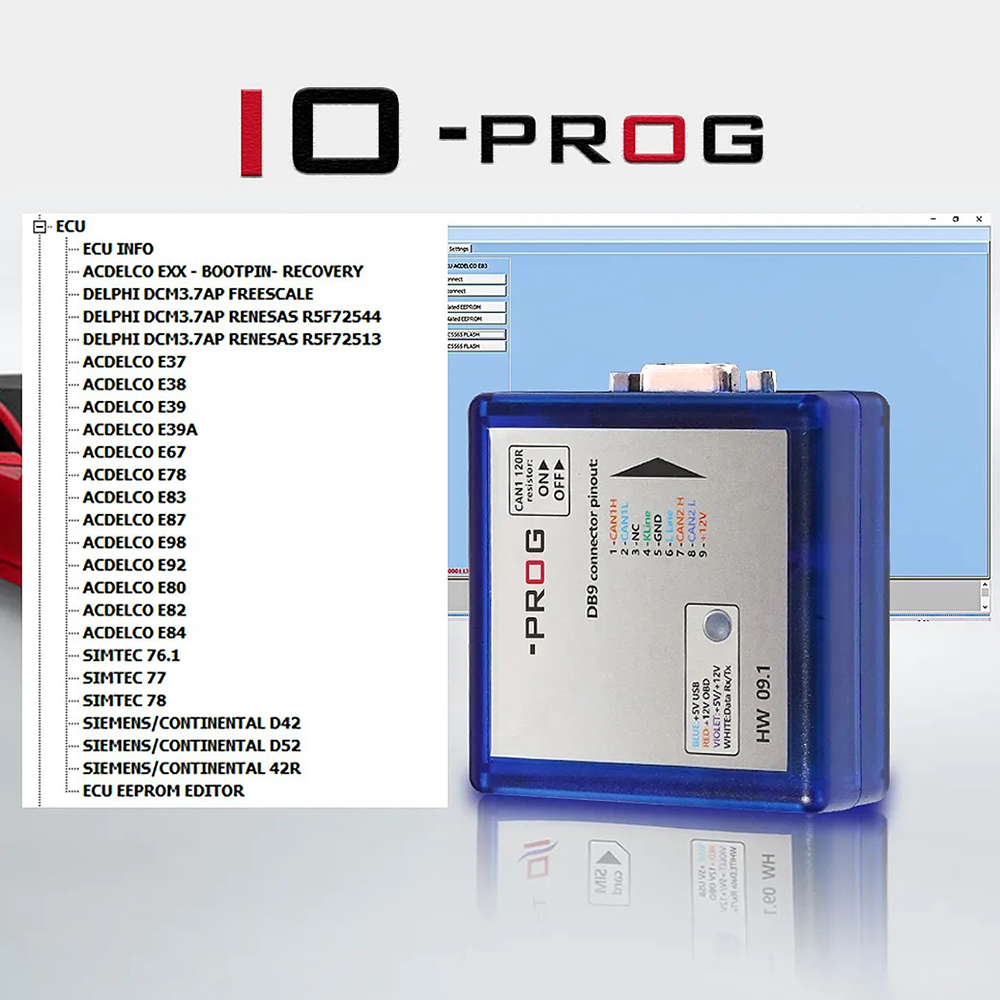

Supported for OPEL/GM ECU Types

ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);

ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);

EEPROM DUMP VIEWER, EDITOR.



5. MULTITOOL for OPEL BCM

Supported BCM/BSI Types:



OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W,show PIN, reset PIN;

OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.



6. MULTITOOL for OPEL/GM TCM

Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).



Supported OPEL/GM TCM Types:



TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).



7. MULTITOOL for OPEL/GM EPS

Reading/writing of OPEL/ GM EPS modules via CAN ( OBD or wired on the bench).



Supported OPEL/ GM EPS Types:

EPS BOSCH 70 F 3187 + 95080 70 F 3187 FLASH R/ W 95080 EEPROM R/ W. CAN (OBD).
