Description:

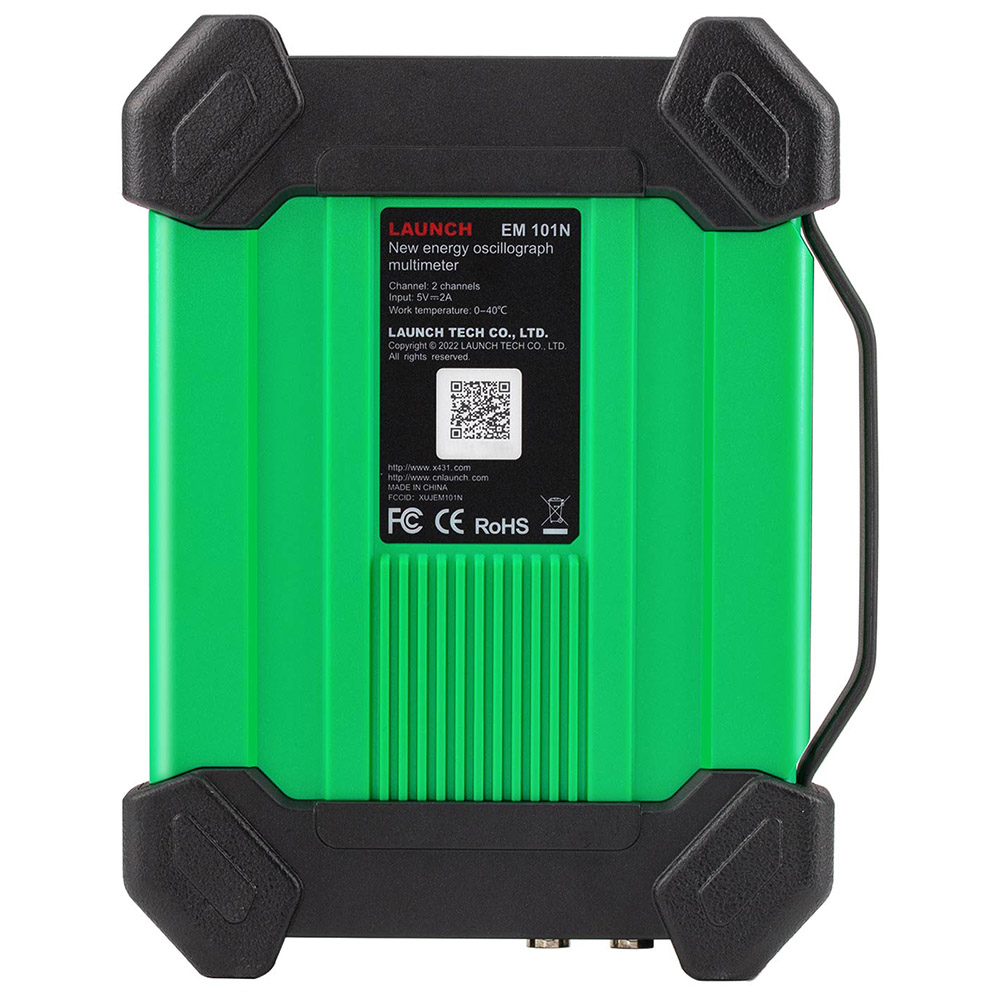

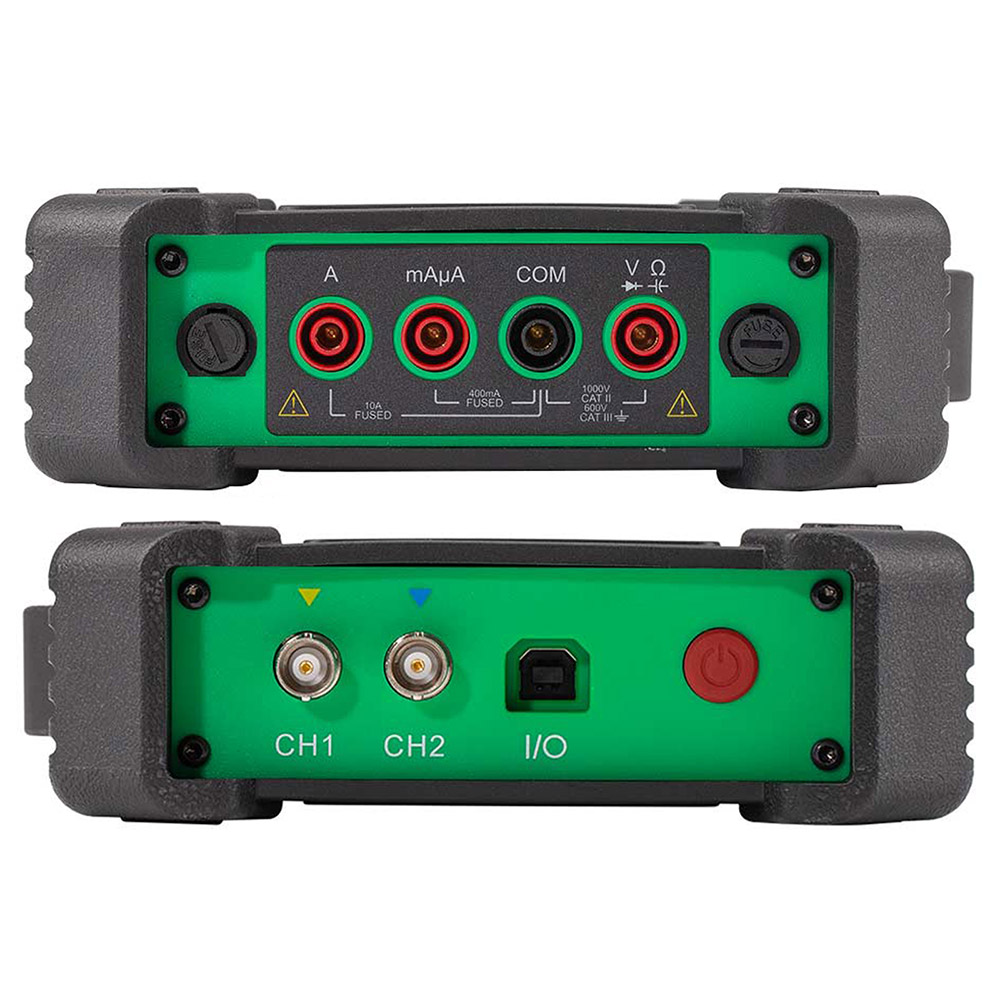

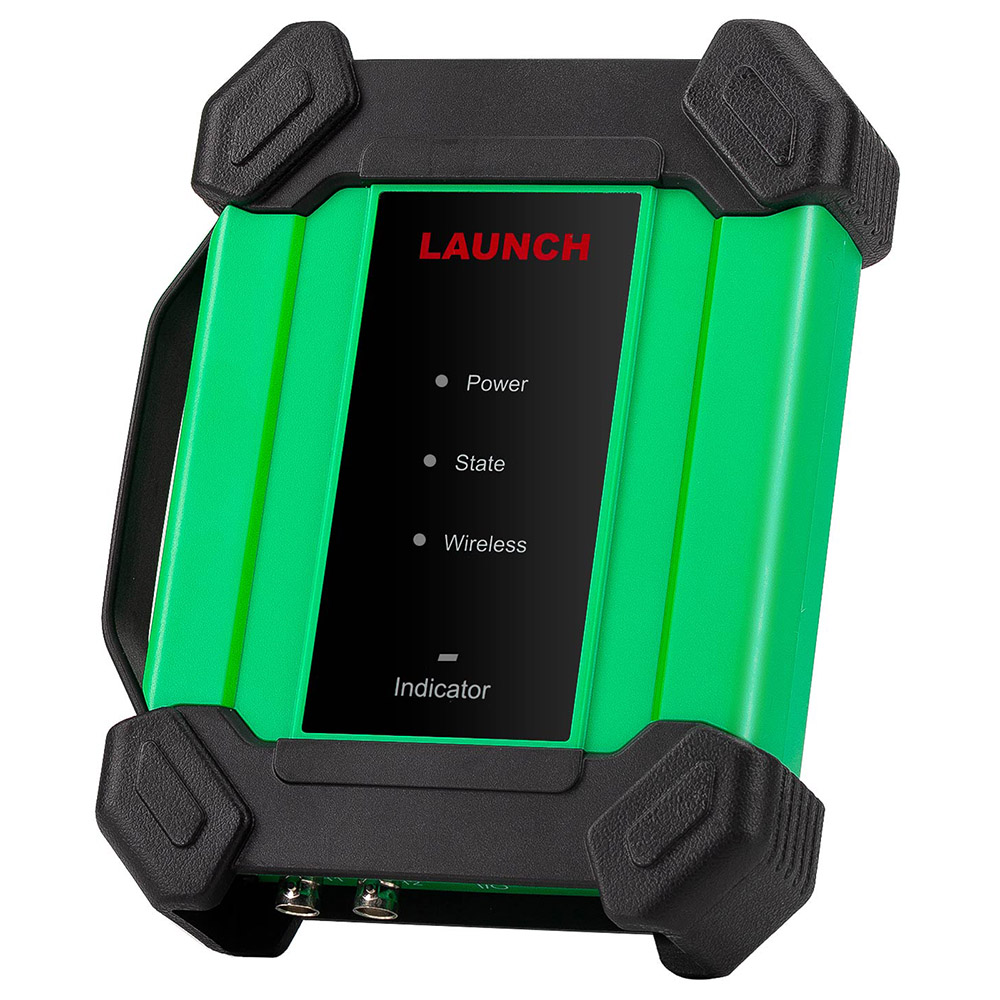

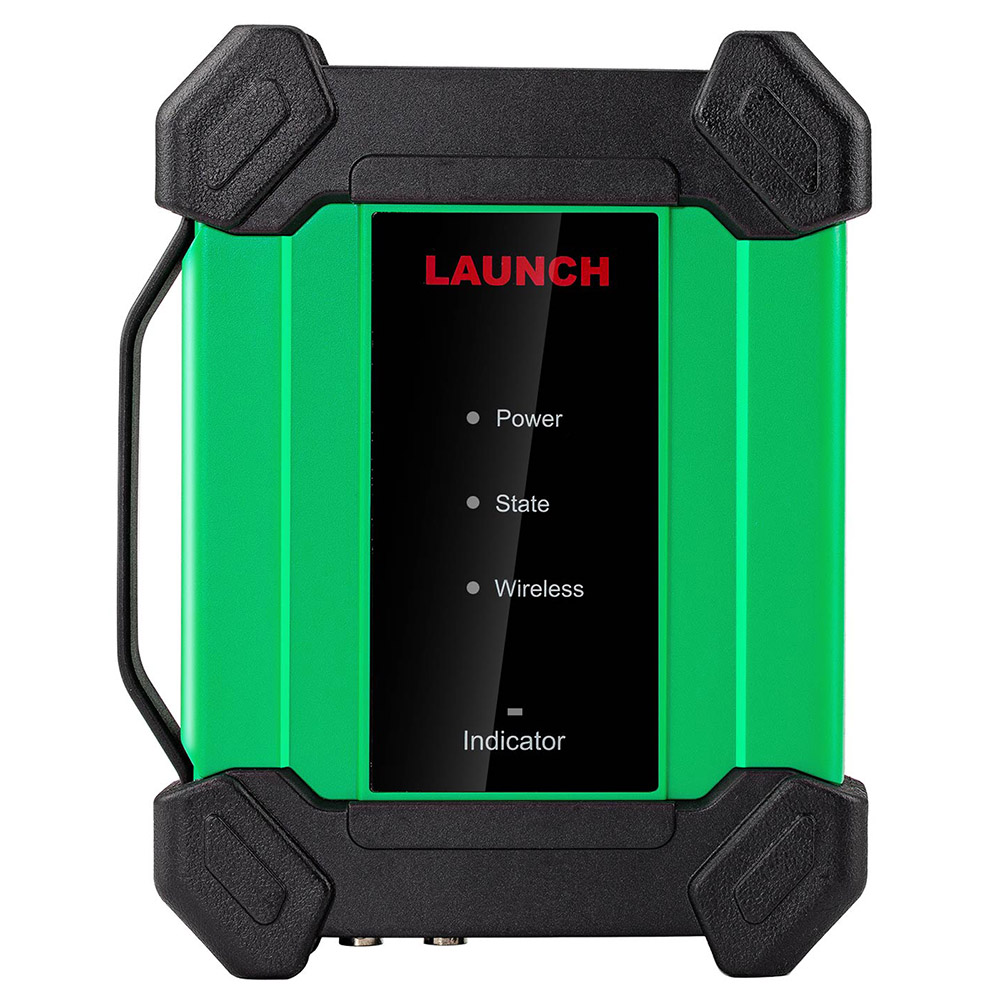

LAUNCH EM101N is composed of hardware and software. Hardware includes EM101N module and connection wire. The Oscilloscope and Multimeter APP are installed on diagnostic tool.



Automotive oscilloscopes assist the auto repair technician with the ability to quickly identify faults on automotive electronic equipment and wiring. The oscilloscope sweep speed is far greater than the signal frequency of such vehicles, usually 5-10 times of the measured signal and quickly acquire the circuit signal while slowly displaying the waveform for observation and analysis.



The built-in multimeter provides simple measurements to test voltage, current and resistance to help determine faults.



The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.



Features:



1. 2-channel oscilloscope with multimeter function for EV vehicles.

2. Brand-new diagnostic APP with user-friendly interface, convenient and easy use, which supports local saving and opening of waveforms.

3. Supports both wired connection and wireless connection with supported X-431 diagnostic tools.

4. The brand-new UI style design supports three display modes, which can be freely selected and switched at will.

5. Rich accessories, pricker sets, multimeter pens, crocodile clips, oscilloscope channel test lines, etc.

6. It is equipped with a 3.1Ah battery and can also be used wirelessly.

7. The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.



Specifications:



Multimeter:

DC Voltage: automatic range, test range: ±600V

AC Voltage: automatic Range, test range: ±600V

DC Current: automatic range, test range: ±10A (it is necessary to connect an external sensor for large range current.)

AC Current: automatic range, test range: ±10A

Average Value Measurement (It is necessary to connect an external sensor for large range current.)

Resistance: automatic range, test range: 0~6MΩ

On and Off: tweet when less than 30Ω

Diode: 0.5V - 2.0V



Oscilloscope:

Channel: 2 analog channels

Real-Time Sampling Rate: max. 50MHz/s

Time Base Range: 1us/div ~ 10s/div, step by 1 ~ 2 ~ 5 times

Sampling Mode: normal sampling, peak detection, average

Storage Depth: 1M

Input Coupling: DC, AC, grounded

Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF

Vertical Sensitivity: 2mV/div ~ 5V/div

Vertical Resolution: 8bits

Maximum Input Voltage: 40V peak value (DC + AC peak value)

Probe Attenuation Factor: 1X, 10X, 100X (probe support required)

Trigger Type: edge trigger, pulse width trigger

Trigger Mode: auto, normal, single

Automatic Measurement: peak-to-peak value, average value, maximum value, ,inimum value, top value, bottom value, frequency, period

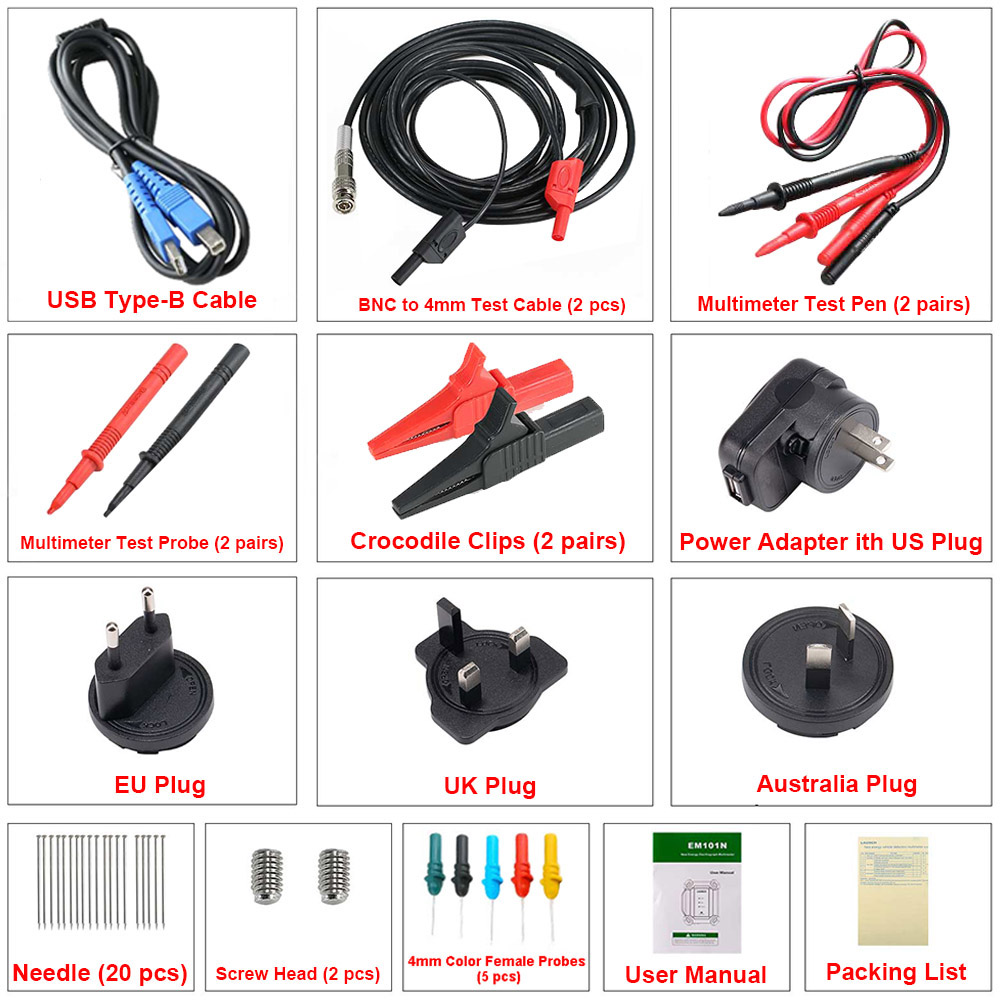

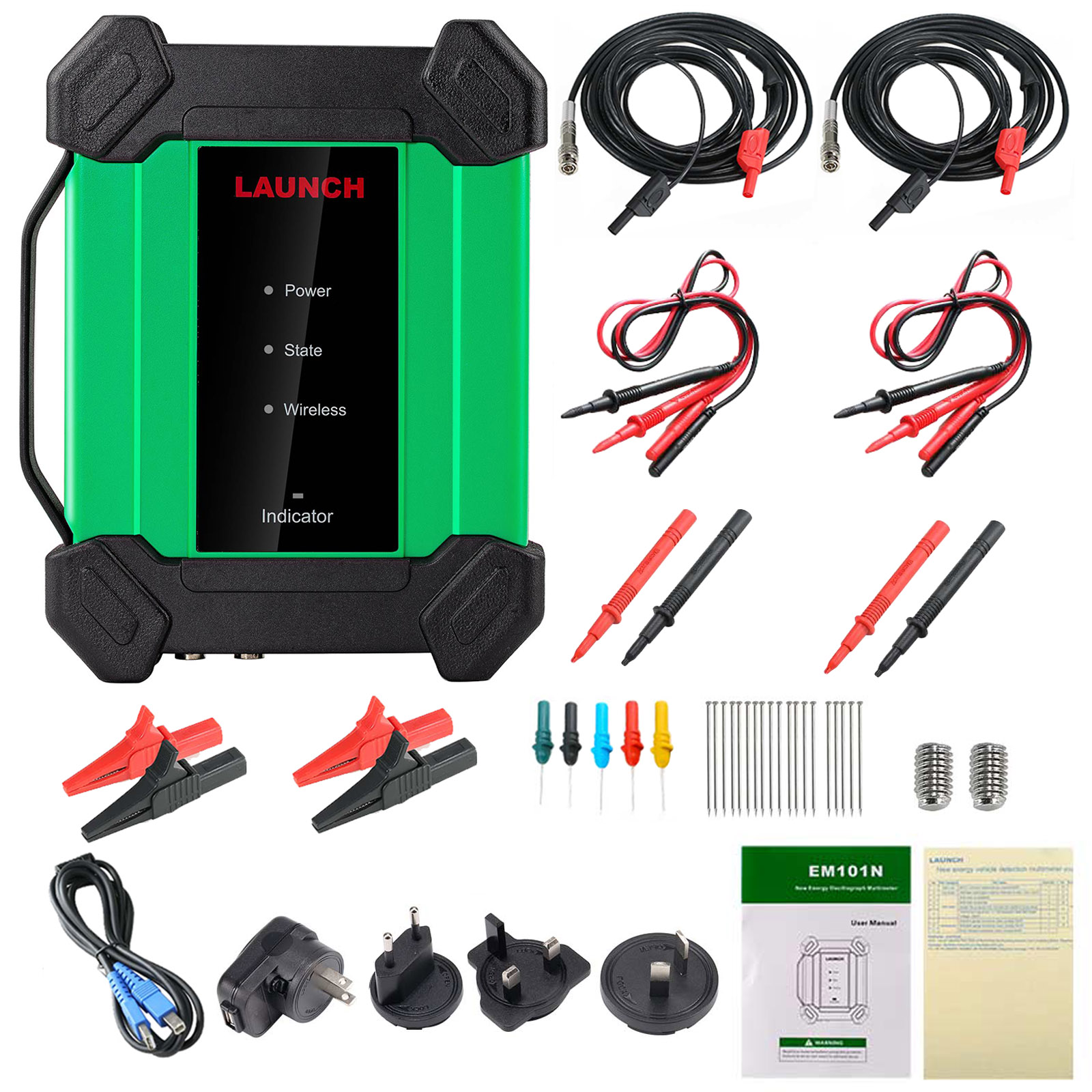

Packing List:



LAUNCH EM 101N Oscilloscope & Multimeter 2-Channel Scopebox

BNC to 4mm Test Cable (2 pairs)

Multimeter Test Pen (2 pairs)

Multimeter Probes (2 pairs)

Crocodile Clips (2 pairs)

4mm Color Female Probes (5 pcs)

Screw Head (2 pcs)

Needle (20 pcs)

USB Type-B cable

Power Adapter with US Plug

EU Plug

UK Plug

Australia Pug

User manual

Packing List

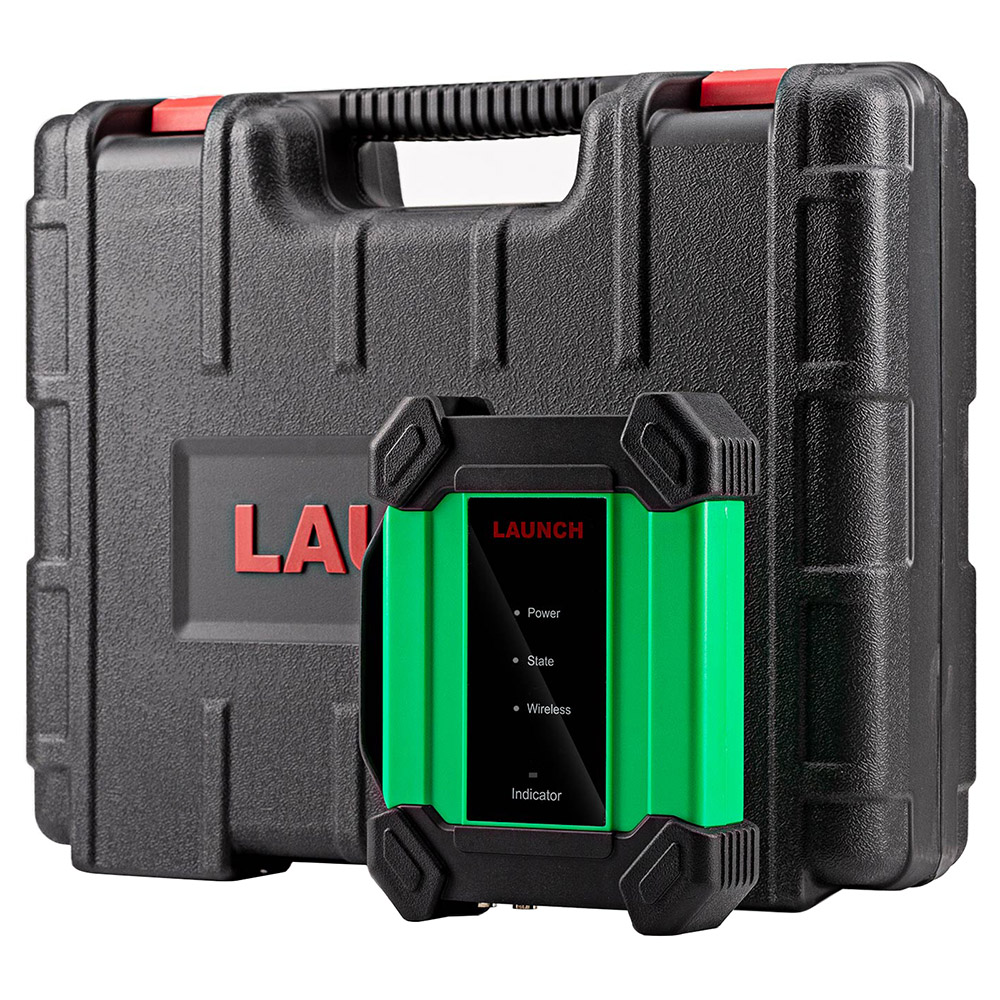

Plastic Toolbox

Packing Box
