Description:

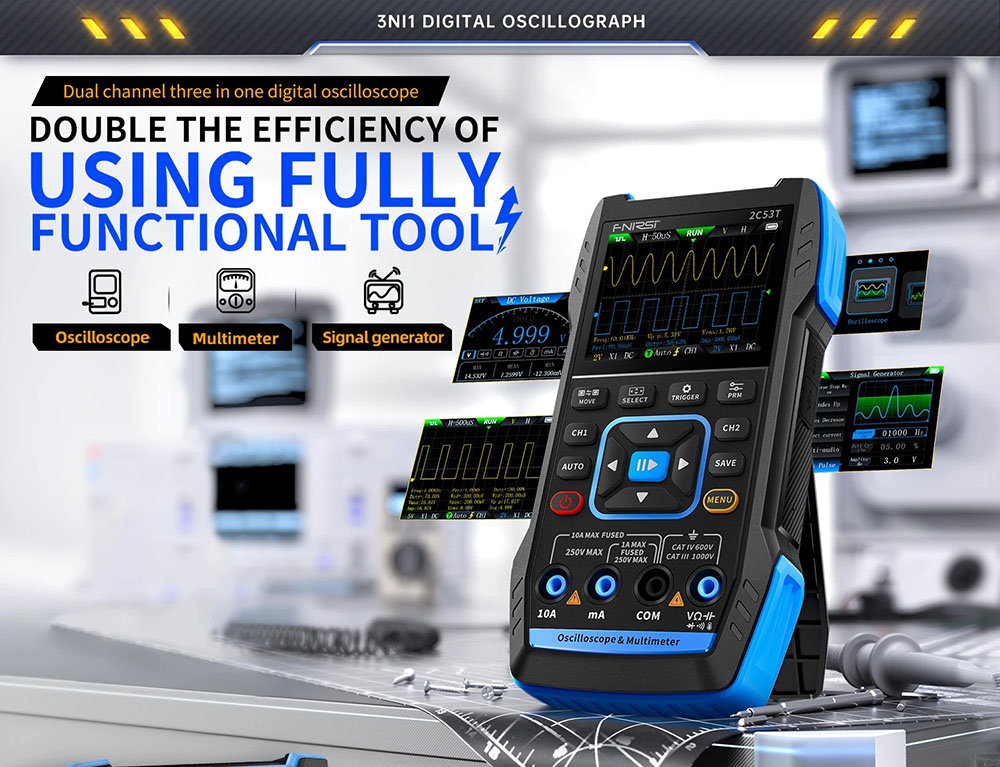

FNIRSI 2C53T is an advanced 3-in-1 Dual-Channel Digital Oscilloscope launched by FNIRSI. FNIRSI 2C53T Dual-Channel Digital Oscilloscope is specially designed for professionals in maintenance, development, education and home use. FNIRSI 2C53T Oscilloscope is compact but powerful device integrates three essential functions: Oscilloscope, Multimeter, Signal Generator.



FNIRSI 2C53T Oscilloscope is equipped with a 2.8-inch 320*240 HD display and a 3000mAh rechargeable battery, supports up to 6 hours of standby time. With waveform screenshot saving and viewing support, these devices combine portability, power, and practicality in one tool.

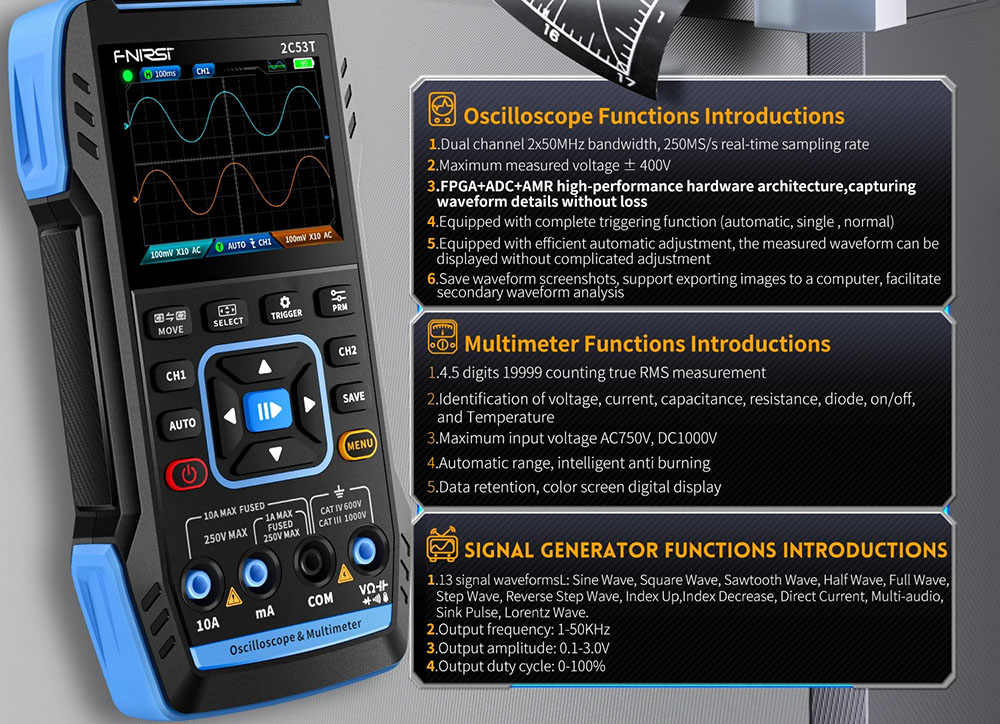

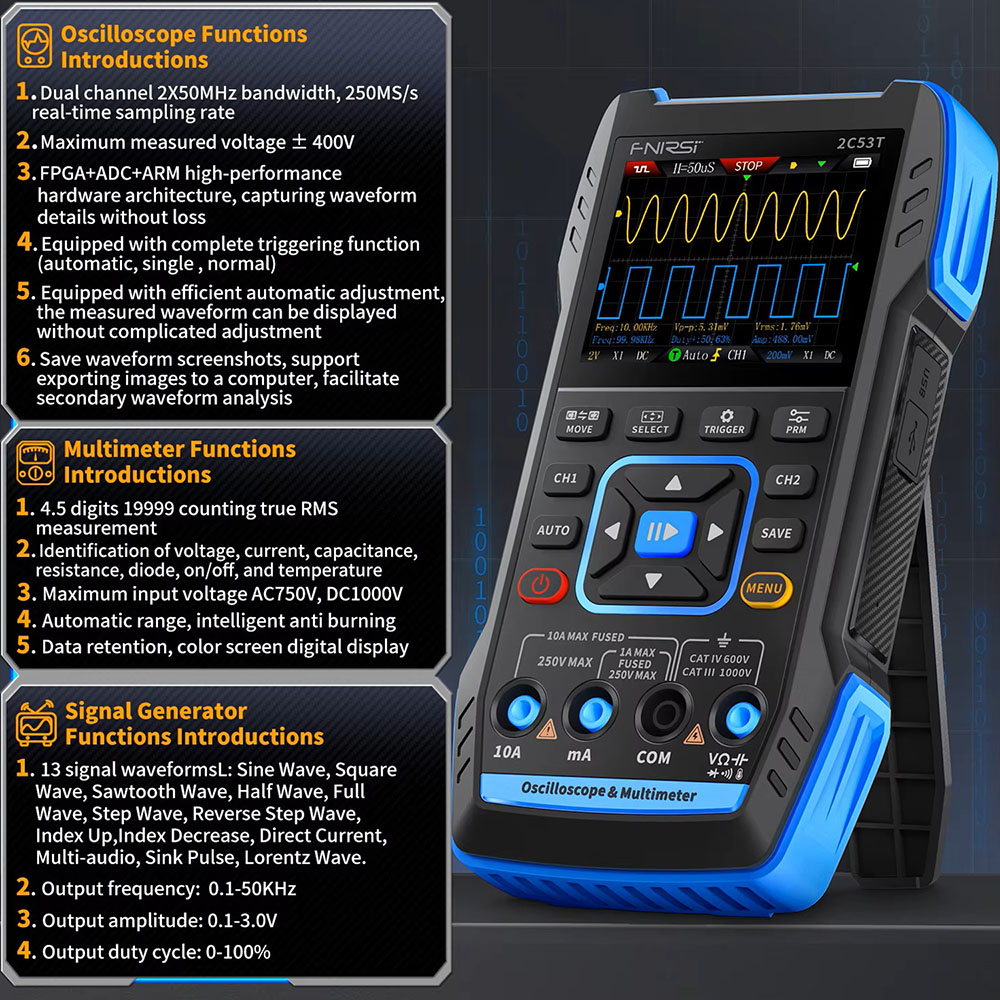

Features:



1. FNIRSI 2C53T adopts a FPGA+MCU/ARM+ADC architecture with built-in high-voltage protection (±400V peak).



2. Oscilloscope 2C53T features a 50MS/s sampling rate and 10MHz bandwidth.



3. 2C53T upgrades to a 250MS/s sampling rate and 50MHz bandwidth, providing higher precision and faster signal capture.

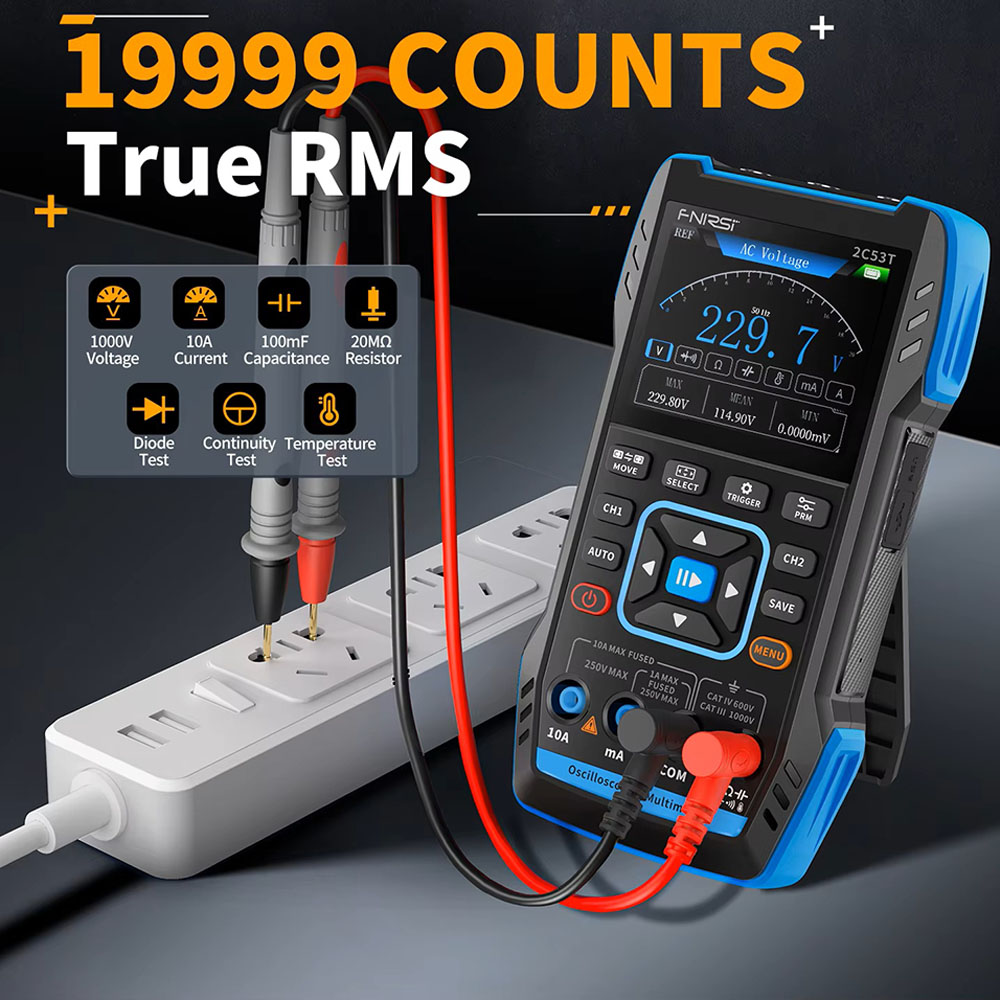

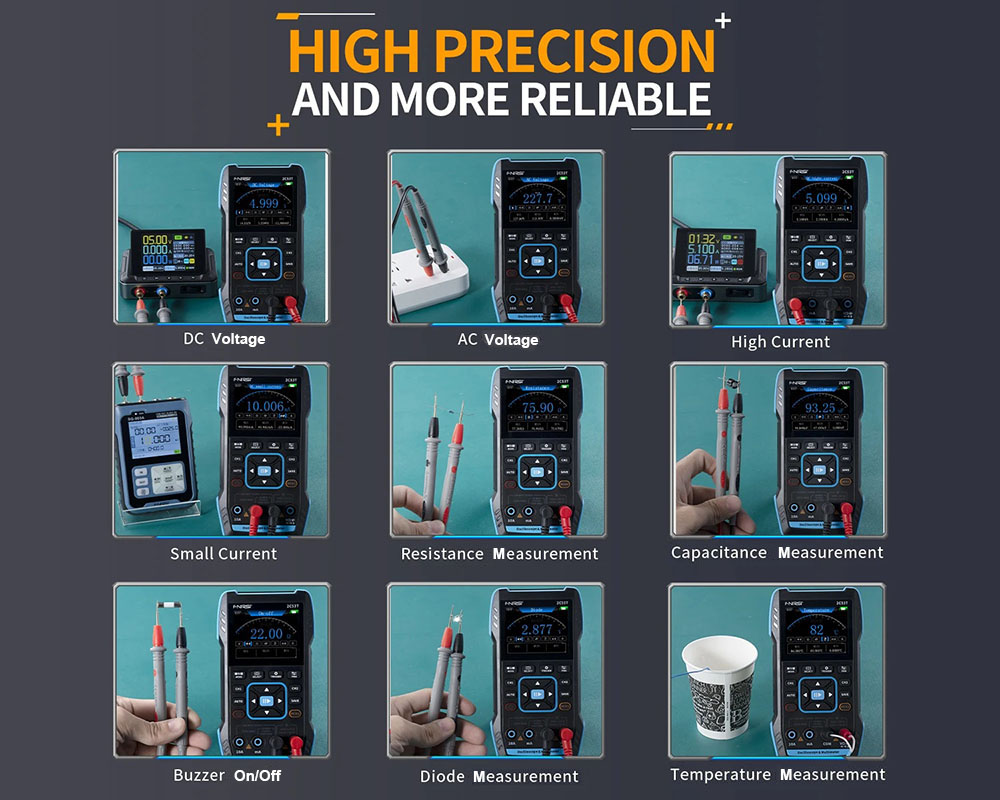

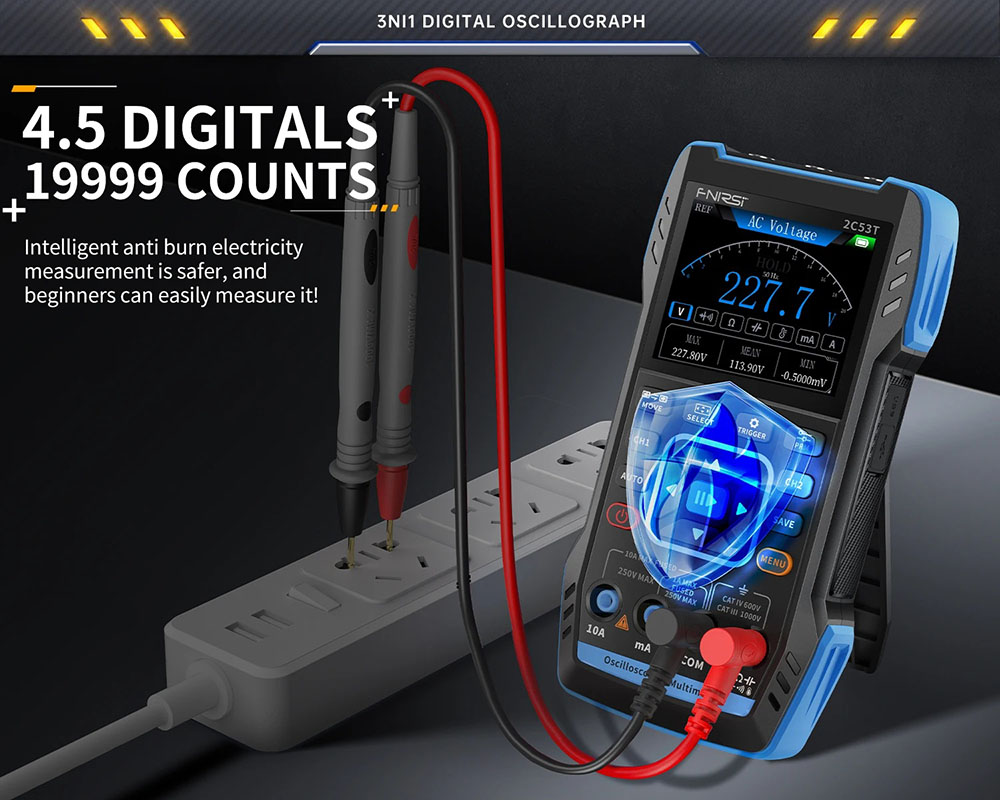

4. FNIRSI-2C53T supports 4.5-digit 19999-count true RMS, supporting AC/DC voltage and current, resistance, capacitance, diode, and continuity measurements.



5. 2C53T supports 13 signal types up to 50KHz, 1Hz step adjustment, with customizable frequency, amplitude, and duty cycle.

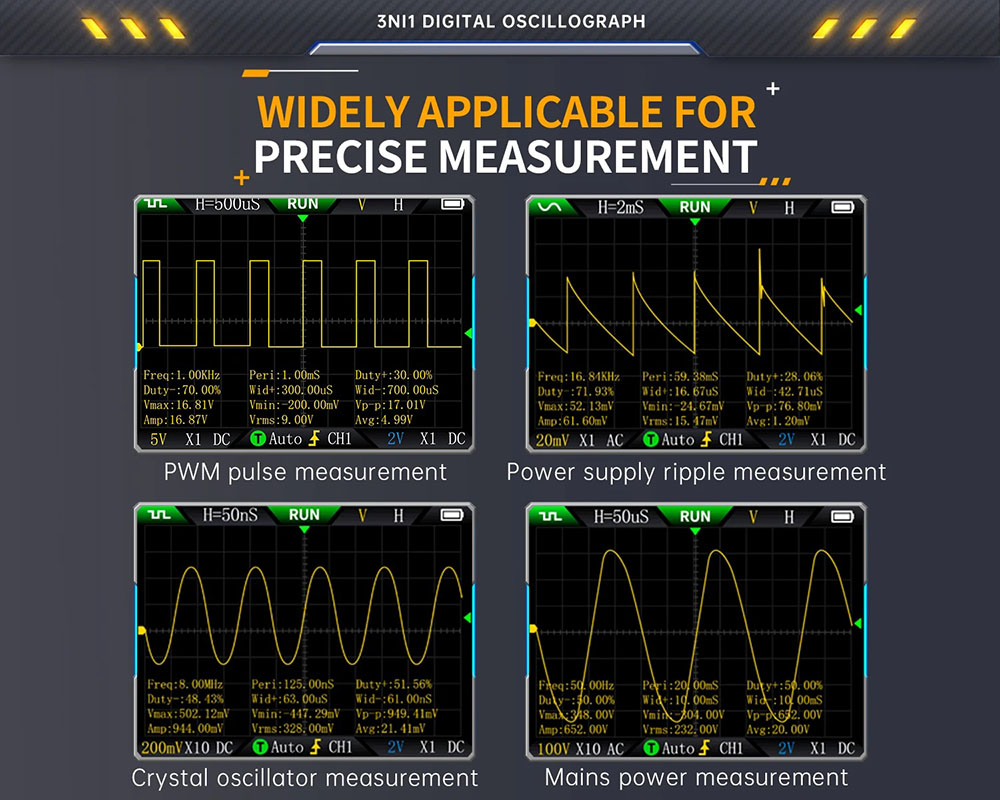

Oscilloscope Parameters:

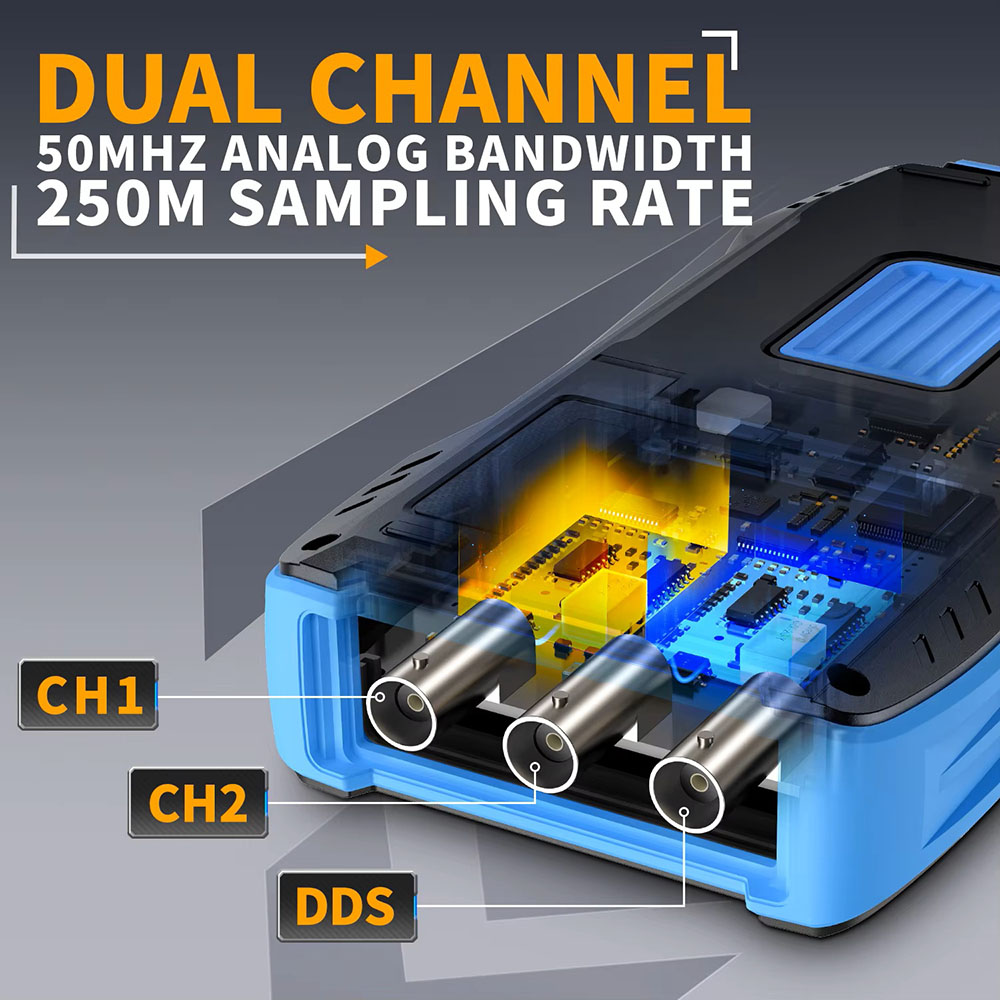

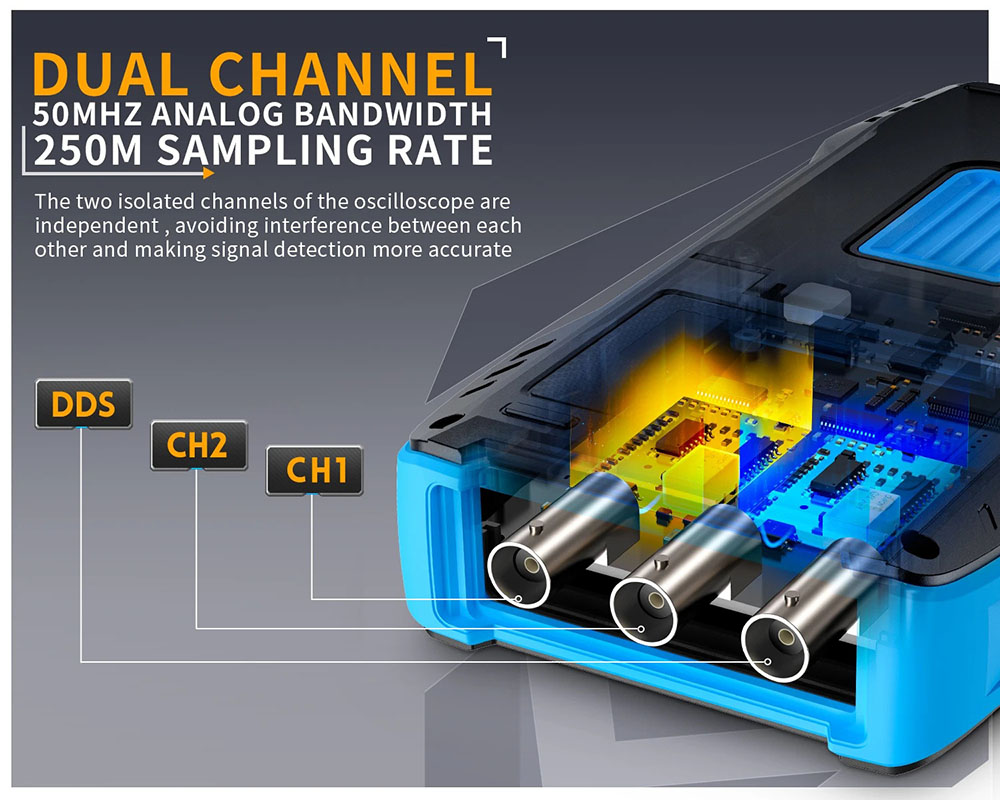

Channel: Dual-channel

Sample Rate: 250MS/s

Analog Bandwidth: 50MHz (independent dual-channel)

Storage Depth: 1Kpts

Input Impedance: 1MΩ

Time Base Range: 10ns - 20s

Vertical Sensitivity: 10mV/div - 10V/div (X1)

Max Measured Voltage: ±400V

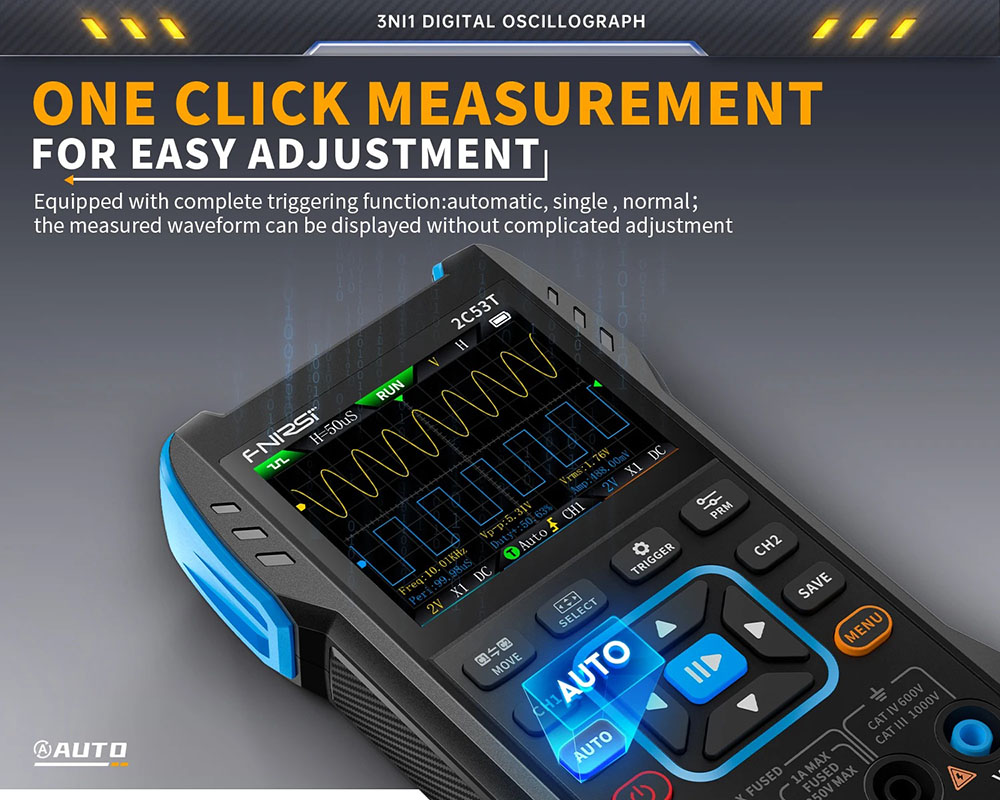

Trigger Mode: Auto / Normal / Single

Trigger Type: rising edge, falling edge

Display Mode: Y-T / Rolling / X-Y

Coupling: AC / DC

Persistence: off, 500ms, 1s, ∞

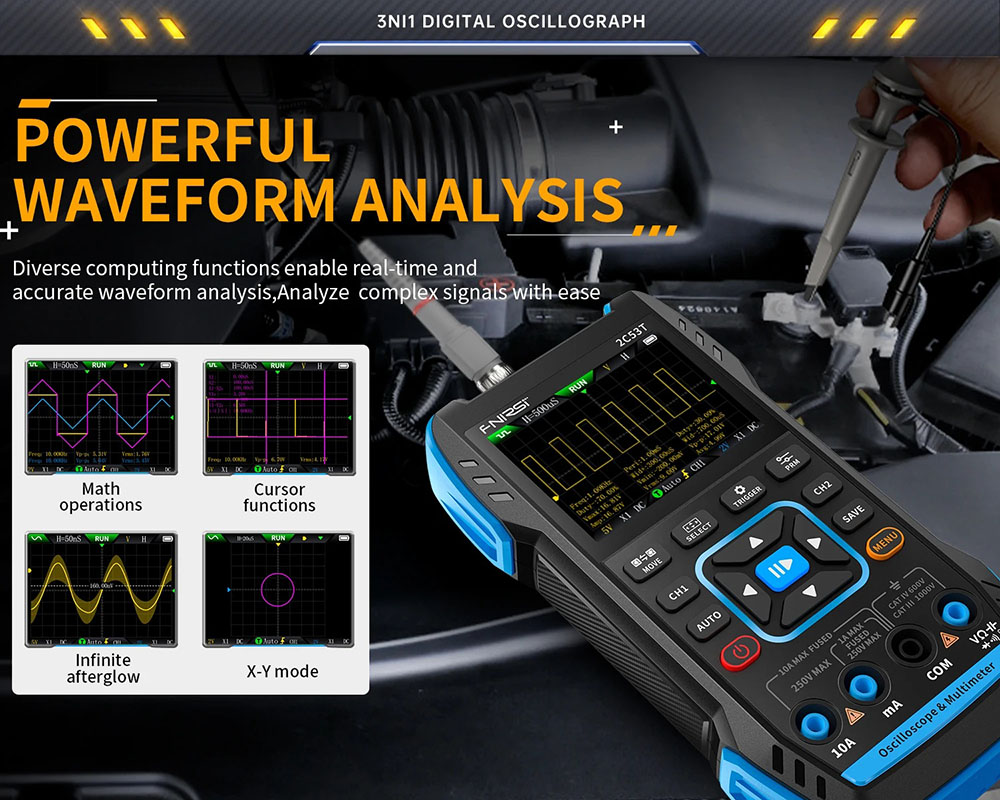

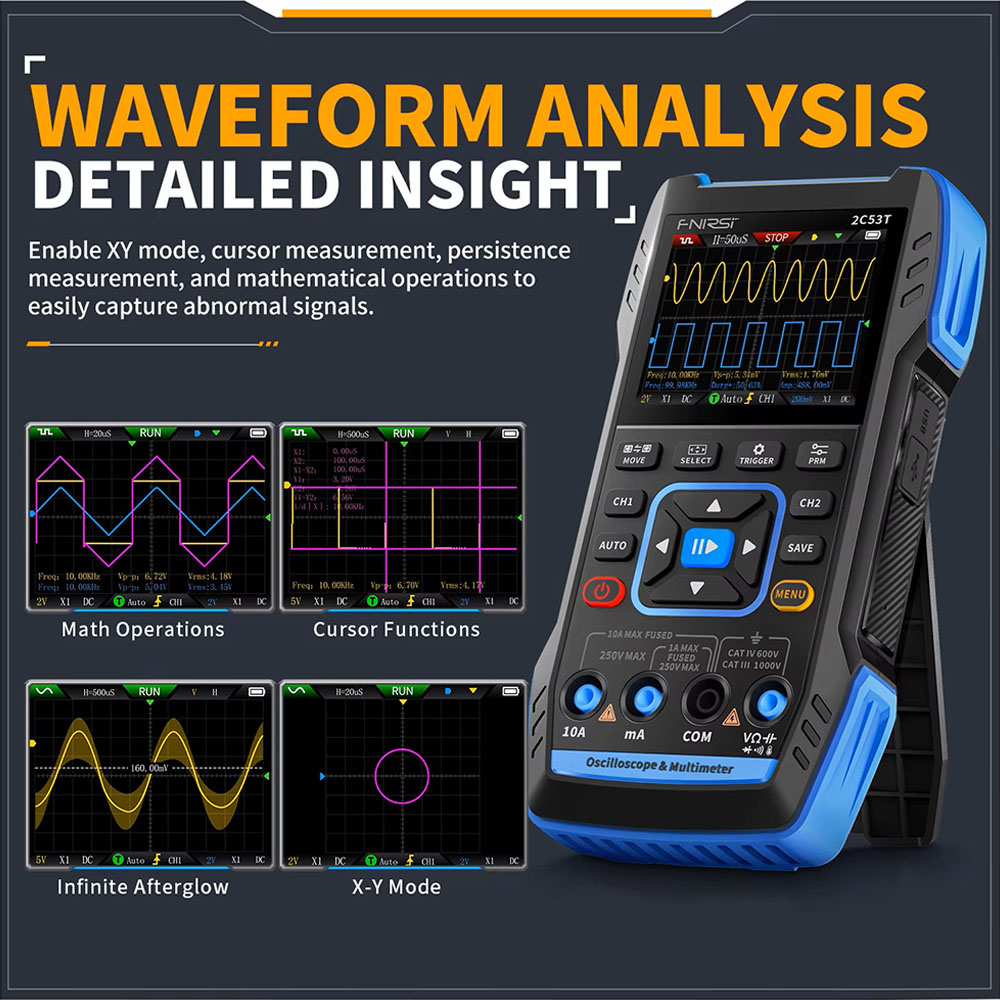

Math Functions: 8 basic operations + FFT

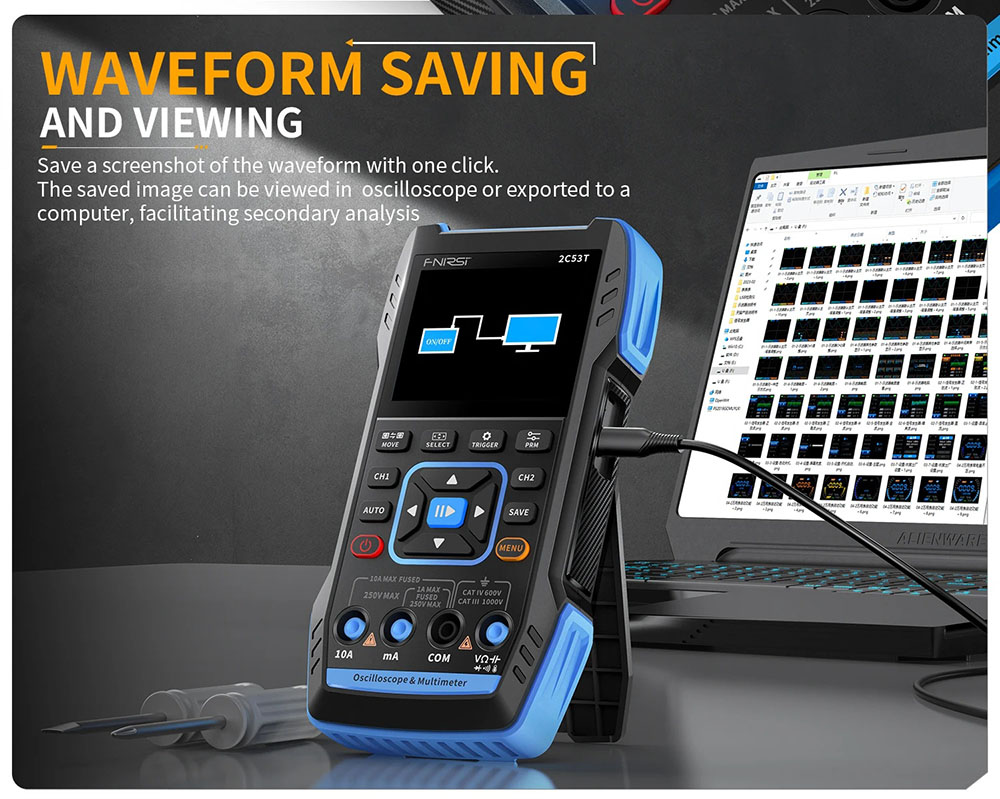

Waveform Screenshot: supported

Export Waveform Image: supported

Cursor Measurement: supported



Multimeter Parameters:



DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V

AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V

DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

Resistance: 199.99Ω / 1.9999KΩ / 19.999KΩ / 199.99KΩ / 1.9999MΩ / 19.999MΩ

Capacitance: 9.999nF / 99.99nF / 999.9nF / 9.999uF / 99.99uF / 999.9uF / 9.999mF / 99.99mF

Temperature: –55°C to 1300°C

Diode Test: yes

Continuity Test: yes

Live Line Detection: yes

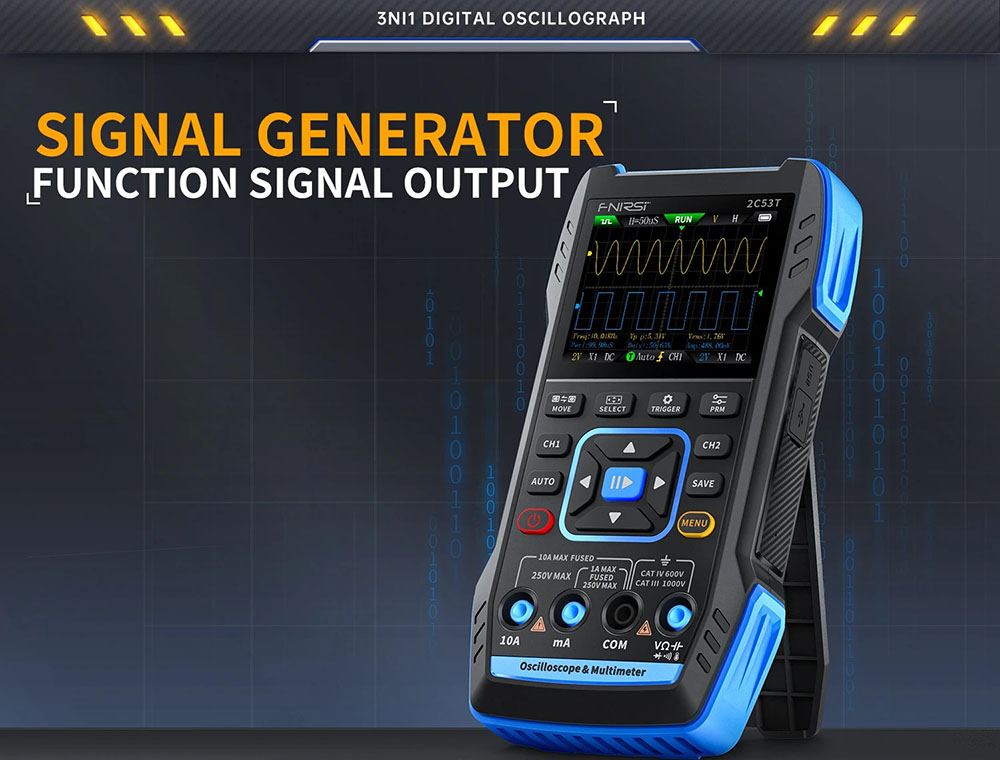

Signal Generator Parameters:



Waveforms(13 Types): Sine, Square, Sawtooth, Half Wave, Full Wave, Positive Step, Negative Step, Exponential Rise, Exponential Fall, DC, Multi-audio, Sinker Pulse, Lorentz



Output Frequency: 0 - 50kHz

Output Amplitude: 0 - 3V

Output Duty Cycle: 0 - 100%



Specifications:



Brand: FNIRSI

Product Model: 2C53T

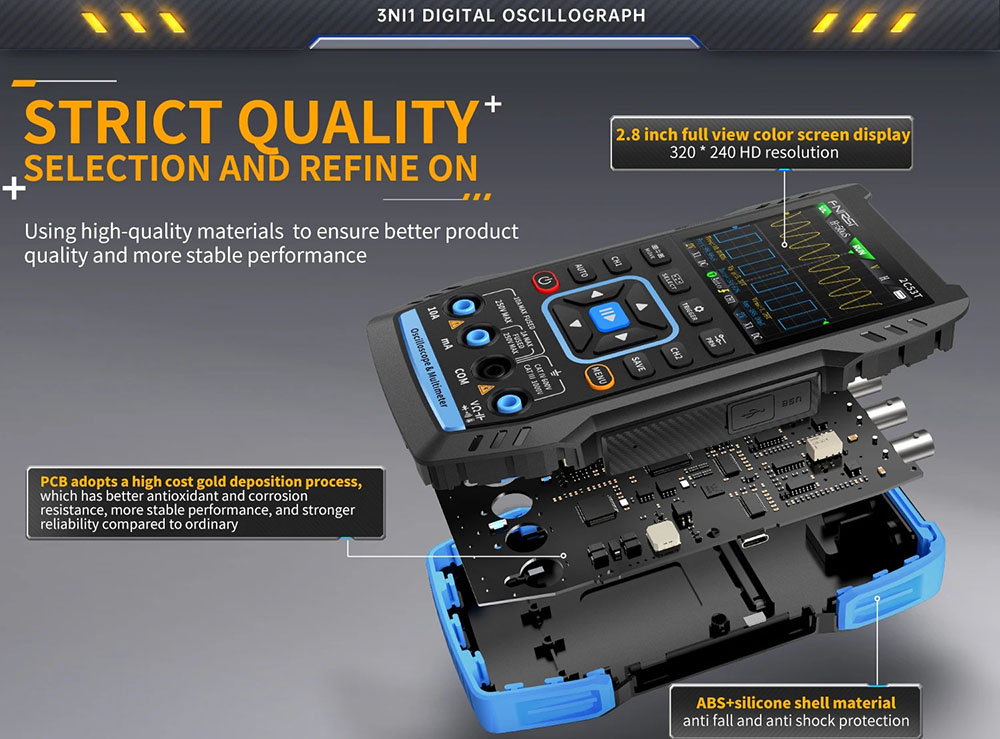

Display: 2.8-inch HD color screen

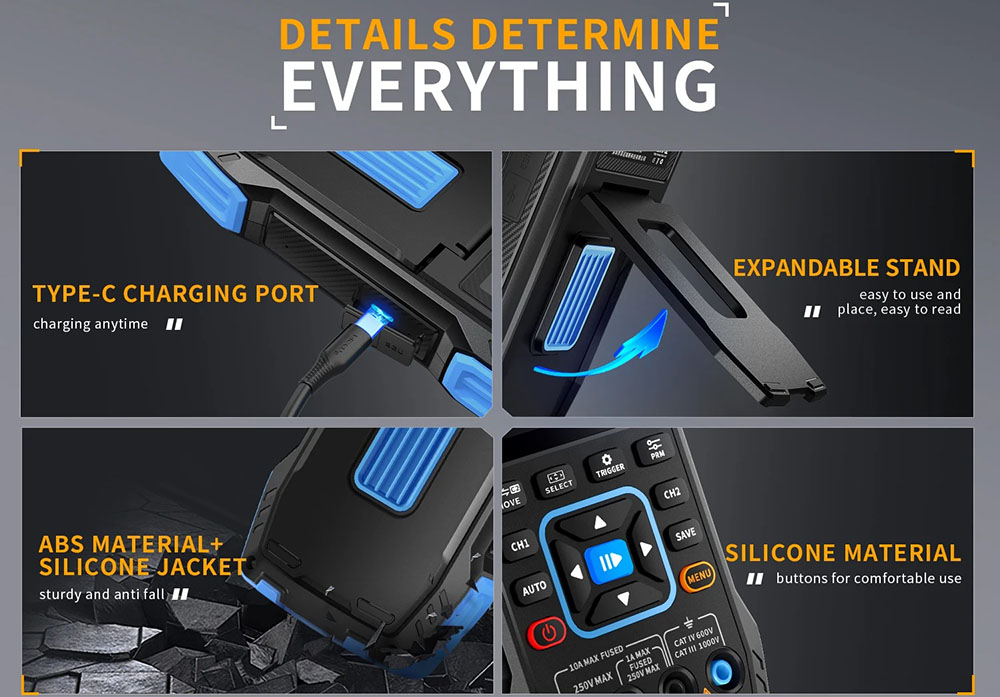

Charging Port: 5V/1A USB Type-C

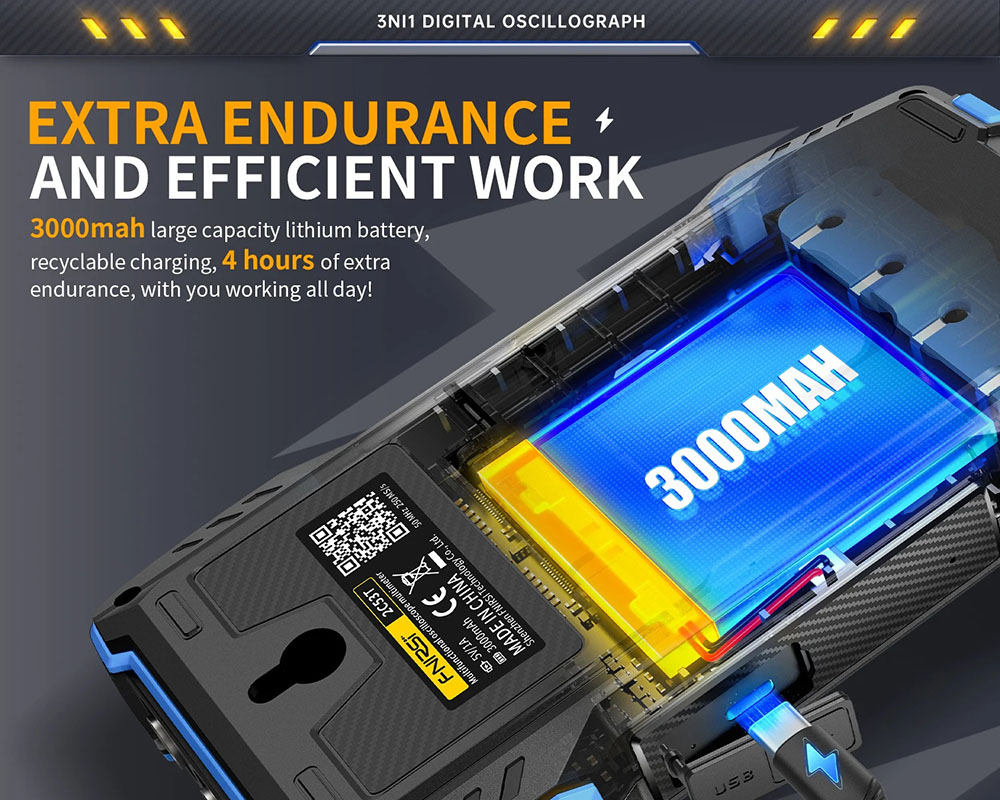

Battery: 3000mAh lithium battery

Supported Languages: English, Chinese

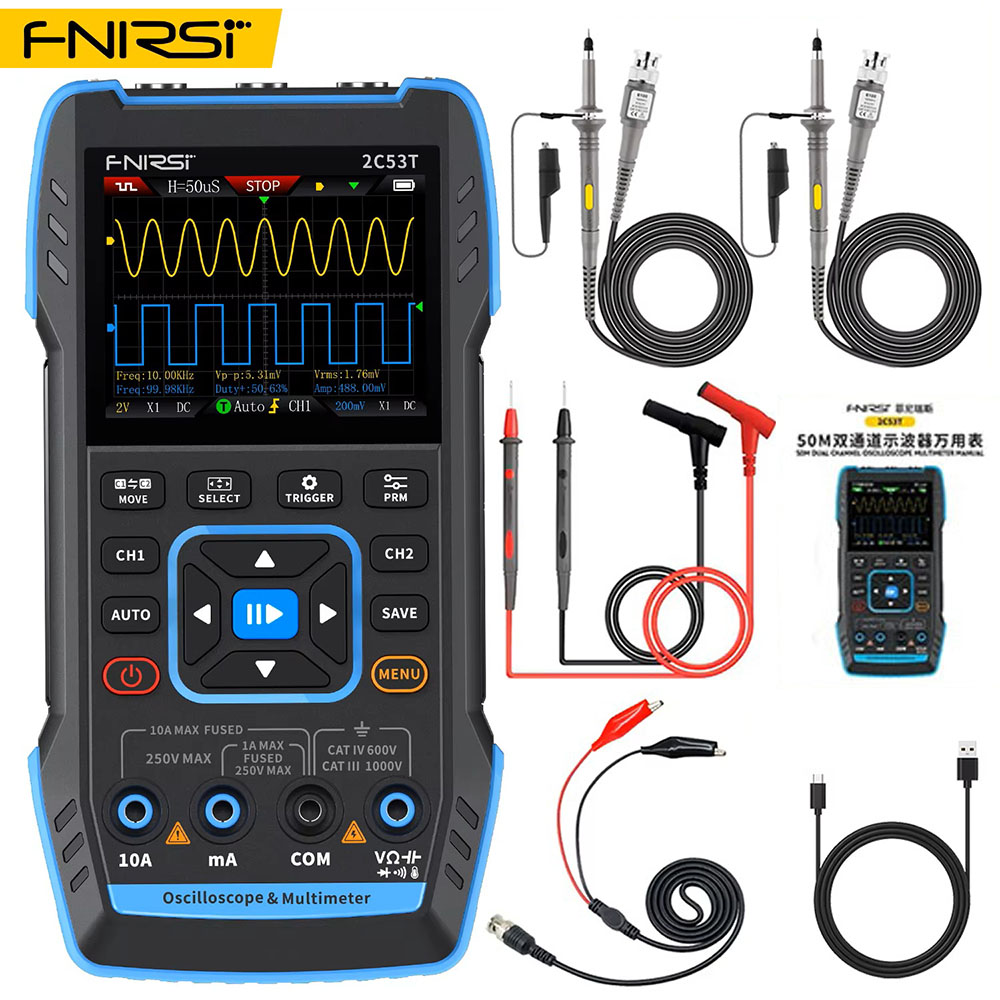

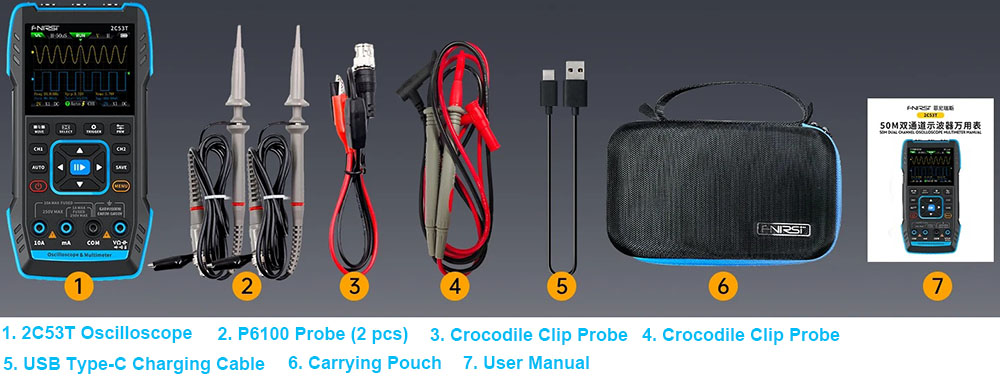

Packing List:



FNIRSI 2C53T 3 In 1 Oscilloscope

10X P6100 Probe (2 pcs)

Crocodile Clip Probe

Multimeter Probe

USB Type-C Charging Cable

User Manual

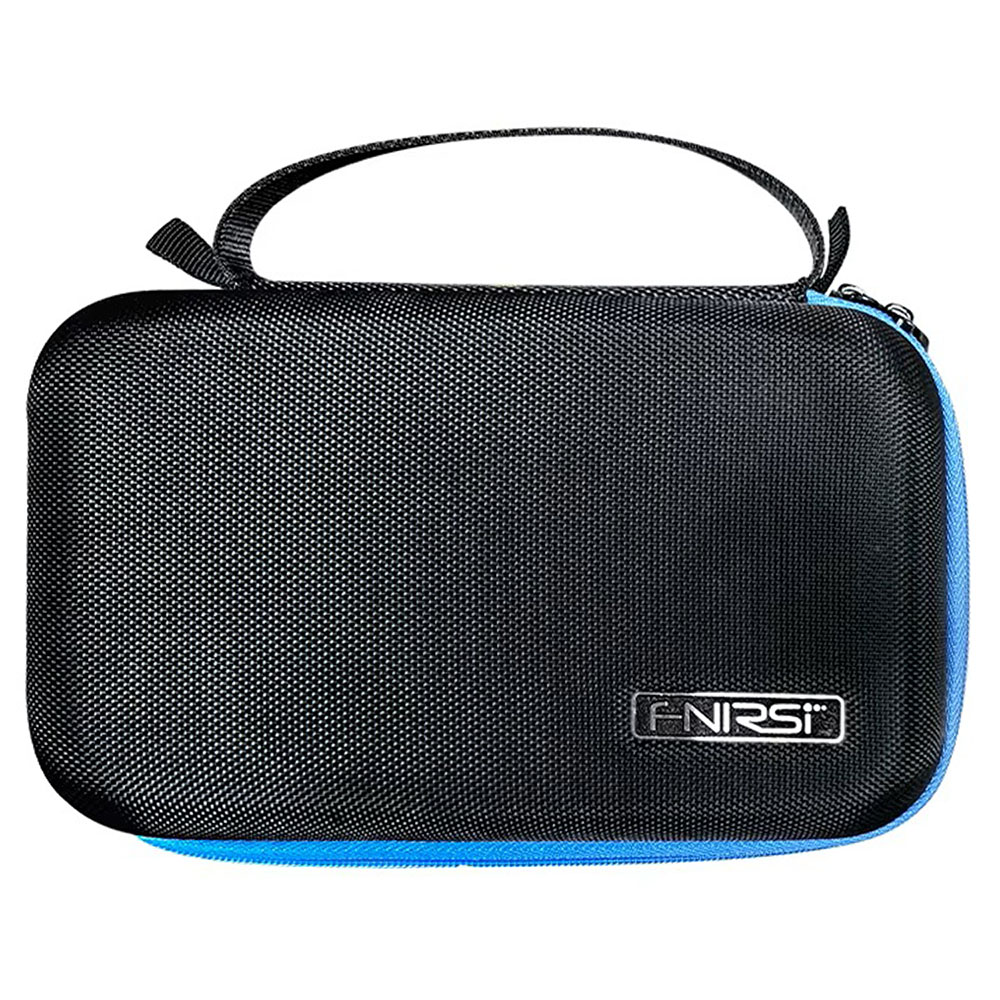

Carrying Pouch

Packaging Box
