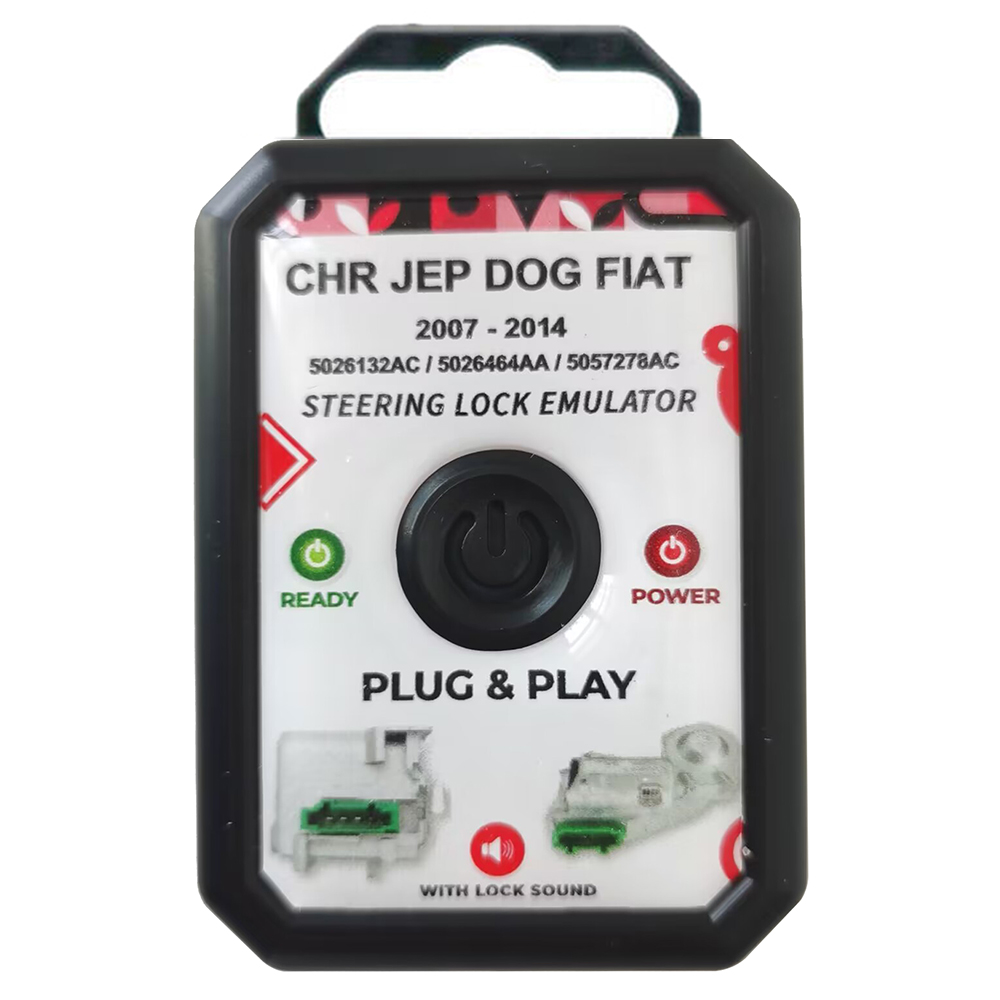

Name: ESL Emulator for Chrysler Jeep Dodge Lancia 2008 - 2010 with Lock Sound
Description:
ESL Emulator for Chrysler Jeep Dodge Lancia 2008 - 2010 with Lock Sound. No programming is required
Plug and Start Jeep Chrysler Dodge Lancia ELV Emulator with Lock Sound.
Jeep Chrysler Dodge Lancia electronic steering lock problem is one of frequent problems in Jeep Chrysler Dodge Lancia starting system, Jeep Chrysler Dodge Lancia dealer needs to order new steering lock and program it which is just too much costly and time-wasting.
Jeep Chrysler Dodge Fiat ELV Emulator will fix your steering lock malfunction error, and Jeep Chrysler Dodge Lancia ESL Emulator will bypass ELV always.
No need coding, simply connect it and it will fix your Jeep Chrysler Dodge Lancia ESL failure!
Jeep Chrysler Dodge Fiat ESL Simulator will make your work easier, faster, safer.
Supported Cars:
Jeep
Chrysler
Dodge
Lancia
Fiat
Installation Steps:

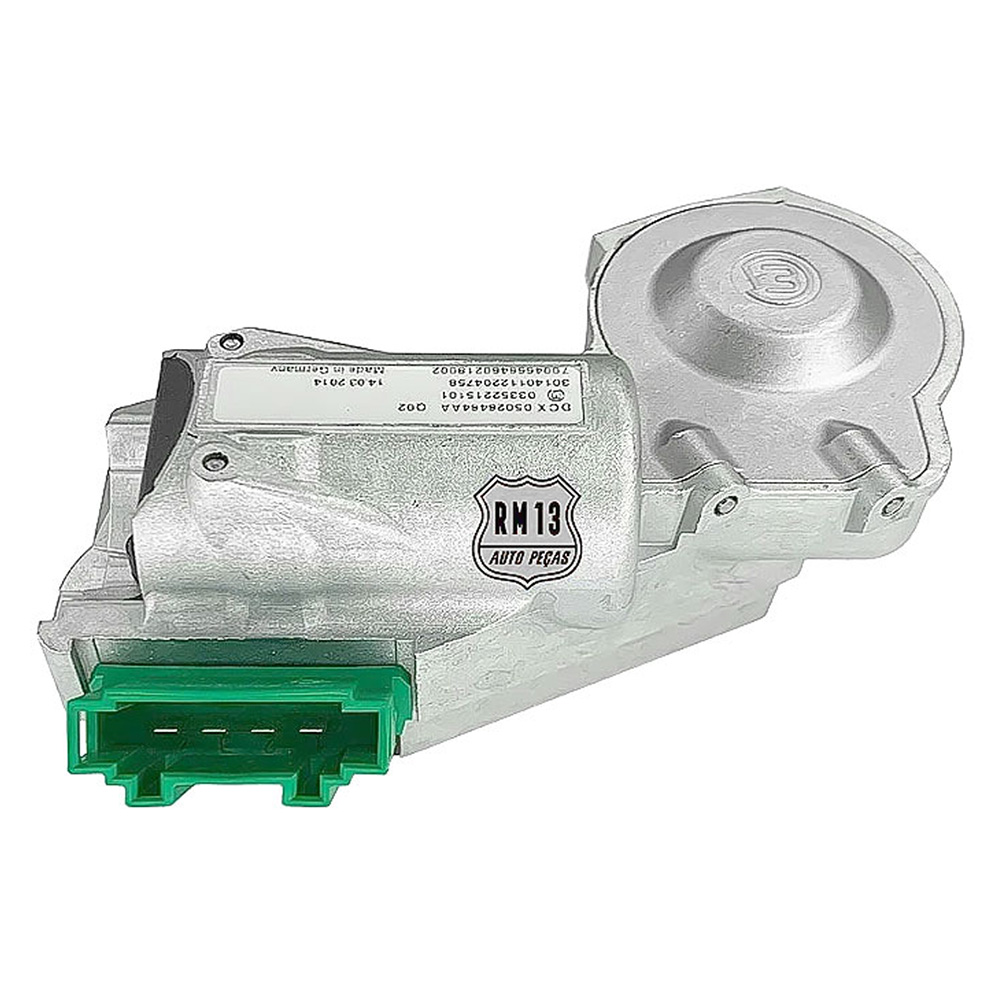

1. Unplug the elv wire from the original car steering lock unit.
2. If vehicle steering lock is in lock mode, steering lock must be faraway from the car.
3. Connect Jeep Chrysler Dodge Fiat ESL Emulator to the car and start the car.
LED Status:
After connecting to the car or to the testing cables, insert the car key to the switch.
If emulator light turns green that mean it is connected well and therefore the car is ready to start.
If emulator light turn red that means the key does not belong to an equivalent EIS / EZS, otherwise you have Jeep Chrysler Dodge Lancia EIS problem.
If emulator light does not turn on, you need to check the facility supply of the car / cables.

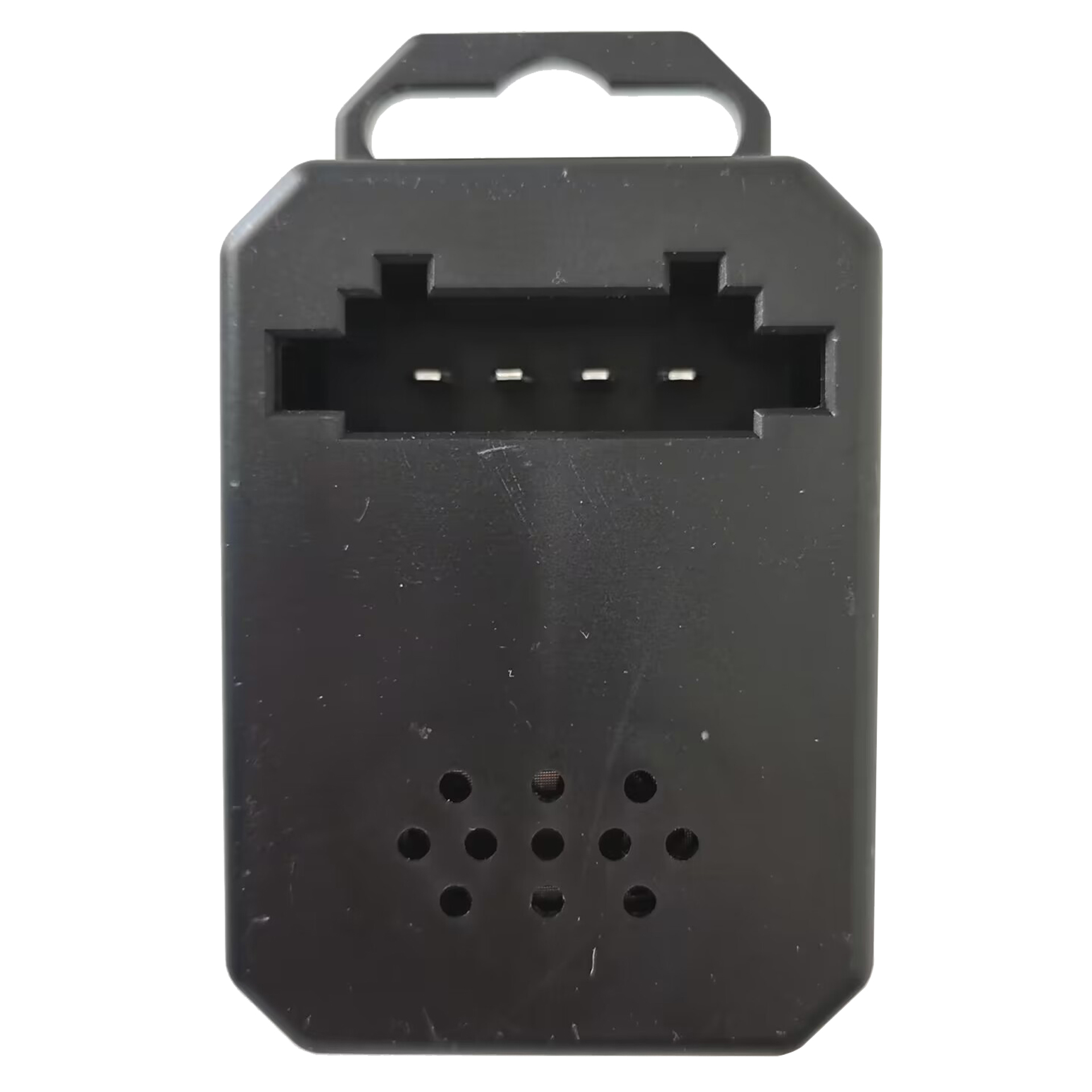

Emulator Pinout:
Pin1: +12V
Pin2: GND
Pin3: not used
Pin4: LIN line
|
