Name: CAT ET4 2025A
Description:
Best Quality!!! 478-0235 538-5051 ET4 Communication Adapter 2025A with Ethernet Cable Communication Adapter for Caterpillar CAT Heavy Duty Diagnostic.

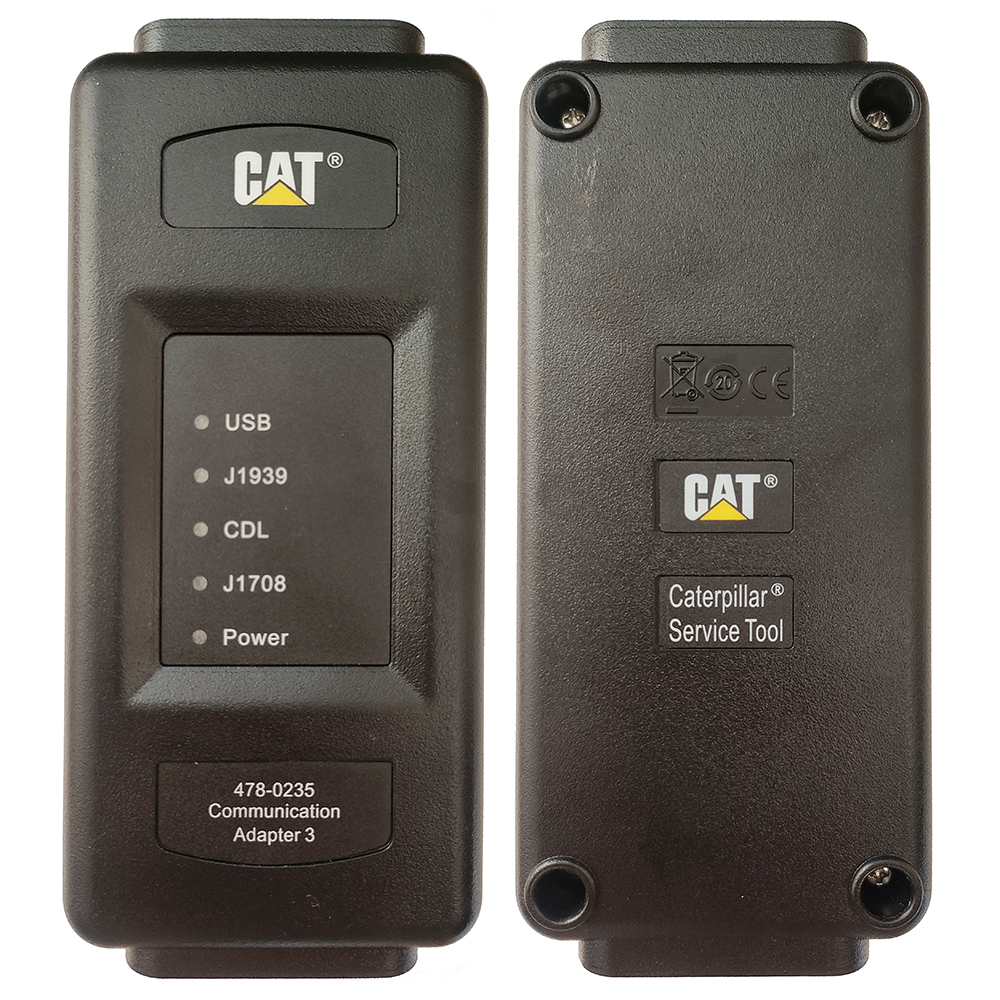

Communication Adapter 3 is the latest generation of the Communication Adapter group, and CAT 3 replaces the Communication ET3 317-7485 Adapter. This is the only recommended communication device, and the only data link device that will allow you to properly communicate with a CA engine on dual datalinks.
Communication Adapter 3 is the best replacement of ET3 317-7485.
CAT3 supports fast Ethernet and USB communication.
Versions: USB Version / Ethernet Version

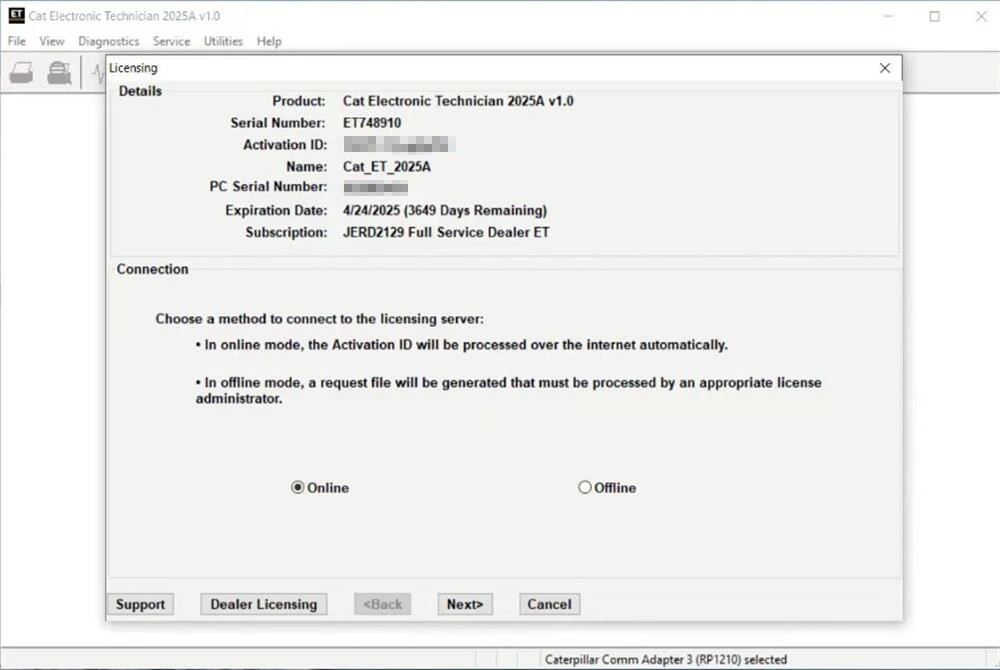

Software Version: 2025A
Supported Operate System: Windows 7/8/10
Supported Languages: English, French, German, Spanish, Portuguese, Russian, Italian, Danish, Japanese, Chinese
Supported Vehicle: Trucks, Excavators, Air Compressors, Loaders, Ships, Drilling Rigs, Generator Sets
Feature:
1. Allows communication between service tools and engine controls using various data links such as J1939/11, DeviceNet(future release), CT DataLink, and J1708 (ATA) vehicle networks;
2. Flash program allows adapter firmware upgrades as additional features become available;
3. Uses J1939/11 high-speed data link (part of ADEM III controls), substantially reducing flash times;
4. Automatically selects J1939/11 when flashing the engine(Reduces the flash time approximately 80%, from 14 minutes to 3 minutes.).

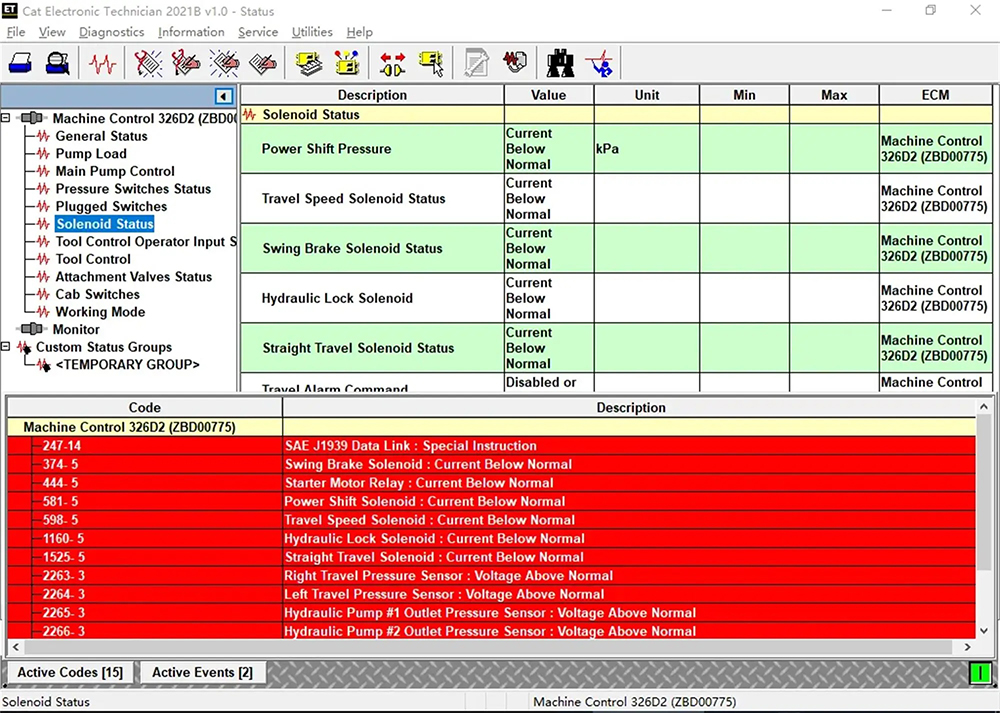

Functions:

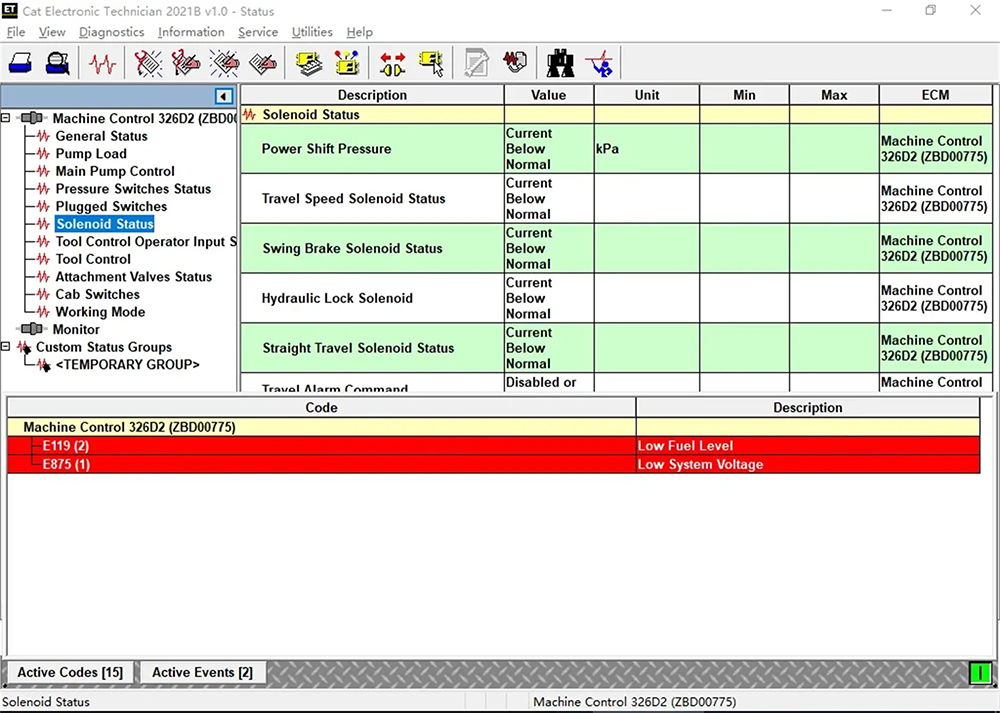

1. Display "Logged Event Codes" to show engine over speeds,High temperatures, fuel consumption, etc.

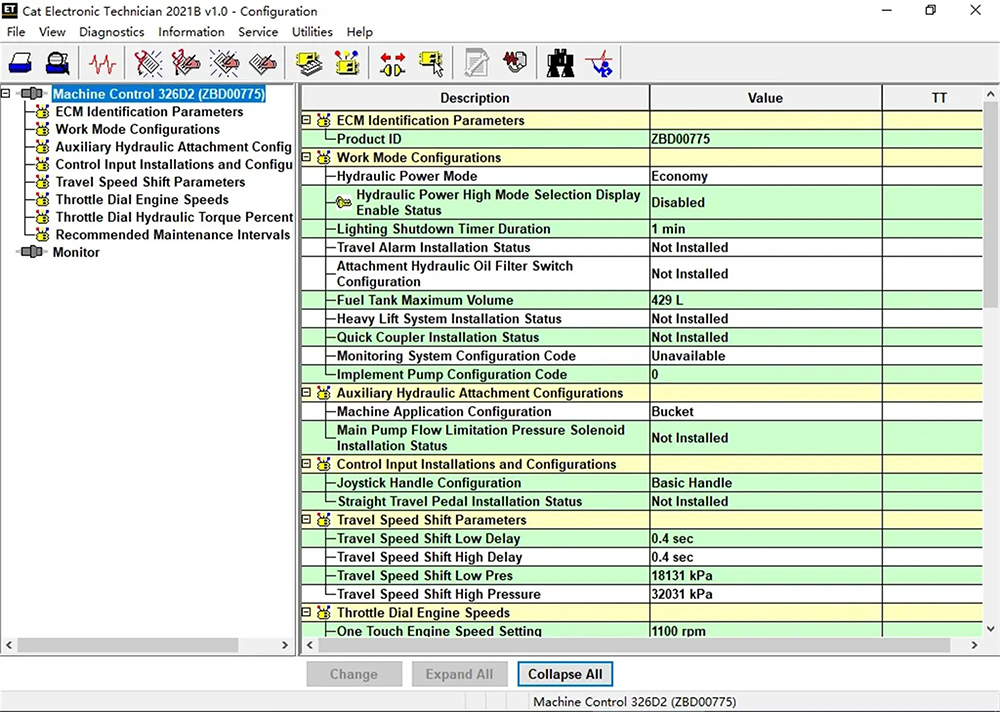

2. View ECM current configuration and change user settings.
3. Perform diagnostic tests and calibrations, and calibrate.
4. Electro-mechanical and electro-hydraulic components.
5. Context sensitive help leads operator through every task for Cat ET can perform.
6. Data Logger and Data Log Viewer allows recording of ECM signals for delayed troubleshooting capability.
Application Range:
Suitable for diagnosing all Caterpillar machinery and equipment, such as Trucks, Excavators, Air Compressors, Loaders, Ships, Drilling Rigs, Generator Sets, Atlas Drilling Rigs, CSR Drilling Rigs, Oilfield Equipment and other Inspections. Diagnosis of All Engines, Hydraulic Systems and Circuit Systems of the CAT series.

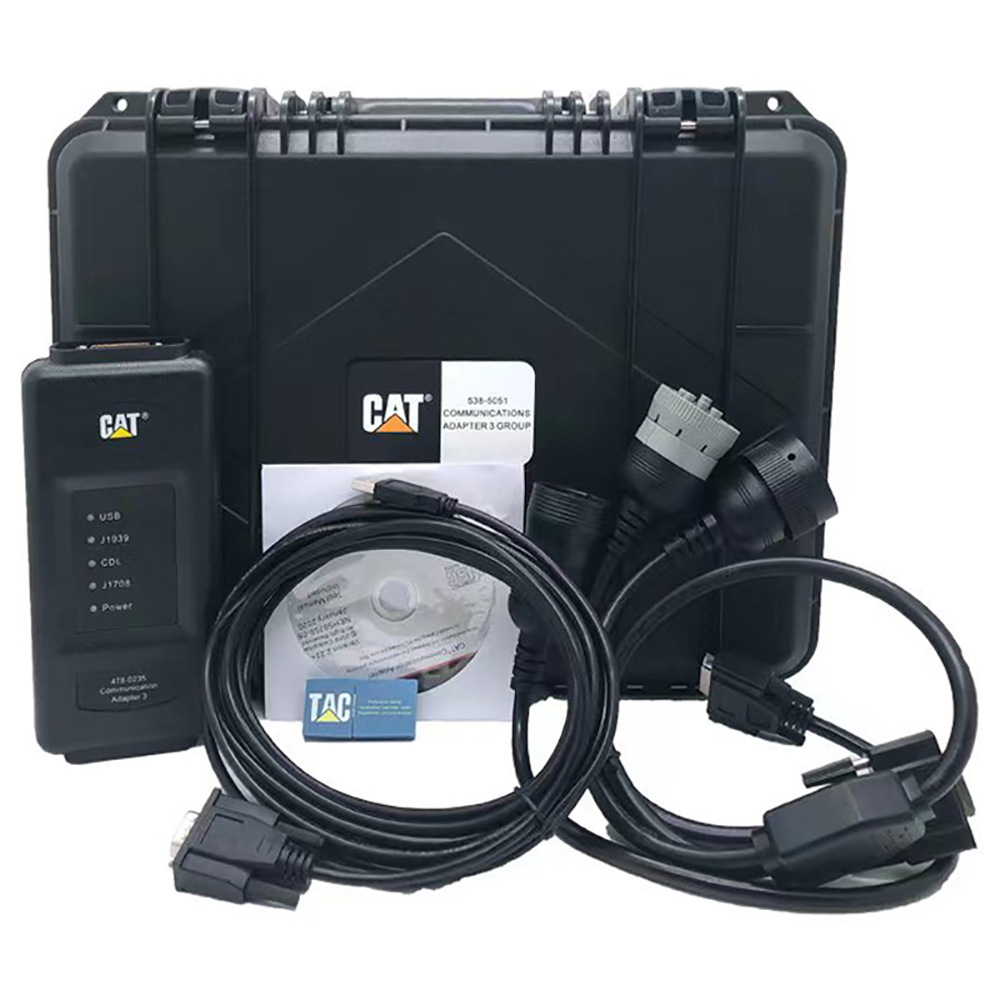

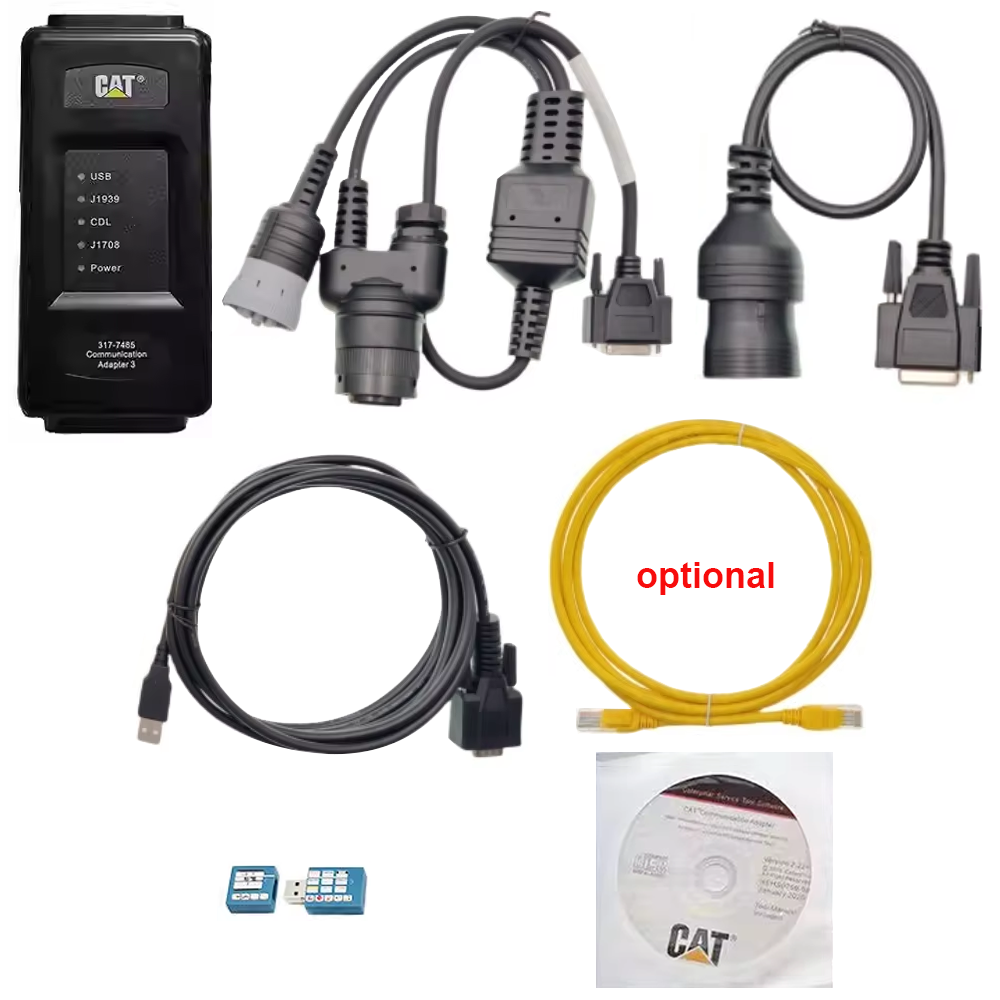

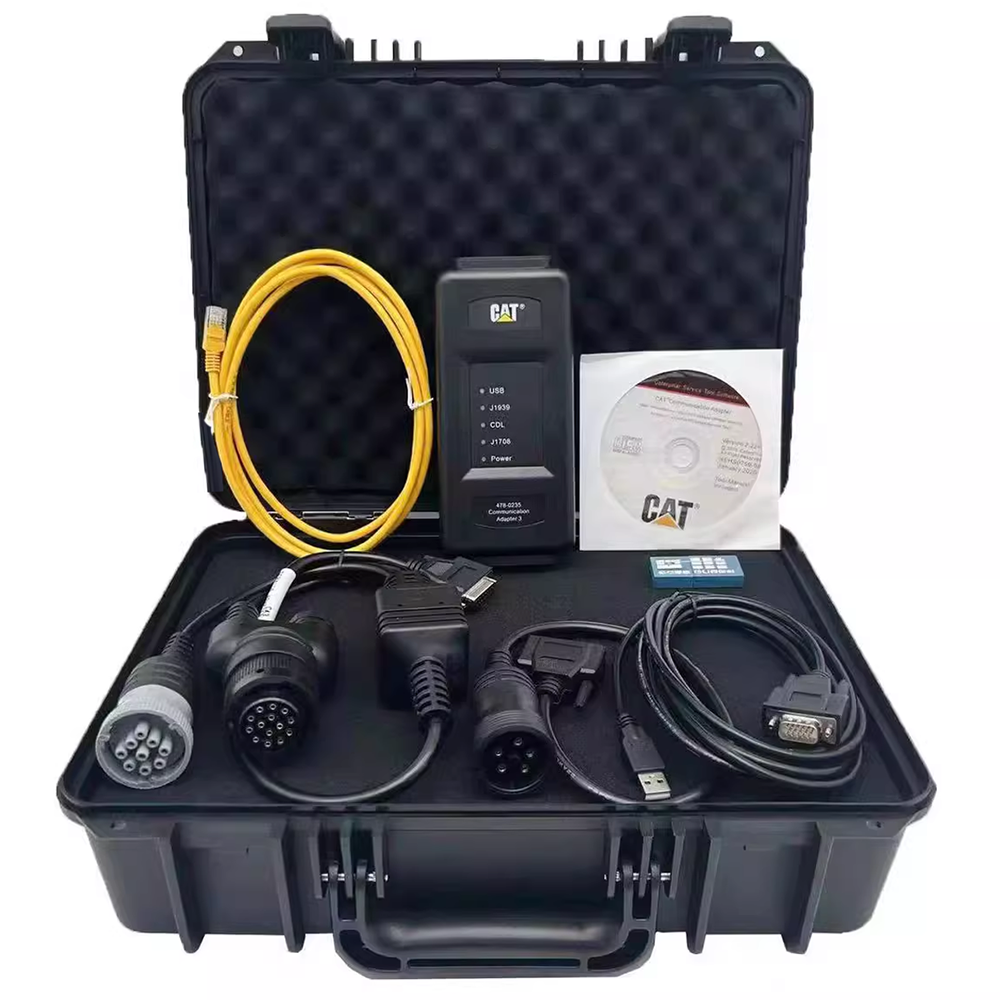

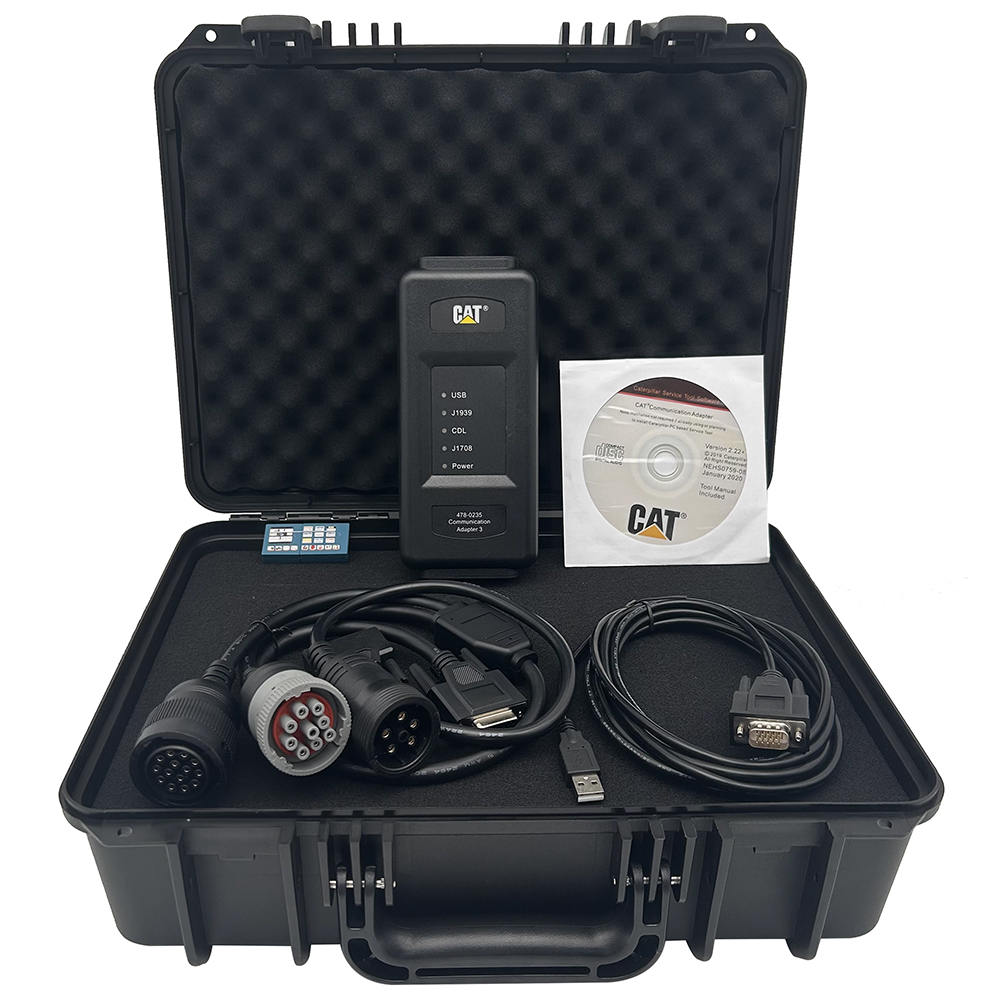

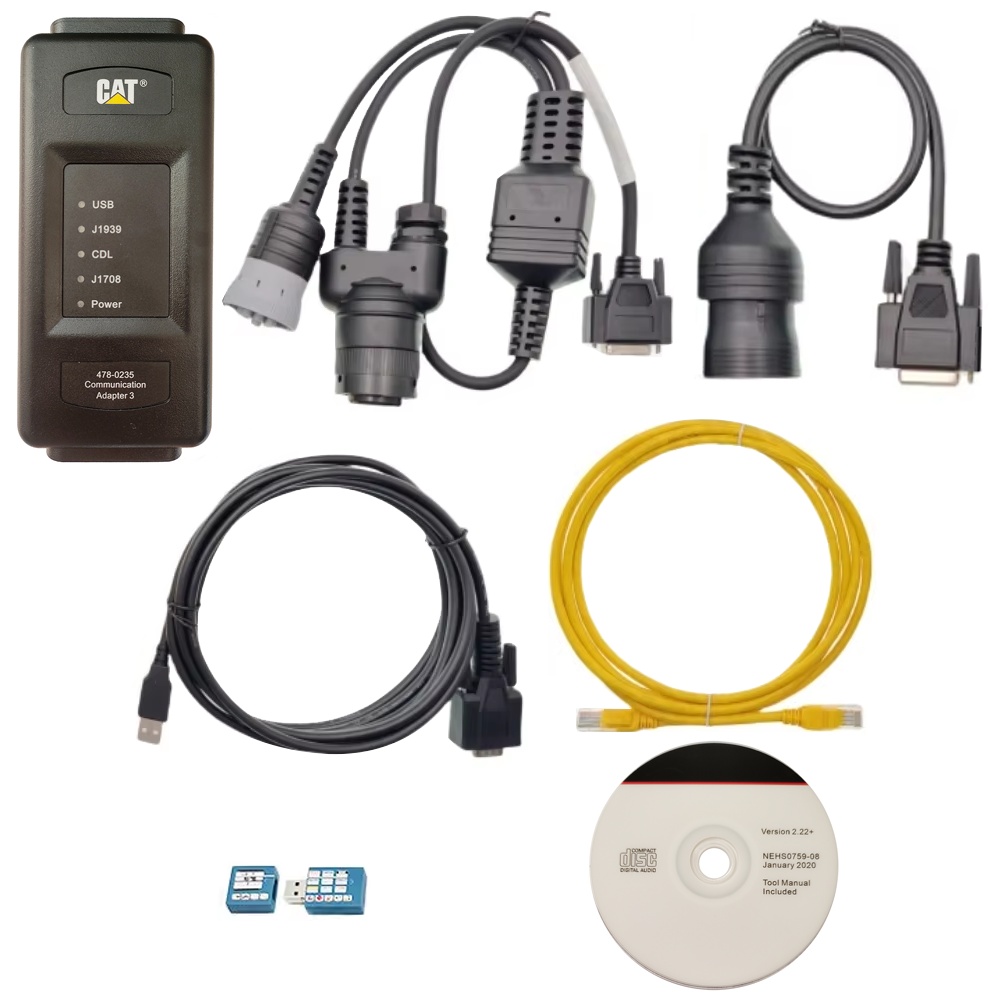

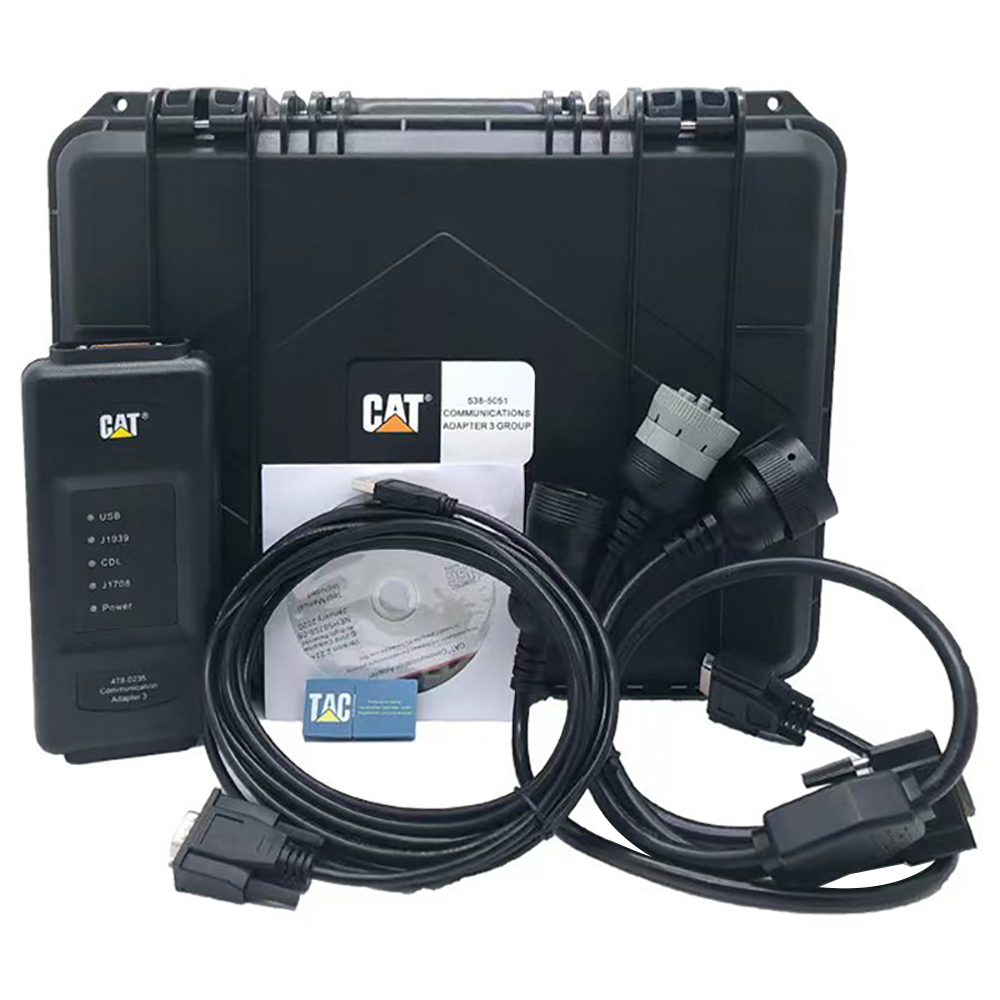

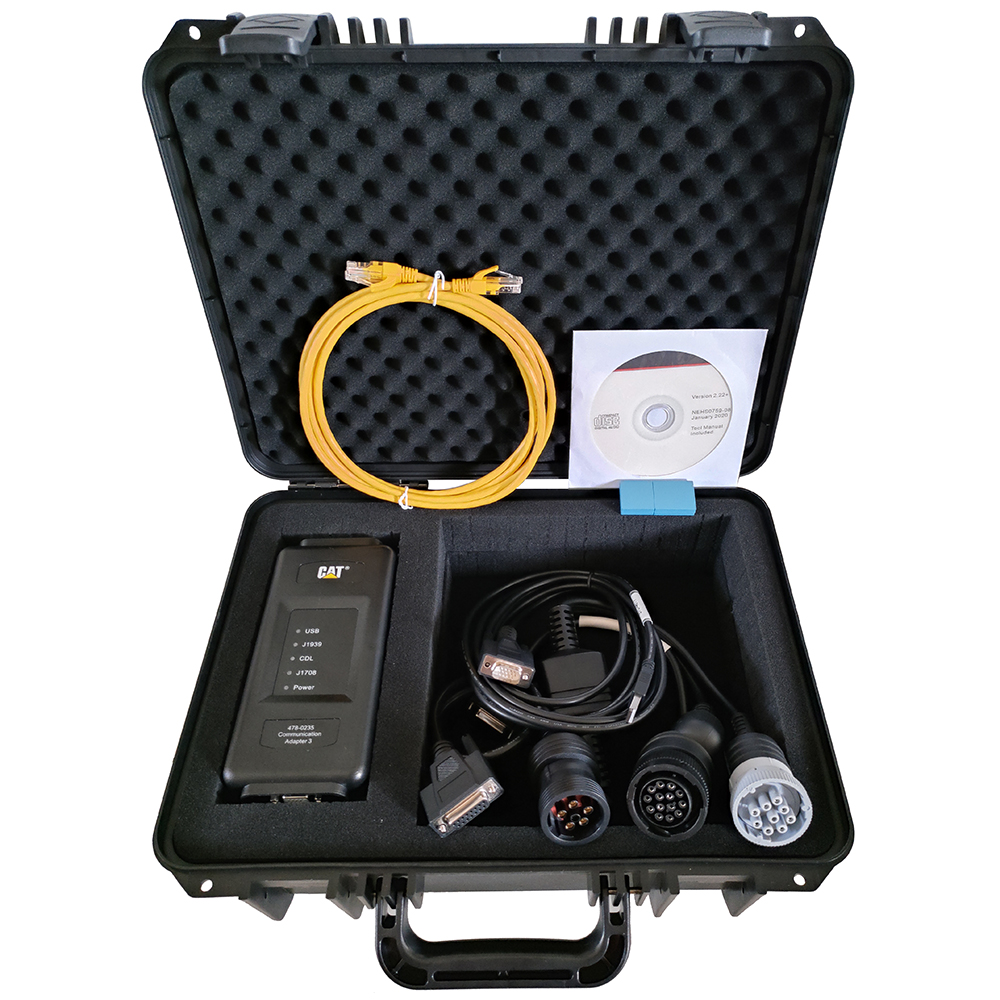

Packing List:
CAT ET4

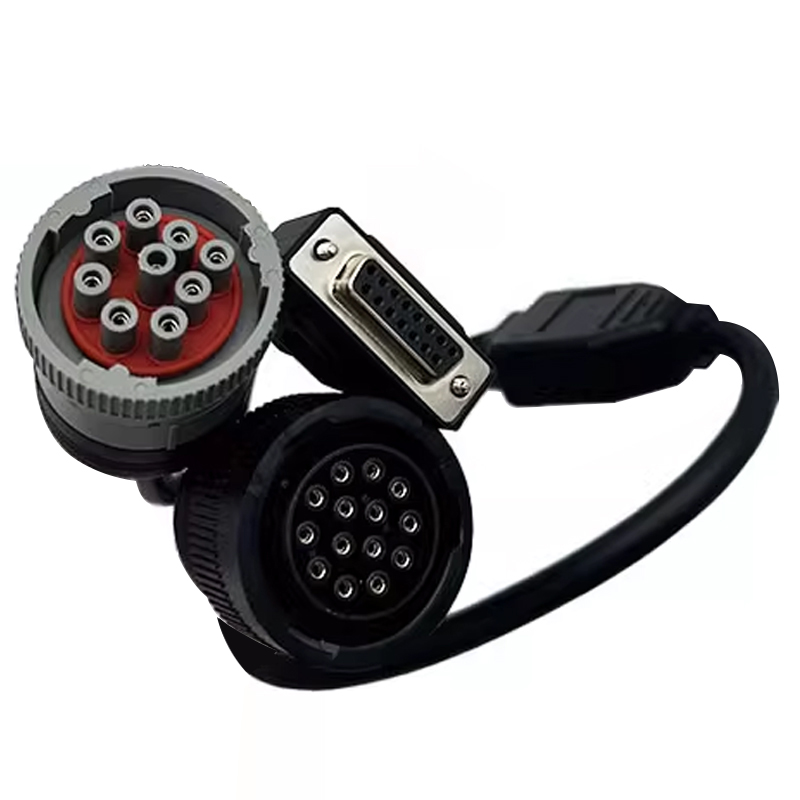

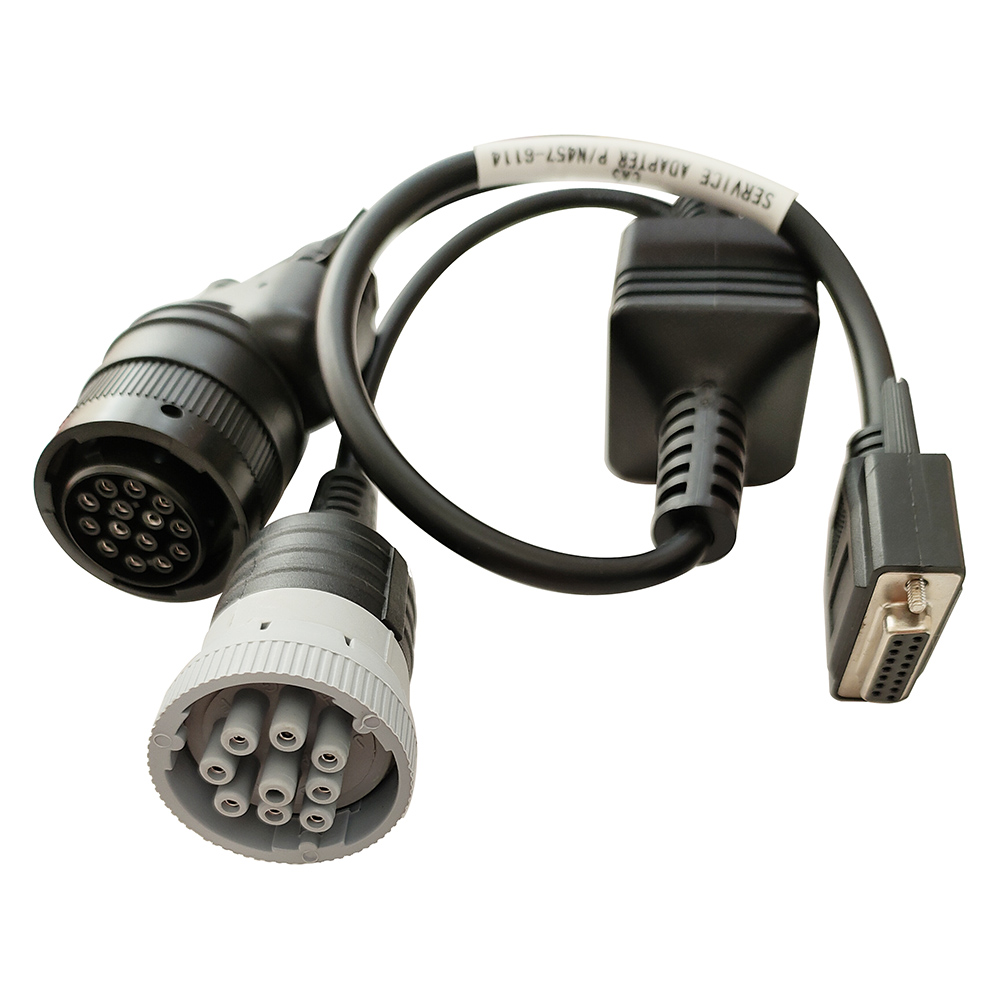

9-Pin & 14-Pin J1939/J1708 Cable

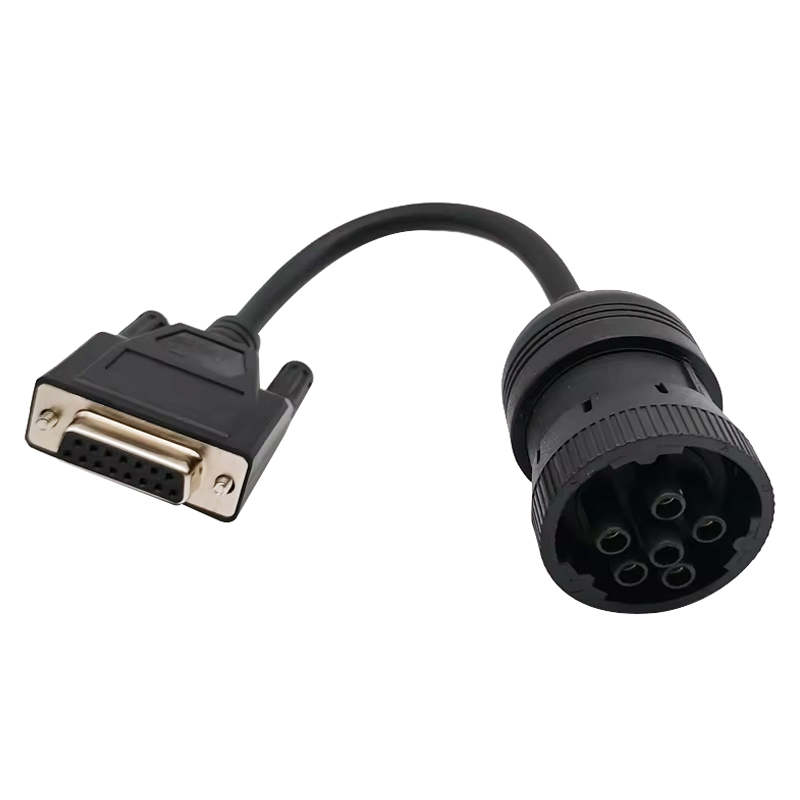

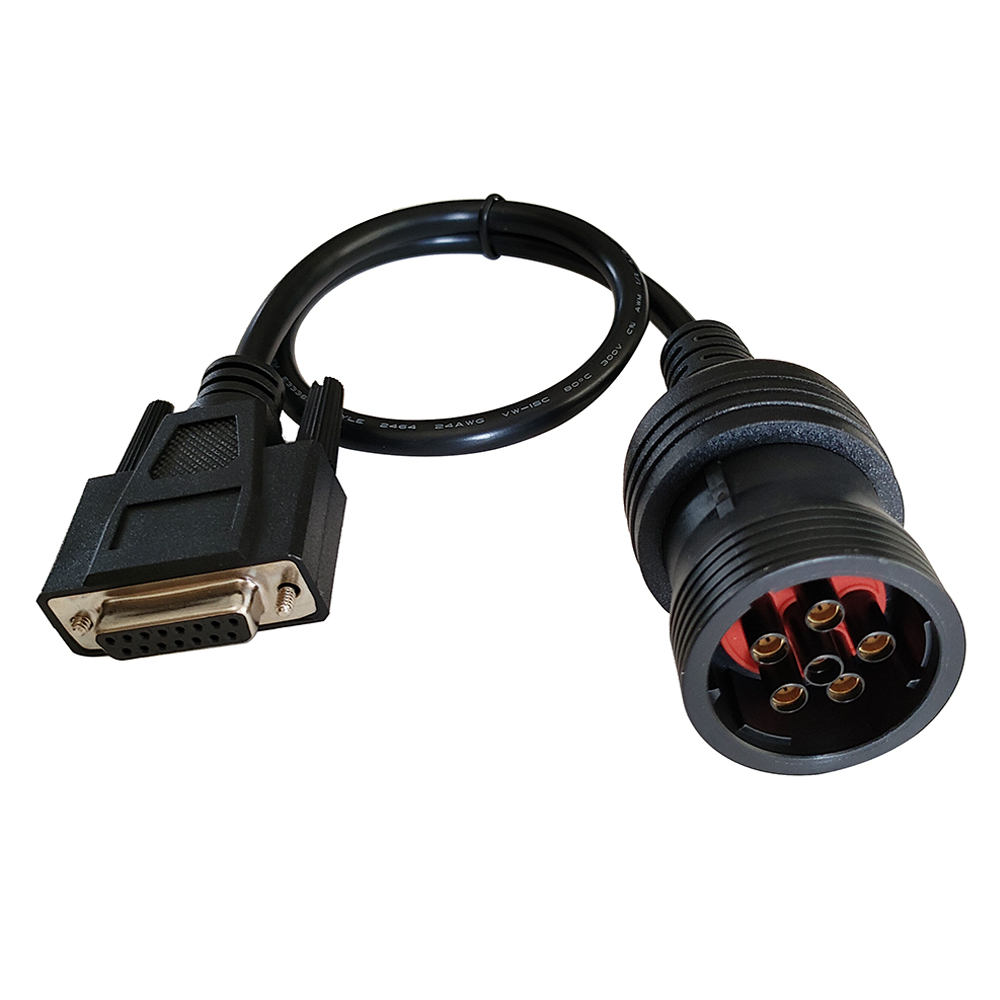

6-Pin Cable

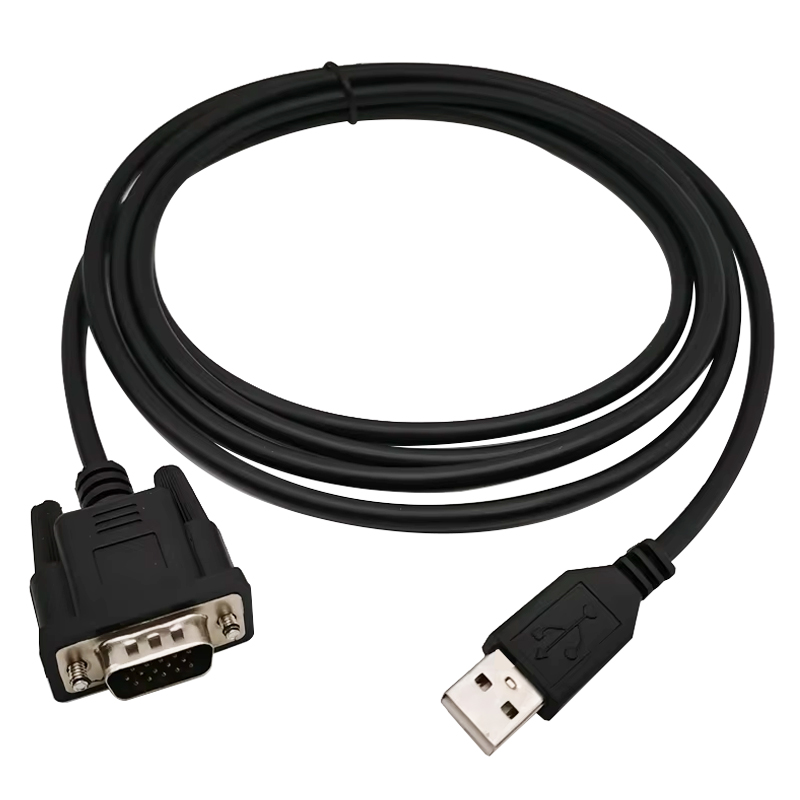

USB Cable
Ethernet LAN Cable (only for Ethernet Version)
USB Flash Disk with Software
Installation Manual CD
|
