Name: Toyota / Lexus ECU Flasher
Description:
Lexus / Toyota ECU Flasher is a professional Toyota Denso/Fujitsu ECU Programmer.
Features:
1. Professional Toyota Denso ECU Programmer.
2. Support Toyota/Lexus 2015 + OBD Write
3. Support Partial Toyota/Lexus 2015 + OBD Read
4. Can Read and Write via Internal 20-Pin or 26-Pin JTAG Connector.
5. Files can be stored in an open format, promoting ease of access and utilization.
6. Firmware integrity is fortified through checksum validation and recalculation, assuring data reliability.
7. No annual or monthly subscription
8. Its proprietary hardware interface ensures seamless operation, mitigating compatibility issues and driver complexities.
9. It guarantees unhindered access to ECU memory, executing operations at remarkable speeds surpassing 100 KB/s.
Highlights:
1. Storing Data: Standard mode storage.
2. Free from any master-slave dependencies.
3. Exclusive to the master device.
4. Supports Automated CHECKSUM CORRECTION

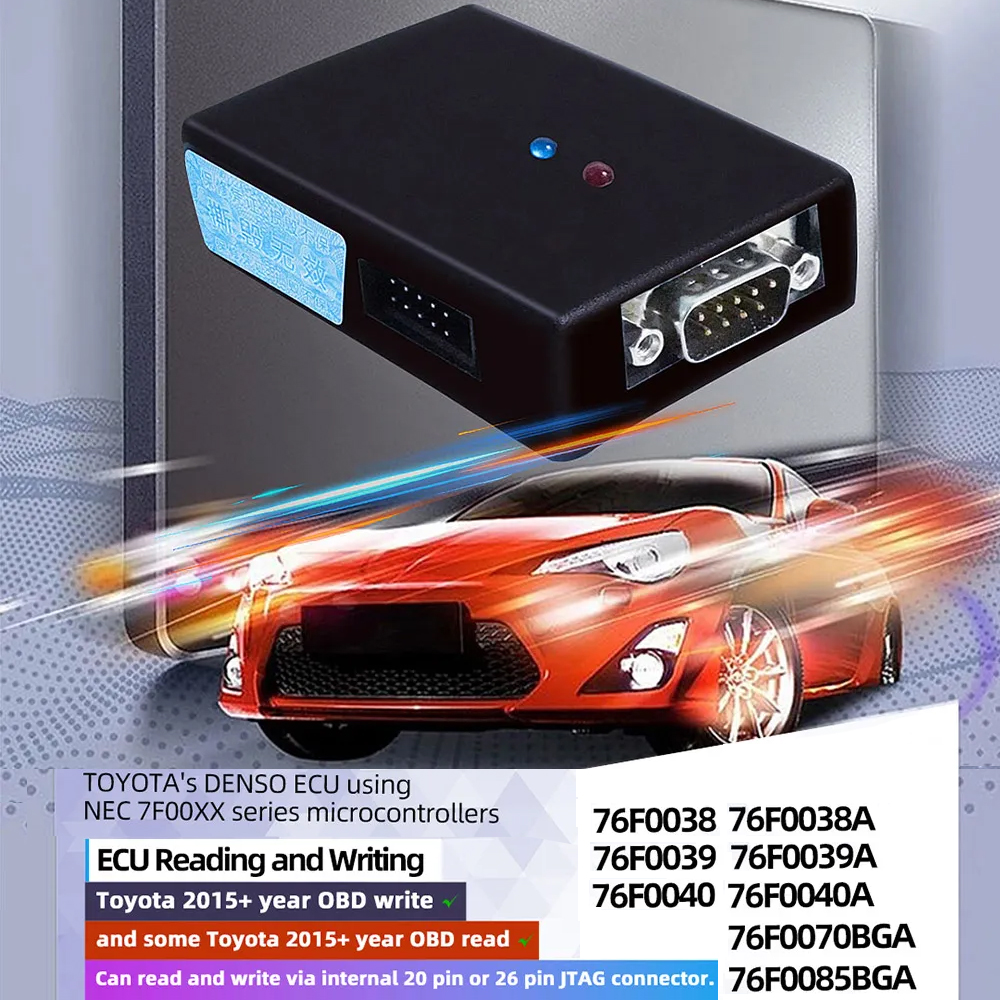

Supported ECUs:
Toyota's Denso ECU using NEC 7F00XX series microcontrollers including:
76F0038
76F0038A
76F0039
76F0039A
76F0040
76F0040A
76F0070 BGA
76F0085 BGA
Note:
1. Work in offline mode.
2. DO NOT use external 12V power in OBD mode!!! USB Power ONLY!!!

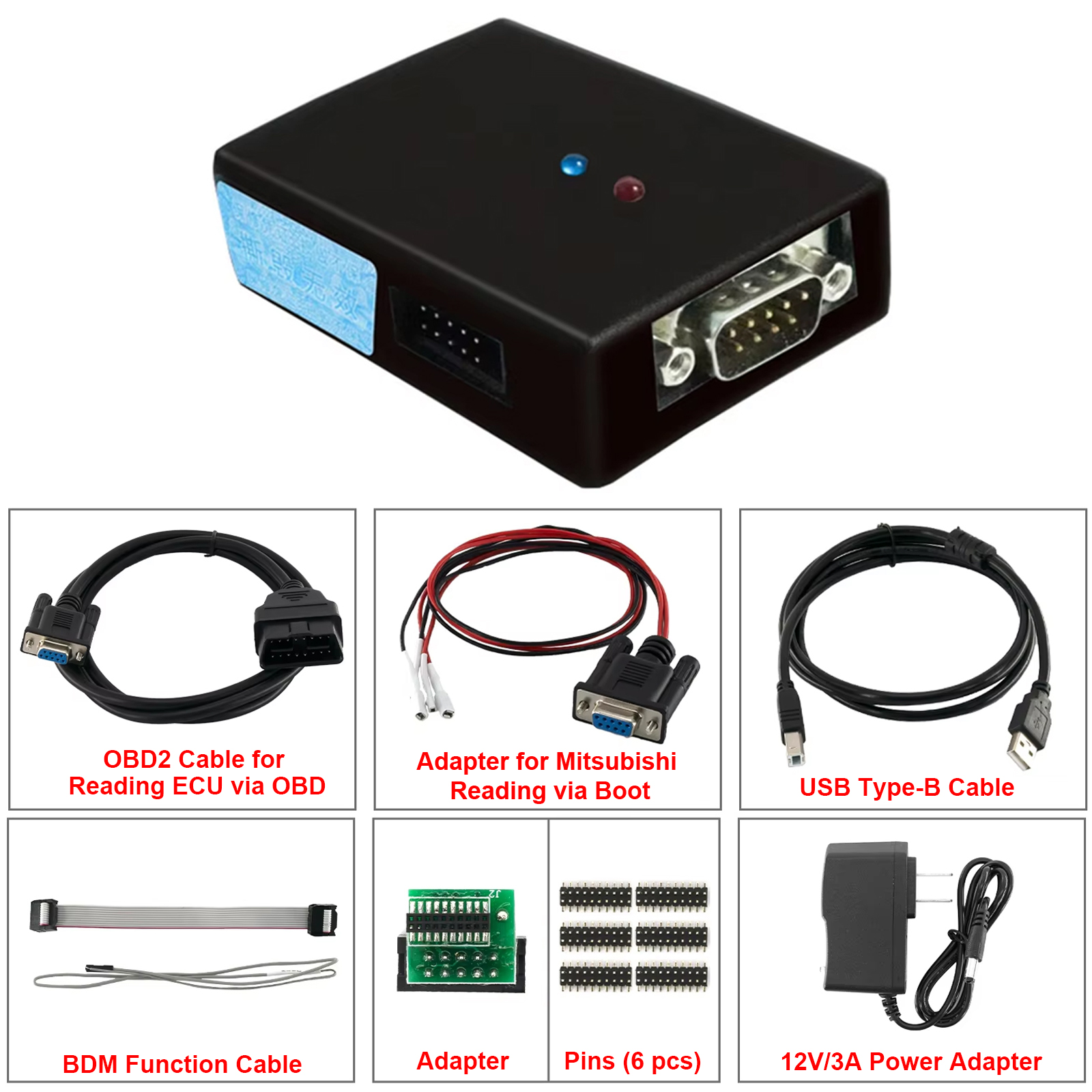

Packing List:

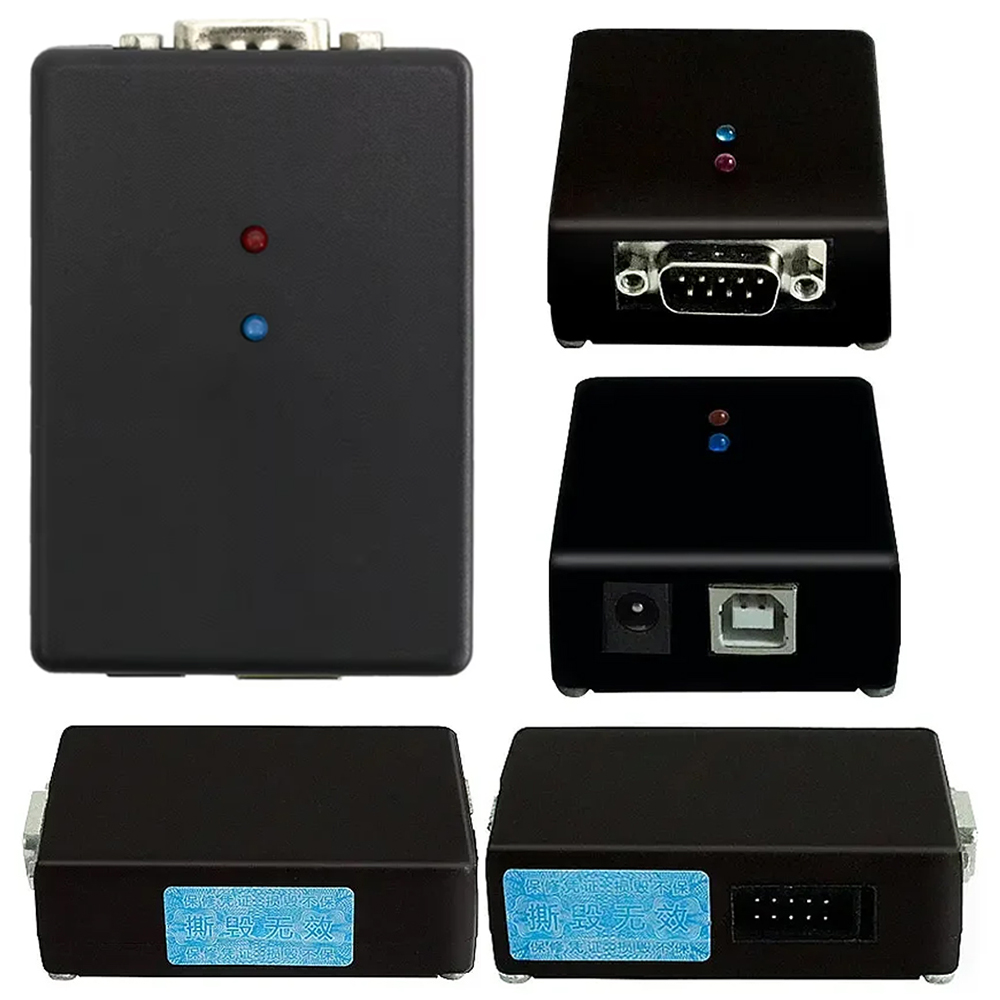

Toyota Lexus Denso ECU Flasher Main Unit

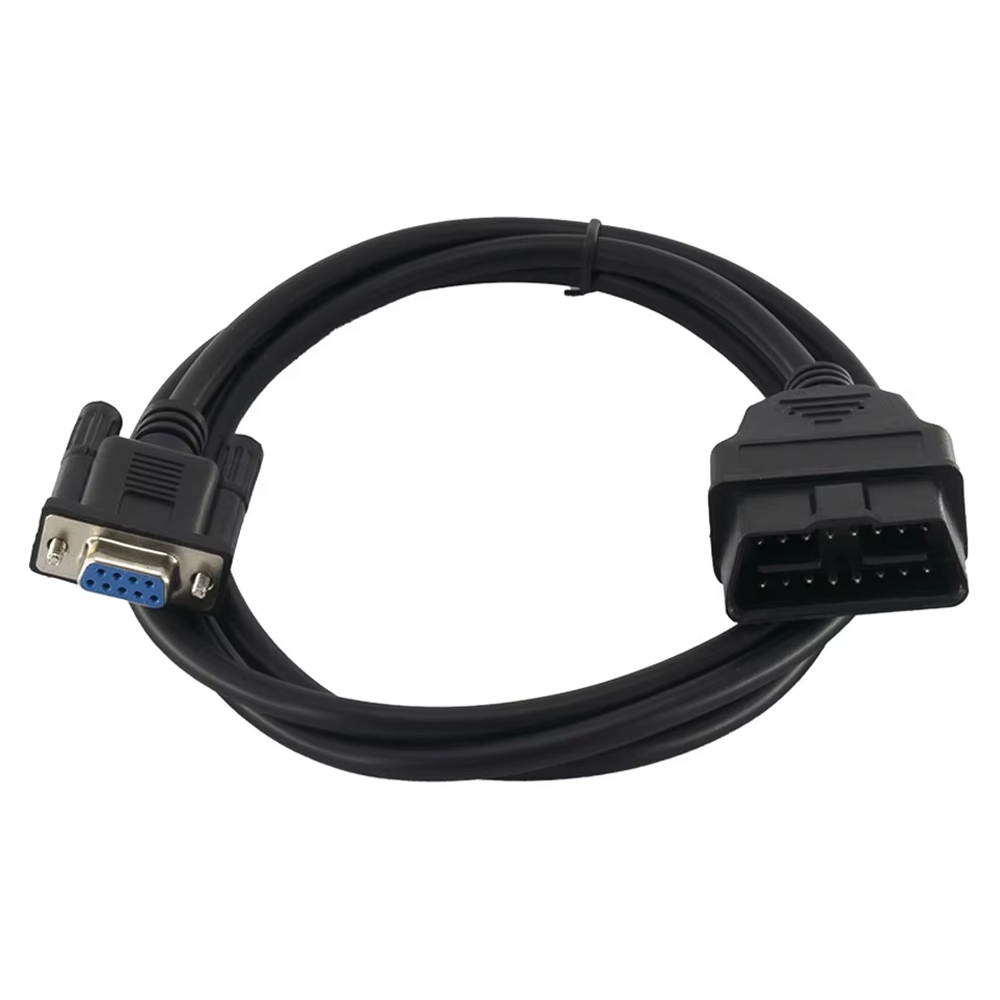

OBD2 Cable for Reading ECU via OBD

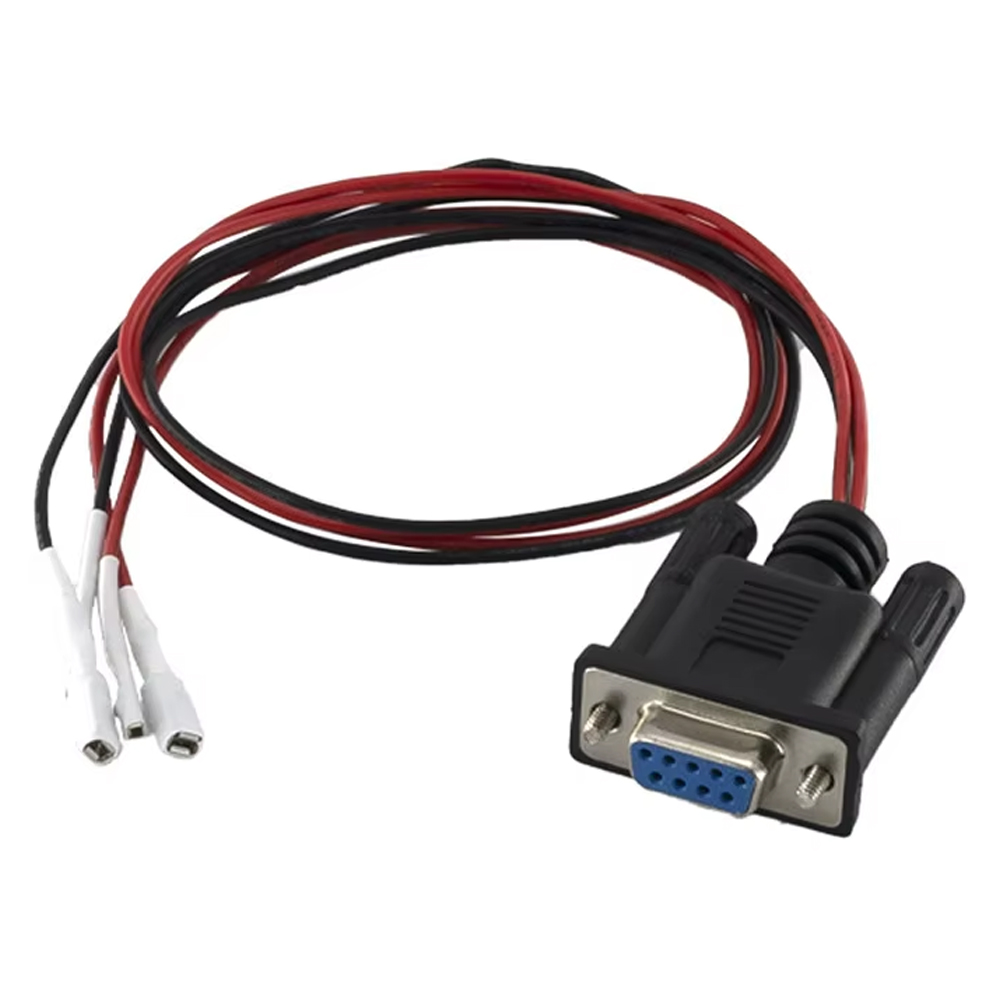

Adapter for Mitsubishi Reading via Boot
BDM Function Cable
USB Type-B Cable
Adapter
Pins (6 pcs)
12V/3A Power Adapter

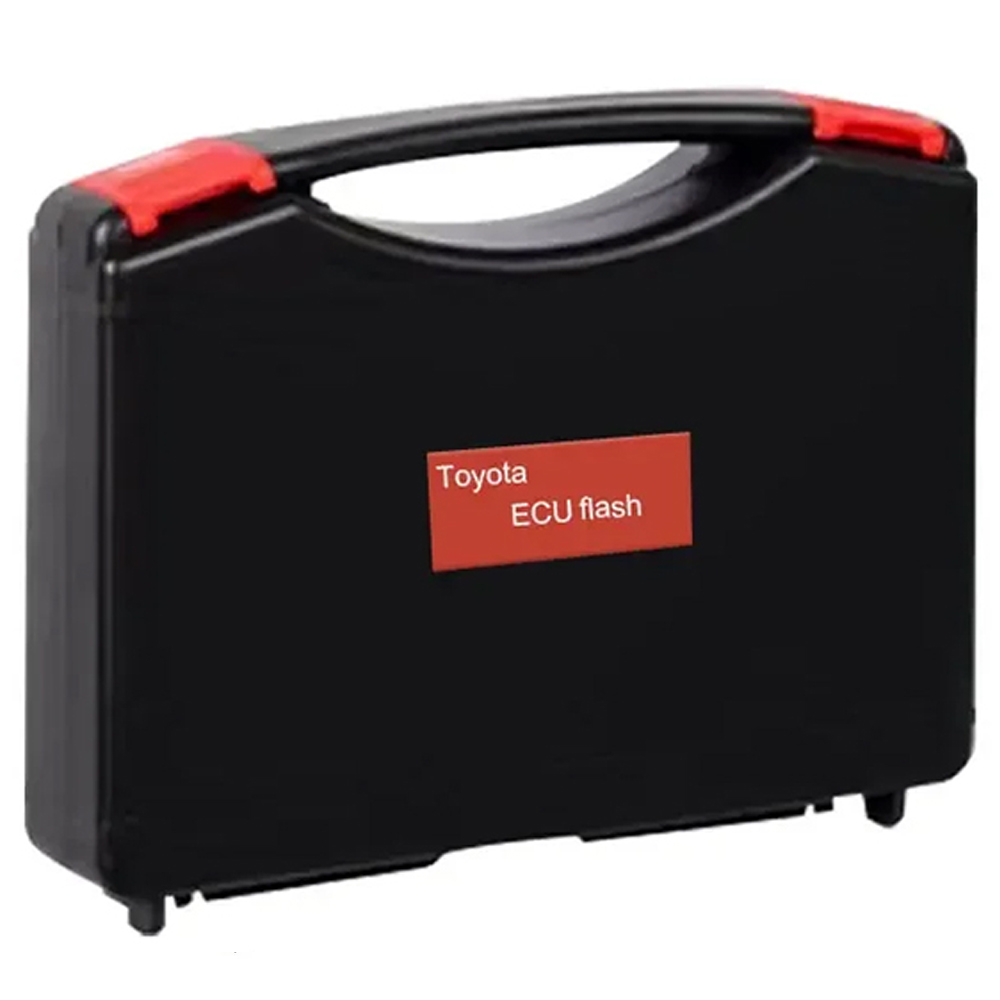

Plastic Toolbox
|
