Name: OBDSTAR CAN DIRECT-V2 Kit
Description:
CAN DIRECT-V2 is used for bypassing the gateway modules in newer vehicles and provide direct access to the vehicles CAN bus for proximity key programming(Note: If reading data of a gateway vehicle by an OBD diagnostic connector, it will be blocked!), supports Proximity Key Programming, Cluster Calibration, Automotive Repair, CAN Frame Acquisition and other functions.
Compatible with OBDSTAR X300 Classic G3 / OBDSTAR Odo Master / OBDSTAR X300 Pro4 and third-party tools.
Functions:
1. IMMO (Works with X300 Classic G3, X300 Pro4.):
TOYOTA/LEXUS (proximity key programming)
Supported 4A models:
2019- TOYOTA COROLLA
2021- TOYOTA COROLLA CROSS
2021- TOYOTA COROLLA SPORT
2021- TOYOTA COROLLA SPORT HV
2021- TOYOTA COROLLA TOURING
2021- TOYOTA COROLLA TOURING HV
2021- TOYOTA COROLLA HV
2019- TOYOTA LEVIN
2021- TOYOTA LEVIN HV
2021- TOYOTA ALLION
2021- TOYOTA LEVIN
Supported 8A model:
2021- TOYOTA Yaris Cross
Supported (8A-A8) models:
2018- TOYOTA PRADO
2018- TOYOTA LAND CRUISER
2018- TOYOTA CROWN
2018- TOYOTA HIGHLANDER
Supported 8A-A9 models:
2018- TOYOTA CAMRY
2018- TOYOTA C-HR
2018- TOYOTA IZOA
2018- TOYOTA PRIUS
2018- TOYOTA VELLFIRE
2018- TOYOTA ALPHARO
2018- LEXUS RX450H
2018- LEXUS LC
Supported 8A-AA models:
2018- TOYOTA HIGHLANDER HV
2018- TOYOTA RAV4
2018- TOYOTA RAV4 HV
2018- TOYOTA AVALON
2018- TOYOTA CROWN KLUGER HV
2018- LEXUS ES
2018- LEXUS UX
2018- LEXUS RX
2018- LEXUS LS
Supports 2021- TOYOTA COROLLA CROSS HV
RENAULT:
2020- RENAULT Clio 5
2020- RENAULT Captur
2020- RENAULT Arkana
2020- RENAULT Kangoo
2020 RENAULT Espace
2021- RENAULT Scenic
2020- RENAULT Zoe
2022- RENAULT Traffic
2021- RENAULT MEGANE 4 PH2
PSA:
2023- PEUGEOT 308 Prox (For UDS+ systems)
2023- PEUGEOT 208 Prox (For UDS+ systems)
OPEL:
2022- OPEL Astra L (For UDS+ systems)
FCA:
2018- DODGE Charger
2019- DODGE Ram
2018- DODGE Challenger
2018- DODGE Durango
2018- DODGE Journey
2018- JEEP Renegade Prox
2019- JEEP Renegade
2019- JEEP Compass Blade
2018- JEEP Compass Prox
2018- JEEP CHEROKEE
2018- JEEP GRAND CHEROKEE
2018- JEEP WRANGLER
2018- JEEP RENEGADE
2017- CHRYSLER Pacifica Prox
2015- CHRYSLER 300/300C
2018- MASERATI models, including GHIBLI, LEVANTE, and QUATTROPORTE etc.
2018- FIAT models, including 500, 500C, and 500X etc.
2018- Alfa Romeo models, including GIULIA, STELVIO, and TONALE etc.
2. Cluster Calibration Function (Works with X300 Classic G3, Odo Master.):
Supported TOYOTA/LEXUS dashboard types:
2019- LEXUS ES S6J3001 DENSO
2023- LEXUS GX550 R7F701401 DENSO
2023- LEXUS LM350H R7F701401 DENSO
2019- LEXUS LS S6J3001 DENSO
2023- LEXUS LS500 R7F701401 DENSO
2022- LEXUS LX600 S6J3001 DENSO
2023- LEXUS NX R7F701441 DENSO
2023- LEXUS NX350 R7F701401 DENSO
2023- LEXUS RX R7F701441 DENSO
2023- LEXUS RX350 R7F701401 DENSO
2023- LEXUS RX450H R7F701401 DENSO
2023- LEXUS RX500H R7F701401 DENSO
2018- LEXUS UX S6J3001 DENSO
2019-TOYOTA 4RUNNER S6J3001 DENSO
2019-TOYOTA ALLION S6J3001 DENSO
2023-TOYOTA ALPHARD R7F701401 DENSO
2018-TOYOTA AVALON S6J3001 DENSO
2024-TOYOTA AVANZA R7F701442
2023-TOYOTA AVANZA VELOZ Q S6J3001 DENSO
2023-TOYOTA BX4 R7F701441 DENSO
2023-TOYOTA BZ4 R7F701441 DENSO
2023-TOYOTA BZ4X R7F701401 DENSO
2023-TOYOTA BZ4X R7F701441 DENSO
2024-TOYOTA CAMRY R7F701401 DENSO(80)
2018-TOYOTA CAMRY S6J3001 DENSO
2018-TOYOTA CH-R S6J3001 DENSO
2024-TOYOTA COROLLA R7F701442
2023-TOYOTA COROLLA R7F701401 DENSO
2018-TOYOTA COROLLA S6J3001 DENSO
TOYOTA COROLLA R7F701441 DENSO
2023-TOYOTA COROLLA CROSS R7F701401 DENSO
2021-TOYOTA COROLLA CROSS S6J3001 DENSO
2024-TOYOTA CROWN R7F701401 DENSO
2018-TOYOTA CROWN KLUGER S6J3001 DENSO
TOYOTA FRONTLANDER R7F701441 DENSO
2019-TOYOTA GRANACE S6J3001 DENSO
TOYOTA GRANVIA S6J3001 DENSO
2020-TOYOTA HARRIER R7F701401 DENSO
2016-TOYOTA HARRIER S6J3001 DENSO
2019-TOYOTA HIACE S6J3001 DENSO
2023-TOYOTA HIGHLANDER R7F701401 DENSO(70)
2018-TOYOTA HIGHLANDER S6J3001 DENSO
2018-TOYOTA KLUGER S6J3001 DENSO
2024-TOYOTA LEVIN R7F701401 DENSO
2019-TOYOTA LEVIN S6J3001 DENSO
TOYOTA LEVIN R7F701441 DENSO
2019-TOYOTA LINSHANG S6J3001 DENSO
2023 TOYOTA RAIZE S6J3001 DENSO
2023-TOYOTA RAV4 R7F701401 DENSO
2019-TOYOTA RAV4 S6J3001 DENSO
2022 TOYOTA SIENNA R7F701401 FULL TFT
2019-TOYOTA SIENNA S6J3001 DENSO
2018-TOYOTA TACOMA S6J3001 DENSO
2023-TOYOTA TACOMA IV R7F701401 DENSO
2022-TOYOTA TUNDRA R7F701401 DENSO
2023-TOYOTA VELLFIRE III R7F701401 DENSO
2023 TOYOTA VENZA R7F701401 DENSO
2019-TOYOTA VENZA S6J3001 DENSO
2023-TOYOTA VIOS S6J3001 DENSO
2020-TOYOTA WILDLANDER R7F701401 DENSO
2019-TOYOTA WILDLANDER S6J3001 DENSO
2024-TOYOTA YARIS R7F701442
2020-TOYOTA YARIS R7F701441 DENSO
2019-TOYOTA YARIS CROSS S6J3001 DENSO
2019-TOYOTA YARIS IV S6J3001 DENSO
Packing List:

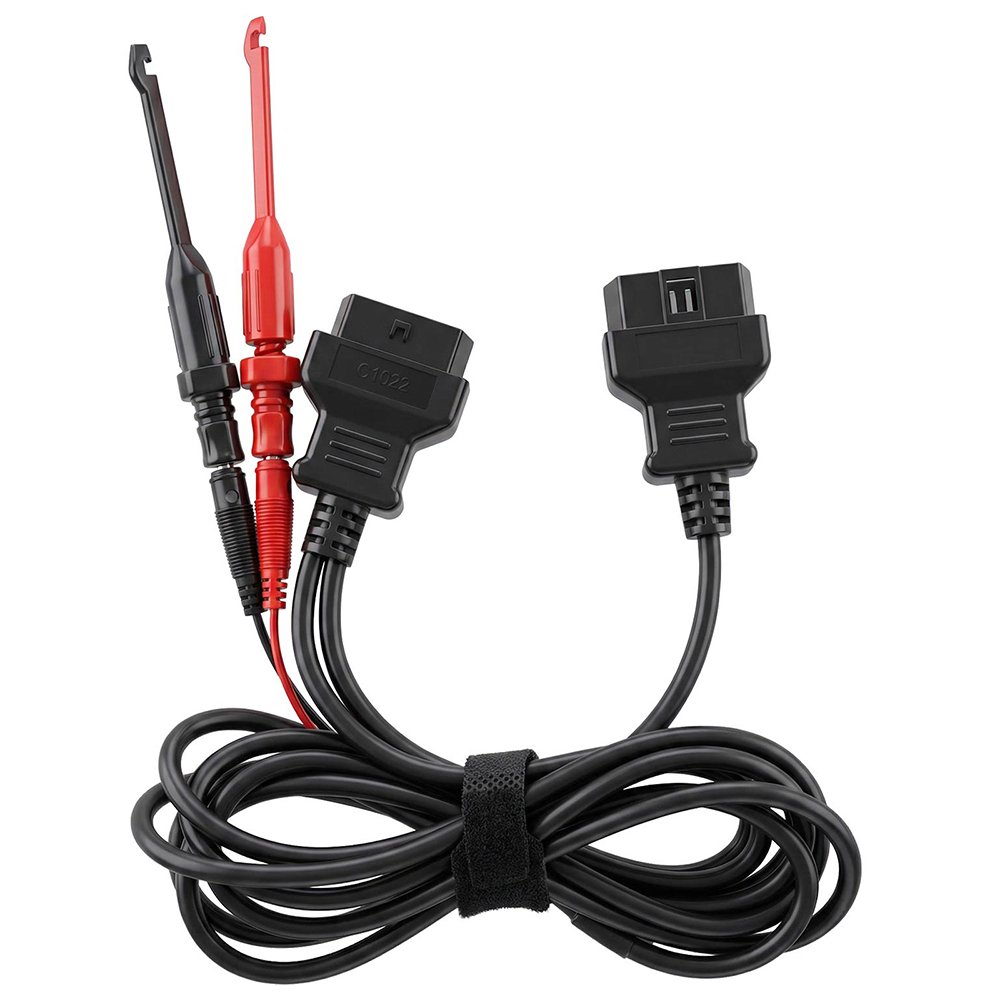

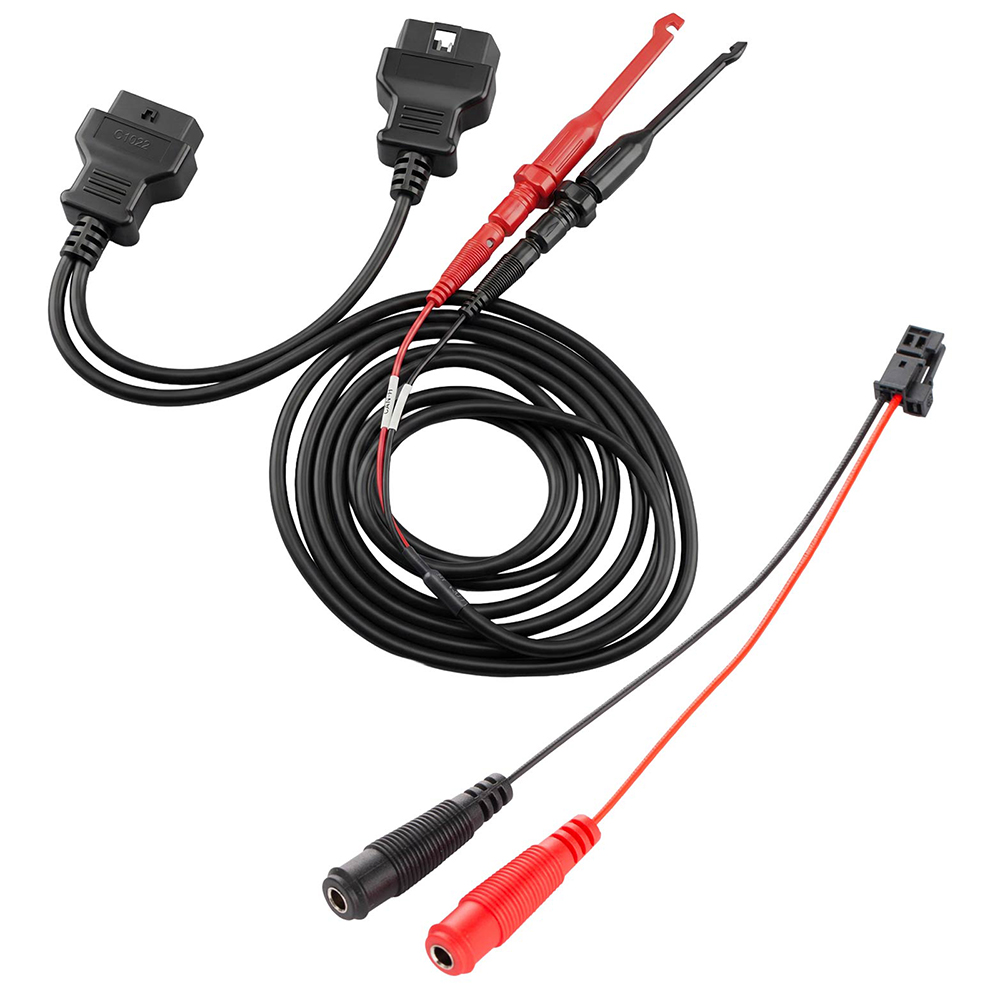

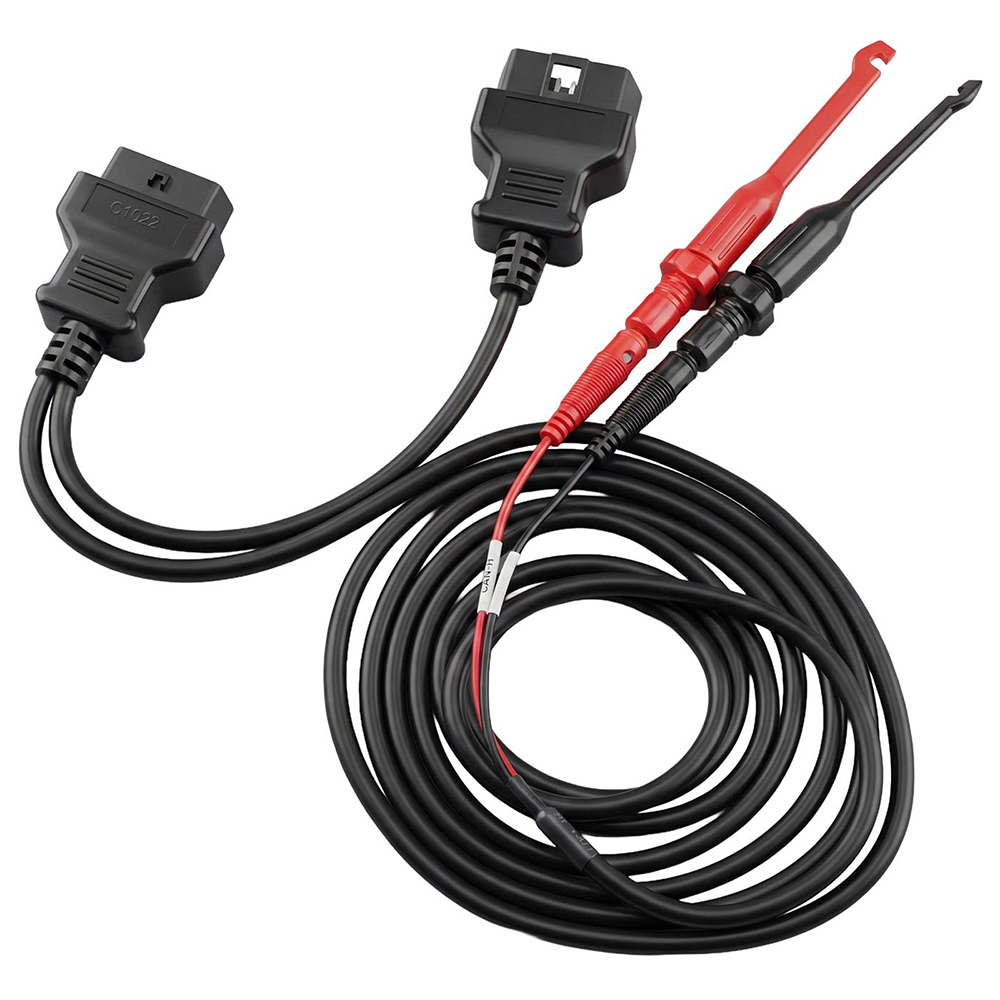

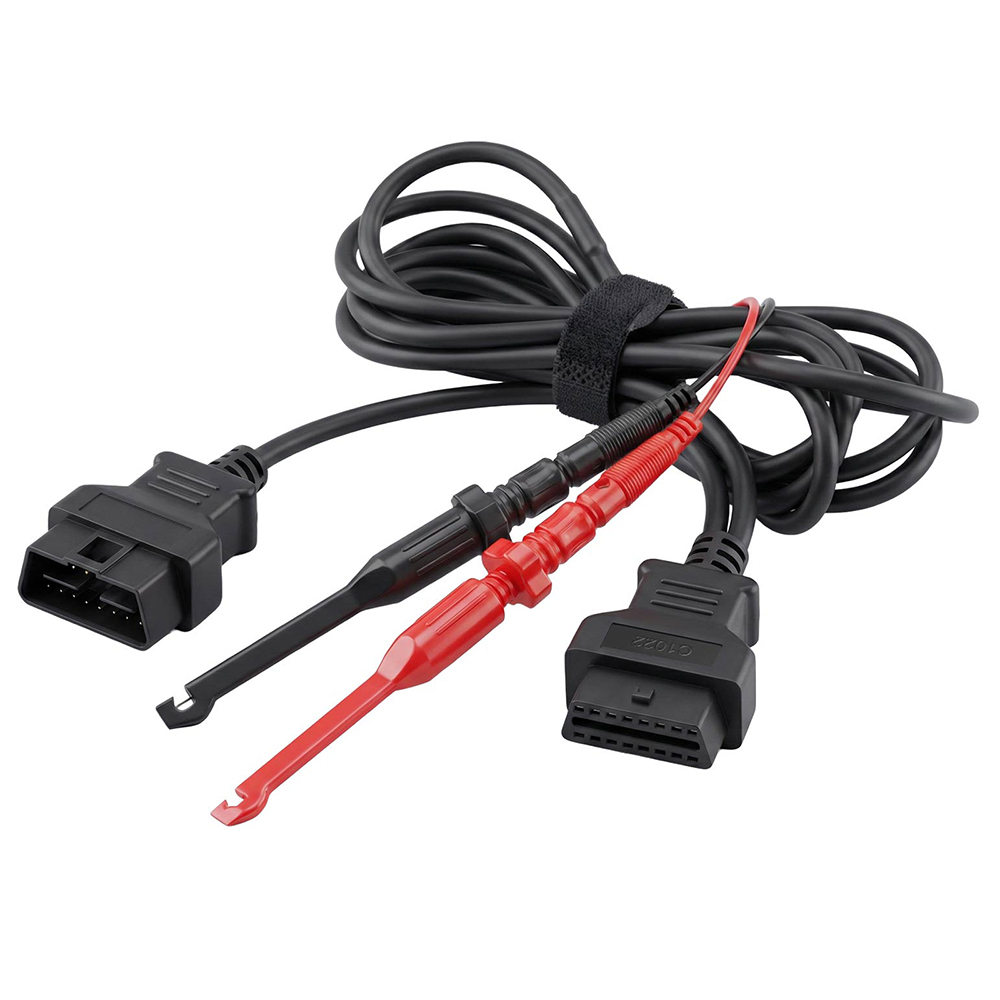

OBDSTAR CAN DIRECT-V2 Main Cable

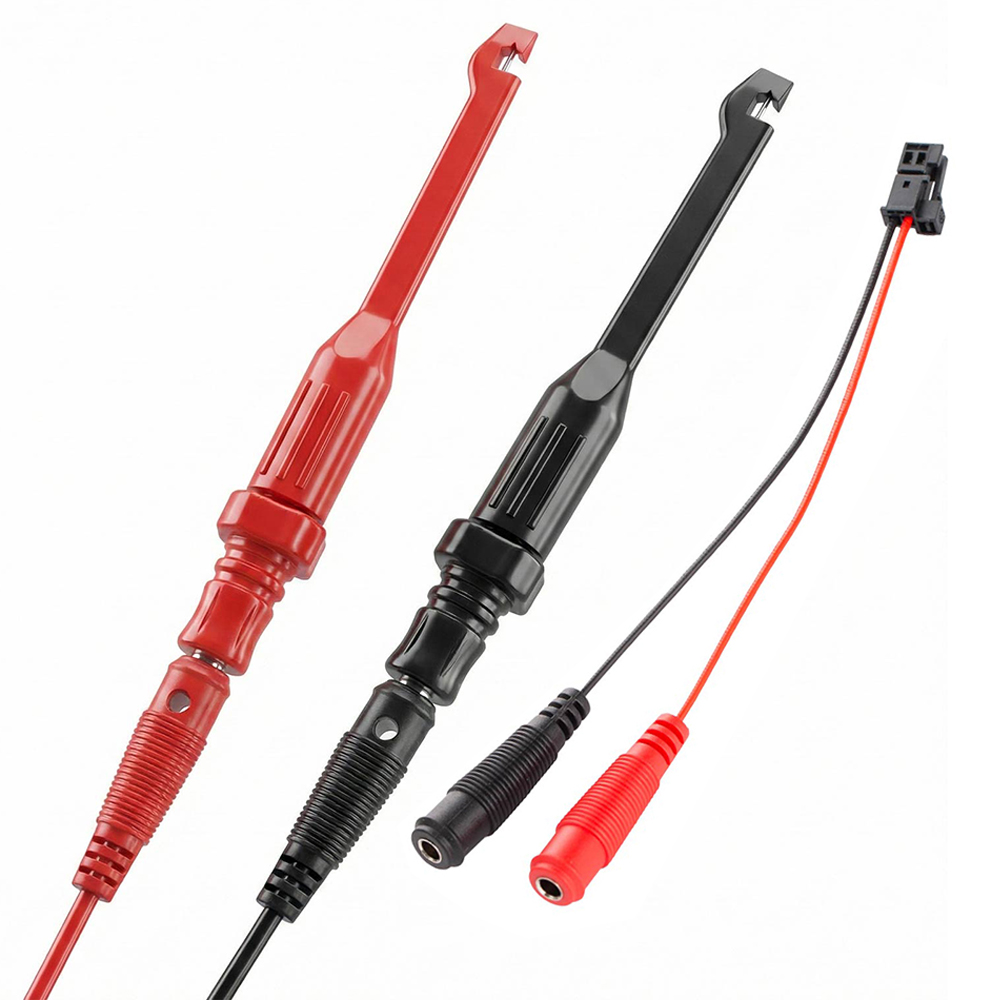

Spiral Wire Piercing Probe (Hook Probe / Back-Probe Pin)
JEEP/CHRYSLER Dedicated CAN-C BUS Connector
|
