Name: OBDSTAR MQB(5A) V850 Adapter Kit
Description:
OBDSTAR MQB (5A) V850 Adapter Kit for Immobilizer Data Reading works with OBDSTAR C4-06 Adapter and OBDSTAR X300 Classic G3 Key Programmer, Key Master 5, X300 MINI VW.
OBDSTAR V850 Adapter kit is specially designed as an optional kit to read Immobilizer Data from Instrument Cluster for MQB-48(5A). It works with the C4-06 Adapter to enable solder-free reading of V850 chip immobilizer data, Direct-fit custom adapters support All Keys Lost, Add keys, and other Key Programming functions.

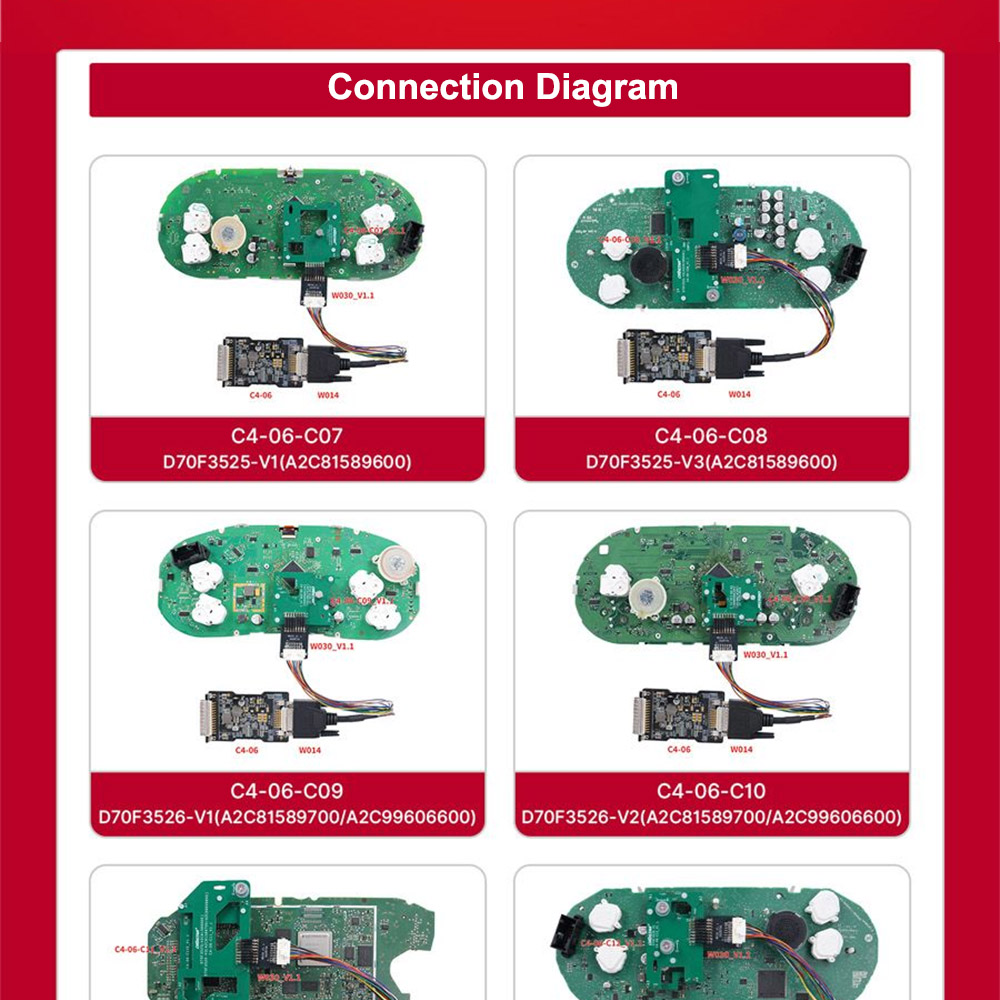

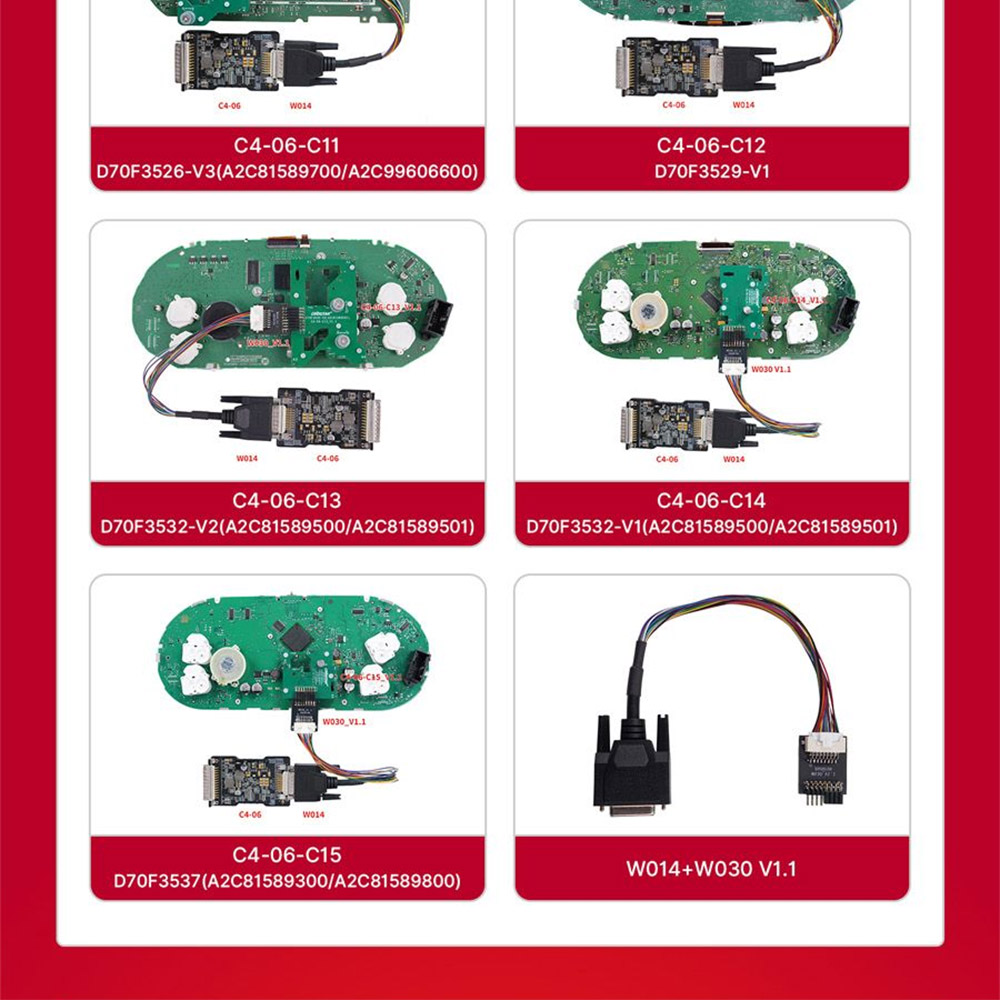

Supported Dashboard Types:
C4-06-C07 Adapter:
D70F3525-V1(A2C81589600)
D70F3525-V2(A2C81589600)
D70F3526-V4(A2C81589700/A2C99606600)
C4-06-C08 Adapter:
D70F3525-V3(A2C81589600)
C4-06-C09 Adapter:
D70F3526-V1(A2C81589700/A2C99606600)
C4-06-C10 Adapter:
D70F3526-V2(A2C81589700/A2C99606600)
C4-06-C11 Adapter:
D70F3526-V3(A2C81589700/A2C99606600)
D70F3525-V4(A2C81589600)
C4-06-C12 Adapter:
D70F3529-V1
C4-06-C13:
D70F3532-V2(A2C81589500/A2C81589501)
C4-06-C14 Adapter:
D70F3532-V1(A2C81589500/A2C81589501)
C4-06-C15 Adapter:
D70F3535(A2C81589200)
D70F3537(A2C81589300/A2C81589800)

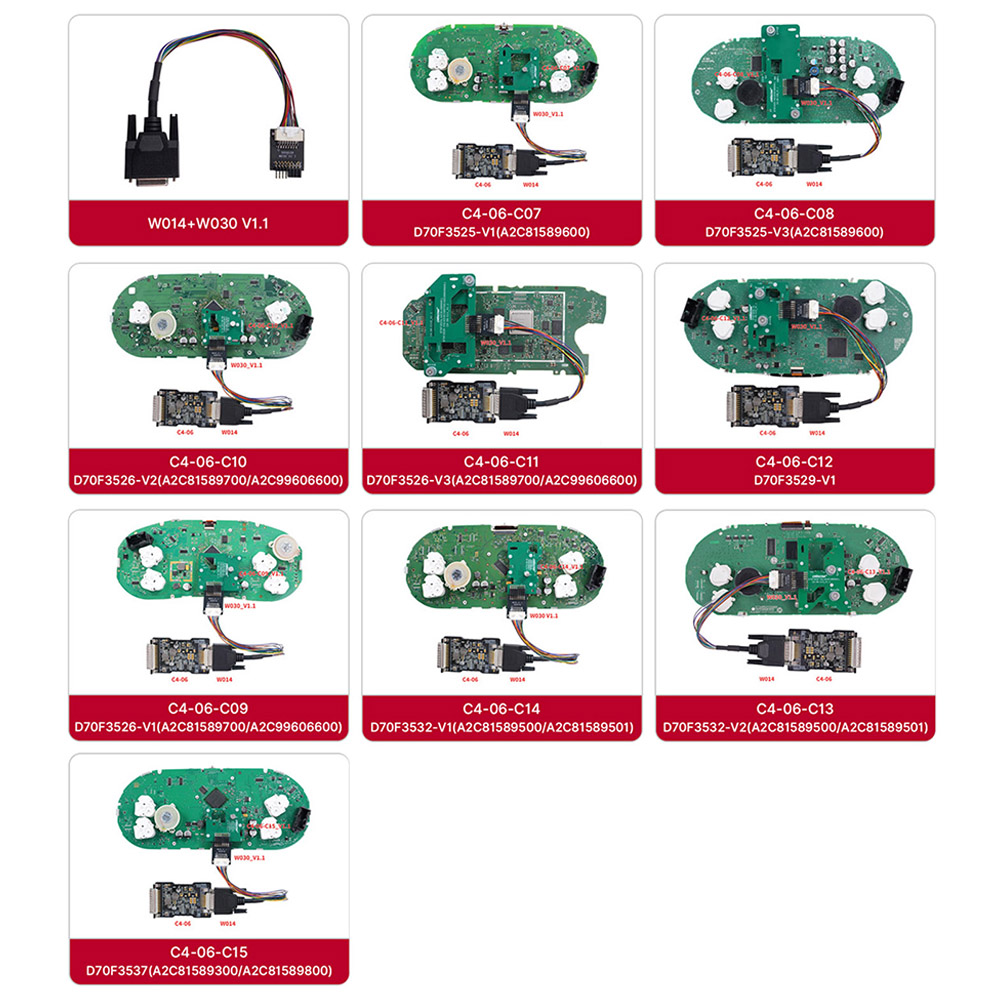

Packing List:
C4-06-C07 Adapter
C4-06-C08 Adapter
C4-06-C09 Adapter
C4-06-C10 Adapter
C4-06-C11 Adapter
C4-06-C12 Adapter
C4-06-C13 Adapter
C4-06-C14 Adapter
C4-06-C15 Adapter
W014+W030 V1.1 Cable
