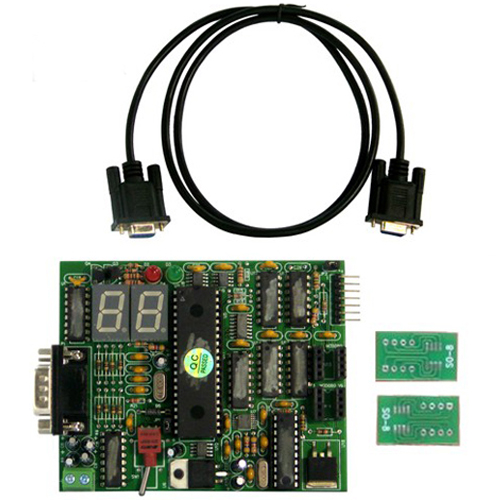

Name: M35080V6 EEPROM Eraser Programmer
Description:
Read, Program, Erase Incremental Registers/EEPROM Erase time to Delivery State* 1-3 seconds Erase time to Delivery State for M35080V6 1-10 minutes Supported all clock rates 2.5, 5.0 and 6 MHz IC's. In-circuit/On-board EEPROM programming
Features:
Easy to use Windows 98/2000/XP software:
Read, Program, Erase Incremental Registers/EEPROM
Erase time to Delivery State* 1-3 seconds
Erase time to Delivery State for M35080V6 1-10 minutes
Support all clock rates 2.5, 5.0 and 6 MHz IC's.
In-circuit/On-board EEPROM programming
On-board EEPROM programming for M35080V6
Self-Check capabilities
On-board processor ATmega16 allow to Firmware Update to new versions
4 adaptors for SO8 device
Additional items you'll need to use this tool:
1). Host: A 32 Bit x86 based or Pentium PC with a free COM 1-8 communication port.
2). Power supply: 12V/500mA
Notice:
Delivery State: The first 32 bytes (incremental registers) are set to all "0"s, 16 words at $0000 The EEPROM memory array $0020-$3FFF set to all $FF. The Status register set to $10
|
