  OBDSOS PRODUCTS Truck / Engine Diagnostic Tool

Product ID SH09
Product Name XTool PS2 Truck Diagnostic Tool
Product Price USD1000
Actual Weight (Kg) 9.4
Volumetric Weight (Kg) 9.5
Package Size (cm) 56*17*42
Related Download
  PS2 Truck Tool Test Functions.pdf
  PS2 Truck Packing List.pdf
Order Quantity:
No Stock



Description

Name: PS2 Truck Diagnostic Tool

Description:

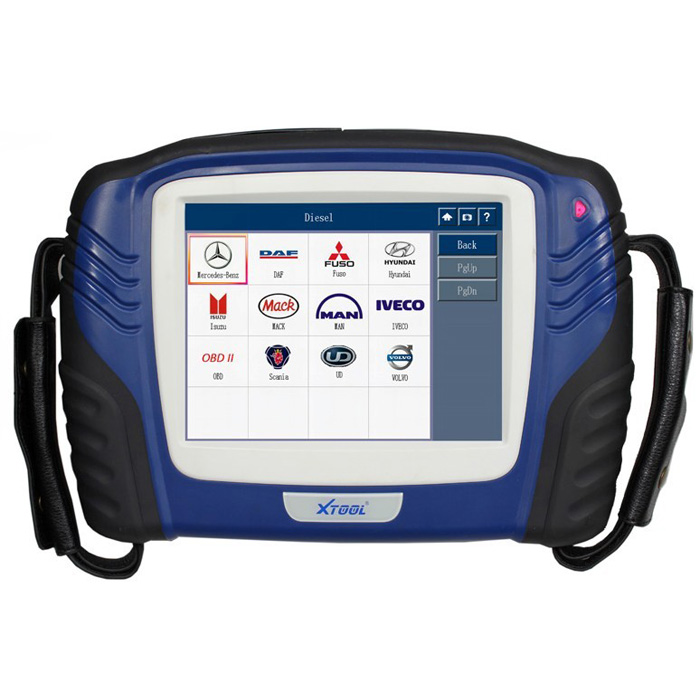

PS2 Heavy Automotive Computer Diagnostic Tool is a professional Truck Diagnostic Tool for car repair technicians.

Our developers in Programming and R&D section play a technical leading role in this business. Most engineers have rich experiences for designing platform and software. Therefore, our customer will feel the outstanding and powerful performance of the product.

As for the design of PS2, our technicians perfectly mix appearances with practicality. With jumbo size, true-color, full touching screen and simple body, customers will operate PS2 more intuitively and easily. The capability of the built-in highly processing chip could reach 400Mhz. Its ability is superior to the common used ARM7 chip. Such excellent performance of the chip and the superior diagnostic module will guarantee the accuracy and real-time function. The demonstration for data stream of PS2 shows its accuracy and rapidity which will enhance the convenience of our guests.

PS2 comprehensively supports all protocols and all modes for the OBD-II. The built-in CAN BUS chip supports all CAN BUS protocols. The forward-looking design of PS2 meets the need not only for the present but also for the future automobile main-line examination. The drivers of diagnostic module can be updated through the internet. The formidable compatibility reduces the equipped adapter. PS2 is easy to handle and users will experience the unique design from our R&D team.

We also provides wireless communication version of PS2. The servicemen can sits in the office to carry out the functional test. The VAG connector could meet the various requests from customers. All test procedures places on a high-capacity SD card which facilitates the updating procedure. The multi-language edition will satisfy the demands from our customer around the world.

As a result of massive field test, PS2 becomes a matured and integrated product. Excellence is our motto. We make every effort to develop and to innovate our product which enables PS2 to become a reliable automobile diagnostic equipment. The speedy test, the accuracy and the user-friendly design of SP2 help us to enjoy the support of all customers!

PS2 is a high-tech and professional automobile diagnostic tool. Please follow the instruction to use the product. If you have any problems or questions related to the operation, please contact after-sale technical service department for further instruction.



Power: for starting and closing of main engine
USB Interface: for carrying out the data synchronization with PC.
VGA Interface: for linking the external monitor (800*600 pixels)
MainTesting Interface: for testing line to carry out the vehicles diagnosis.
Power Interface: for the exterior power supply
Touch Pen: for clicking on the touch-screen.


Serial Interface: for main body debugging.
SD Slot: for SD card
Paper Outlet: for mini printer

Functions of VCI Diagnostic Box:

The box is bridging the PS2 mainframe and the automotive diagnostic base. It is called lower position machine. This diagnostic box has two connections, the DB15 connection and the OBD-II connection. The main testing line connects the PS2 mainframe with the DB15 adapter. The OBD-II connection could link with the testing adapter (PS2 with OBD-II diagnostic base could directly link with automotive connection base)

Because the bluetooth communication module is installed in the VCI diagnosis box, the PS2 mainframe could proceed the diagnosis without the main testing line. The "online diagnosis" should be changed to the "wireless diagnosis" mode on the menu.

PS2 Technical Parameters:

Operating System: WINCE 5.0 operating platforms
CPU: SAMSUNG 32 bits processors, basic frequency is 400MHz
Random Memory: SD RAM 64M
Programming Memory: Flash 64M
Exterior Memory: supports SD card slot-in and slot-out
Mainframe power supply: DC12V/24V
mainframe Power: 25W
Printer: mini high-speed thermal sensitive printer
Screen: 8 inch real-color touch-screens, 800*600 with LED back-light
Temperature: -20 - 50 degree centigrade
Relative Humidity: <90%
Main Unit Battery: rechargeable battery 3500mA
Wireless Communication: bluetooth

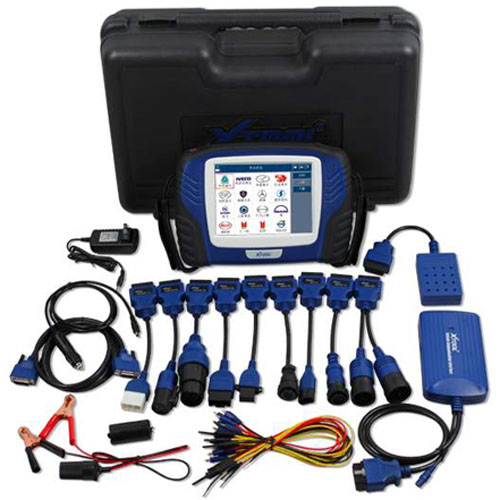

Packing List:

XTool PS2 Truck Diagnostic Tool
Adapters
Connection Cables
Manual
Plastic Toolbxo
Packing Box
