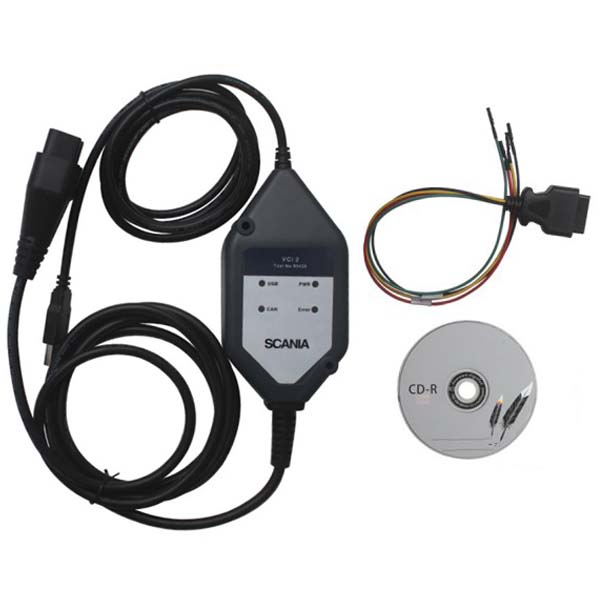

Name: V2.27 SDP3 VCI 2 for Scania Diagnostic Tool
Description:
Scania VCI 2 replaces older Scania VCI 1 tool and designed to work with latest Scania trucks, buses and other heavy vehicles.
Scania VCI2 is a tool that is used together with Scania Diagnosis and Programmer 3 (SDP3) software to diagnose and troubleshoot Scania heavy vehicles and trucks.
Supported Languages:
English, German, Spanish, French, Japanese, Dutch, Polish, Portuguese, Swedish, Norwegian, Suomi, Turkish, Italian, Czech, Russian.
Features:
Stored fault codes, proposals for remedial action and delete option.
Control unit configuration and settings.
Information about electrical components and their location.
Input and output signals.
Activation of components.
Spare part programming.
Circuit Diagrams
For each circuit there is a diagram which clearly shows how the particular circuit is implemented in the respective vehicle.
Chassis Data
The vehicle gives the program a description of itself and how it is configured.
User Functions
In order to meet service market requirements to work more effectively, there is an option to troubleshoot via user functions, e.g. cruise control.

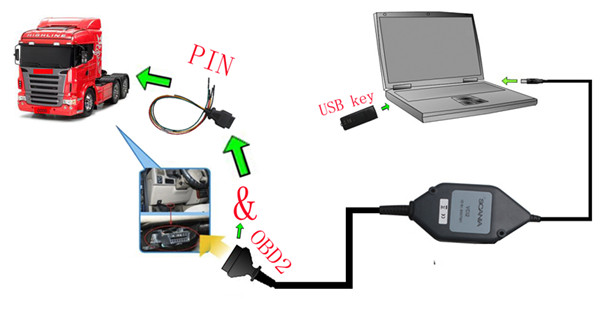

After connecting VCI2 to the PC and starting SDP3, you can access information about VCI2 by opening the menu under View. This works regardless of whether VCI2 is connected to the vehicle or not.
VCI2 supports the earlier systems in P, R, T series and K, N series vehicles and industrial and marine engines.
FAQ:

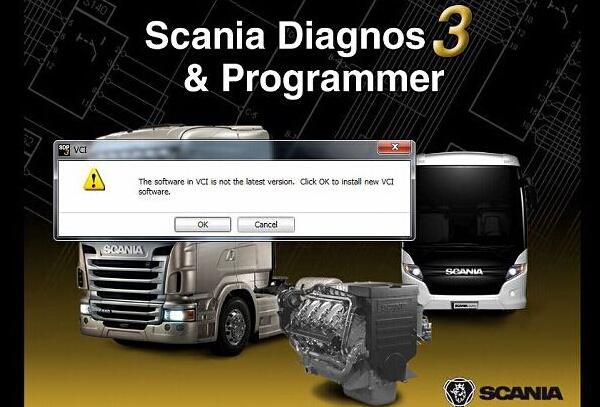

Q: I get error information of "The software in VCI is not the newest version, please click OK to install the newest VCI software", how to solve this?
A: Solution:
Go to step-7 setup:
1. Copy "SCOMM_SSK.dat" and "SCOMM_SSK_HL.dll" and paste into disk C to replace the old ones.
2. Connect device with the vehicle, open SDP3, you will not get message asking for update VCI.
However, if you get the message, copy "SMAPI.dll" and paste it into disk C to replace the old one.
Notice:
1. Supports Windows 7 32bit OS
2. Not supports WiFi connection.
|
