Name: Hino Diagnostic eXplorer

Description:

The Hino-Bowie Diagnostic eXplorer (hereafter referred to as Hino DX) is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into Hino engines.

Main Functions Acquires and deletes trouble data. Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly displays the required data.

Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function).

Monitors the sensors and actuators equipped on the engine (Data Monitor function)
Tests the operation of solenoid valves by forcefully operating them (Active Test function).

Simulates diagnostic work with only a PC(Simulation function).

Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble can not be grasped.

Aisin Transmission data viewing and diagnostics-2001-2007 Model Years
1. Display and Clear Diagnostic Codes
2. Display live data for diagnosis

MDTICs Engine data viewing and diagnostics-2001-2004 Model Years
1. Display and Clear Diagnostic Codes
2. Display live data for diagnosis

J05 & J08 Engine data viewing and diagnostics 2005-2008 Model Years
1. Display and Clear Diagnostic Codes
2. Display live data for diagnosis-Specific data can be selected

Full Customization Capability
1. Turn on Engine Protection Shutdown System
2. Set Maximum Vehicle Speed * Set Maximum Cruise Control Speed
3. Set PTO idle speeds fixed and variable
4. Change Injector Calibration QR Code when replacing injectors
5. Supply Pump relearning when replacing SCV or supply pump
6. Complete DPF testing and regeneration capability
7. Built in Help Menus for troubleshooting specific diagnostics

Software Version: V2.0.2

Software Supported Language: English, Chinese

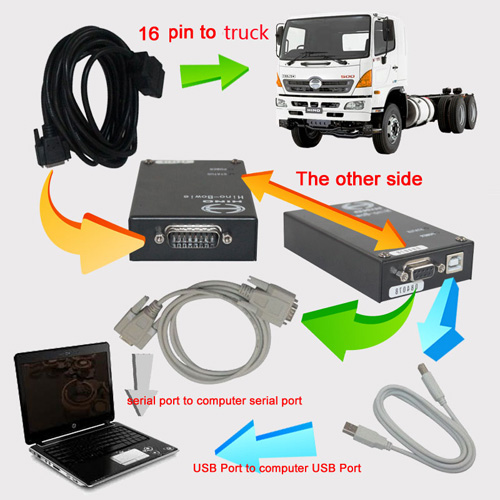

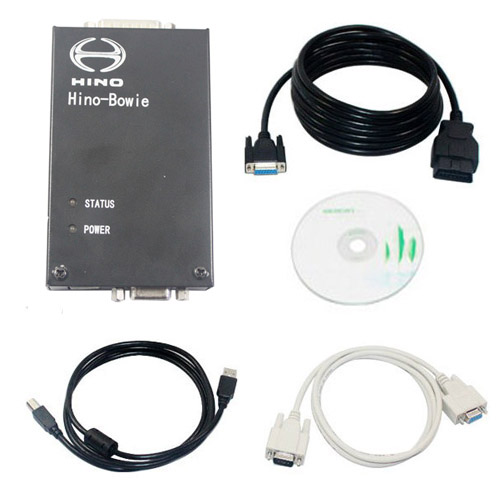

Set Includes:

Diagnostic interface (part number:09993E9070)
Diagnostic cable OBD-II (part number:09042-1220)
USB Cable
Software CD
