Name: Super Volvo VCADS Volvo Truck Diagnostic Tool v2.4.0

Description:

The Volvo Truck Corporation is the second largest heavy-duty truck brand in the world, and it fully equipped  by all kind of electronic systems. Genuine Volvo Service is always performed by skilled and trained mechanics using the best tools and Genuine Volvo Parts whether in the Volvo workshop or by a Volvo Action Service roadside team.

VCADS Pro (Vehicle Computer Aided Diagnostic System and Programming), VTT(Volvo Tech Tool), RTT(Renault Tech Tool), PTT(Premium Tech Tool), is the after market tool for diagnostics, calibration, and programming support. This program is used when working on vehicles with Volvo engine electronics 1992 and later. This tool enhances the diagnostic and programming attributes of the vehicle.

Utilizing the J1587/1708 information link. VCADS Pro has the ability to perform task such as engine compression test, calibration of the instrument cluster, and programming of software and customer parameters. Also our communication adapter possible to use with MATRIS "MAchine TRacking and Information System”  MATRIS - The purpose of the application is to collect technical information about Volvo Construction Equipments products in use and present the information to the operator, and forward it to certain sites, as the main office of Volvo Construction Equipment. The information is accumulated and stored in the ECUs (processor) of a machine during the life cycle of the machine. The process of collecting information is called reading. The processing of the information into compiled presentation material in the PC gives a comprehensive understanding about the usage and the quality of the machines.

Datalink interface which produces our company for "VCADS Pro" working well with all Volvo trucks produce from 1992 to now days.
Also our datalink adapter (interface/translator device), (with different connection cables) and program "VCADS Pro" can communicate with trucks, buses and construction "Volvo" Loaders, Excavators, Scrapers (look for full inventory).
This adapter compliant with 9998555 (communication block), and recommended for heavy duty work.

Adjustments and Improvements:

Support for new models: FL and FE
The Option dialog in the Tool menu has been updated.
Manually entered chassis series are validated on the local computer.
Possibility to correct parameter values that are incorrect according to specifications. Parameters with values that are not valid are marked with red color. Previously, this situation caused an error that interfered with parameter programming.
Help desk tool is updated. The actions 1 - Update phone book and 3 - Change connection type are found under 1 - Central Communications Settings.
Campaigns which have been downloaded in intermediate storage mode but are not reported will, after 30 days, be reported as not performed for safety reasons.
If the hardware part number in the control unit differs from the hardware part number stored in the central systems, VCADS Pro will automatically check if there is an appropriate conversion kit available. If this is the case, a dialog box appears asking the user to run the conversion kit.
New procedure for downloading of new versions of VCADS Pro.
If there is unused or unreported software stored in Intermediate Storage, the user will be notified and has the possibility to view more detailed information.
Help text updated with instructions for parameter programming by templates, the new Option dialog and information about new functionality in intermediate storage.
Campaign handling will from now be reported after programming is finished and not at the next authenticated connection to central systems.
The operation conversion kit has been split into two operations: Conversion kit and Accessory kit.
Oscilloscope related operations for special tool 88890040 have updated oscilloscope software.
Support tool 9998555 and 88890020

Software Version: v2.4.0

Software Supported Language: English

This software supports VN, VT, VHD, WG, WX and AC from model year 1998 forward.

Volvo VCADS Pro 2.40.00 offers an excellent software tool to assist customers and bodybuilders in performing their own diagnostic work on Volvo engines.

Tests for fault tracing of Volvo D7C, D11F, D12B, D12C, D12D, D13F, D16D and D16F engines are incorporated into PTT.

VCADS is a Windows - Base software tool developed to test, calibrate and program parameters on Volvo ECUs.

VCADS provides tests and calibrations for VOLVO vehicles that are equipped with the Vehicle Electronics 1998(VECTRO II) or Version 2 electronic control systems. The application consists of a number of standard graphical interfaces, such as graphs and continuous displays of parameters values. The operations are organized in the menu according to function groups. Some ECUs have changeable parameters that can be use to adjust or customize certain functions. Volvo ECUs often have two types of parameters: Customer parameters and Vehicle parameters.

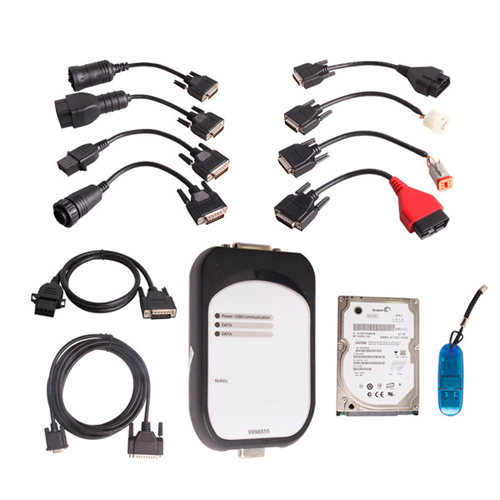

Set Includes:

1. Communication unit, connected between the VCADS Pro tool and the vehicle communication socket
2. Communication unit VCADS connection diagnostic connector 25P extension cable
3. RS232 cable for VCADS communication unit and PC
4. 6-pin diagnostic adapter, for Volvo Penta.
5. Adapter for EDC. Used together with communication unit for the 9–pin communication socket in the vehicle EDC before 1994.
6. Adapter for DXI. Used together with communication unit for the 12–pin socket in the vehicle Renault DXI(VF627).
7. 9-pin diagnostic adapter, for vehicles built from January 1999. (only for North American models).
8. Cable for connection between communication unit and the vehicle communication socket. OBD-connector Volvo FE and FL, Renault DXI (88890018)
9. Cable for connection between communication unit and the vehicle communication socket. OBD-connector Volvo BUS B12 (9998960)
10. 14-pin diagnostic adapter, for Volvo construction equipments.
11. Adapter for ABS. Used together with communication unit for the 8–pin communication black socket in the vehicle before 1998.
12. Software HDD for Dell D630 (English)
