Name: Original Wellon VP-499 Universal Programmer
Description: Supports Windows XP/Vista/ Windows 7 (32bit and 64bit)/ Windows 8 (32bit and 64bit) Connects with laptop, PC via USB port Optimum programming for each individual device Automatically identifies the manufacturer and type of E(E)PROMs, auto identifies TTL/CMOS logic IC
Features:
AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W 48 pin ZIF socket with universal pin-drivers. Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record Manages 16 and 32-bit word split (Set Programming) Features Test Vector capability and multiarray fuse map editor Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices Device insertion and poor-pin-contact check Support 1.5v low voltage devices Not need exterior adapter for mostly devices. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters Auto-run mode starts programming automatically upon detection of chip insertion
Supported Devices:
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory PLD: CPLD, EPLD, GAL,PEEL,PALCE and more Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.
IC Test:

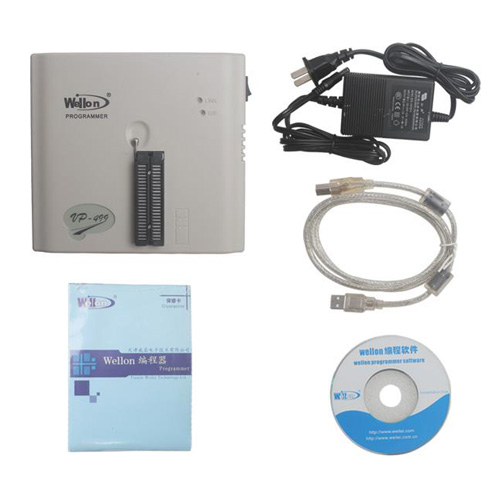

TTL (74 series), CMOS (40/45 series) Logic IC DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device Software Supported Languages: English, Korean, Poland, Italian, Portuguese, Dutch, Turkish, Hungary, Chinese(Simplified), Chinese(Traditional) Set Includes: VP499 Universal Programmer USB cable Power adapter User manual Software CD Carrying case
|
