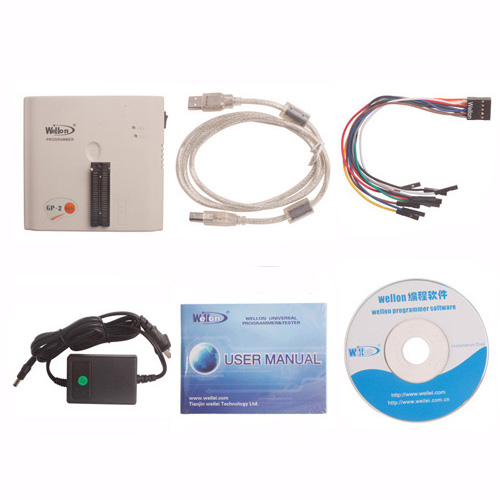

Name: Original Wellon GP 2 Programmer
Description: 48 Pin ZIF socket with universal pin-drivers Support PC hosted mode and stand-alone mode Connects with laptop/PC through USB port Accepts standard file formats: JEDEC, INTEL (Extended) HEX,HOLTEK,EMC(.CDS),INTEL HEX16, Motorola S record Manages 16 and 32-bit word split (Set Programming) Features Test Vector capability and multiarray fuse map editor Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices Optimum programming for each individual device Automatically Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC Device insertion and poor-pin-contact check Support 1.5v low voltage devices No need exterior adapter for mostly devices. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters Auto-run mode starts programming automatically upon detection of chip insertion Supports Windows XP/Vista/ Windows 7 (32bit and 64bit) Update: online update AC Adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; Power:18W PC Hosted Mode DEVICE SUPPORT:
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory PLD: CPLD, EPLD, GAL,PEEL,PALCE and more Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc. Stand-Alone Mode DEVICE SUPPORT:
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory PLD: CPLD, EPLD, GAL,PEEL,PALCE and more Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc. IC Test:
TTL (74 series), CMOS (40/45 series) Logic IC DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device Software Supported Languages:
Chinese(Simplified), Chinese(Traditional), English, Korean, Polish, Italian, Portuguese
|
