Name: DS17 Infineon Tricore Boot Reader

Description:

DS17 Infineon Tricore Boot Reader is an updated version for BDM100, it takes direct access on processor and EPROM memory of the ECU over a dedicated port like the BDM system

Commonly named as bootmode this port is the Infineon pendent to the Motorola/Freescale BDM port. In contrast to the BDM port, whose pins only have this purpose, the bootmode is done over one of the CAN BUS of the processor.

Because new assembled ECUs are programmed over this port, Bosch has put it on a 14 pin pad array. It looks like the BDM port but works completely different.

To put the processor into the bootmode, a modification on the printed circuit board is necessary. This modification depends on the type of the processor and so the type of the ECU. In the simplest case, one pin of the processor must be connected to ground. Therefore a contact needle with a wire and a tripod is attached to the system.

The power is also supplied over the probe, but is spite to the BDM system the voltage is not manually switchable, but automatically controlled by the DS17.

DS17 Infineon Tricore Boot Reader Supports:

EDC17/MED17/ME17/MEV17/MEVD17/PCF2.1/SDI3/SDI4/SDI6/SID208/SID807

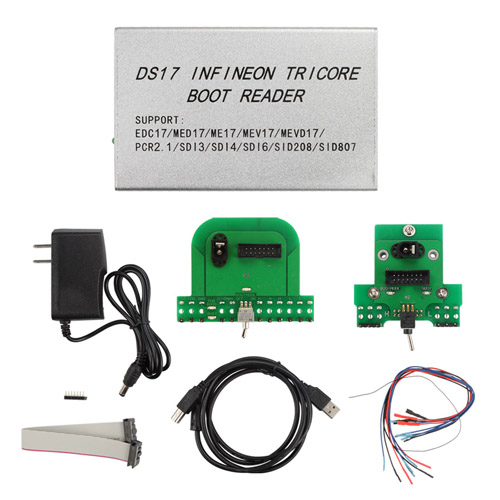

Set Includes:

DS17 Infineon Tricore Boot Reader
USB cable
Adapter and cables(4 pcs)
Power adapter

Important Notice:

This DS17 can not be updated!
The Multiplexer will be blocked if you use the other software elsewhere, and need send it back for repairing. Please just use the our software in shipment package!
