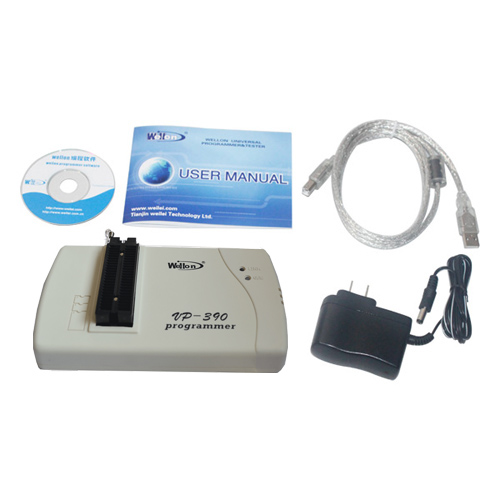

Name: Wellon Programmer VP-390 VP390
Description:
The WELLON Programmers are affordable, reliable, and fast universal device programmers. They are designed to operate with the Intel Pentium-based IBM-compatible desktop computers and laptops.
No interface card is necessary to plug the module into a PC (this feature is especially handy for laptop users).
The menu-driven software interface makes them easy to operate.
Operating System: Windows XP/Vista/ Windows 7 (32Bit and 64Bit)
Software Supported Languages:
English, Korean, Polish, Italian, Portuguese, Dutch, Turkish, Hungary, Chinese(Simplified) and Chinese(Traditional)
Specification:
Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz; DC output 9V / 0.6A 48 Pin ZIF socket with universal pin-drivers. Interface with LAPTOP, PC or compatibles through USB port Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record Manages 16 and 32-bit word split (Set Programming) Features Test Vector capability and multiarray fuse map editor Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices Optimum programming for each individual device Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC Device insertion and poor-pin-contact check Support 1.5v Low voltage devices Not need exterior adapter for mostly devices. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters Auto-run mode starts programming automatically upon detection of chip insertion PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory PLD: CPLD, EPLD, GAL,PEEL,PALCE and more Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.
IC Test:
TTL (74 series), CMOS (40/45 series) Logic IC DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) Memory Device
|
