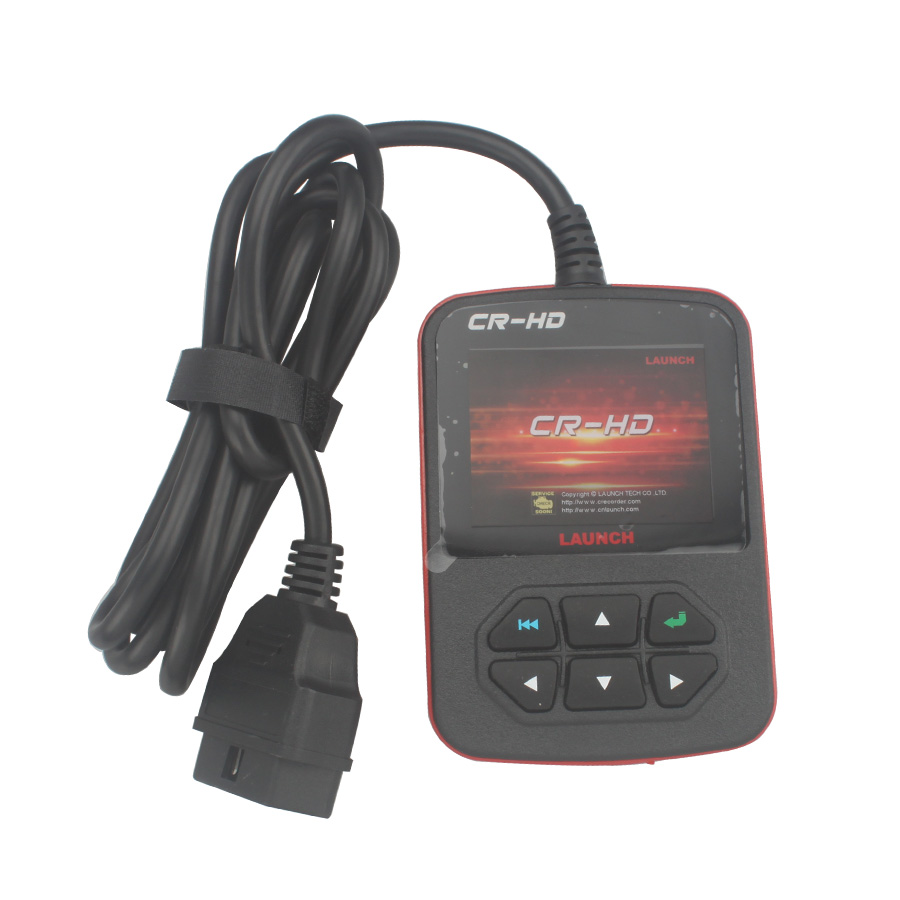

Name: Launch CR-HD Heavy Duty Code Scanner
Description:
Launch CR-HD Heavy Duty Code Reader is the first heavy duty truck code reader which Launch latest developed.
It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6-pin and 9-pin additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks.
From now on, the heavy duty trucks also have their own small-scale diagnostic tool.
Functions:
Read fault code
Clear fault code
Read data streams
Support multiple ECUs
Support 6PIN, 9PIN, and 16PIN diagnostic connectors
Support J1939, and J1708 vehicle communication protocols
Multi-languages function (English, French, etc.)
Online software upgrade function (USB2.0)
Specifications:
Screen: 2.8", 262K true color, 320*240 LCD
Input Voltage Range: 8- 36V
Operating current: typically <100mA
Typical Power Consumption: <1.2W
Wire Connection: 6-pin, 9-pin, 16-pin diagnostic connector
Environmental Temperature: 0 - 50 degree centigrade
Storage Temperature and Humidity: -20 - 70 degree centigrade, RH 60%
External Dimension: 121*82*26mm
Weight: <500g
|
