Name: VCS - Vehicle Communication Scanner

Description:

Supports comprehensive diagnosis and reading of control modules.
Successful diagnostics means proper detection of all ECMs.
With dealer-level capability and the widest vehicle range, the Vehicle Communication Scanner(VCS) interface will put your team in the driver's seat and your business on the road to success.

Features:

Works with Over 40 car makes, 1,000 vehicle systems including CAN BUS system
Access to Power train, Chassis and Body systems
One click "Quick Test" button to scan all ECUs
Live data display with waveform displays
Component-level and System-level activations
Reset and clear adaptations, calibrations and service functions
Hyundai and VW/ Audi immobilizer special functions
ECU initialization and coding
SAE J2534 "Pass-thru" ECU reprogramming
Nissan/ Infiniti idle speed self learning function
Frequent Internet software updates
Multi-languages for international market demand
"PC-link" functions for PC operations

VCS Functions:

Read & Clear Diagnostics Fault Codes
VCS easily read & clear vehicle specific information - manufacturer specific codes, factory codes, and generic fault codes on a particular electrical circuit. Don't forget to print it out in real time.

Quick Test & Quick Delete (select software)
The Quick Test feature allows you to quickly scan all systems in the vehicle, identify controllers with faults and provides immediate access to those systems without having to navigate through multiple menus. Don't forget to print it out in real time.

Read Live Data
Fault codes & live data is the basics of electronic diagnostics. Experience high-speed response rate of 8-10 frames per second w/ real-time troubleshooting of up to 4 graphs. Diagnose signals for rich or lean conditions with live data retrieval and viewing of modules in digital and analog format.
Don't forget to print it out in real time.

Component & System level actuations test
Perform verification tests to validate the functionality of a particular electrical circuit. This function will bypass time-consuming labor to check the workmanship of electronic components such as switches, sensors, relays, & actuators. Use the VCS to actuate control modules and see what needs replacement without removing panels and testing without the usage of a multimeter. (e.g. cylinder power balance test, EVAP system leak, EGR valve, solenoids, power windows, WinShield wiper activation, etc.)

Special Functions:

Service Resets & Initialization:
When components (e.g. injectors, switches, mass air flow sensor, cooling temp sensor, etc.) are replaced within a module, a vehicle will run very rough. Initialization immediately re-adapts all the values, so the components will be recognized by the vehicle system. (e.g. To reset the service indicator for the vehicle such as "oil service", "service reminder light", "steering angle sensor*", etc.)

Vehicle Adjustment:
Vehicle Communication Scanner VCS is able to adjust performance parameters. (e.g. idle RPM, idle speed adjustment, ignition timing, vehicle w/ immobilizer, set fuel synchronization, throttle-body relearn, DME Alignment, etc.)

Coding & Programming:
Read & change coding has now become highly important for any new retrofit control unit in the vehicle. Contact VCS Dealer for more information.

Self-learn Function:
Create a personalized database system to record ideal conditions of the actual values in the vehicle system.

Record 160 Frames of Live Data:
Record a real-time data stream up to 160 frames during a drive cycle. More complicated diagnosis of an intermittent problem will require the use of this function to evaluate data stream during a controlled drive cycle

Specification:

Power Supply: 8-12V DC, 110-250V AC, 50Hz
Connection: USB
Minimum PC System Requirement:
1. Windows XP or Vista
2. CPU 300MHz
3. 256MB RAM memory
4. 1GB Hard Disk Memory
5. CD Drive
Working Temperature: -10 - 80
Humidity: < 90%
Dimensions: 20*14*6cm

Supported Cars:

Asia:
Acura
Daewoo
Daihatsu
Honda
Hyundai
Infiniti
Isuzu
Kia
Lexus
Mazda
Mitsubishi
Nissan
Perodua
Proton
Ssangyong
Subaru
Suzuki
Toyota

Australia:
Australia Ford, Holden

China:
BYD
Chana
Changhe
Chery
FDQC
Futian
Geely
GWM
HBSH
Huachen
Lifan
Wuling

Europe:
Alfa
Audi
Benz
BMW
Citroen
Europe Ford
Fiat
Jaguar
Lancia
Land Rover
Opel
Peugeot
Porsche
Renault
SAAB
Seat
Skoda
Smart
Volvo
VW

Software Supported Languages:

English
Spanish
Chinese (Traditional)
Chinese (simplified)
Russian

Notice: This device does not support bluetooth function!

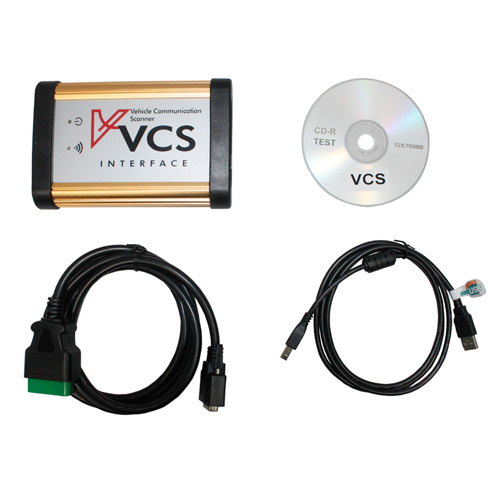

Set Includes:

VCS main unit
OBD-II cable
USB cable
Software CD
