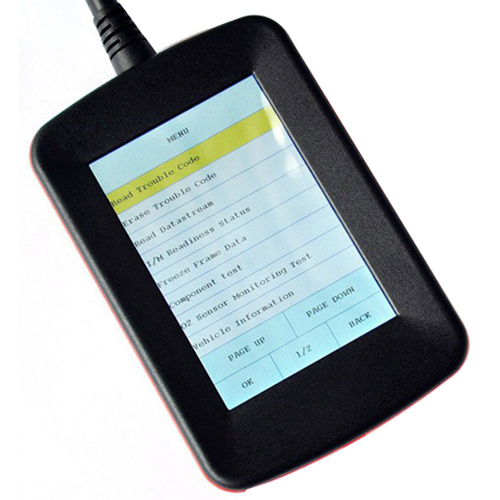

Name: ET601 OBD II/EOBD Color Scanner

Description:

Works on all 2001 and later OBD-II compliant PETROL European vehicles
Works on all 2004 and later OBD-II compliant DIESEL European vehicles
Works on all 1996 and later OBD-II compliant US and Asian vehicles
Easily determines the cause of the "Check Engine Light ( MIL)"
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBDII
protocols

Supported Protocols:

SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 91412 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (fast init, 10.4 kbaud)
ISO 157654 CAN (11 bit ID, 500 kbaud)
ISO 157654 CAN (29 bit ID, 500 kbaud)
ISO 157654 CAN (11 bit ID, 250 kbaud)
ISO 157654 CAN (29 bit ID, 250 kbaud)

Specifications:

Display: 240*320 pixel color display with contrast adjustment
Operation Temperature: -20 ~ 75 Centigrade degree
Storage Temperature: -40 ~ 120 Centigrade degree
Power: 8V ~ 18V
Dimensions: 100*54*18mm
Weight: 210g

Set Includes:

ET601 OBD-II/EOBD Color Scanner
USB cable
User manual
