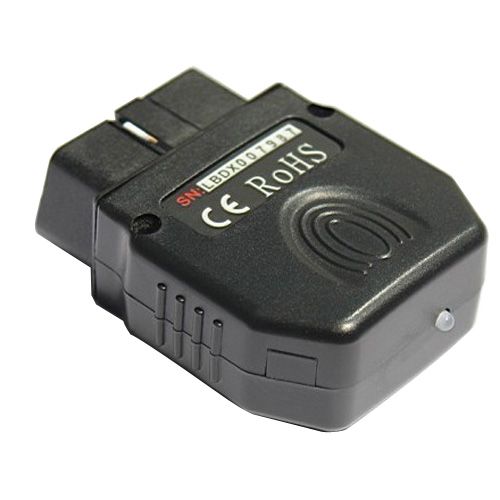

Name: B-Scan Buletooth Scanner for Android Operating System(ELM327 Updated Version)
Description:
B-Scan (Bluetooth Scan) is working with Android operating system mobile phones, specially designed for car owners or DIYers. B-Scan is not only more fuel-efficient, safer, but reads real-time status, security classification, voice remind, fuel system status, reads/clears DTCs, self-maintenance.
Features:
B-Scan (Bluetooth scan) applies to OBD-II / EOBD protocol vehicles.
B-Scan (Bluetooth scan) is communicating with a phone with Android operating system via Bluetooth. (Android¡¯s system version requires 2.3)
B-Scan communicates with Android Phone via Bluetooth. All OBD-II / EOBD protocol can be read. Like trouble code, fuel consumption information, data stream, freeze frame data, mileage and maintenance records; users concerned about the traffic data, all will be read.
OBD module hardware version number V1.50 software version is V2.03.01, the phone displays the software version number is V1.00.16. Software matches the password: 1234
Functions:
Safe driving remind

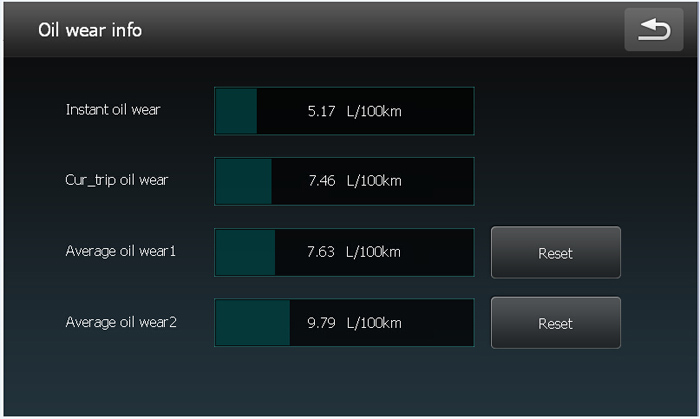

High-precision fuel consumption display
Read real-time condition information

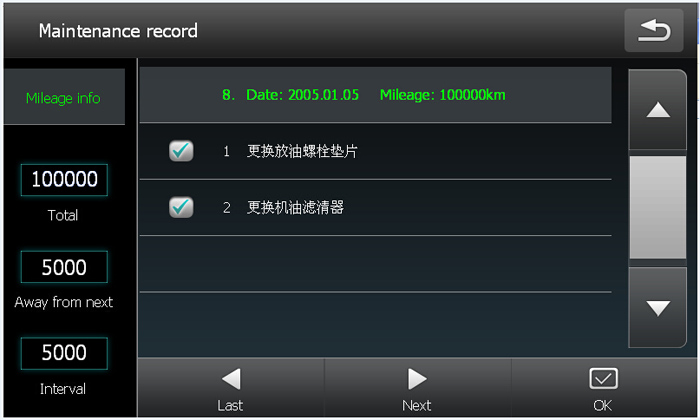

Read the history of maintenance records

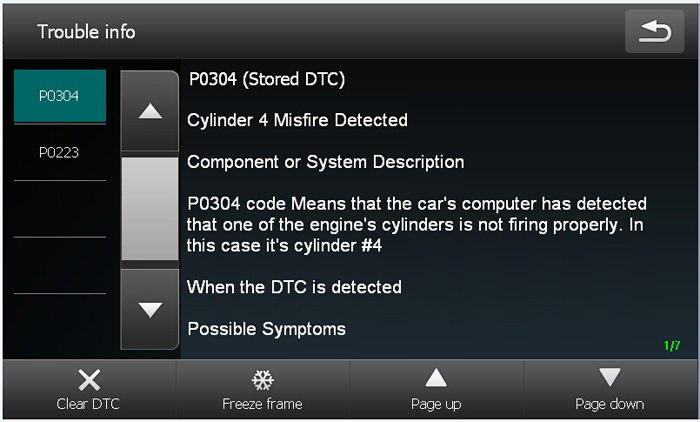

Read and clear vehicle error code
Clear vehicle malfunction code
Read vehicle data stream Letter
Advantages:
B-Scan is designed by car. The standby quiescent current is less than 0.2 micro amps, and other is 38 to 54mA which is not suitable for a long time installed in the car;
Automotive fault classification, to facilitate the driver according to the severity of processing; other products are not graded;
If the vehicle also has a new fault, B-Scan instants perception and adds the new fault content, and other products only back to the interface and display again;
B-Scan clears the trouble code and re-read the fault code which cleared immediately; other products still show the original fault code and content;
B-Scan can guide users to deal with different fault code, help users to find fault reasons;
B-Scan content library to support manufacturer¡¯s code;
B-Scan supports the fuel consumption information display;
B-Scan supports the mileage and maintenance records;
The main interface of the B-Scan Bluetooth detection card display important vehicle data, easily and intuitively; other products are the main menu link status.
Specifications:
Operating temperature: -40 - 80
Preservation of the environment temperature: 40 ~ 200
Operating voltage: 12 - 18V
Maximum threshold voltage: 25V
Maximum instantaneous current: 120mA
Normal operating current: less than 60mA
Sleep current: less than 0.2uA
Wireless communication frequency: 2.4G
Wireless transmission: Bluetooth, 2.4G RF
Wireless transmission distance: greater than 4m
Wired communication: serial communication (3.3V)
Dimension: 65* 50* 23mm
Weight: 42g
|
