Name: Original XHorse MVCI
Description:
M-VCI Interface is a high performance factory diagnostics and reprogramming interface for Toyota TIS. M-VCI Interface is compatible with Toyota, Lexus and Scion vehicles over the J1962 DLC3 connector.
Software Version:

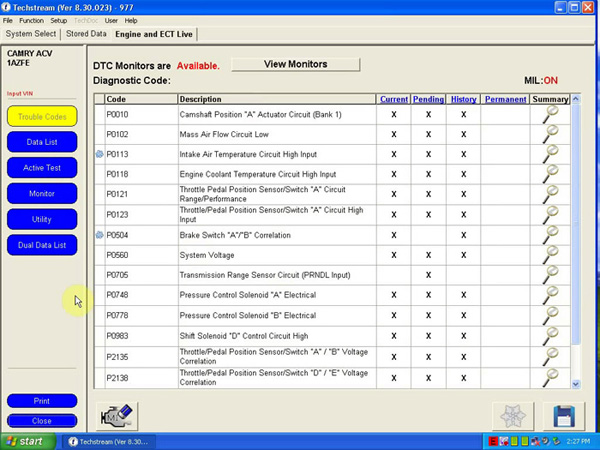

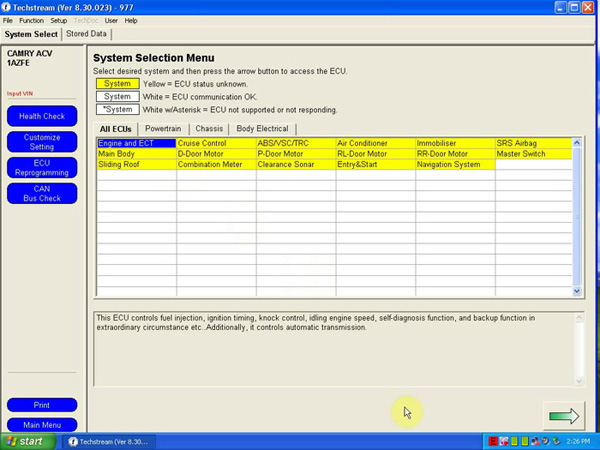

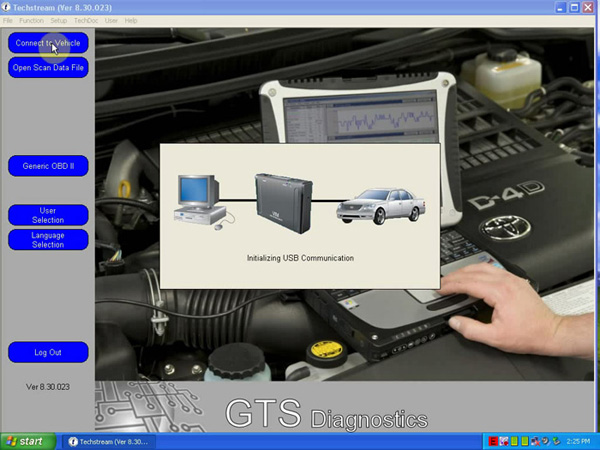

Toyota TIS Techstream: V12.20.024
Honda HDS: V2.018
Volvo VIDA: 2010A
Supported Languages: English, Spanish, French, Portuguese, Thai, Turkish, Vietnamese, Chinese, Indonesian
Supported OS: Windows XP
Supported Cars: Toyota/Lexus, Honda, Volvo
When you install the software, please pay attention to choose the area for each brand:
Honda: America
Toyota: Europe
Volvo: Anywhere
Features:
Fully compatible with Toyota TIS Techstream
Supports Diagnostics, Reprogramming, Active tests, and key programming
Supports most 1996 and newer Toyota, Lexus and Scion vehicles with OBD-II/DLC3 diagnostics
Fully compatible with SAE J2534
Programmable power supply
Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector
Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connector
RGB status LEDs
Supported Protocols:
K-Line ISO 9141
KWP 2000 ISO 14230-4
SAE J1850 PWM
SAE J1850 VPW
CAN 2.0B ISO 11898
CAN ISO 15765-4
Specifications:
Diagnostic Interface: 16-pin
USB Interface: USB 2.0
Power: DC 5V - 36V
Consumption: 0.7W
Dimensions(L*W*H): 95*49*28mm
Operating Temperature: -20 to 70 degree centigrade
Storage Temperature:-40 to 85 degree centigrade

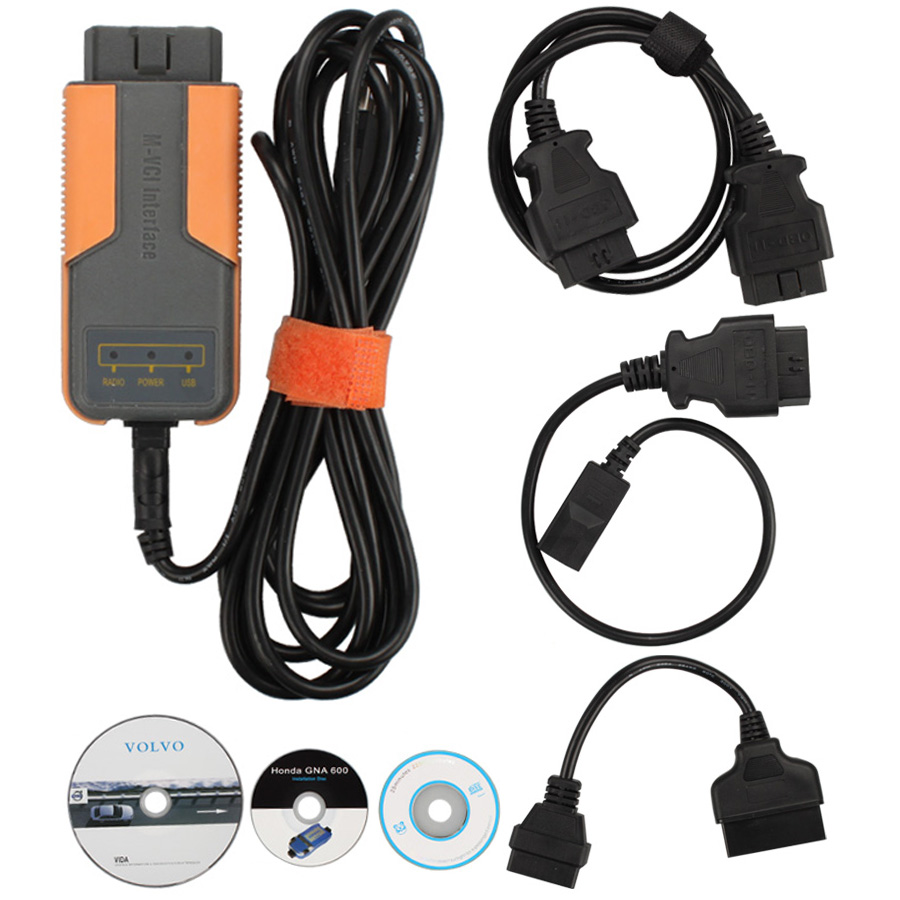

Packing List:

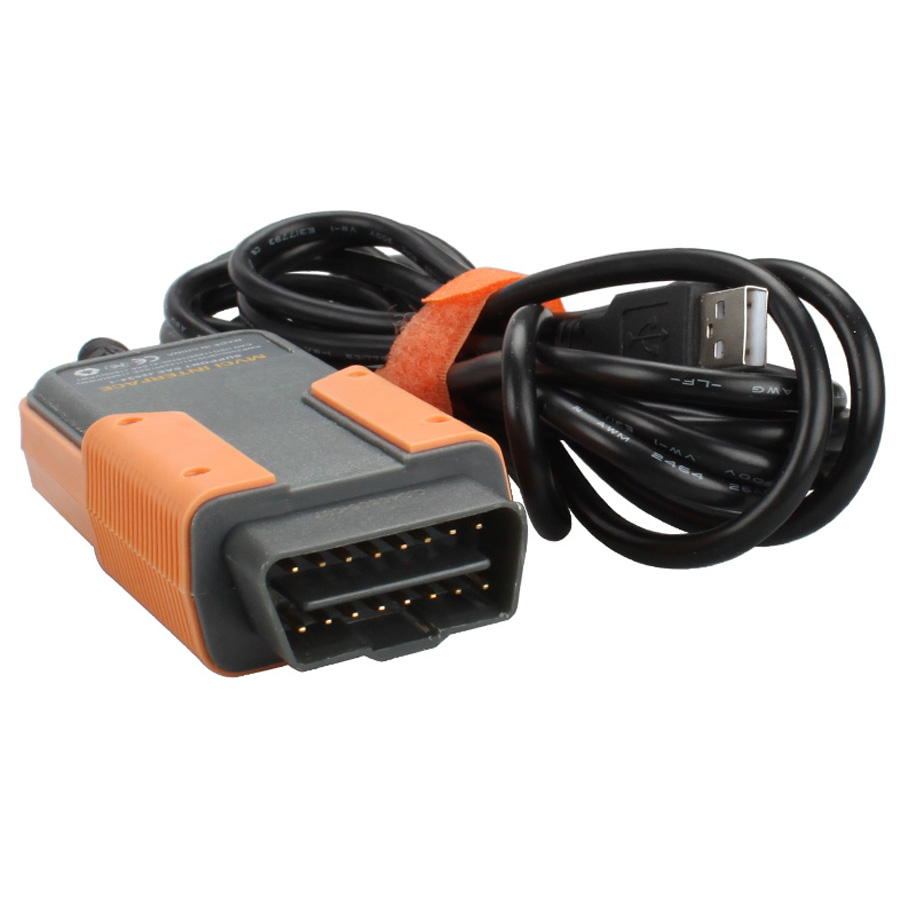

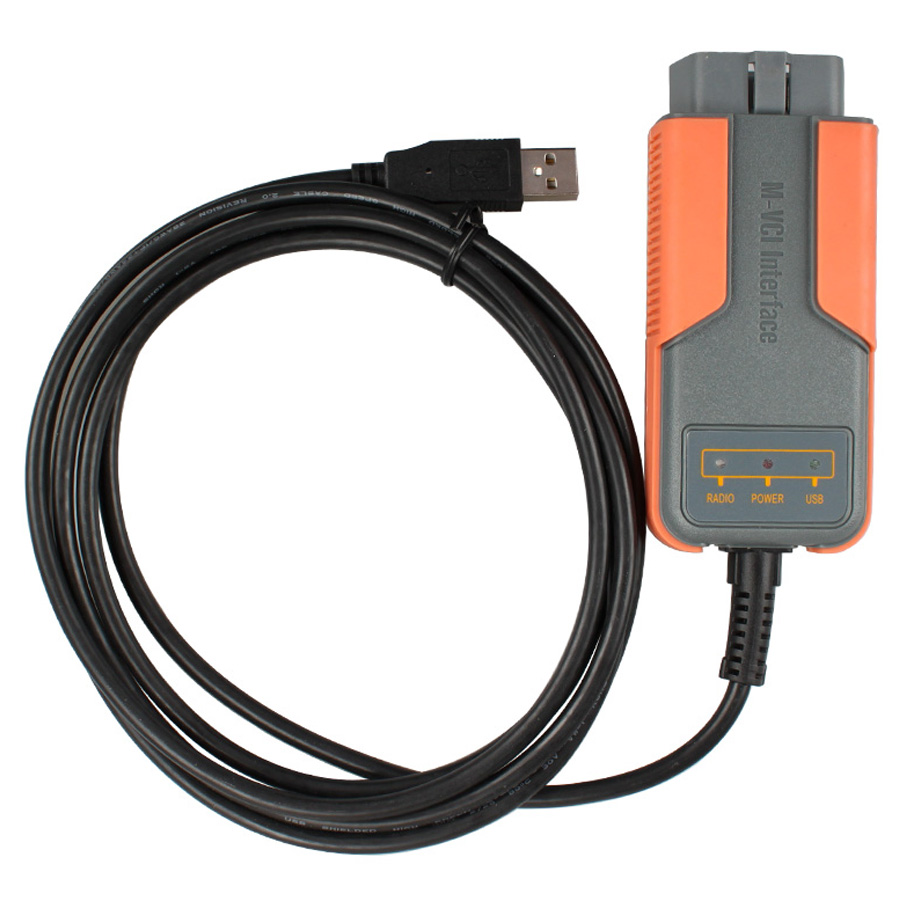

XHorse M-VCI Interface
OBD-II Cable

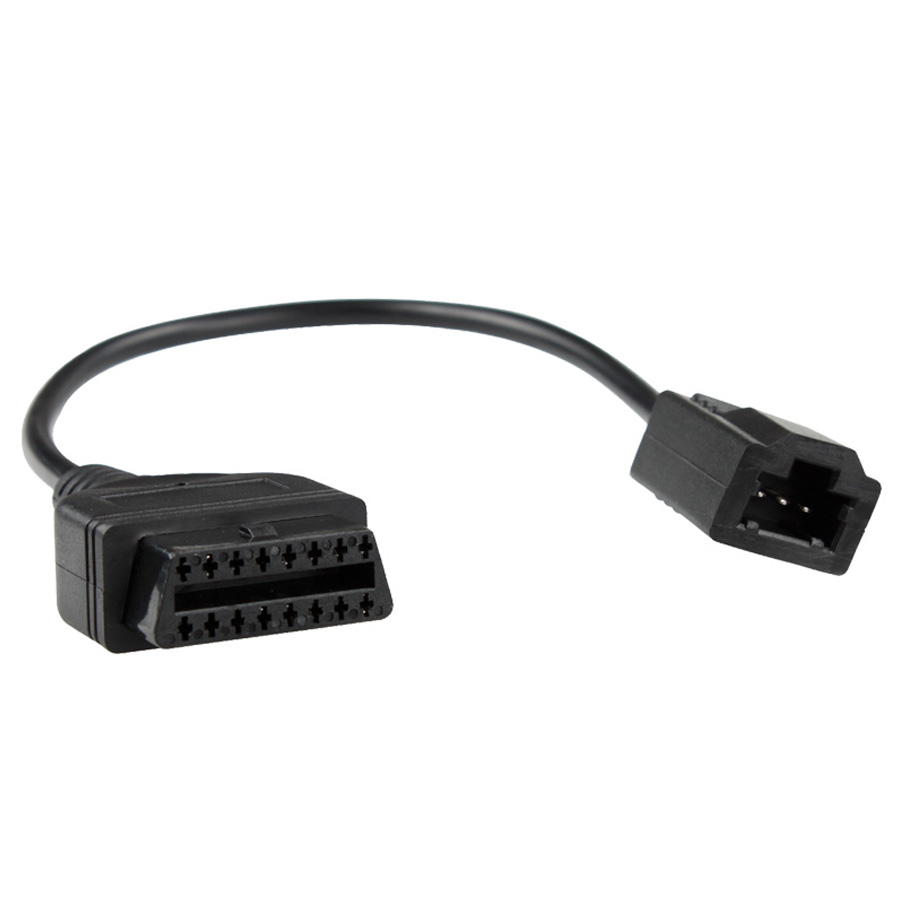

3-Pin Cable

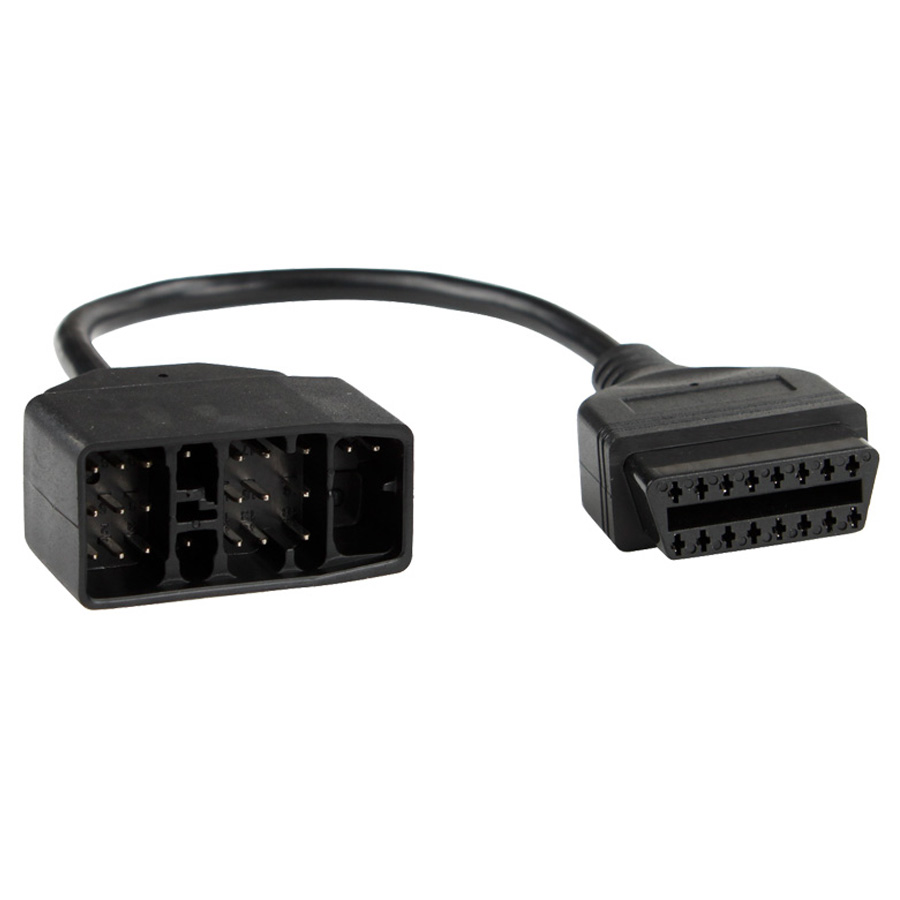

22-Pin Cable
Instruction Manual
Software CDs
Driver CD
Packing Box
|
