Name: Fiat Examiner Smart HD

Description:

The former official diagnostic tool for Fiat group (Fiat, Alfa, Lancia). Commercialized from 2002 to September 2006, it is no anymore sales, it was replaced by Fiat Examiner Smart.

The Examiner Smart was developed to facilitate technician's job and to increase its effectiveness.

Easy to use:

It is connected to the car with an only cable, adapters MPX97 and MPX97A are not more necessary.
It selects automatic of the line K or CAN.
Supplied with its two adapters VCI CAN for new vehicles and VCI 3 poles for i less recent models.
With the tactile screen and its pen all can be executed the diagnosis operations.

Technical Specifications:

Processor: Celeron 400Mhz
SD RAM: 128MB
Disk: 10Gb
Windows 98
Light (3 Kgs), ergonomic
Autonomy: 1h
Connector: USB 1.1
Ethernet connector
Connector PCMIA
Additional connector RS232

Supported Languages:

English, Italian, Danish, German, French, Spanish, Portuguese, Dutch, Polish, Magyar, Ellinika, Czech, Turkish, Hebrew, Russian, Chinese, Japanese, Slovenian, Hrvatski

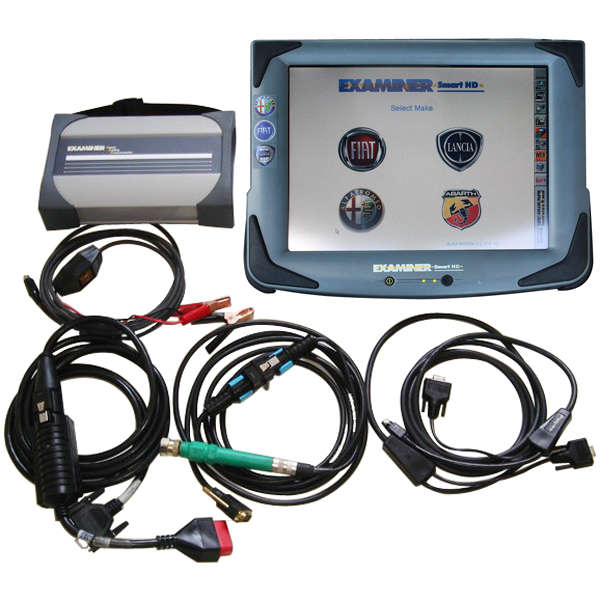

Packing List:

Examiner Smart HD
OBD-II Cable
Examiner C+ Cable
Examiner 50 Bar Cable
