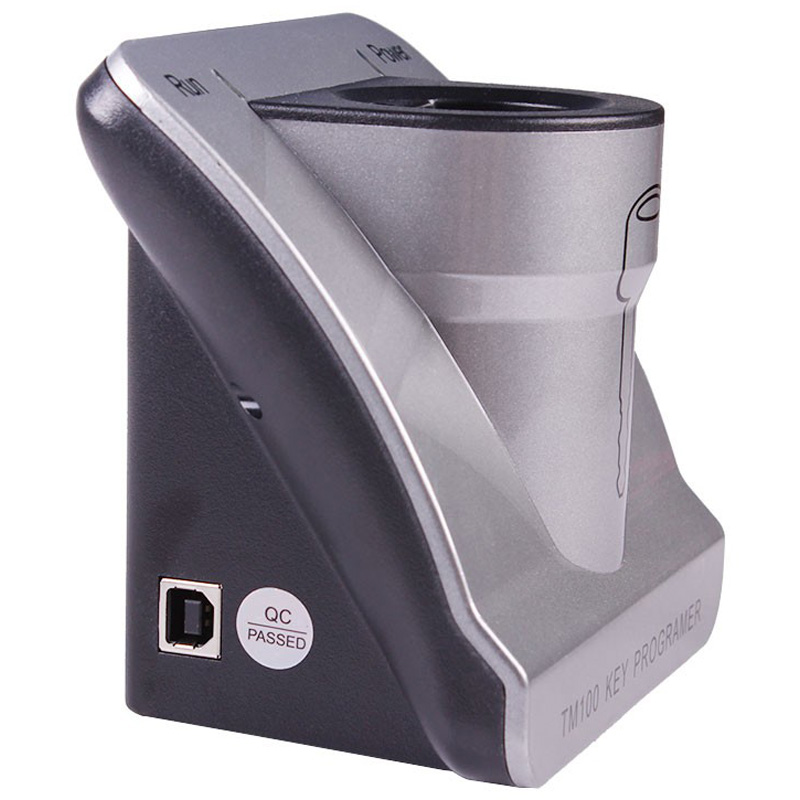

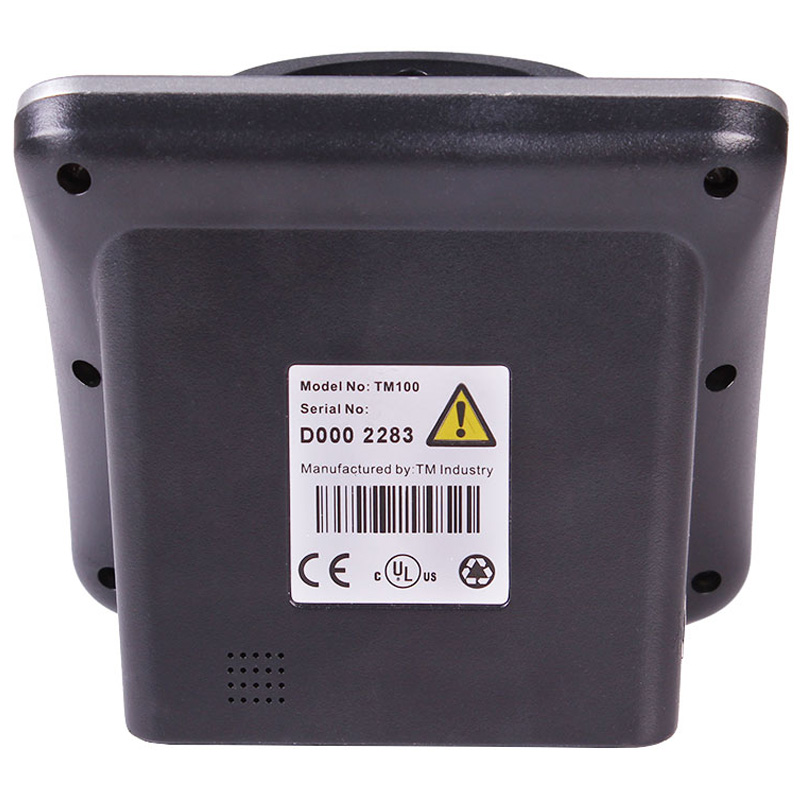

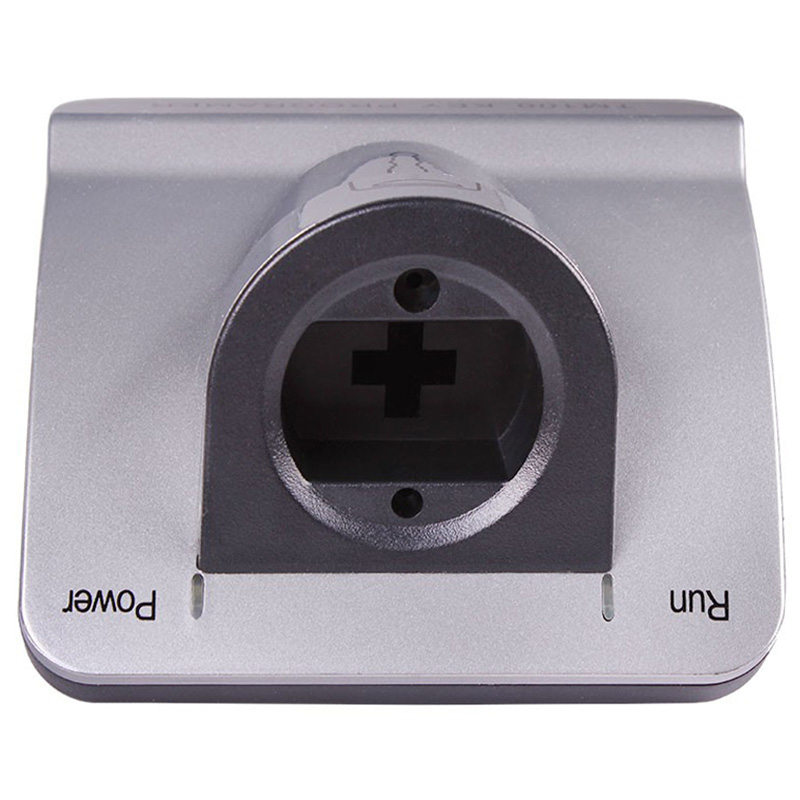

Name: TM-100 Transponder Key Programmer Full Version

Description:

New Release TM 100 Key Programmer with 42 Modules (a necessary tool for auto locksmith)

TM100 Key Programmer is a new generation transponder programmer which is developed to cover, read, write and generate the latest transponders used in the latest vehicle immobilizer technologies.

Please download TM100 V7.16 Software.

Update Info:

V7.08 Released (2018-3-12):

1. Add support for Toyota smart card type D4.
2. Fix KeyMaker for Audi A4/A5/Q5 by BCM2 dump.
3. Fix KeyMaker for Audi A6/A7/A8, Touareg by BCM2 dump and working key.

V7.04 Released (2017-09-16):

1. Add transponder detection for SLK(Toyota emulator smart key)
2. Add Keymaker for BMW bikes C600, C650, Husqvarna Nuda, Terra (Dashboard).
3. Add Keymaker for BMW bikes R1200GS, K1300, F800 (Immobox EWS).
4. Fix bugs.

Notice:

This version includes firmware 2 update. Please DO NOT disconnect PC with TM100 while updating.

V6.00 Released (2017-05-07)
1. Add image generator for Toyota G transponder；
2. Add keymaker for Toyota smart system(TMS37126, TMS37200)；
3. Add dump editor for VAG MED17, EDC17.(Component security bytes, PIN)；

Notice：

This version includes firmware 2 update. Please DO NOT disconnect PC with TM100 while updating.

V3.46 Released (2016-10-28)
1. Add keymaker for Mitsubishi, Montero as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
2. Add keymaker for Mitsubishi, Pajero as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
3. Add keymaker for Mitsubishi, Pajero sport as MY2000. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
4. Add keymaker for Mitsubishi, Space Wagon as MY1999. Parts: Immo, IC: MC68HC805P18(with mask H44H), Transponder: Tiris 4D.
5. Add keymaker for Bentley, Arnage MY1998. Parts: Immo, IC: EEPROM 24C04, Transponder: PCF7935.
6. Fix bugs for Ford 93C56.

V3.44 Released (2016-9-20):
1. Add keymaker for Chevrolet Aveo as MY2012. Parts: Immo, IC: 25160, Transponder: PCF7936
2. Fix bugs

Notes: This version includes firmware 1 update. Please DO NOT disconnect PC with TM100 while updating

V3.42 Released (2016-9-14):
1. Add function for odometer rewrite of CAS4,CAS4+
2. Add function for BMW CAS3+ save ISN
3. Add keymaker for BMW CAS3+ by ISN
4. Fix bugs

How to edit odometer for CAS4,CAS4+:
Selete Tools, Dump Editor, BMW, CAS4 odometer setting
Open dump file, current odometer value is displayed, input new odometer value, and set new value
Save new generated file and write it back to CAS4

How to save ISN for BMW:
Select keymaker for BMW CAS3+ adding key.
After original key decoded, TM100 will save 16-byte ISN for you.
If the same car lost all keys, you can use the saved ISN to do all key lost without reading ISN from DME

Notes: This version includes firmware 1 and 2 update. Please DO NOT disconnect TM100 from computer while updating.

V3.40 Released (2016-7-26):
1. Add keymaker for Ducati Diavel,Multistrada. Parts: ZADI, IC: 24C04, Transponder: JMA TPX2, Errebi TX2 or CN2 or YS-01
2. Add immo information display for BMW CAS4, CAS4+

How to view immo information of BMW CAS4, CAS4+:
Select keymaker for BMW CAS4, CAS4+ 5M48H, load immo dump file, click button Immo Info.

V3.38 Update (2016-7-1):
1. Add keymaker for Ford Ecosport as MY2015. Parts: Instrument, IC: MC9S12XEQ384, Transponder: TIRIS DST80
2. Add keymaker for Ford Explorer as MY2012. Parts: Instrument, IC: MC9S12XEP100 or MC9S12XEP768, Transponder: TIRIS DST80
3. Add keymaker for Ford Fiesta as MY2015. Parts: Instrument, IC: MC9S12XEQ384, Transponder: TIRIS DST80
4. Add keymaker for Ford Edge as MY2007. Parts: Instrument, IC: EEPROM 93C66, Transponder: TIRIS 4D
5. Add keymaker for China vehicle GAC Trumpchi GA3S. Parts: BCM, IC: EEPROM 25640, Transponder: Hitag2
6. Bugs fix

Notes: EEPROM is 93C66B, SOT-23. You can read it by XProg using Microchip 93xx66B. The wire schematic from 6-PIN to 8-PIN can be got from technical support.

Features:

1. Support Total 62 Modules

2. Easy Operation
After generating a new transponder with TM100 Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly! You only have to write the new file back into the immobilizer system!

3. Full Transponder Support
TM100 programmer supports not only  Philips transponders, Temic transponders, Megamos transponders, Texas transponders, it can also generate images for many different original transponders like Philips ID33, Philips Crypto for different ID and Texas crypto!

4. New functions for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! IMMO pin code is also displayed for some car models.

5. Support All Key Lost
TM100 Programmer supports Toyota/Lexus all system keys, supports BMW CAS1, CAS2, CAS3, CAS3+, supports Ducati motorcycle, supports Audi EZS Megamos 8E, and many more functions.

Functions:

1. The List of Supported for the Present Transponders

Philips Transponders:
PCF7930-31 reading
PCF7935 reading, shadow memory
PCF7936 writing, reading, password mode, crypto mode, Manchester or Biphase encodings
PCF7941 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7942 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7943 transponder, remote, Manchester or Biphase encodings
PCF7944 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7945 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7946 transponder, remote, Manchester or Biphase encodings
PCF7947 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7952 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7953 IDE, EEPROM reading
PCF7961 transponder, remote, Manchester or Biphase encodings

Temic Transponders:
Temic 11 reading, writing to T5
Temic 12 reading, writing to T5
Temic 8C reading

Megamos Transponders:
Megamos 13 reading, writing to T5, emulating on PCF7930-35
Megamos 48 reading, writing, PIN, unlock by PIN, full range of memory contents
Megamos CRYPTO-2 8E read ID, read/write EEPROM, write Cryptokey

Texas Transponders:
Tiris 4C reading
Tiris 4D DST crypto reading, writing
Tiris 4E DST crypto reading, writing
Tiris DST+ reading

2. The List of Supported Type for Image Generator.

ID33 for Mazda
ID33 for Nissan
ID33 for Opel
ID33 for VW
ID40 for Opel
ID40 for Nissan
ID41 for Nissan
ID44 for VAG
ID45 for Peugeot
ID46 for Chery
ID46 for Chevrolet circle+
ID46 for Chrysler Y170
ID46 for Chrysler Y164
ID46 for Geely Emgrand
ID46 for Mitsubishi
ID46 for Peugeot 206, 307
ID46 for Porsche Cayenne
ID46 for Renault Clio II
ID46 for Renault Clio III
ID46 for Renault Espace4 phase 1
ID46 for Renault Espace4 phase 2
ID46 for Renault Laguna2 phase 1
ID46 for Renault Laguna2 phase 2
ID46 for Renault Master phase 2
ID46 for Renault Megane2
ID46 for Renault Scenic2
ID46 for Renault Trafic phase 2
ID46 for Renault Vel Satis phase 1
ID46 for Renault Vel Satis phase 2
ID46 for VW Phaeton, Touareg
ID48 for China VW Jetta 2011
ID60
ID61
ID62
ID63
ID64
ID65
ID66
ID67 for Toyota
ID68 for Toyota
ID70 for Toyota, Peugeot
ID73 for Mercedes C, E class 1996-1999
ID73 for Mercedes G class 1996-1999
ID73 for Mercedes ML
TP22 for Seat
TP23 for VW
TP24 for Skoda
TP25 for Audi

Special Functions:

1. It has 42 key maker modules.

2. Pin Calculator Functions

Calculator 1: Honda/Acura password calculator
Description: 1st password, 2nd password, HIM unlock password, PCM code for any year.

Calculator 2: Ford/Mazda incode calculator
Description: Calculate incode by outcode.(before 2012MY)

Calculator 3: Nissan/Infiniti PIN calculator
Description: Calculate PIN by BCM part number.

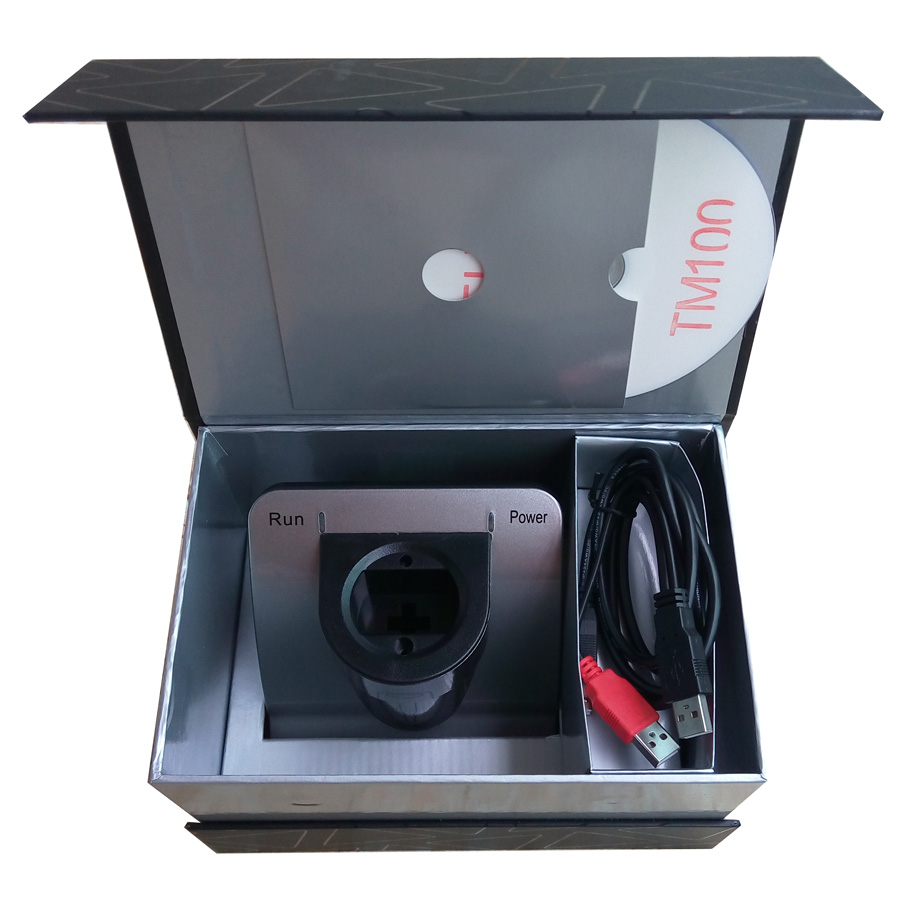

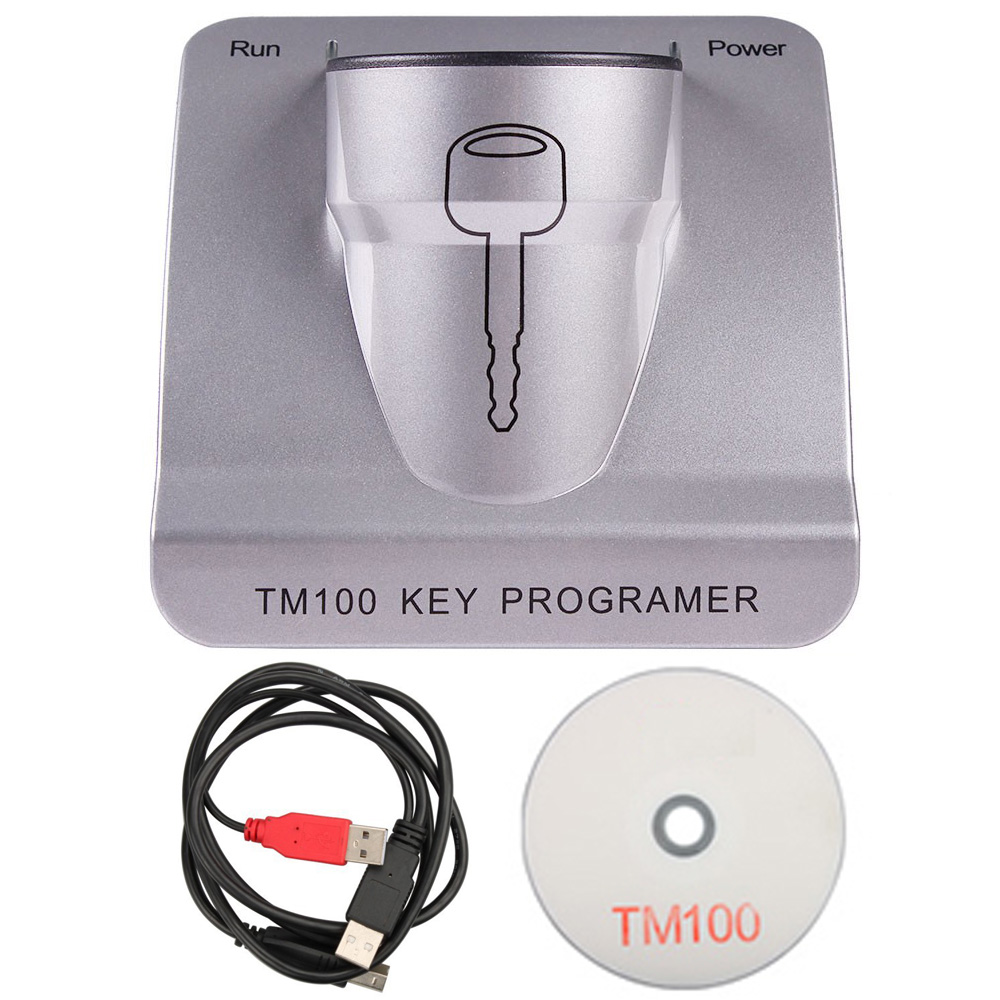

Packing List:
