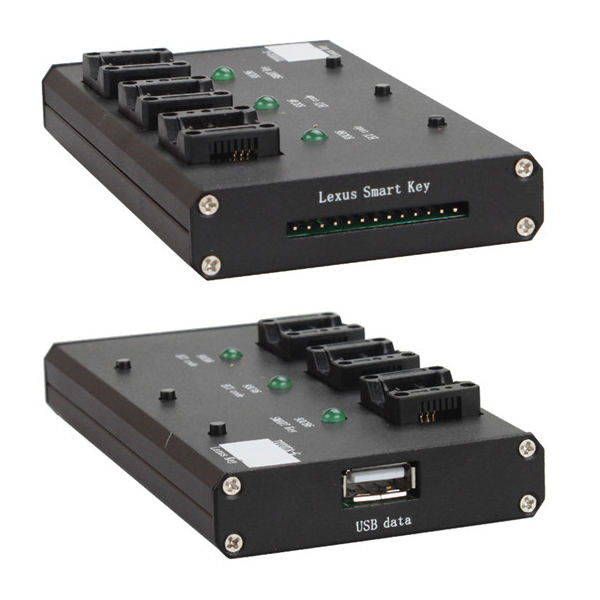

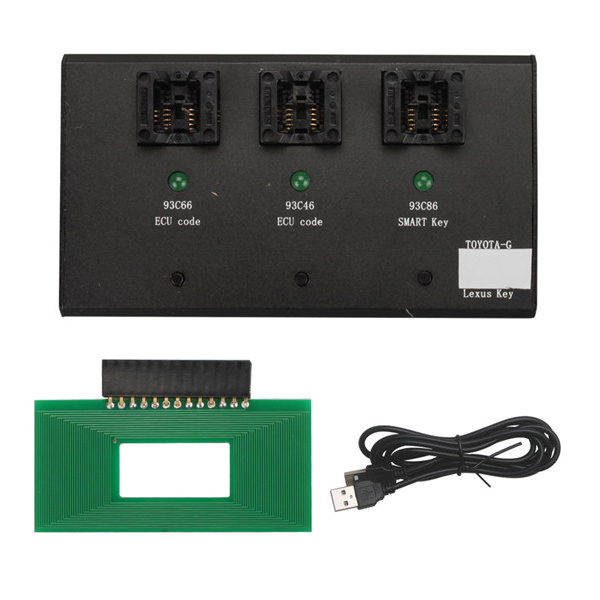

Name: Toyota G Chip and Lexus Smart Key Maker with Adapter

Description:

Toyota G Chip Lexus Key Maker is a 2-in-1 key programmer for Toyota G chip and Lexus smart card. it support all key lost.

Toyota G Chip and Lexus Smart Key maker no need to install driver software for Toyota, Lexus programmer, security, stability, fast, all with G key Toyota, Lexus Smart Key Programmer SO163 all lost, can be arbitrarily increased 1-3 keys.

How to use Toyota G Chip and Lexus Smart Key maker:

Please try to use ordinary programmer to read 93C66/93C46/93C86 data, save the following way operation:

1. Remove the ECU security module, install in the 93C66 EEPROM IC Socket.

2. Connect the USB cable to the computer, and then switch the function switch to Toyota-G position, you can see 93C66 LED flashes slowly.

3. Now press on the 93C66 touch switch, LED starts to flash at the moment, a few seconds after the LED is off, the operation was successful.

4. Replace the 93C66 EUC security module, replace the vehicle anti-theft module is inserted after the first key, anti-theft module indicator light turns off remove the key, and then insert the second key, anti-theft module can be directly after indicator goes out to start the vehicle, completely not synchronous operation, convenient and quick.

How to use Lexus Key Programmer:

1. Remove the ECU IMMO module, install in 93C46 EEPROM IC Socket.

2. Connect the USB cable to the computer, and switch the function switch to Lexus Key position, you can see the 93C46 LED flashes slowly, put the key into the left side inductive area.

3. Press on the 93C46 touch switch, LED starts to flash at the moment, a few seconds after the LED is off, initialization is successful. Replace the EEPROM IC EUC security module, replace the vehicle anti-theft module.

Note: one match for one IC, regardless of the order, do not leave the key at the inductive area.
