Name: OTB 1.0 Expansion Adapter for FoxFlash ECU Programmer
Description:

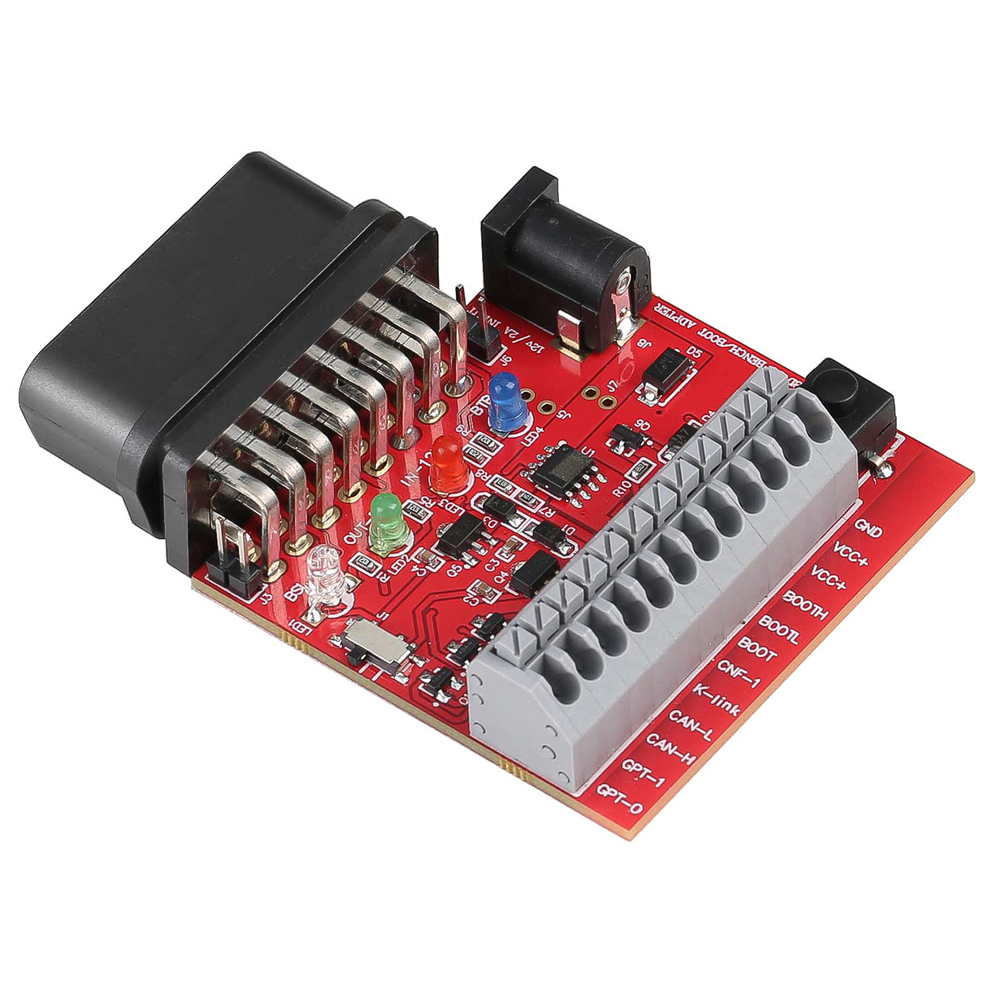

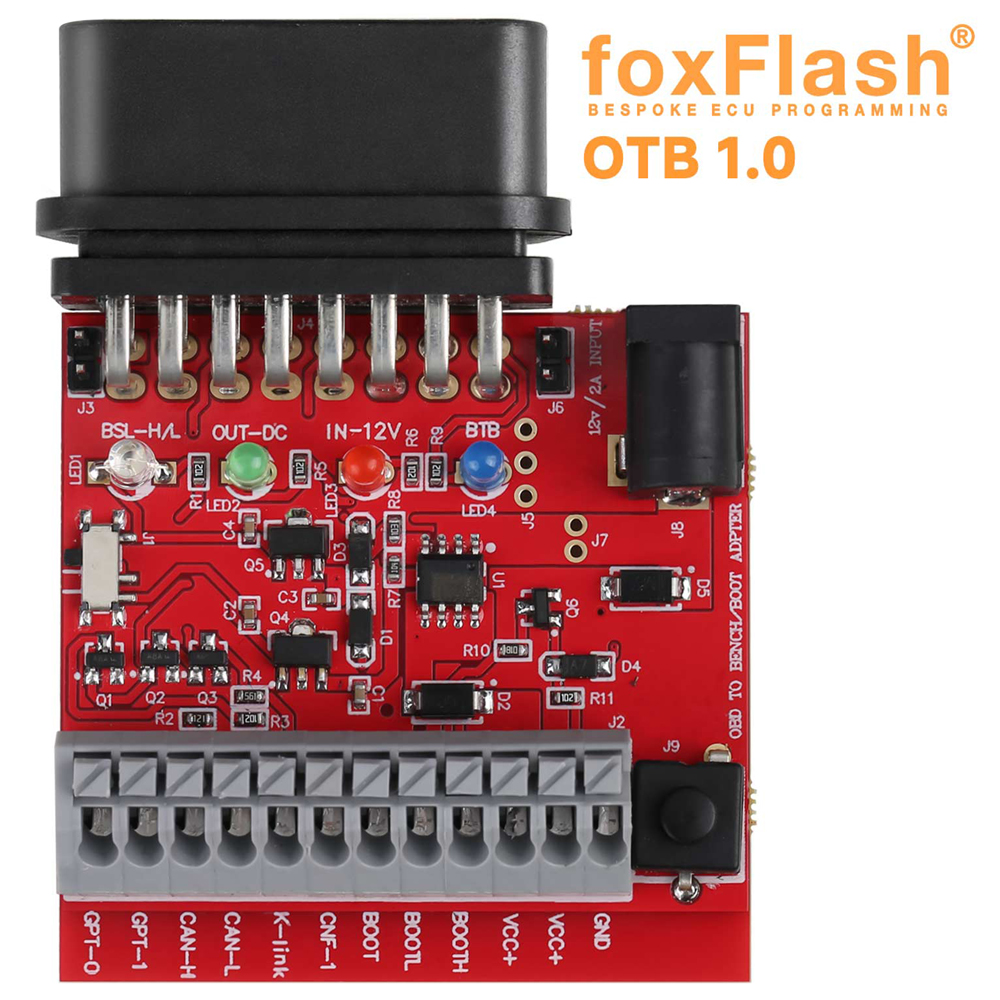

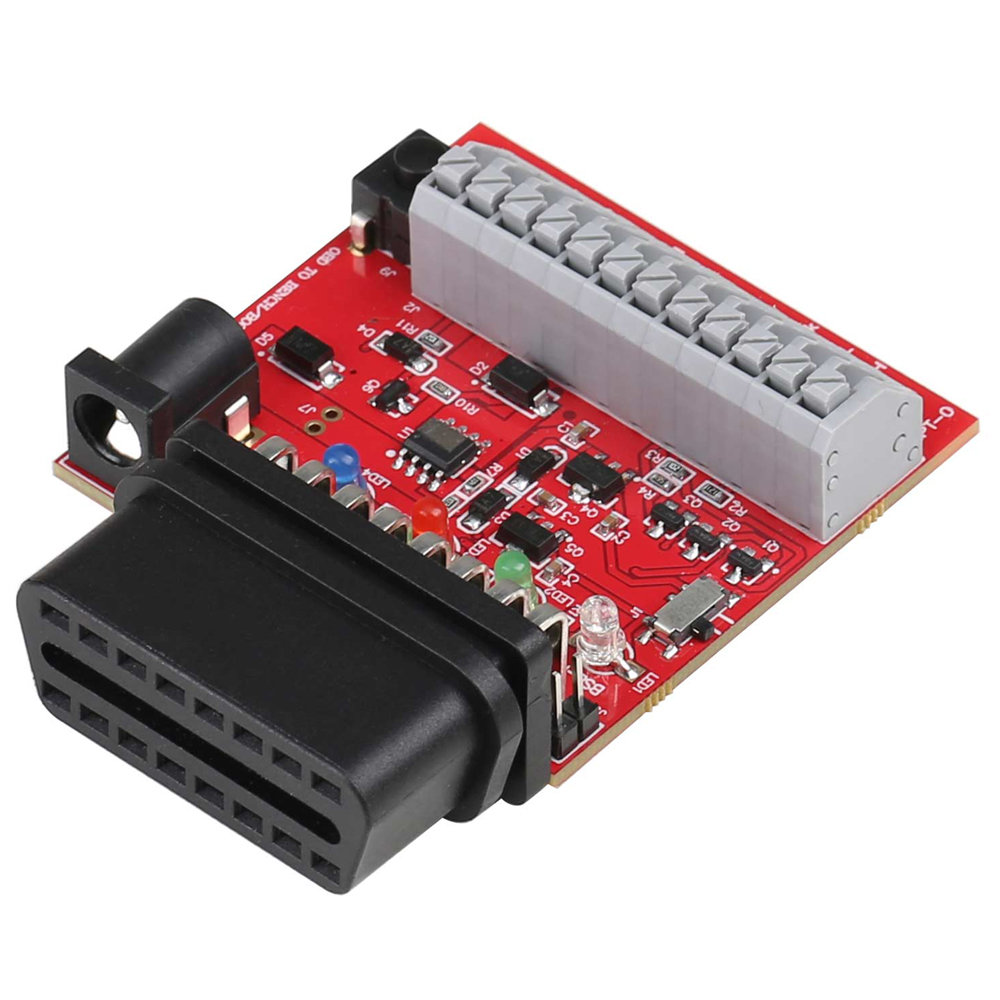

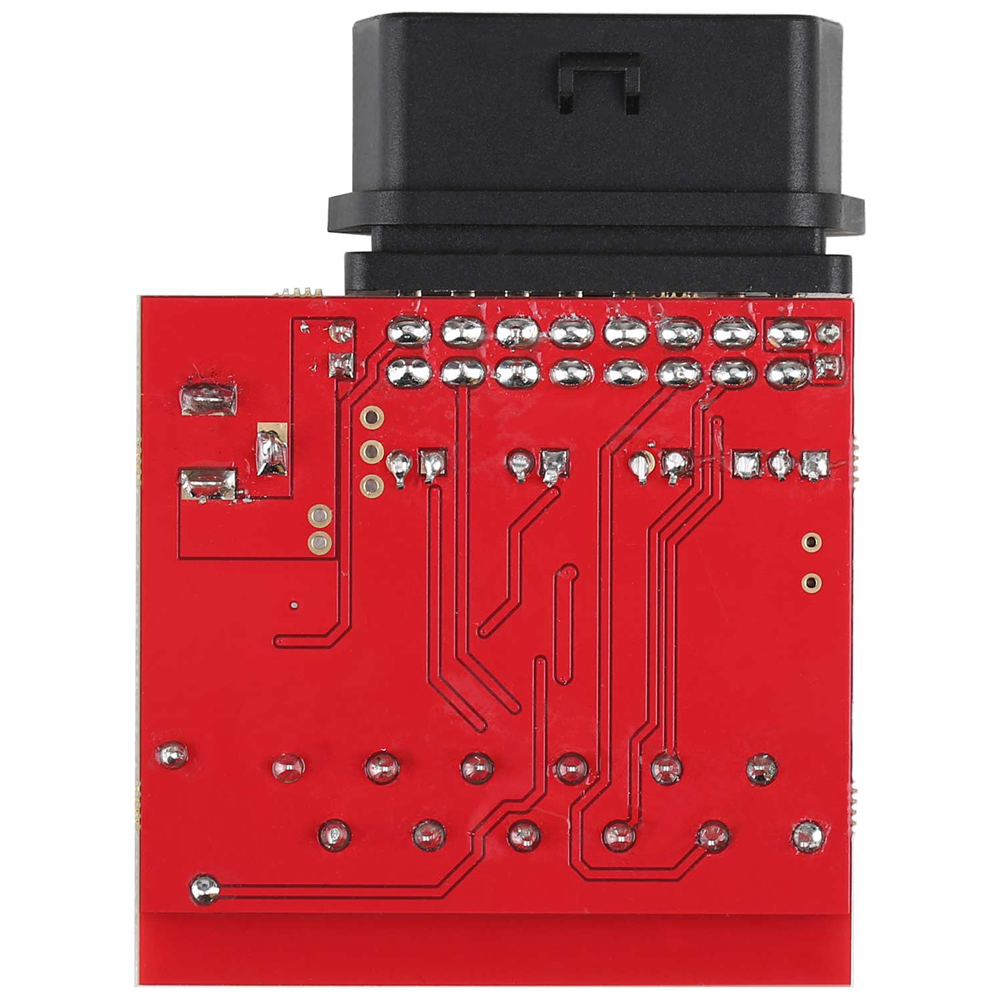

OTB 1.0 Expansion Adapter (OBD on Bench Adapter) for FoxFlash ECU Programmer.
OTB 1.0 Expansion Adapter is suitable for foxFlash extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules.

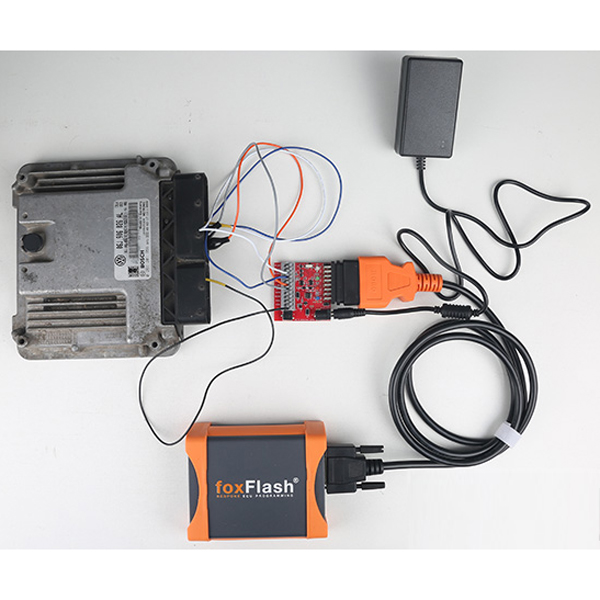

OTB = OBD mode via Bench Pinout (OBD on Bench). Do not need to connect with bench box.
Supported Functions:
1. Dual-Channel High-Speed CAN
2. Three-Way BOOT
3: Dual VCC Power Supply
4: GPT Encryption and Decryption Function
5: Adaptive Resistance
6: Adaptive CNF Signal Adjustment
Design Purpose:
1. Ensure foxFlash can be expanded to the OTB mode of BENCH PLUS in any OBD working mode.
2. Achieve high-speed on reading and writing.
3. Ensure communication security and prevent the possibility of ECU brick due to voltage instability.
4. OTB reading and writing in OBD offline mode.
5. ECM, TCM, ACM, DCM direct desktop mode reading and writing.
6. Improve the reading and writing speed of some OBD drivers.
Notice:
OTB 1.0 Expansion Adapter can work with ONLY Foxflash ECU Programmer.

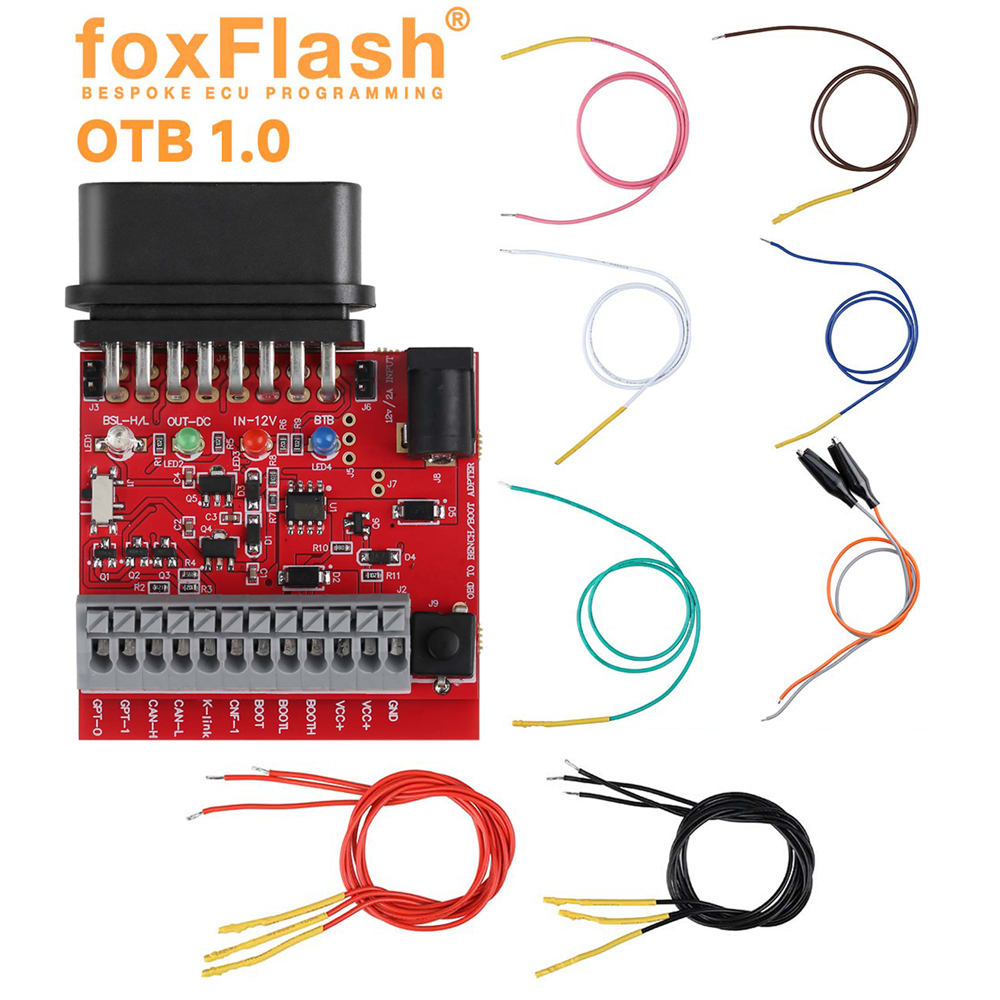

Packing List:
OTB 1.0 Adapter for foxFlash ECU Programming
Conversion Cable Kit
Packing Box
|
