Name: AK60 Ford Focus Mazda Key Maker

Description:

AK60 Ford Focus Mazda Key Maker is very good device. It can make keys for Focus (from 2003) and RX8 of Mazda.

With this device, you can make Focus keys via BDM of dash without PC. No need other device, no need PIN Code. Can start Focus after maker keys.

Steps to Make Key:

Ford Focus Key Match: Remove the immobilizer from car, use connection cable connect the device to car BDM port, start the device, insert TP01 or 60 chips, choose M2 button, when LED flashes one time, hear one beep means match succeeded. Then this key can start.

Mazda RX8 Key Match: Remove immobilizer which next to the ignition, remove 24C02 chips from it, clean every pin and put it into the adapter, then connect device, press power on button, insert TP01 or 60 chips, choose M1, when LED flashes one time, hear one beep, that means it match successfully. This key can start the car now.

Special Notice:

If LED flashes one time, hear one beep, means match success.
If LED flashes 5 times, hear 5 times beep, means the device and the target(immobilizer or 24c02 connection wrong or data wrong)
If LED flashes 10 times, hear 10 times beep, means TP01 or 60 chips type wrong or it has been locked.

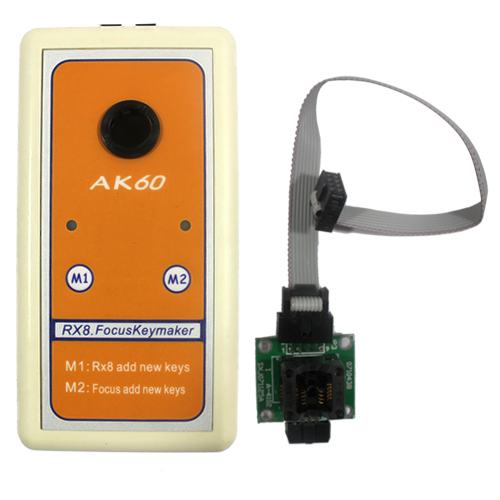

Set Includes:

AK60 Ford Focus Mazda Key Maker
Chip Adapter
