Name: BMW CAS4 Car Prog (without USB Key)

Description:

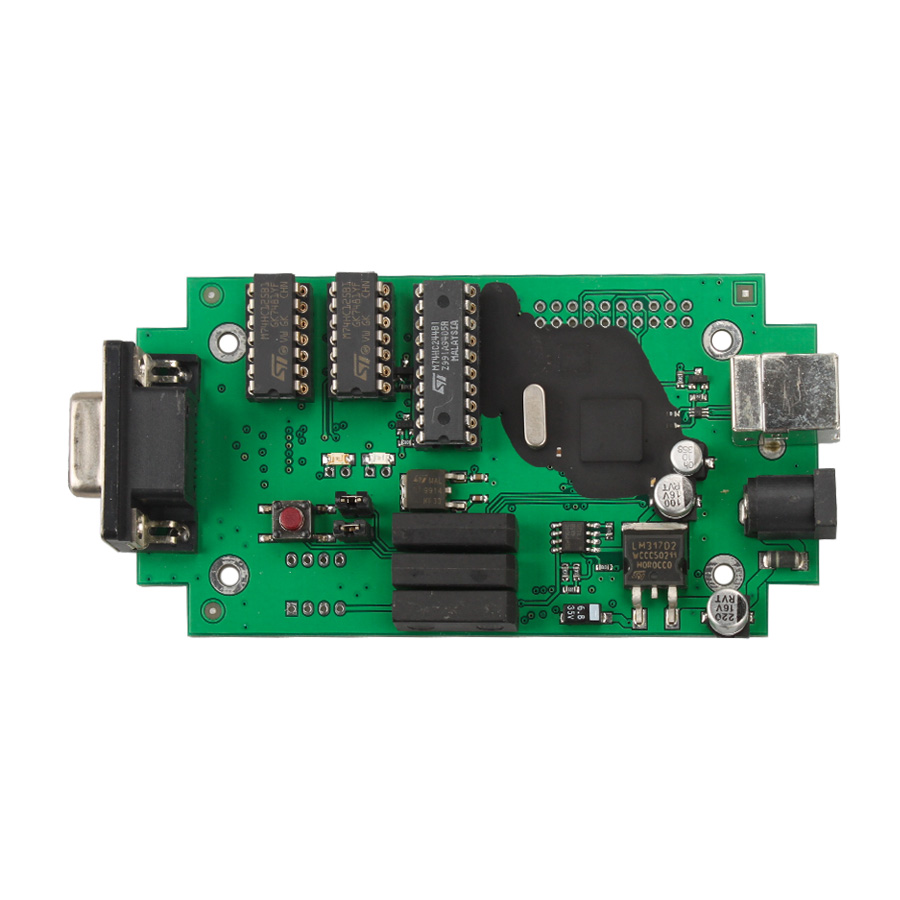

Car Prog is a universal EEPROM tool that allows to read, write, edit and erase various types of EEPROM memories. I2C, SPI and Microwire memory interfaces are supported. Device is communicating with PC through USB port. It allows you to fully adjust main programming parameters like programming voltage, pull-up resistors, clock speed and read/write delays. It can load, edit and save files in *.bin, *.epp, and *.sec formats. CodiProg USB software includes ability to upgrade device firmware to enable support for new memory types. It is also possible to use CodiProg erasing function without PC computer control.

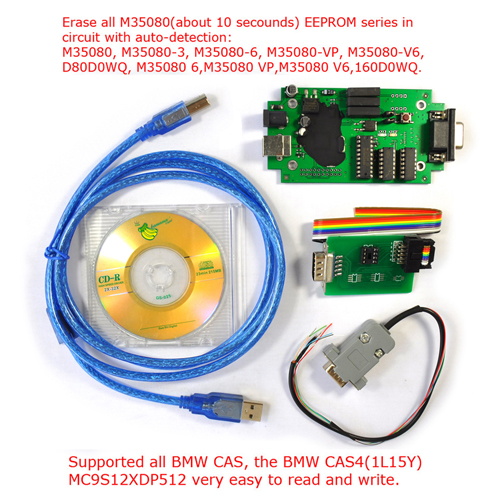

Fast erase all M35080 (about 10 seconds) EEPROM series in circuit with auto-detection:

M35080, M35080-3, M35080-6, M35080-VP, M35080-V6, D80D0WQ, M35080 6, M35080 VP, M35080 V6, 160D0WQ

Erase EEPROM:

24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128
25C040, 25C080, 25C160, 25C320, 25C640, 25C128, 25C256
M95040, M95080, M95160, M95320, M95640, M95128, M95256, SP08 M9306, M9346 93C06, 93C46, 93C56, 93C66, 93C76, 93C86 93CS46, 93CS56, 93CS66, 93CS76, 93CS86

Supported Memory Types:

MC68HC912D60A, MC68HC912DC128,
MC68HC912DG128, MC68HC912DC128A,
MC68HC912DG128A, MC9S12D64,
MC9S12DB128B, MC9S12DG128B,
MC9S12DT128B, MC9S12A128B,
MC9S12H128, MC9S12H256,
MC9S12DG256C, MC9S12DP256C,
MC9S12DT256C, MC9S12XDP384, MC9S12XDP512.

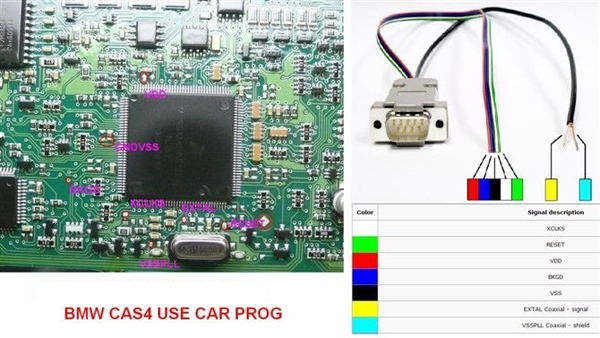

Supports all BMW CAS, the BMW CAS4 (1L15Y) MC9S12XDP512 are very easy to read and write.
