  OBDSOS PRODUCTS Car Ignition / Spark Plug Tester

Product ID SO54
Product Name Ignition Coil Tester VAT5007
Product Price USD400
Actual Weight (Kg) 4.4
Volumetric Weight (Kg) 5
Package Size (cm) 51*12*39
Related Download
Order Quantity:
In Stock



Description

Name: Ignition Coil Tester VAT5007

Description:

Ignition Coil Tester VAT-5007 brings fast, simple and accurate way of determining defects on ignition coils. Automatically distinguishes different ignition coil type by auto switching control modes.
Adjustable frequency control ranging from 120Hz to 12KHz.
Safe and fall proof.
Applicable on Coil-on-Plug (COP), Coil-near-Plug (CNP), Double Ended Coil-on-Plug (DECOP) or wasted plug systems.

Simple Operation:

1. Connect power from 12V car battery and the power LED will light up.
2. Insert the yellow banana plug to the yellow socket and connect the cable to the control terminal of the ignition coil.
3. Hook up the spark tester to the ignition coil.
4. Turn on the frequency knob and adjust the frequency from low to high (clockwise).
5. Turn back to low frequency and observe the spark color which should be bluish purple.
6. Increase the frequency gradually and observe the spark line.
7. It should be in a straight line when NORMAL. If the spark line is curved, it indicates that the coil is aging or there is an internal leakage.
8. Turn to maximum frequency until the coil is slightly warm, then turn down the frequency and observe the spark line whether it is continuous or intermittent.  If arcing sound is heard but no spark indicates that there is internal leakage.
9. Use Ignition Leak Checker to detect the source of the leak.

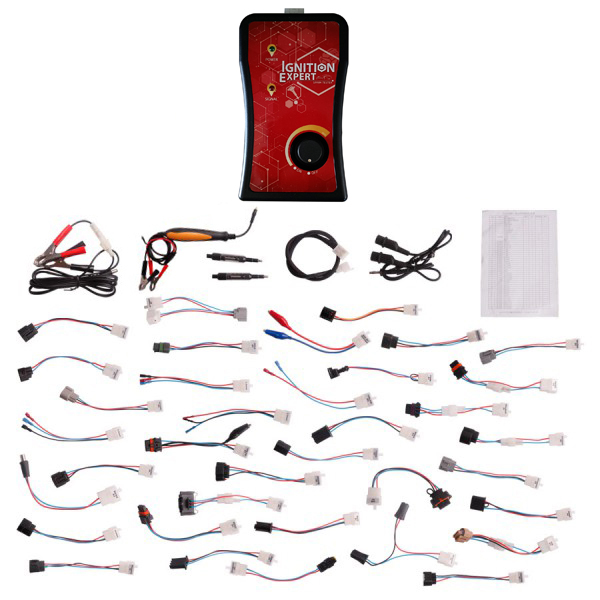

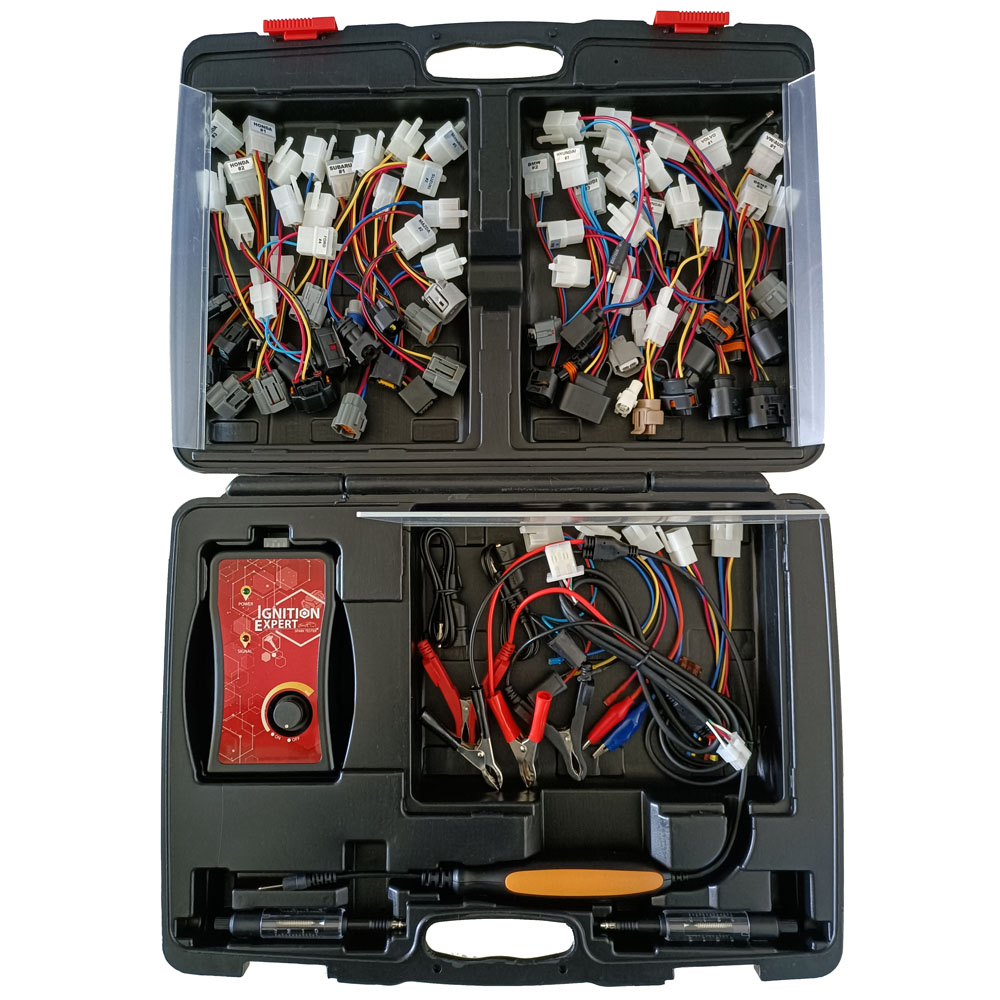

Packing List:

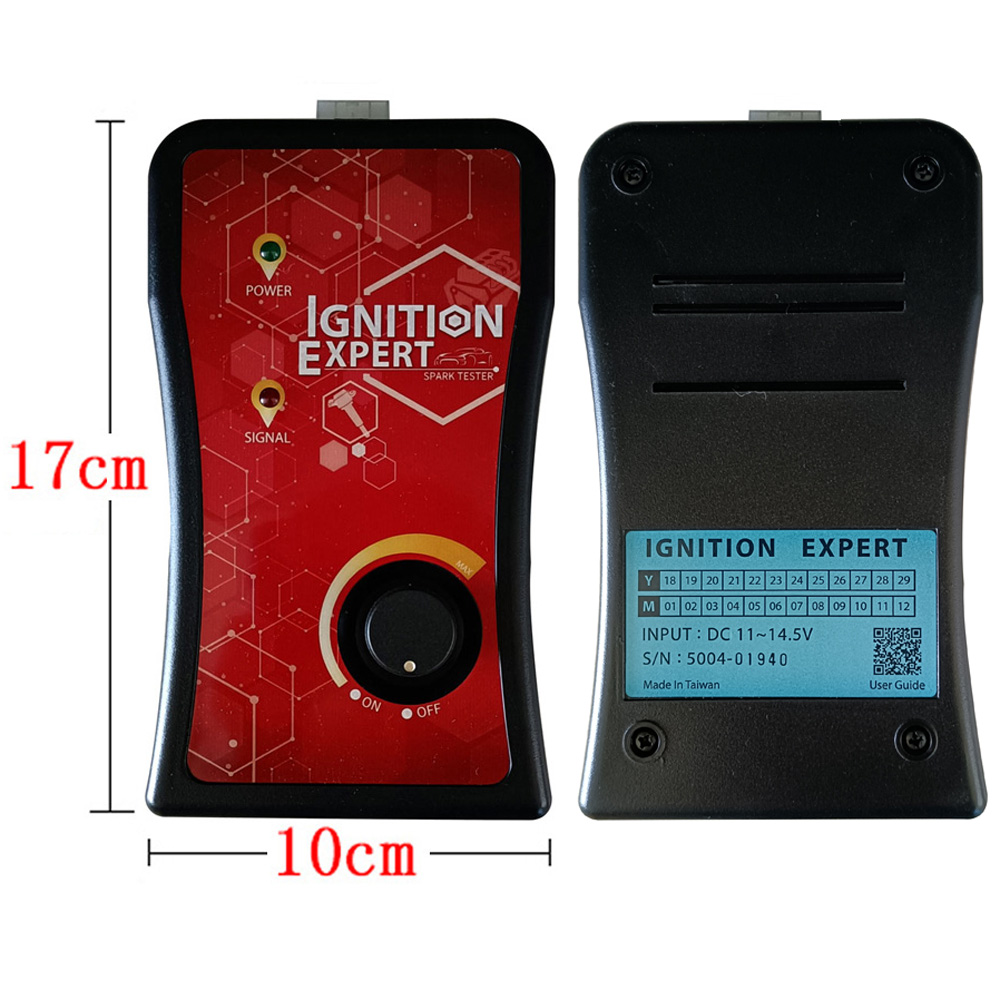

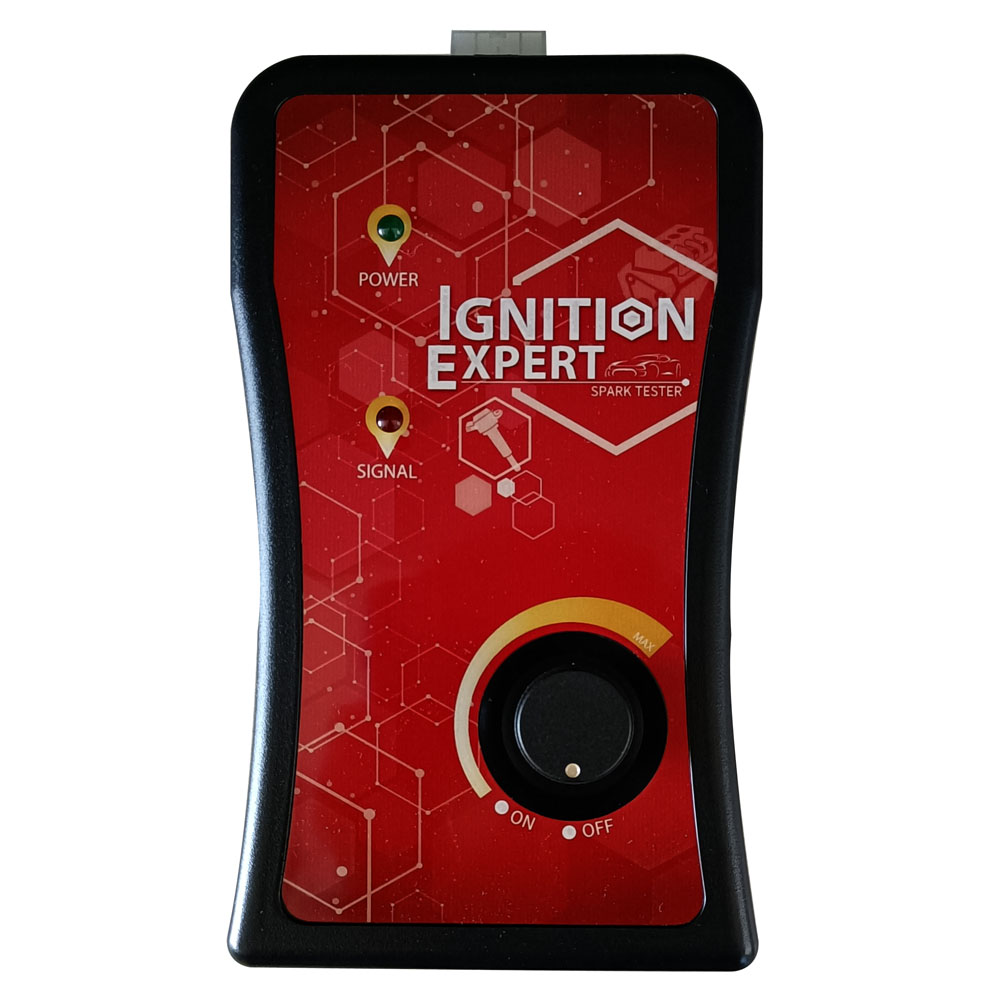

VAT 5007 Ignition Expert Spark Generator

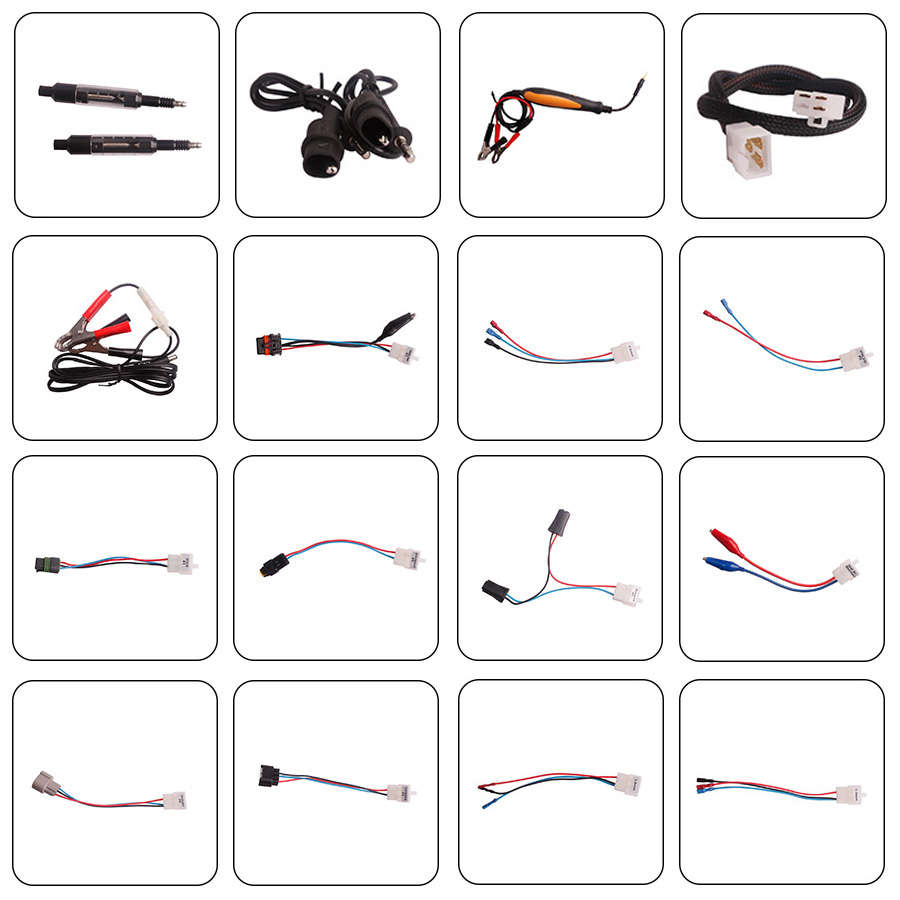

Spark Tester (2 pcs)
Ignition Leak Checker

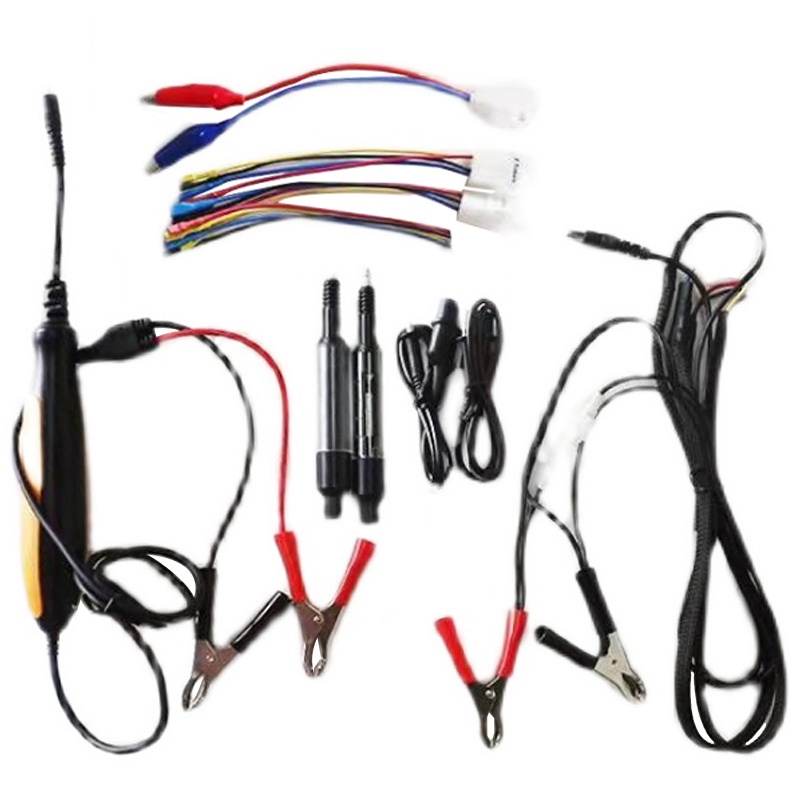

Main Connection Cable
Extension Probes (Red & Black)
Extension Cables (Red, Blue, Green, Black)
Power Supply Clips
Female Socket Clip Cable
2.5mm Female Socket Cable
3.0mm Female Socket Cable
5.0mm Female Socket Cable

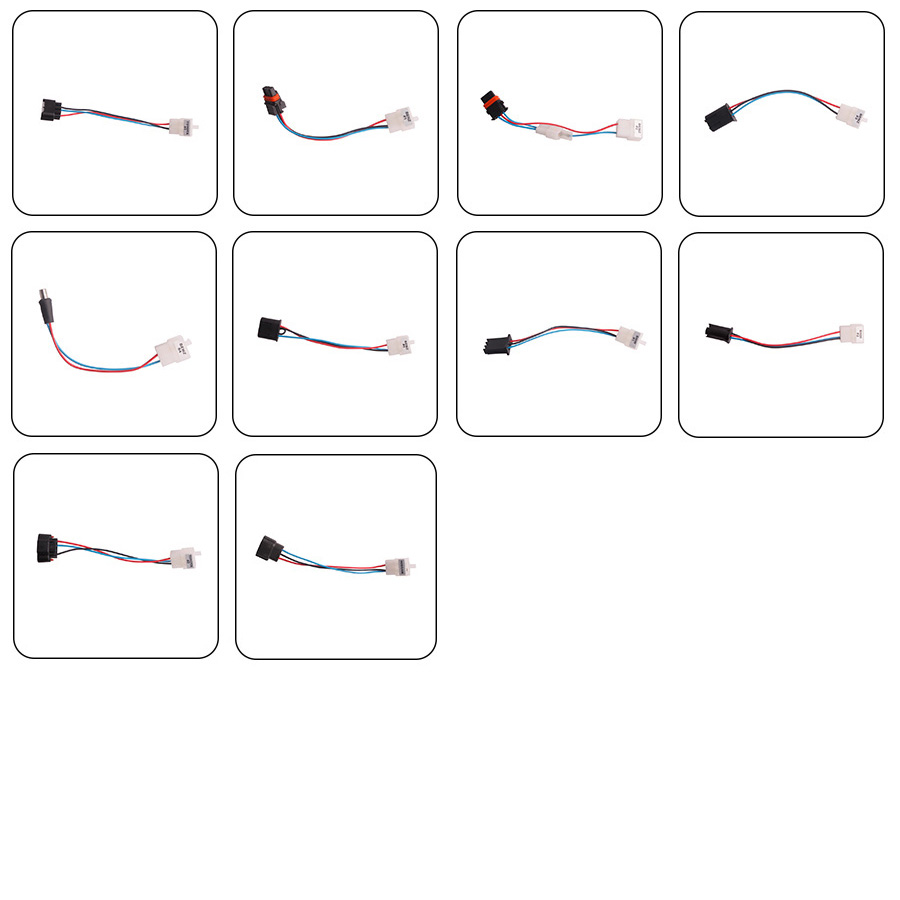

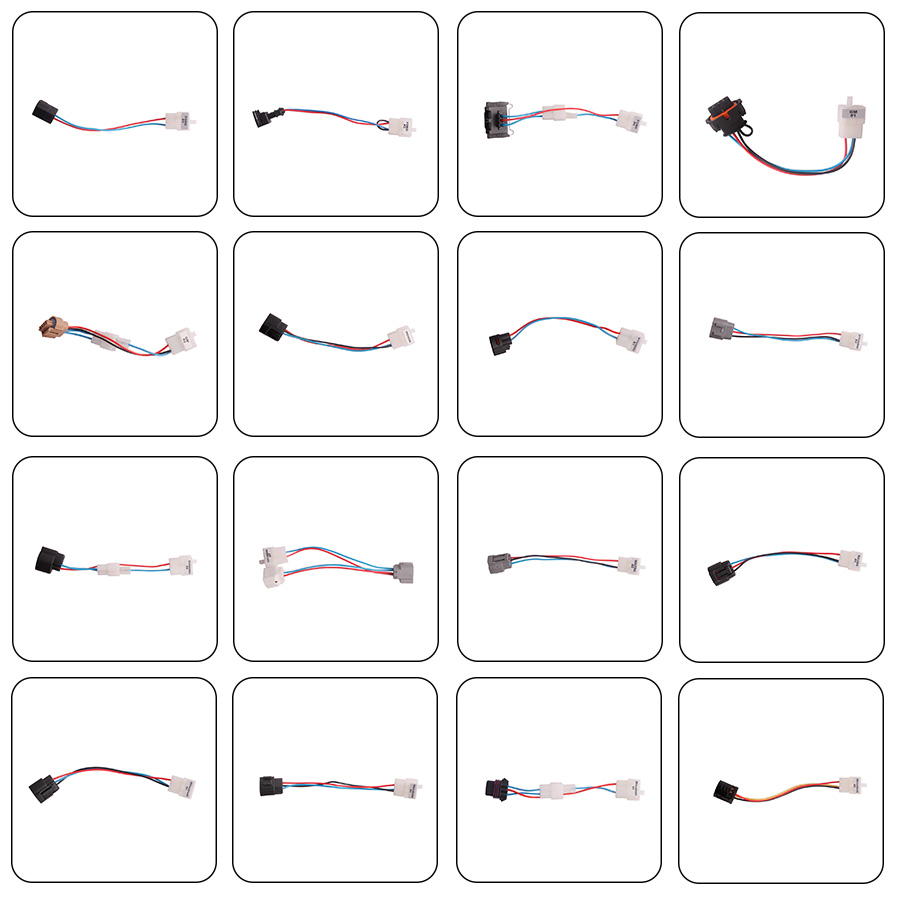

Coil Connectors (32 pcs)

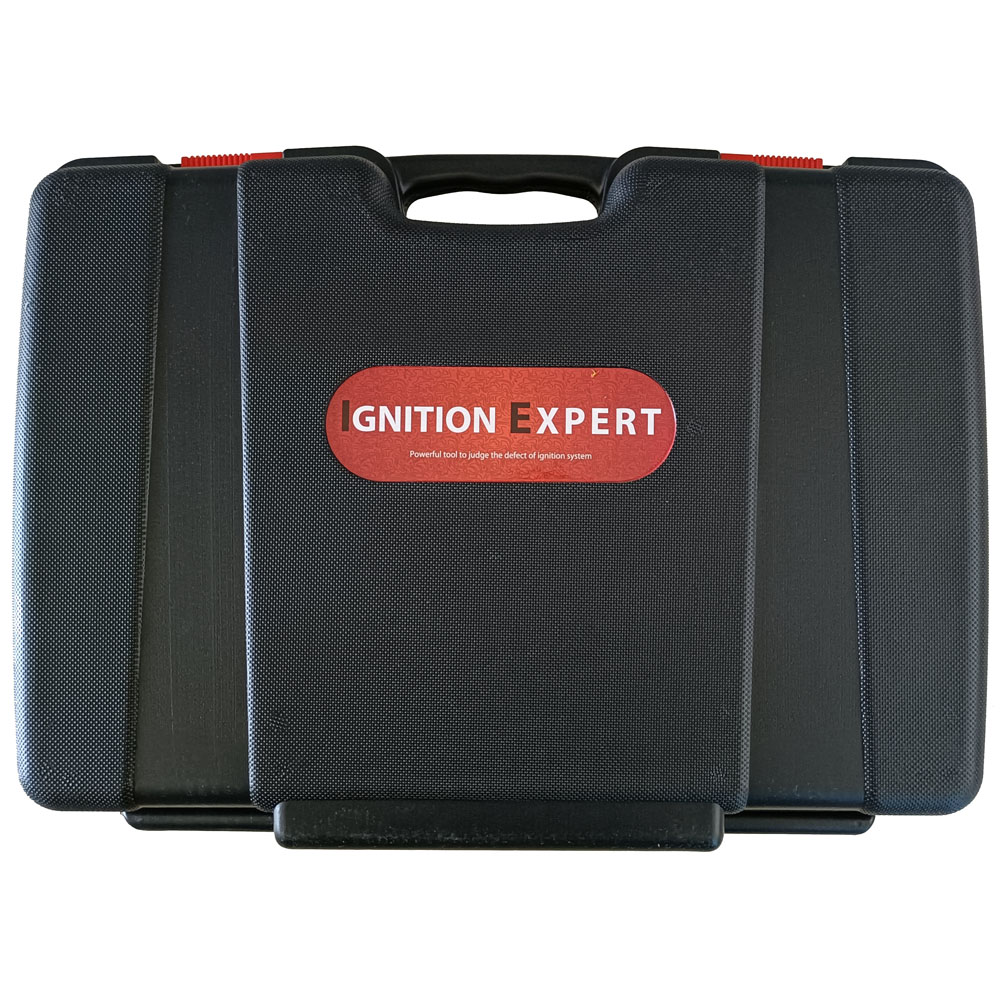

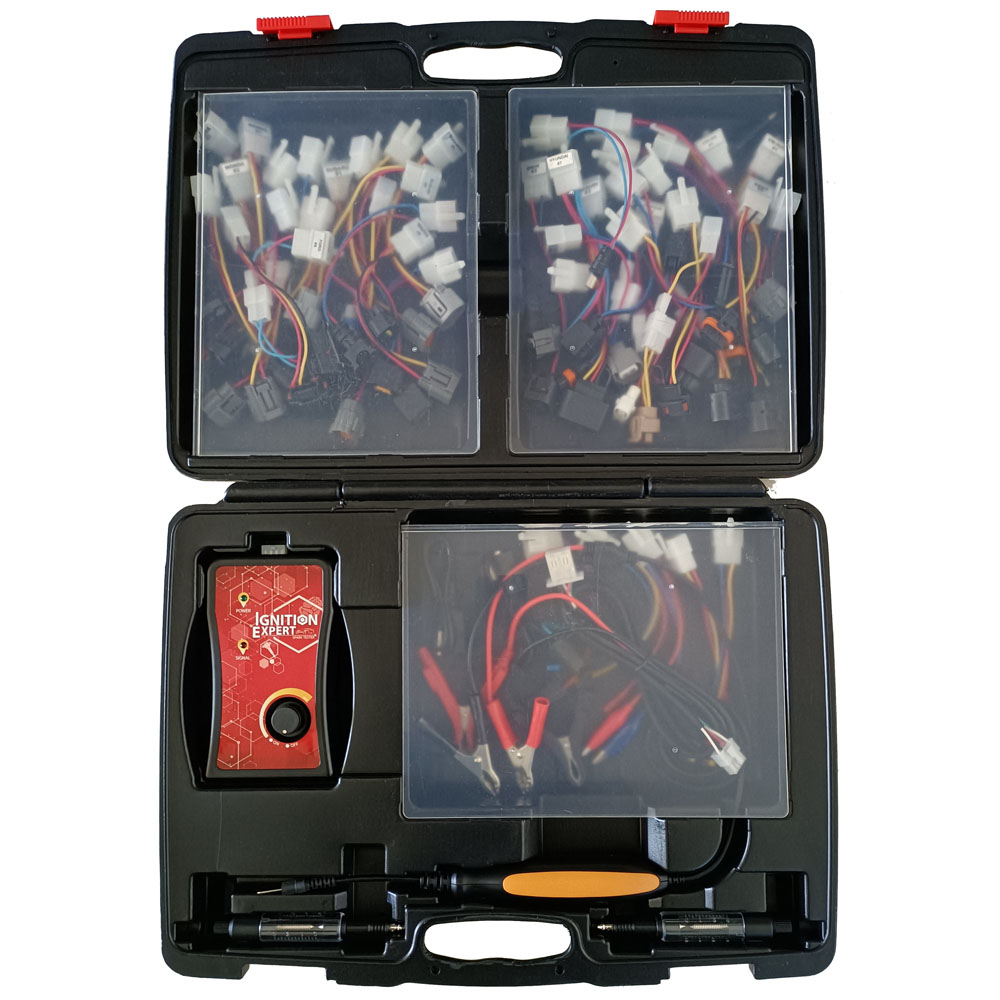

Plastic Toolbox
Packing List
Packing Box
