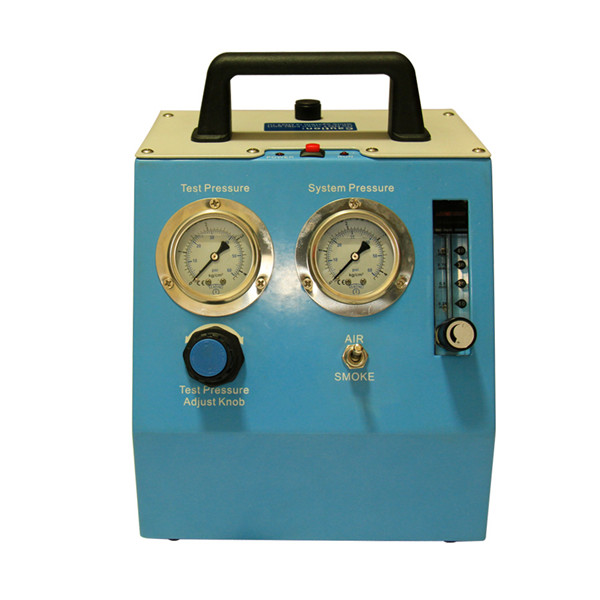

Name: ALL-300 HD Diagnostic Leak Detector for Heavy Duty

Description:

SMOKE ALL-300 HD is a high pressure diagnostic leak detector for detecting leaks in systems that run at high pressure, such as passenger car turbo system, brake booster, exhaust, lamp housing, medium & Heavy Duty commercial trucks air intake system,exhaust system, manifold, coolant tank, sealing, gasket and fuel pipe etc.

Features:

1. Your scan tools ONLY can do half of the work
Your scan tools help you acquire the knowledge about which sensor had got the sampled data  out  of  range.  But  your  scan  tools will not  tell  you  the  cause/reason  of  the  fault,  and where  to  find  it.  A  Diagnostic Leak  Detector  will  tell  you WHERE  the  problem  is,  which caused the sensors to get wrong data.

2. Over 60% of the DTCs are pressure related
Sensors sample  voltage,  temperature  and  pressure,  of  all  the  DTCs that  possibility generated, over 60% are pressure related, regardless it is an air pressure DTC, or an oil pressure DTC. With a Diagnostic Leak Detector, these DTCs are much easier to erase.

3. Increase income per service
By finding more hidden problems in a vehicle and proving it to the vehicle owner necessityof extra service, a Diagnostic Leak Detector will help increase your income per service.

4. Helps reduce labor cost
A Diagnostic Leak Detector helps technicians to locate problems currently in short time,avoid possibility of wrong diagnosis of the vehicle.

5. Enhance capability of more service calls
By  reducing  your  service  time  cost,  a  Diagnostic Leak  Detector  makes your  workshop capable of more service calls.

6. Ease the pain of finding leaks
The vehicle driven in the workshop with engine running hot, which put technicians in a bad working condition, with a Diagnostic Leak Detector, technician do not have to touch the hot surface, reduce possibility of getting hurt in work.

7. More professional in facing customers
Customers may  feel sorry for you if you jump onto and off the car to find problems.  A Diagnostic Leak Detector will make technician work more professional with convincing result.

8. Small investment, big turnout
A Diagnostic Leak Detector is affordable for all level of workshops, and the equipment will pay for itself back by a few jobs.

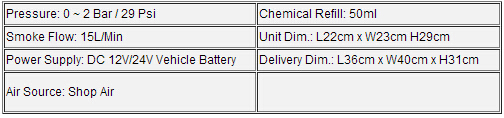

Specifications:

1. Dual mode support: air mode for test leaks, smoke mode for finding leaks.
2. Instant smoke generation
3. Super easy in operation, only a Start/Stop button.
4. Smart controlled 10 minutes working cycle
5. 0~2 bar / 29 Psi variable pressure output
6. Heavy Duty bladder that fits intake/exhaust size from 8cm/3.2” to 20cm/7.9”
7. Dual Heavy Duty bladders equipped, both could be used as block-off.
8. DC 12V/24V auto-adaptive, vehicle battery driven.

Set Includes:

A1 Diagnostic Leak Detector
H.D.Bladder (2 pcs)

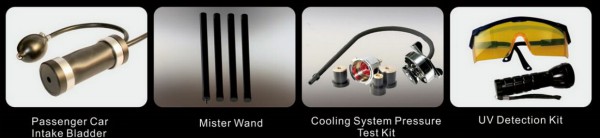

Optional Accessories:

Passenger Car Intake Bladder*2 pcs
Mister Wand*1 set
Cooling System Pressure Test Kit*1 set
UV Detection Kit*1 pc
