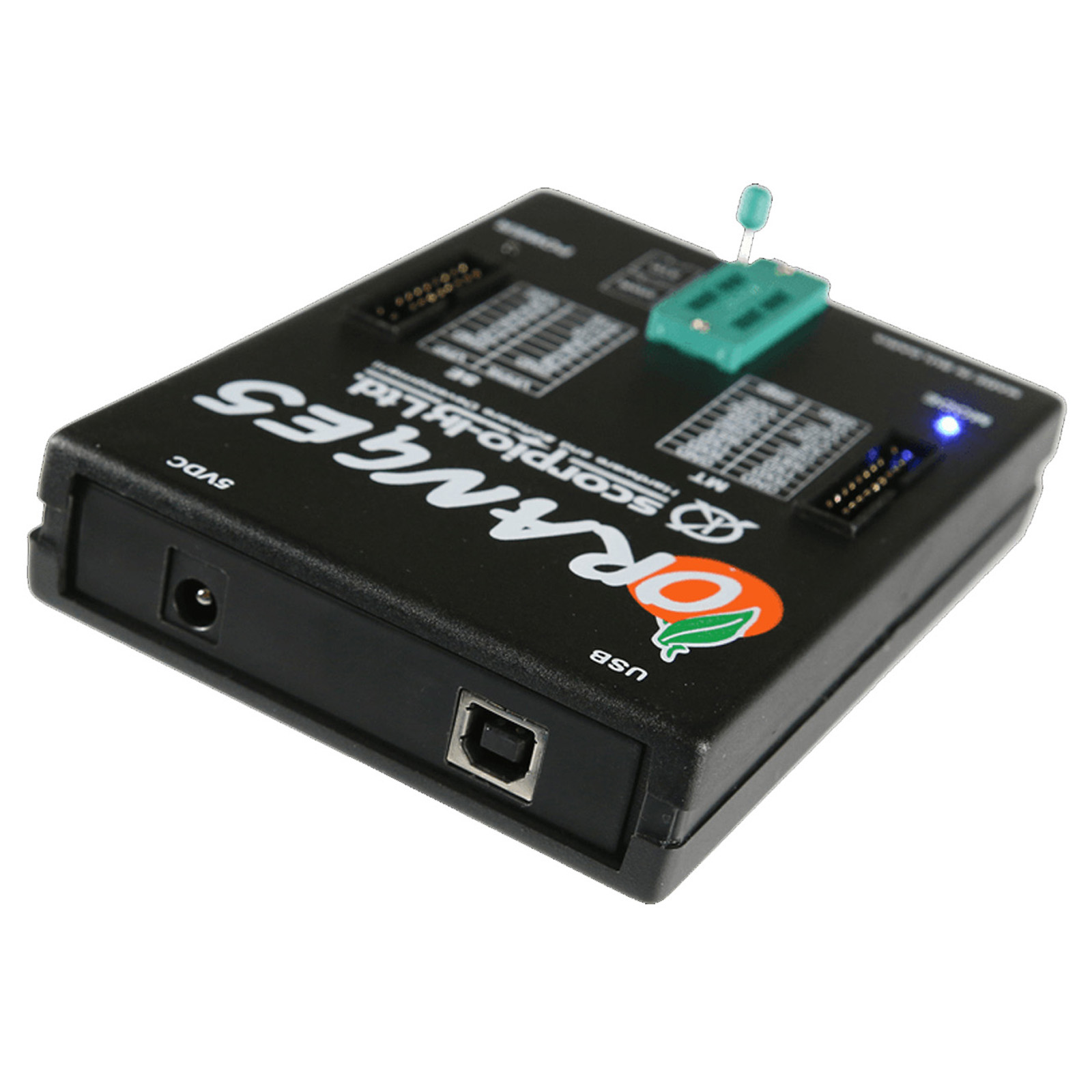

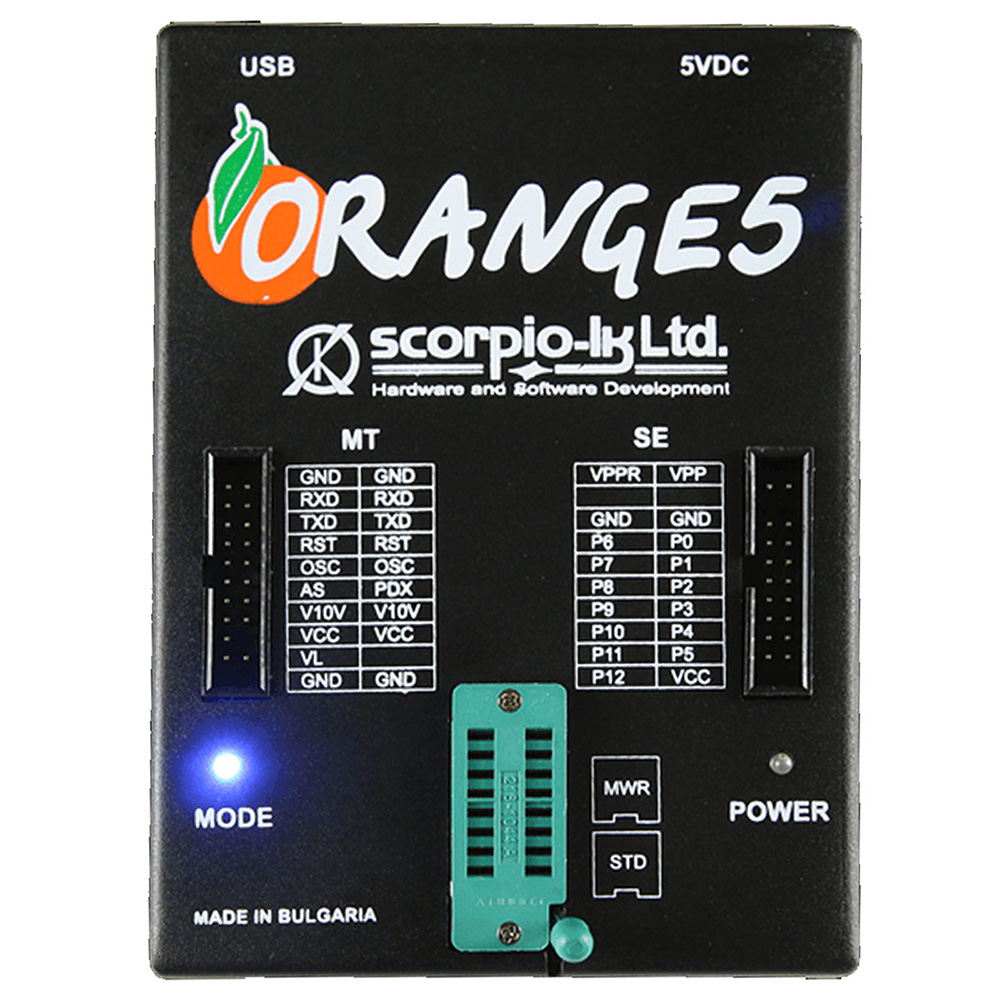

Name: Orange 5 Memory and Microcontrollers Professional Programming Device Description:
Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
Technical Parameters:
USB power supply (USB2.0/3.0) Universal easy to plug panel ZIF16 for EEPROM Control of contacts in the sockets Two expansions compatible with Orange4 and Omega MTRK Protection against over current Overload voltage protection 2 types of power supply: Standard (USB) and enhanced (USB + external power supply) 3 adjustable voltage and current control: voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V) Wave cycle generator with frequency ( up to 24 MHz) and out voltage(2.0...5.0V) adjustment Capability of functional emulation of class CDC USB devices Built-in 32-bit virtual machine Supported Interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter) Programmer is enclosed in a functional box. Supported Windows XP/7 32bit.
Set Includes:

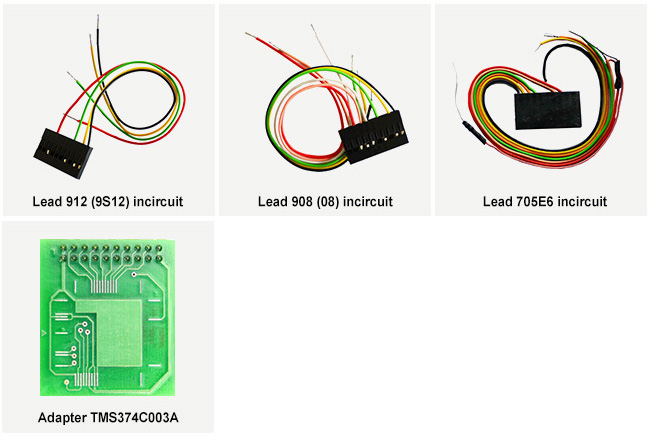

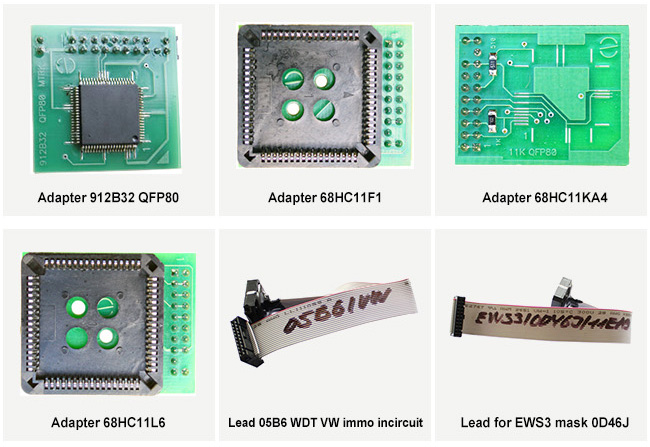

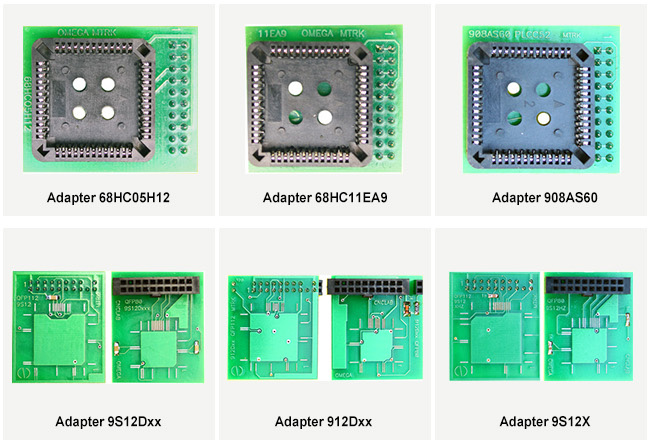

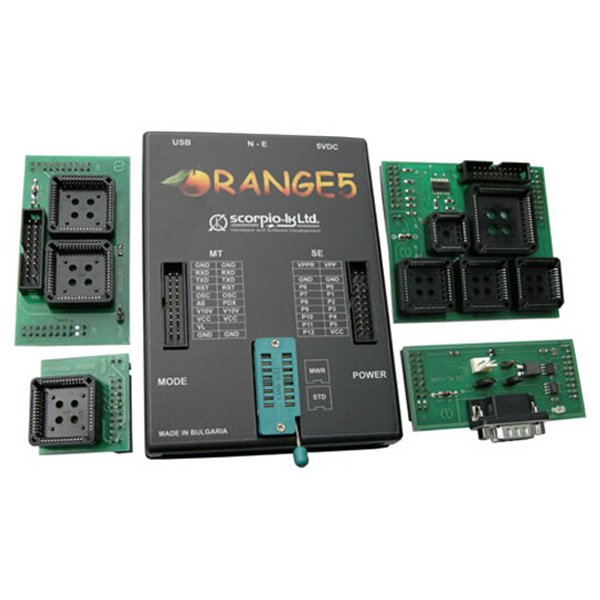

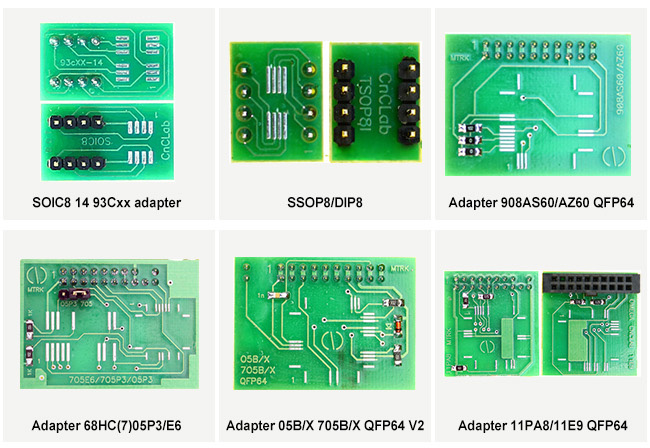

01. Orange-5 (include 05BP2&HC11A/Exx; TMS; K/CAN) 02. Adapter SOIC8 14 93Cxx 03. Adapter SSOP8/DIP8 04. Adapter 908AS60/AZ60 QFP64 05. Adapter 68HC(7)05P3/E6 06. Adapter 05B/X 705B/X QFP64 V2 07. Adapter 11PA8/11E9 QFP64 08. Adapter 68HC05H12 09. Adapter 68HC11EA9 10. Adapter 908AS60 11. Adapter 9S12Dxx 12. Adapter 912Dxx 13. Adapter 9S12X 14. Adapter 912B32 QFP80 15. Adapter 68HC11F1 16. Adapter 68HC11KA4 17. Adapter 68HC11L6 18. Lead 05B6 WDT VW IMMO incircuit 19. Lead for EWS3 mask 0D46J 20. Lead 912 (9S12) incircuit 21. Lead 908 (08) incircuit 22. Lead 705E6 incircuit 23. Adapter TMS374C003A 24. Special software ImmoHPX
|
