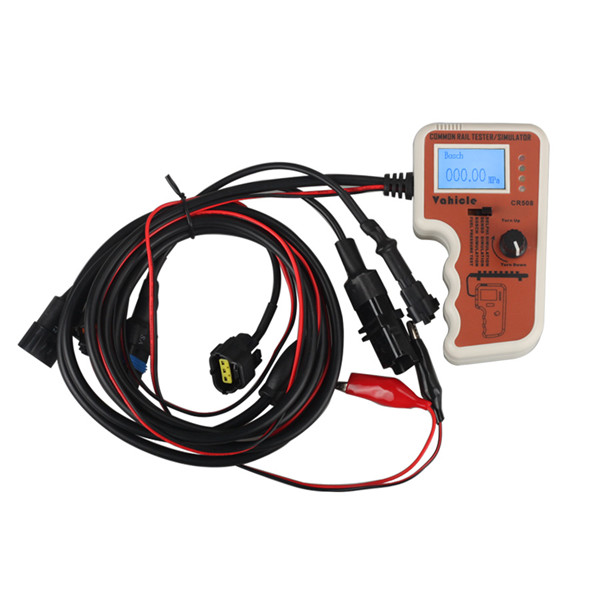

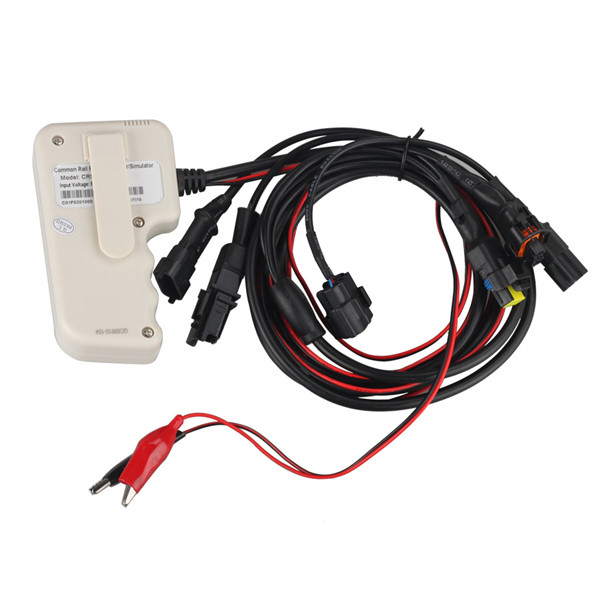

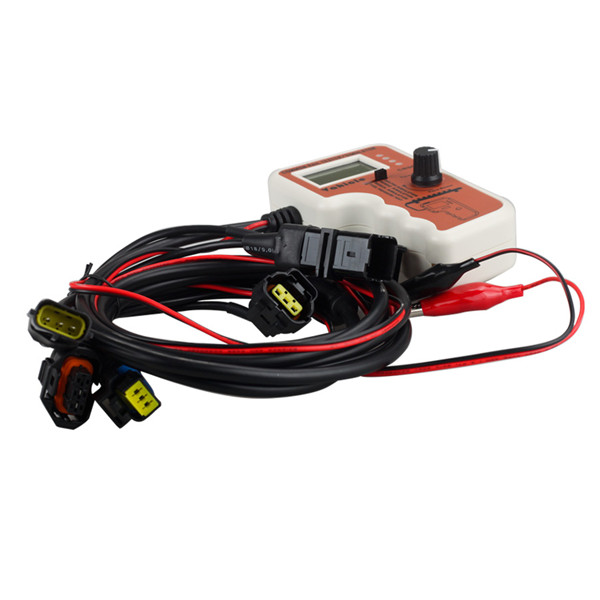

Name: CR508 Common Rail Pressure Tester and Simulator

Description:

CR508 not only can test rail pressure functions, actually its simulation functions is very special and very useful to our users (normally universal scanners only test but do not have simulation functions.

CR508 can be used for simulating oil pressure of high pressure fuel line, users can conveniently find and search problems on fuel line, fuel pump or sensor etc.

Features:

1) CR508 is the latest upgrade rail pressure tester, it can test kinds of common rail pressure sensors of diesel engine, include Bosch, Denso, Delphi.

2) CR508 is a portable fuel-way pressure tester and simulator. Besides test, CR508 also can be used for simulating fuel pressure that universal scanner does not have. By simulation, users can stimulate conveniently for searching problems on fuel way.

3) CR508 Diesel Engine common rail pressure test can be operated simply with high accuracy avoiding the complicated operation compared with the previous use of mechanical pressure gauge pressure tube  and  problem caused by other factor entering a damaged fuel injector and the pipe damage , a series of negative effect caused by oil spills .

4) CR508 greatly improves the working efficiency. Most importantly according to the standard data to search for the engine starting difficulty and power caused by the lack of engine fault alarm The instrument is enclosed with standard operating rail pressure data and details of the fault that can quickly guide the repair staff to trouble shooting and repair detection of common rail. It truly becomes an indispensable diagnostic instrument

5) To judge whether the common rail pressure is normal based on the comparison between the testing results and standard data. Usually, indicate the below problem about the engine if the common rail pressure is abnormal.

Engine is hard to start or could not be started.
Engine lacks of power.
Engine power is not stable.
Engine climbing powerless.

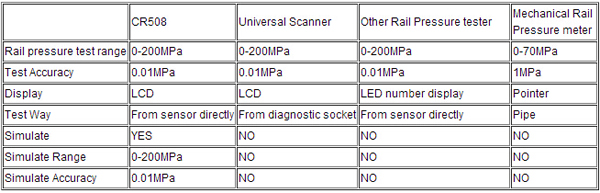

6) CR508 supports all common rail pressure sensors, including Bosch, Denso and Delphi; measurement range includes 0MPa to 200Mpa. The accuracy is up to 0.01MPa. Adaptive measurement mode is adopted for CR508. User does not need to select, and the product can automatically recognize type of connected sensors for rapid measurement.

Functions:

1. Measuring Bosch Common Rail Pressure Sensor;
2. Measuring Denso Common Rail Pressure Sensor;
3. Measuring Delphi Common Rail Pressure Sensor;
4. Stimulating Bosch Common Rail Pressure Sensor;
5. Stimulating Denso Common Rail Pressure Sensor;
6. Stimulating Delphi Common Rail Pressure Sensor;

Supported Vehicles:

Mercedes Benz, BMW, Audi, Volkswagen, Toyota, Peugeot, Citroen, Nissan, Renault, Hyundai, KIA, Hino, Isuzu, Yanmar, Cummings, Man, Scania, Volvo, Renault, Iveco, Weichai, Yuchai, Deutz, Detroit, Perkins, John Deere, Opel Diesel, and the engine with engineering machinery and vehicles and so on.

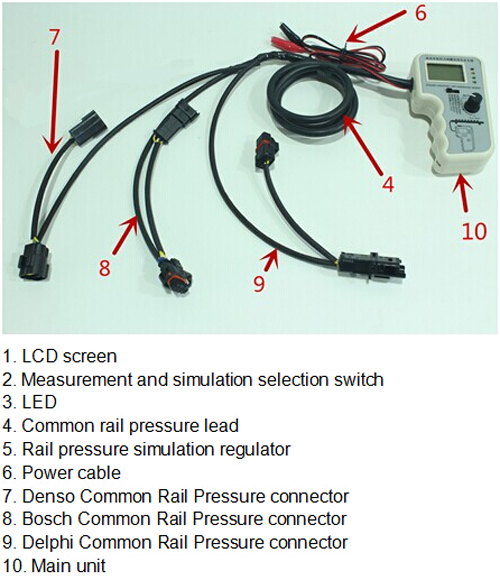

Set Includes:

CR508 main unit

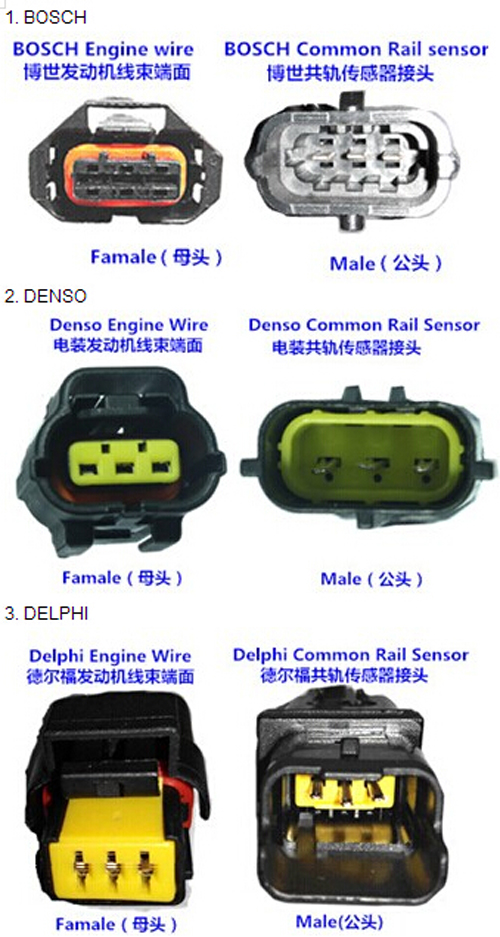

Main cable(Denso/BOSCH/Delphi Common Rail Pressure connector)
User manual
Carrying case
