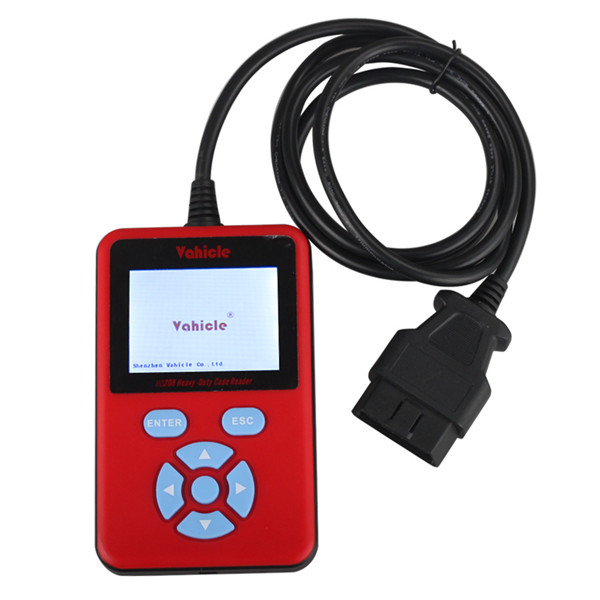

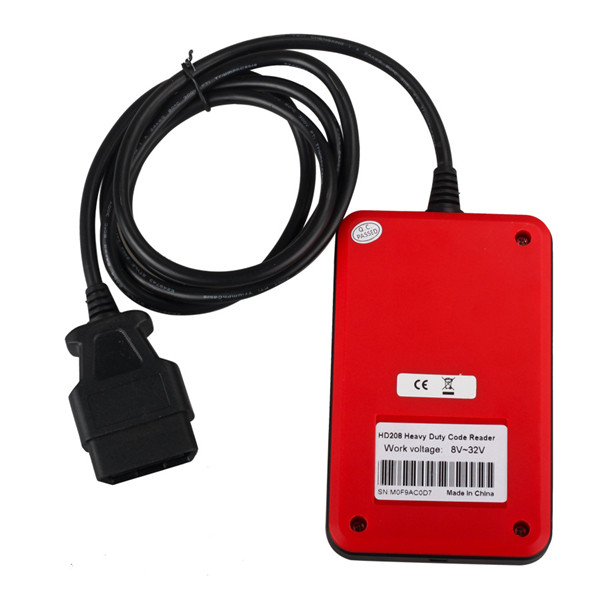

Name: HD208 Heavy Duty Code Reader

Description:

HD208 is a portable heavy duty trucks code reader. It can read out the DTCs in automotive electric control system quickly and efficiently and then learn about where trouble occurs and how they happen.

Features:

1. HD208 Heavy Truck Code Reader is applicable to most auto repair shops. It covers Cummings, Detroit, Caterpillar, Freightliner, International, Kenworth, John Deere, Peterbilt, Sterling, Mack, Mercedes Benz, Volvo and more diesel trucks and engines whoever are supported by the two standard protocols J1939 or J1708.

2. HD208 Heavy Duty Truck Code Reader integrates all basic diagnostic functions of two standard protocols J1939 and J1708 for heavy duty vehicle, adopts a 2.8 inch color screen with clear and beautiful interfaces, comes with 6-pin, 9-pin and 16-pin diagnostic connectors, to provide customers with the best, quickest and most professional services.

3. It is high-cost performance handheld code reader/scanner for Heavy Duty truck owner or professional truck technician.

Functions:

1. Read DTCs;
2. Clear DTCs;
3. Read data stream;
4. Available for a variety of automotive electronic control systems (engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc.);
5. Support 6pin, 9pin, 16pin diagnostic connectors;
6. Compatible with J1708 and J1939 communication protocols
7. Online upgrade available (UBS2.0); new functions can be added on requirement.

Specifications:

1. Screen: 2.8 inch 256K true color 320*240 LCD
2. Input Voltage: 8~36V
3. Operating Current: typical value <100mA
4. Typical Power Consumption: <1W
5. Connector: 6-pin, 9-pin, 16-pin diagnostic interfaces
6. Operating Temperature: 0 to 50 degree centigrade
7. Storage temperature: -20 to 70 degree centigrade
8. Relative Humidity: 60%
9. Dimension: 137*85*21mm
10. Main Unit Weight: 350g

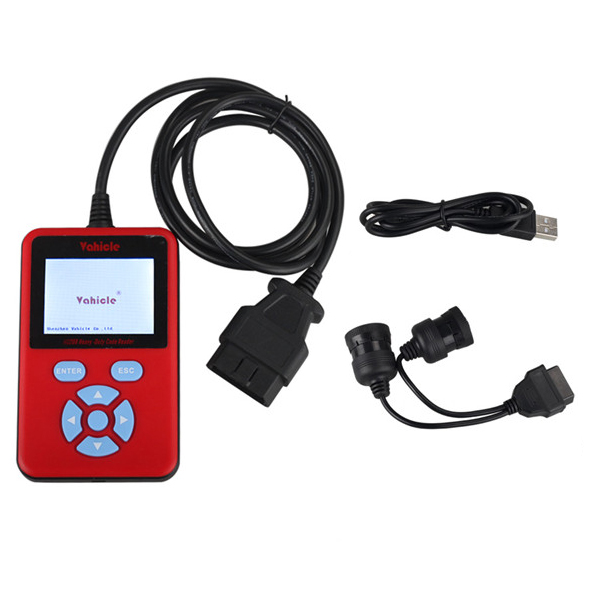

Set Includes:

HD208 Heavy Duty Truck Code Reader
USB cable

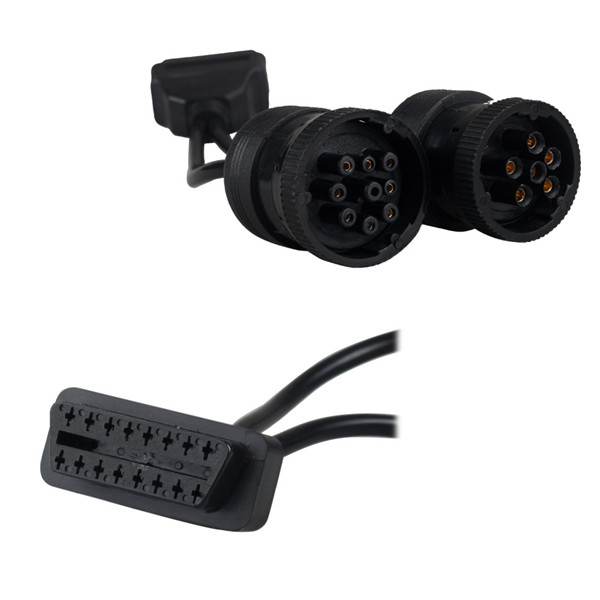

OBD-II 16-pin to 9-pin & 6-pin cable
User manual
Carrying case
