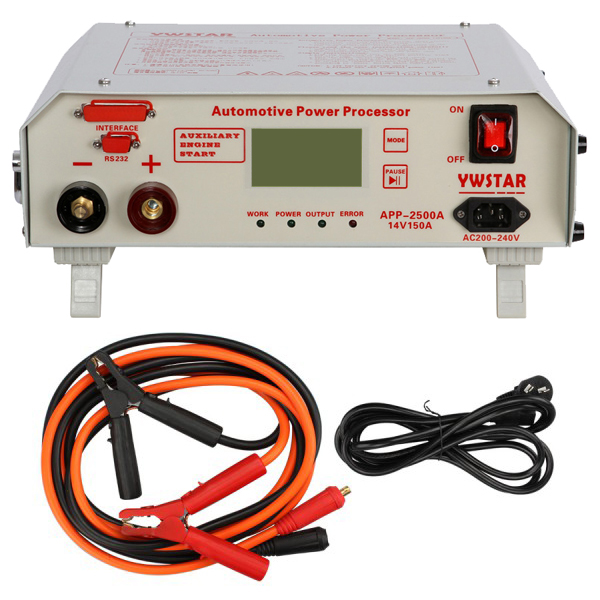

Name: Professional Intelligent Programming Charger 150A 14V

Description:

Professional Intelligent Programming Charger is used for charging or protectively charging conventional lead-acid batteries, lead-calcium/silver batteries, sealed (AGE, MF) and GEL batteries without disconnecting power supply.

Features:

1. All these function (battery capacity, rated voltage, services) clearly display on the screen, and can set up language via the screen.

2. All the charge data (electric current, voltage, AH etc.) display on the screen.

3. Based on the active inverter technology.

4. The car ECU is so easily to be damaged once the battery voltage is unstable while you are doing the ECU programming of your vehicle. Professional intelligent programming charger can be used to protect your ECU safety.

5. Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications (Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.) Audi/VW/Benz/BMW Automotive Programming Dedicated Power can prevents equipment damage from voltage fluctuations and transient surge.

Functions:

1. Smart Car Program
2. High temperature alarm.
3. Charging dedicated power
4. Short circuit and reverse polarity protection
5. Intelligent charger for motor vehicles starter battery
6. Extensive protection functions and self-protection functions
7. Intelligent charger for motor vehicles starter battery
8. Input voltage 220V only, Output Voltage 14V/150A. (110V input voltage can be customized.)

Protective Functions:

1. Reverse polarity protection
2. Overheating protection
3. Safety cut-off
4. Safety circuit

Application:

1. Standard charging mode: provide power supply during diagnosis
2. Auto programmed smart charging mode, suitable for Benz, BMW, Porsche, and Audi.
3. Adopt active inverter technology to realize fast charge.

Supported Cars:

Audi, BMW, Mercedes-Benz, Volvo, Porsche, Volkswagen, General Motors…

Technical Parameters:

Input: AC 200-240V; 10A; 46-64HZ
Output: DC 14V; 150A
Power: 2500W

Input Specification:

Efficiency: 85%
Power Factor: 0.95
Frequency Range: 40-60HZ
Rated Input Voltage: 220V (+/-20%)

Output Specification:

DC Voltage: 14.5V
Rated Current: 0-150A
Rated Maximum Power: 2500W
Ripple and Noise: 100mVp-p

Protection Specification:

1. Over-voltage: 15V
2. Working Temperature: -40 to 85 degree centigrade
3. Safety: UL60950, TUV EN60950-1
4. Overload: 90-110% of rated output power
5. Withstand Voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
6. Insulation Resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH
7. EMC: complies with EN55022, EN61000
