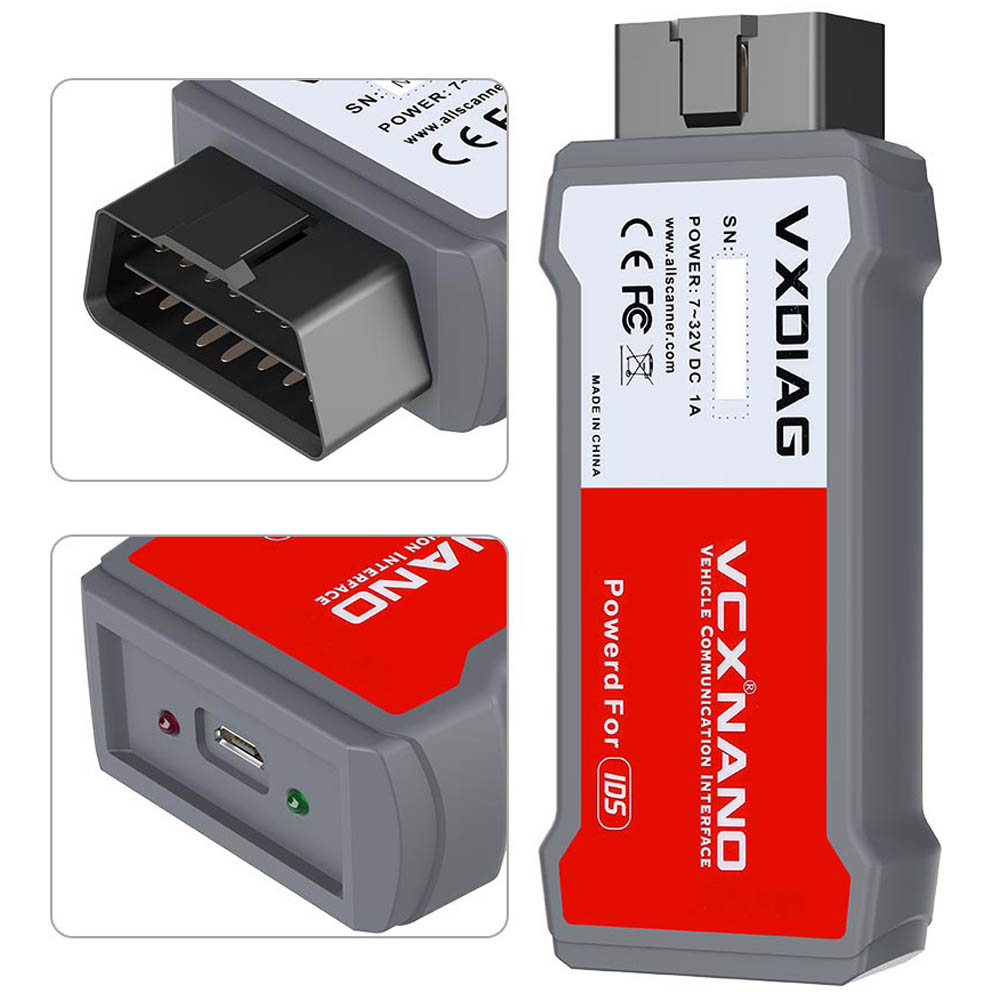

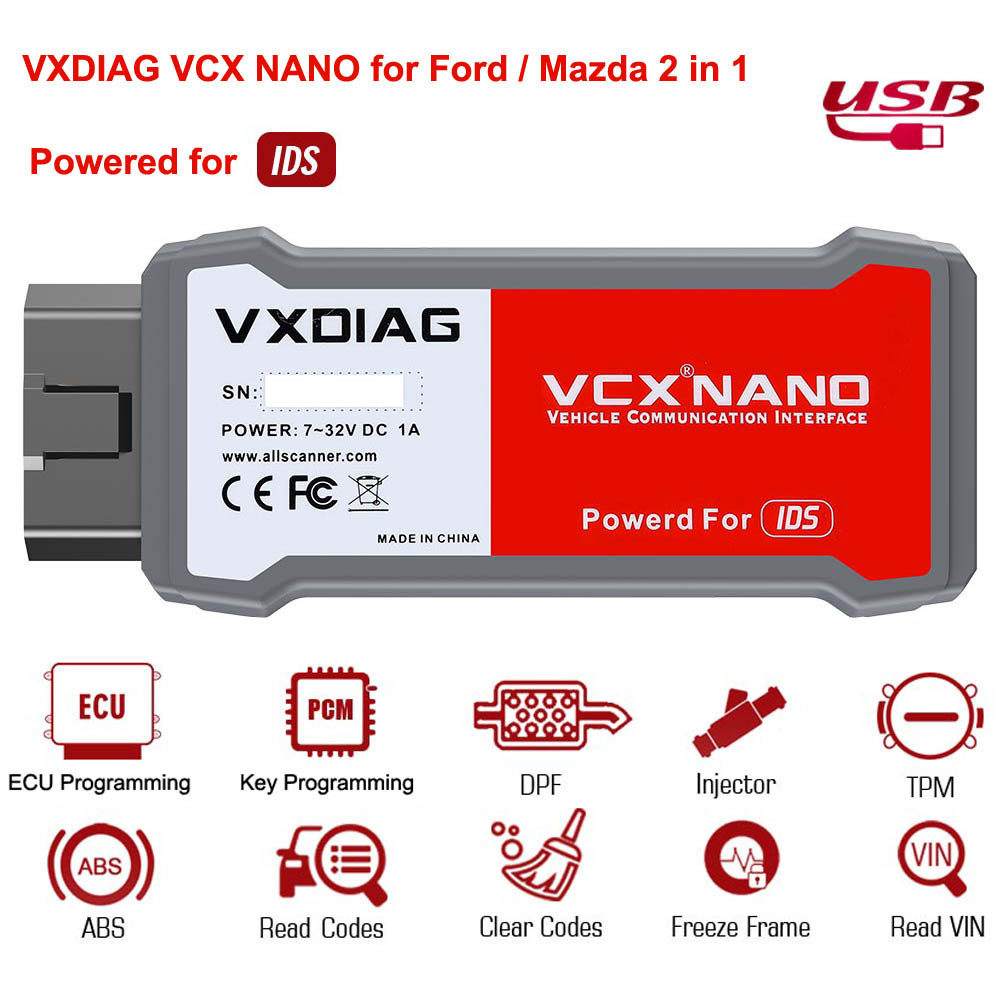

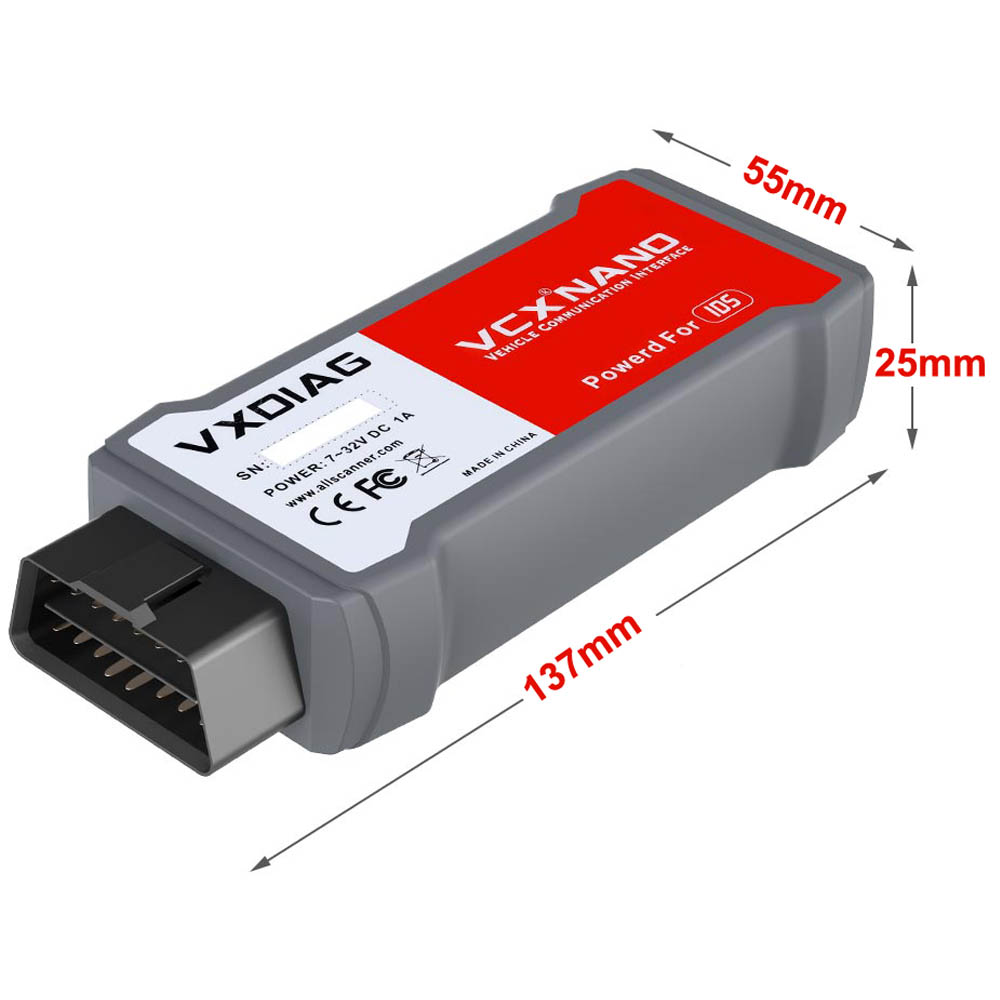

Name: VXDIAG VCX NANO for Ford Mazda 2 in 1



Description:



VXDIAG VCX NANO is an OEM diagnostic interface for the vehicles of Ford and Mazda. It can be compatible with OEM software Ford IDS and Mazda IDS.

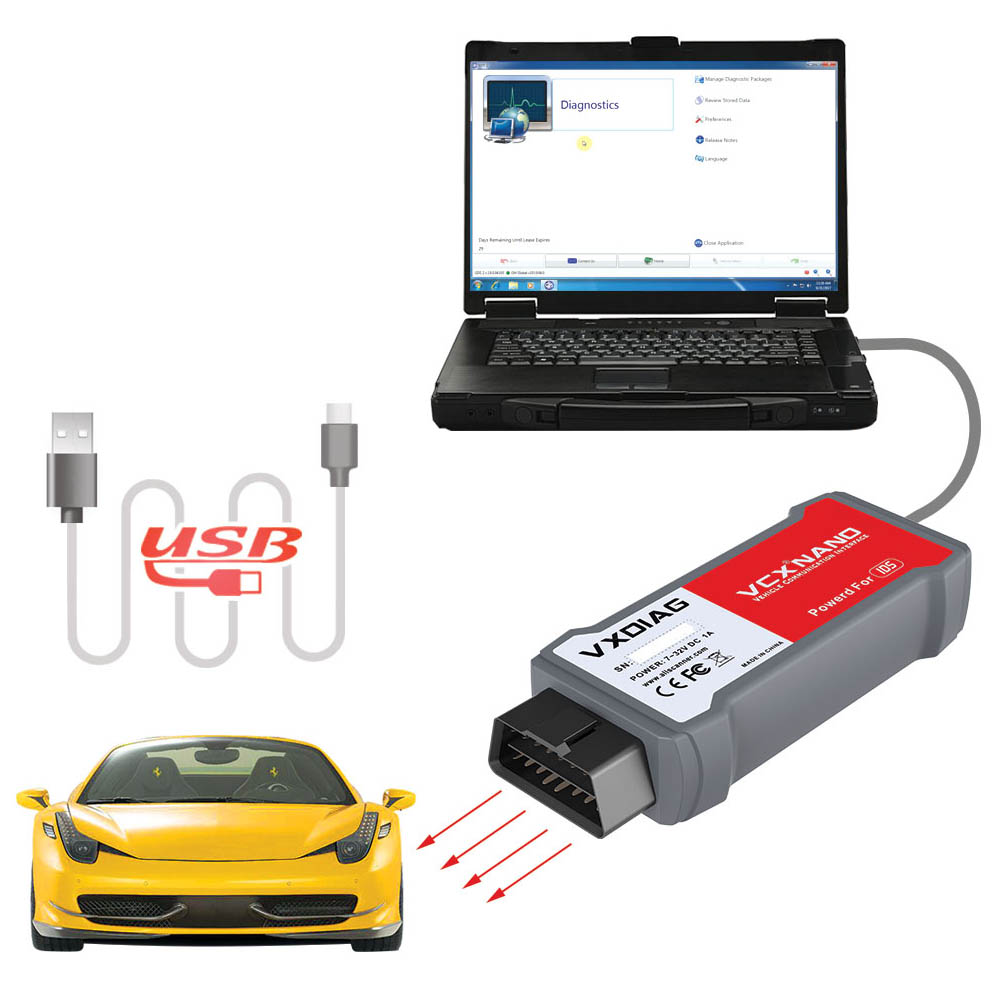

VCX Nano accords with standard of SAE-J2534 (Pass-Thru), can be connected with computer through high speed USB2.0 and Bluetooth to be compatible with most vehicle’s communication protocols. It will be used widely by car manufactures to make ECU online diagnosis and reprogramming. It also supports the third party and OEM original diagnostic software. VXDIAG VCX NANO Ford/Mazda OEM diagnostic tool is the update version of Ford/Mazda VCM2 Scanner. VXDIAG VCX NANO IDS diagnostic tools can work on new and old Ford and Mazda till year 2015 with multi-language available and update via CD with firmware unlocked.



Features:



1. One Interface for both of Ford and Mazda

2. Perfect replacement for Ford VCM 2

3. Update by CD with unlocked firmware

4. Support both of new and old vehicles.



Functions:



1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)

2. Live Datastream with Recording & Playback Functions for main ECUs

3. Read & Clear Diagnostic Trouble Codes (DTCs)

4. Set, Adjust or Remove Speed Limit

5. Automatic Vehicle Recognition

6. New Software Re-flash for existing ECUs

7. All other Dealer Functions

8. Steering Angle Resets

9. Guided Fault Finding

10. Program New Keys

11. DPF Regeneration

12. Brake Bleeding

13. Injector Coding



Supported Languages:



English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese



Software Version: Ford V121 IDS & Mazda V121 IDS



Computer Requirements:



1. Minimum 4GB RAM

2. Supported OS: Windows 7 / 8 / 10 32bit and 64bit



Software Installation Steps:



1. Install the official IDS diagnostic software and restart the computer;

2. Install VCX client VX Manager, and install Ford type drive at the time point;

3. Connect to the Ford VCX device and click "Ford_IDS_FIx.exe". After installation, you will be prompted to create shortcuts on the desktop.



Notice:



1. When using VCX to diagnose Ford, you must click on "Ford_IDS_FIx.exe" to run the diagnostic software. Clicking on the original IDS is not diagnosable.



2. The diagnostic software must be installed first, and the device driver must be installed.



Functions Tested Successfully:



Record and play back live data for ABS, PCM…tested ok

Program and Install new ECUs (PCM, ABS)…tested ok

Read and Clear DTCs…tested ok

Program New Keys for Mazda 6…tested ok

Set, adjust or remove speed governors…tested ok

DPF Regeneration…tested ok

Automatic vehicle recognition…tested ok

All other dealer functions…tested ok

Reset steering angle…tested ok

Find guided fault…tested ok

Injector Coding…tested ok



FAQ:



Q1: I have original software. Can VXDiag VCX use this software?

A1: Yes, you can use the original software, but you must use our driver.



Q2: Did the Ford IDS and Mazda IDS can be installed on the same computer?

A2: If you install it via VM method, they can be on the same computer, but if not install via Virtual Machine, they can not be on the same computer.



Q3: Does Ford IDS require VMWare installation?

A3: The version V113 and above does not require VMWare installation.



Q4: It supports online programming?

A4: Yes, but you need to have an own online account, we do not provide online account.



Packing List:



VXDIAG VCX NANO for Ford/Mazda 2 in 1

USB Cable

Software CDs

Packing Box
