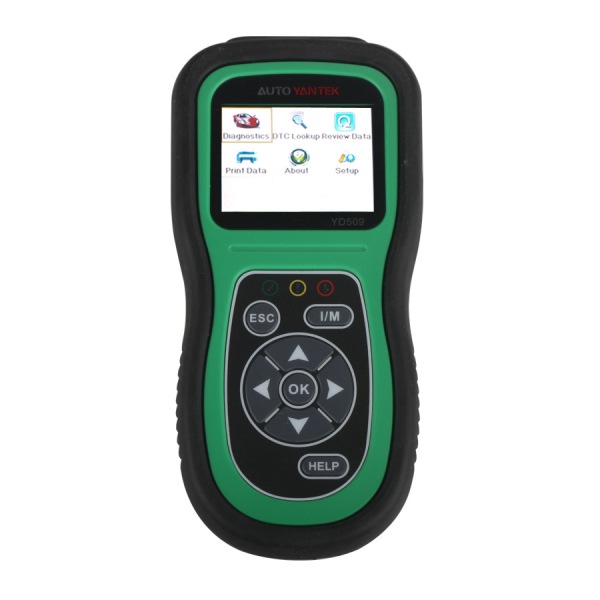

Name: YD509 OBD-II EOBD CAN Code Scanner

Description:

YD509 OBD2 EOBD CAN Auto Code Scanner is compatible with all 1996 and newer vehicles (OBD II & CAN).

Multi-language menu options and DTC definitions –English, Spanish, French, German, Portuguese and more

Internet updateable and upgradeable let you stay with the latest technology.

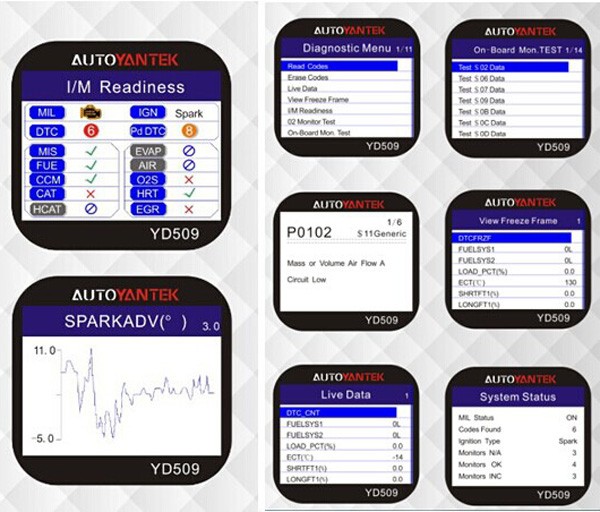

Features:

1. Supports multiple code requests: Generic, manufacturer specific and pending codes.

2. Displays DTC definition on the TFT color screen. Reading/Erasing DTC and I/M readiness hot keys make it easy to use this tool right out of the package. Provides quick access to emissions readiness status. DTC information and erase function.

3. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.

4. Bright color coded LEDs and built-in speaker  indicate emissions monitor status.

5. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes.

6. Displays monitor and I/M readiness status (emissions).

7. Easily determines the cause of the Malfunction Indicator Light ( MIL). Clear codes, turns off Malfunction Indicator Light (MIL) and reset monitors.

8. Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set

9. Reads live PCM datastream.

10. Retrieves vehicle information (VIN, CID and CVN).

11. Displays live O2 sensor test data.

12. Enhanced OBDII Mode 6 functions.

13. Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data.

14. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time.

15. Prints data via PC

Specifications:

Display: 2.8" TFT color screen
Operating Temperature: 0 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)

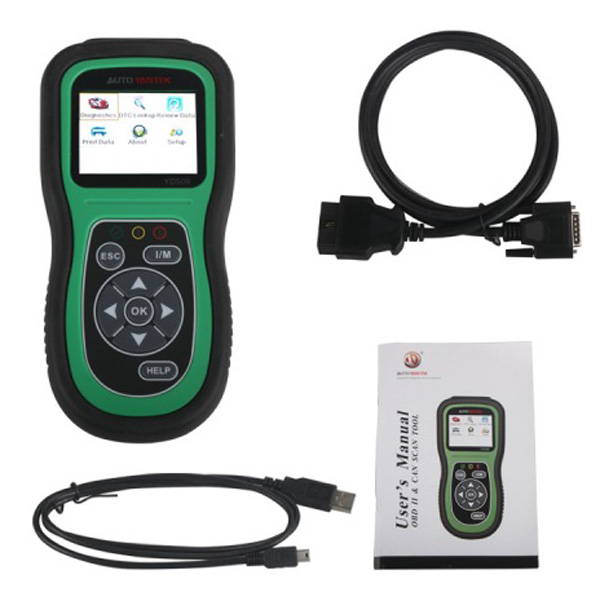

Set Includes:

YD509 OBDII/EOBD Code Reader

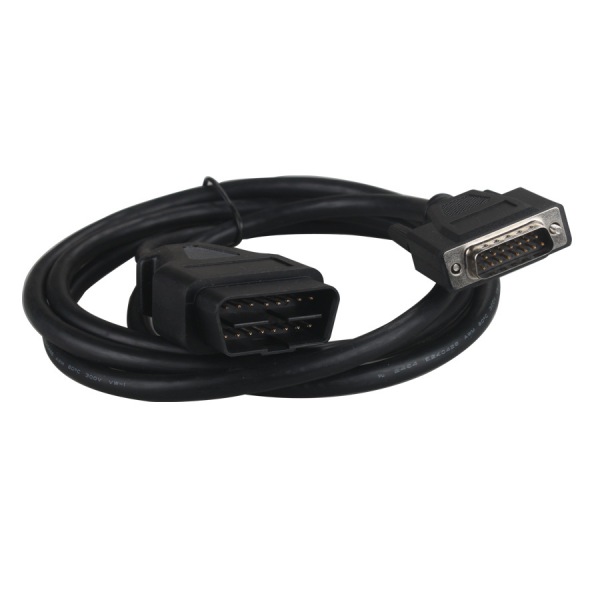

OBD2 main cable
USB cable
User manual
Software CD
Carrying case
