Name: TNM5000 Programmer

Description:

TNM5000 Universal Programmer is very fast, low cost, high performance Universal Programmer specially designed for supporting Flash memories, Nand flashes, Serial EEPROMS, Microcontrollers & Automotive ECU, Dashboard parts.

The CPU of TNM Universal Programmer 5000 is a 500.0000 Gate FPGA with a designed CPU core with 96MHz clock for fast programming of chips.

Features:

1. 23000 supported devices Flash Memory (Parallel / Nand / Serial), EPROM, EEPROM, Serial EEPROM, Microcontroller, NVRAM, FRAM, CPLD, PLD, FPGA).

2. Pin detect and detect of IC, for example, in pin detect, if one or more pin in chip no connection at ZIF socket, TNM5000 will inform you.

3. 48-pins ZIF Socket with Pin Continuity tester & 10-Pins ISP/JTAG connector.

4. USB 2.0 high speed, program 1 Gbit Nand Flash less than 50 second. Read Serial Flash memory with 6 Mbit/second speed.

5. Auto detection of all flash Memories/Microcontrollers with Device ID.

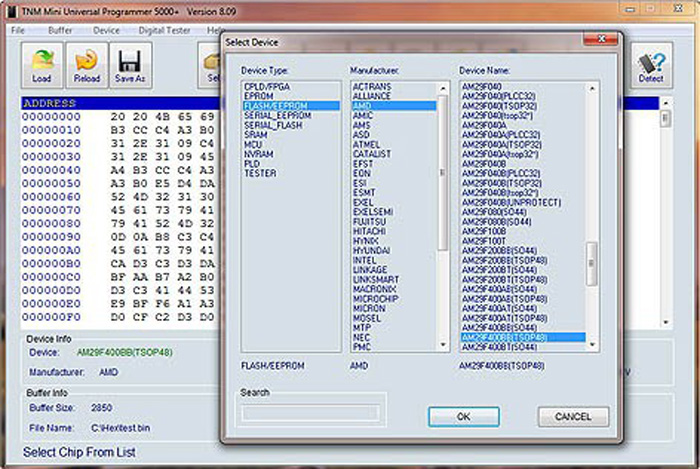

6. User friendly software for Windows XP/VISTA/7/8 (32/64 bits).

7. Multiple Programming is possible by attaching 2 or more Programmers to one PC.

8. Very low cost main unit & low cost adapters.

9. Special Abilities: Altera USB-Blaster Emulation for Quartus Software, Serial Port Emulation, Vehicle ECU, Immobilizer & Dashboard Microcontroller support.

Parallel Flash Memories: Up to 56 pins parallel flash memories are supported by TNM5000. It supports different kind of packages (PLCC, TSOP1, TSOP2, VSOP...). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes, user only need 1 adapter for over 2000 flash chips.

Nand Flash Memories: TNM5000 has additional Nand+ software, specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes. TNM5000 is one of the fastest Nand Programmers in the world with Read & Write Speed up to 8 MegaByte per second. All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names.

Serial Flash Memories: All 8-16 Pins Serial SPI flash memories are supported by TNM5000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads & programs SPI flashes with maximum safe speed on ZIF (6-7 Mbit/second).  Also it unprotects the write protected flashes before writing data to it.

Microcontrollers:

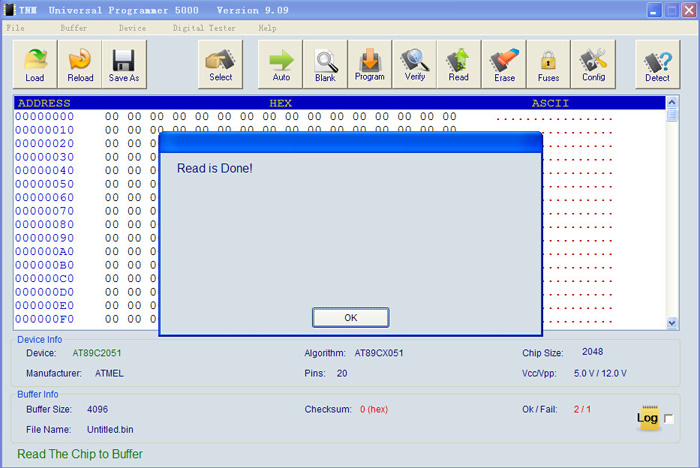

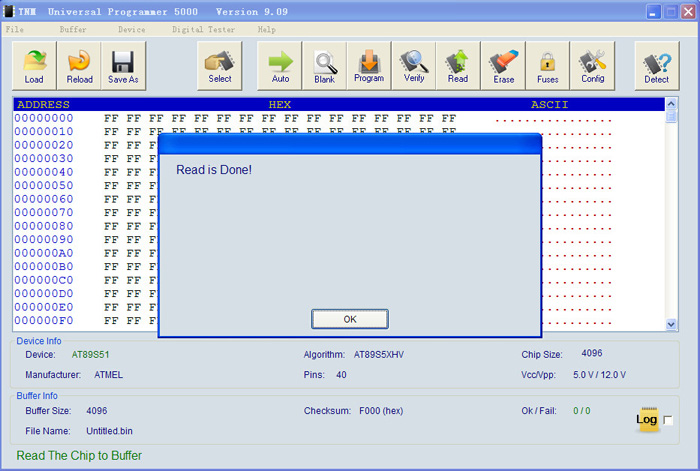

ATMEL: All AVR 8 bits chips (ATMEGA/ATTINY/AT90S)  are supported on ZIF Socket & by ISP cable. High Voltage Parallel on ZIF Programming of AVR up to 64 pins is supported. Newly introduced ATXMEGA Series are supported by both PDI & JTAG Method. Old C51 series & new single cycle C51 series are completely supported. All the above series can be detected automatically by TNM5000. ARM7 programming by JTAG is supported.

Microchip: One of the most complete device lists for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J & K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically & programmed by ISP cable.

Others:  ST, SST, Philips (NXP), Motorola, Syncmos, Silicon Lab, ICSI, Infineon, Intel, Winbond…

Automotive MCUs: Supporting of ST10F & TMS370 Series by ISP cable for many BOSCH/VALEO/SAGEM  ECUs (complete ST10F support of XPROG-M Programmer device list). Supports Simense & Infineon SAK-C167 connected to 44 or 48 pins flash (Siemense/BOSCH/SAGEM S2000 ECU) like HSE FlasHit Programmer. Supports NEC & Motorola Devices for Dashboards.

PLD/CPLD/FPGA:   Supports all ALTERA JTAG Devices by emulation of USB Blaster Programmer in Quartus software. Supporting of Xilinx CPLD/FPGA with jed file. Fast Xilinx FPGA configuration with bit file. Supports GAL/PALCE Devices with special option for PALCE unlocking.

Software Languages: English, Chinese, Arabic, French, FARSI

Adapters:  We have a policy for minimum price for adapters. Our adapters can be used for many different packages. In many cases, we support other programmer manufacturer adapters on our device. Here are examples of some of our adapters:

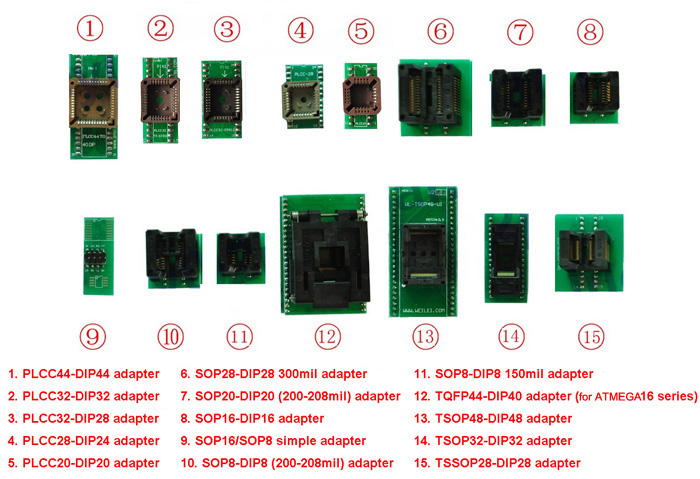

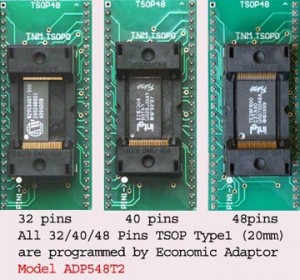

1. For all 32/40/48 pins TSOP Type-1 (20mm pin-pin length), you Need only one adapter Model 548T2.

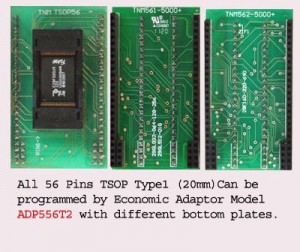

2. For all 56 pins TSOP Type-1 (20mm pin-pin length), you Need only one adapter Model 556T2 with different sets of bottom plates which can be easily replaced by user.

Packing List:

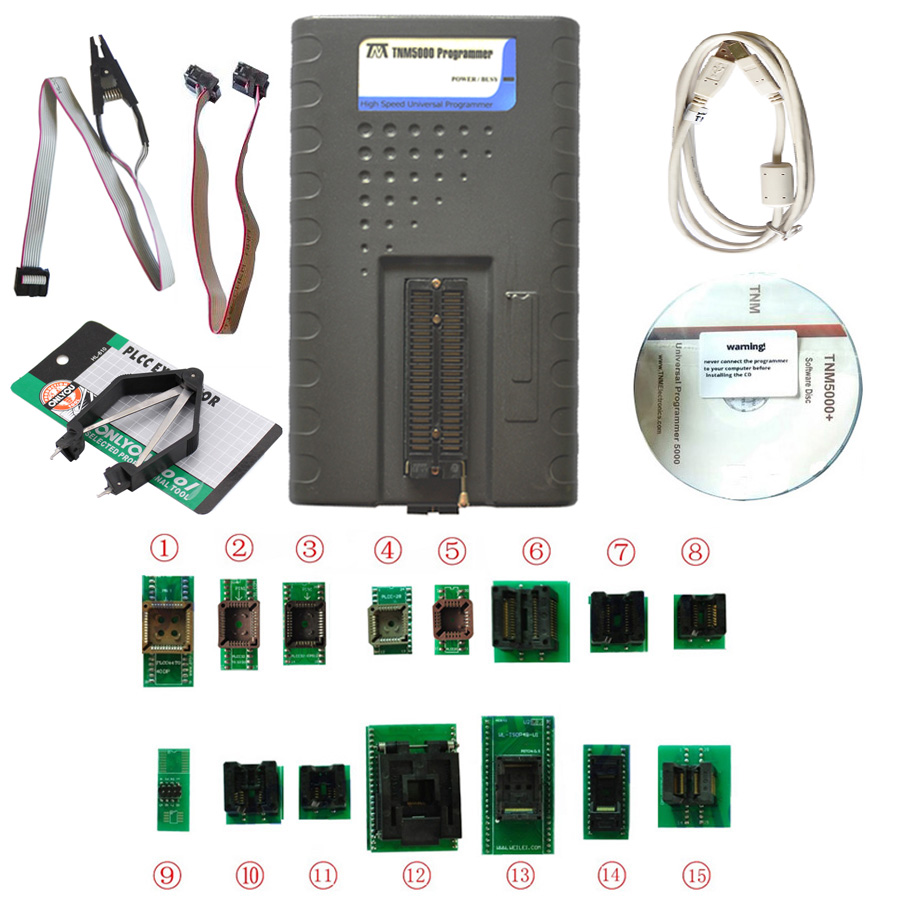

TNM5000 Programmer
USB cable (for both of power supply and data communication)
IC clip
PLCC IC extractor
PLCC44-DIP44 adapter
PLCC32-DIP32 adapter
PLCC32-DIP28 adapter
PLCC28-DIP24 adapter
PLCC20-DIP20 adapter
SOP28-DIP28 300mil adapter
SOP20-DIP20 (200-208mil) adapter
SOP16-DIP16 adapter
SOP16/SOP8 simple adapter
SOP8-DIP8 (200-208mil) adapter
SOP8-DIP8 150mil adapter
TQFP44-DIP40 adapter (for ATMEGA16 series)
TSOP48-DIP48 adapter
TSOP32-DIP32 adapter
TSSOP28-DIP28 adapter
Software CD
Packing box
