Name: JDiag Elite J2534 Diagnostic and Coding Programming Tool

Description:

JDiag Elite J2534 Diagnostic and Coding Programming Tool is the new generation J2534 tool from JDiag Inc..

JDiag is the most validated and accepted J2534 device in the world. It has been on the market longer than any other J2534 device. It has been approved by more automakers than any other product, and has been called the "golden standard" by customers and competitors alike.

The JDiag offers a wide range of capabilities to help you grow your business and retain customers including:

Module Programming
Diagnostic Functions
Key Programming
Data Monitoring

Reprogramming:

JDiag is an advanced J2534-1 product for reprogramming. Use the OEM software to offer J2534 reprogramming with all OEMs.

JDiag offers extra J2534-2 support that expands reprogramming beyond just Engine/Trans support for Ford, GM, Toyota, Volvo, BMW, and some others.

Technicians can use JDiag for Security Key systems/programming on Ford, GM, and Toyota vehicles.

Diagnostics:

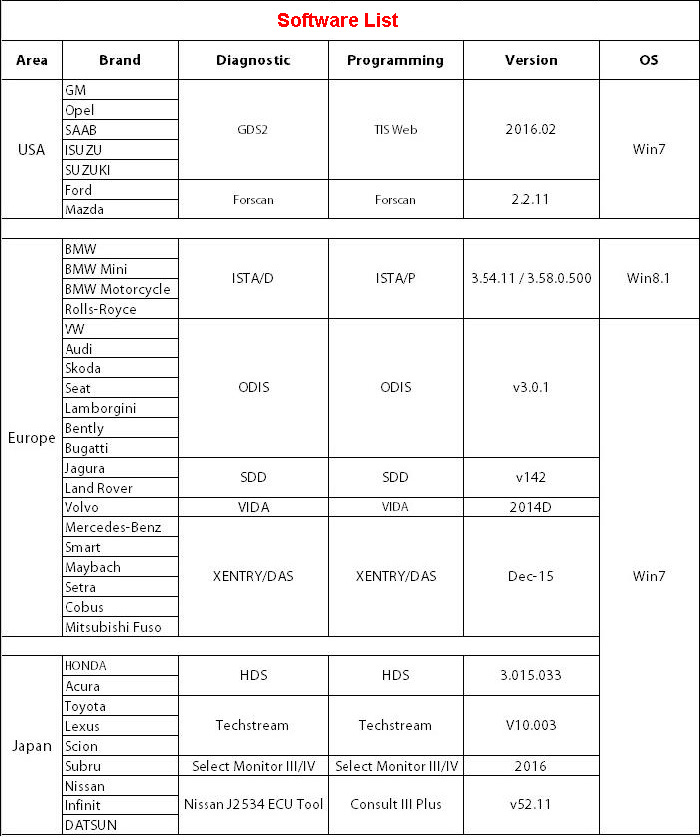

Using the OEM own software, JDiag is compatible with Toyota Techstream, Honda HDS, Mercedes Benz PassThru, VAG ODIS, Nissan Consult, GM GDS2, BMW ISPI NEXT, and Volvo VIDA for factory diagnostics. And much more will coming later.

BUS Protocols:

CAN BUS (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd. CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)

PC Interfaces:

USB Cable
Wired RJ45 Ethernet
Wireless Card (Optional)

Others:

Compliant to SAE J2534 (Feb. 2002) and SAE J2534-1 (Dec. 2004) SAE J2534-2 (Dec. 2014)
Compliant to ISO 22900-1 MVCI physical layer
ISO22900 Compliant for GM Tech2WIN software
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux.
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash Slot (must be configured when ordering)
Optional External Compact Flash Slot

Specifications:

Operating Voltage: 7-26Volts
VCI Size: 20*14*4.5cm
Operating Temperature: 0 to 70 degree centigrade

Supported Cars:

USA:
GM, Opel, SAAB, Isuzu, USA Ford, Mazda

Europe:
BMW, MINI, Rolls-Royce, VW, Audi, Skoda, Seat, Lamborgini, Bently, Bugatti, Jaguar, Land Rover, Volvo, Mercedes-Benz, Smart, Maybach, Setra, Cobus, Mitsubishi FUSO, Benz Truck, EU Ford

Japan:
Honda, Acura, Toyota, Lexus, Scion, Nissan, Infiniti, GTR, DATSUN, Subaru(immo and programming only)

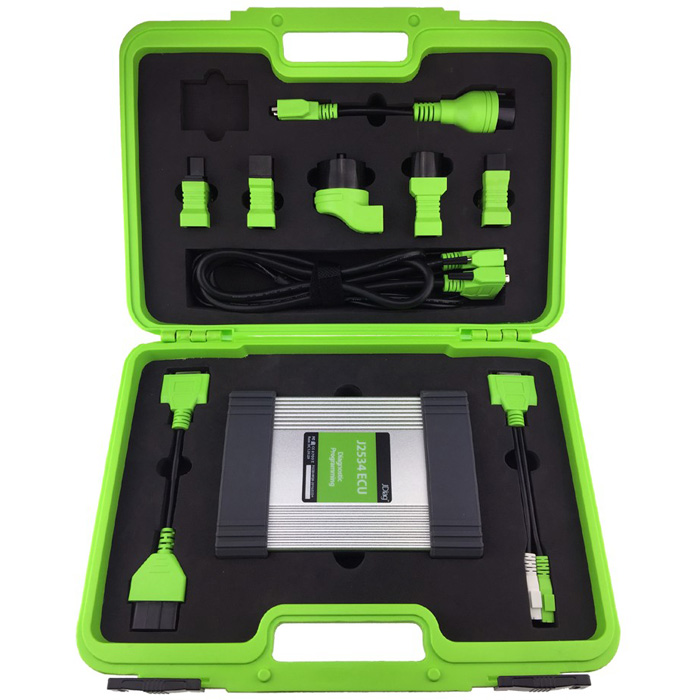

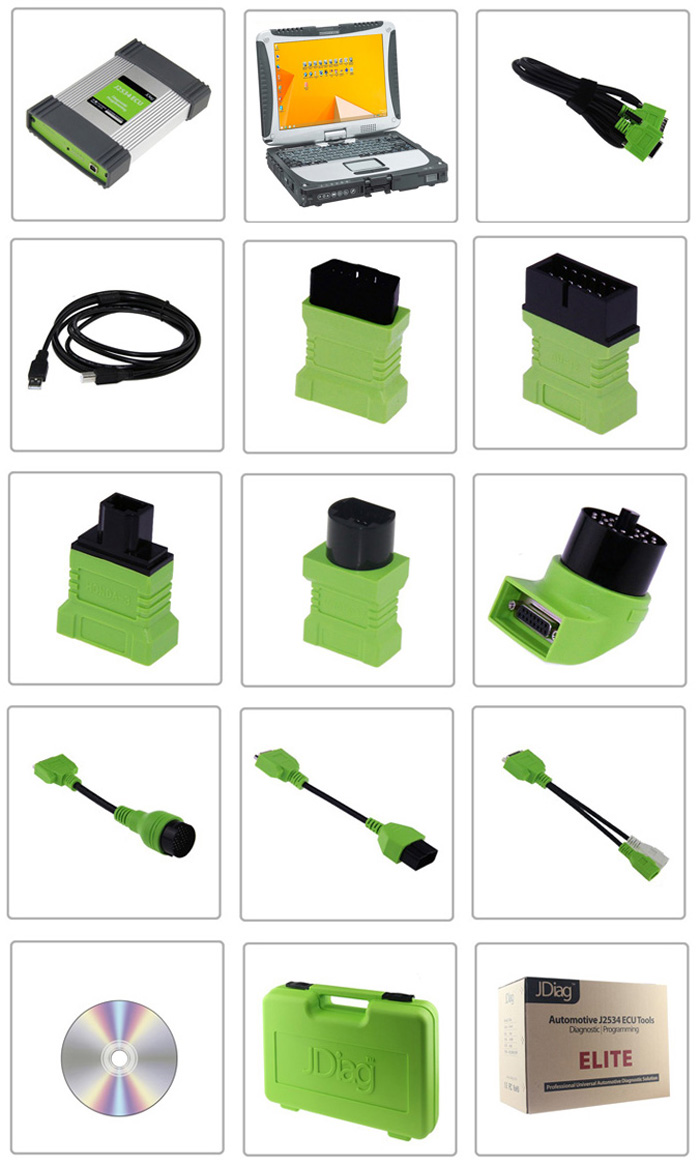

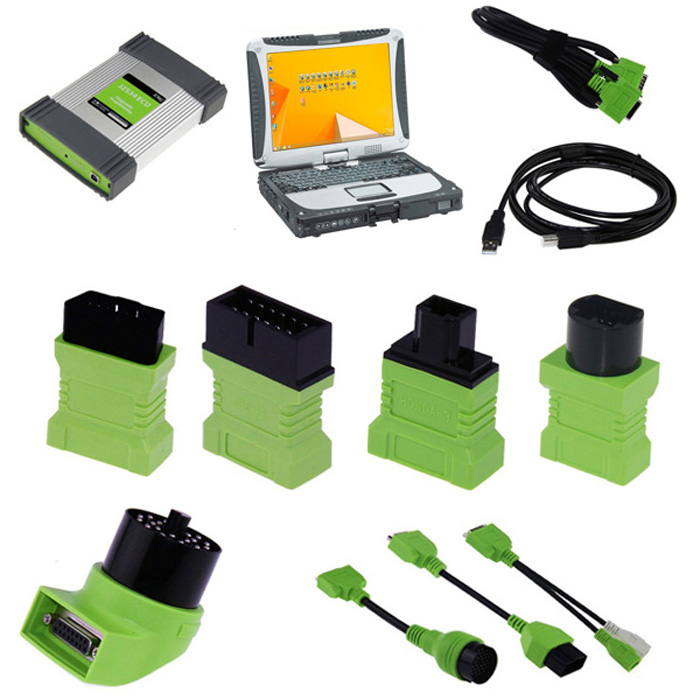

Packing List:

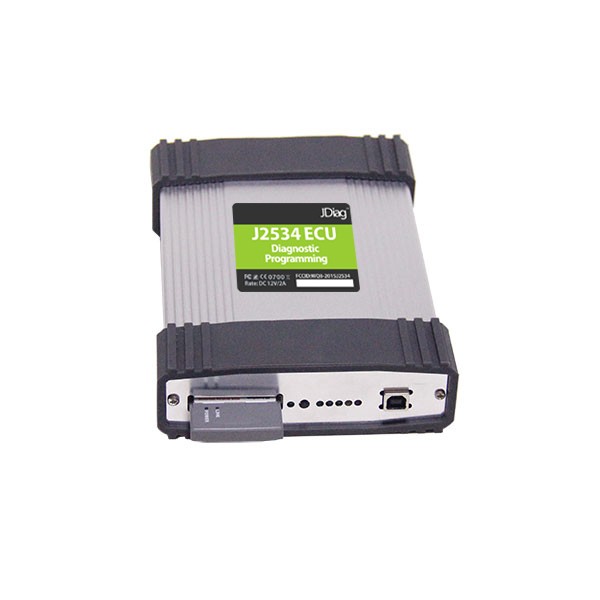

JDiag Elite VCI
Main cable
USB cable
OBD-II adapter
Adapter for old cars (7 pcs)
Wireless card (optional)
Panasonic CF19 laptop with full software
Laptop charger
Carrying case
