Name: OTC GTS Toyota Diagnostic Tool

Description:

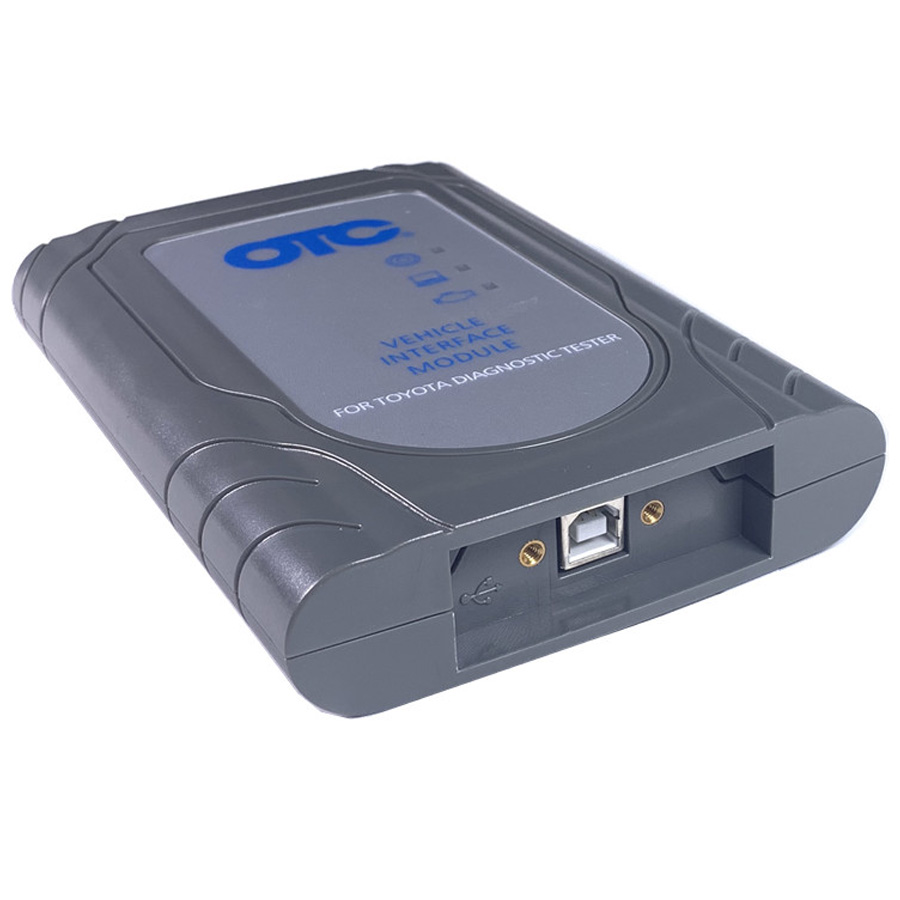

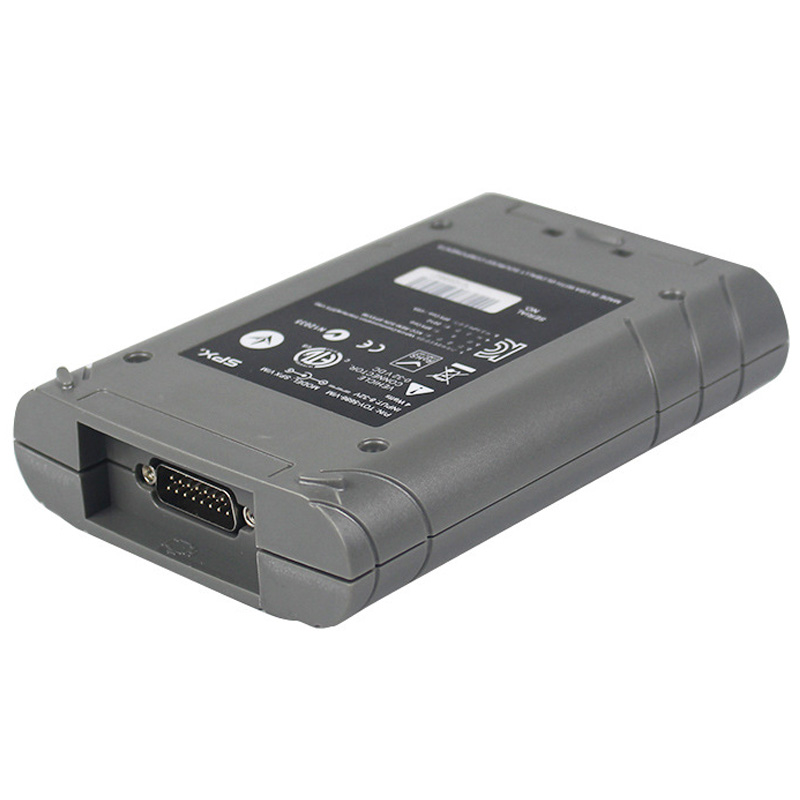

Toyota OTC GTS is a new PC-based diagnostic tool developed by Toyota Motor Corporation. GTS diagnostic tool is connected with its software and vehicle VIM. GTS software is the core part of this diagnostic tool and VIM is the communication between GTS and vehicle ECU. These will help technicians diagnose and reset vehicle program.

Functions:

1. GTS is based-on-Windows software and specially designed for Toyota and Lexus.
2. VIM is connected to the vehicle when the technician uses GTS to diagnose.
3. Legacy module can work with all DLC3 (OBD-II) port from 1993.

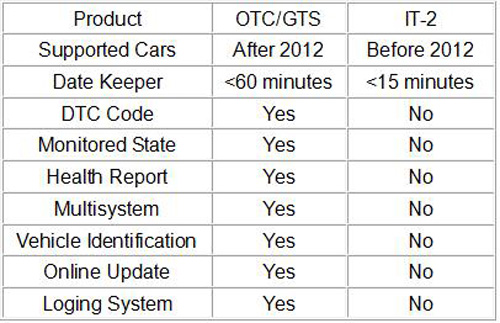

4. Own all the function of IT2 except oscilloscope and voltmeters function.
5. User-friendly graphical user interface displays the trouble codes on the PC monitor, it is easy to understand.
6. Its memory is larger than IT-2 memory.
7. It can support car till 2015.
8. GTS needs activation. We offer one free activation for each device.

Supported Languages: English, German, French, Spanish, Italian, Chinese

PC Configuration Parameters:

Operating System: Windows XP/VISTA/7
CPU: Intel Pentium M1.2GHZ or higher
Memory: 1GB or more
Disk Space: minimum 256MB
Display Resolution: 1024*768 (recommended); minimum 1024*600
USB: USB 2.0

Package List:

Toyota OTC GTS VIM
OBD2 cable
USB cable
Software CD
Carrying case
