Name: V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function

Description:

VD300 FGTech Galletto 4-Master is developed with high-speed USB2 technology is the fastest and most secure product on the market. It is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.

This item can not only work as FGTech Galletto 4-Master, but can also work for BDM-OBD.

Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish

Features:

1. Supported Operating System: Windows XP, more friendly than FGTech v53, much easier to operate.
2. Unlock Version: can use directly without activation.
3. Supports TriCore Function

Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

Automatic Checksum:

All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

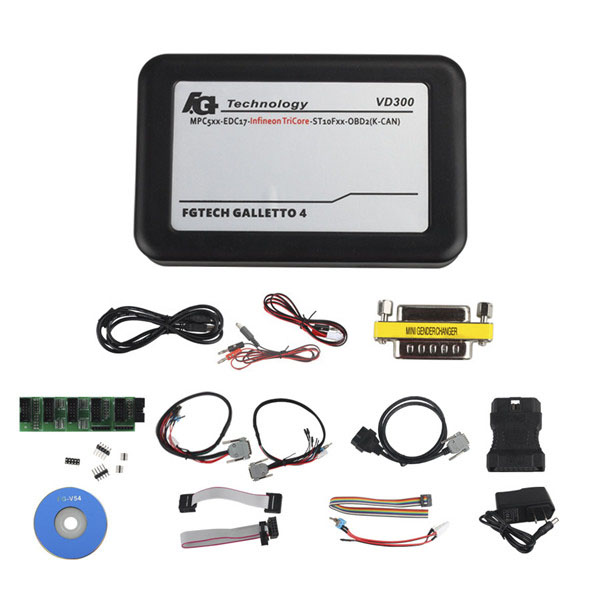

Packing List:

VD300 FGTech Galletto 4 Master BDM-TriCore-OBD Function
OBD2 cable
USB cable (1.5meter)
ECU cable for boot
Adapter for BDM to CMD with BDM cables
BDM adapters (3 pcs)
BDM connectors (6 pcs)
Power cable (2 pcs)
Software CD (Software, Documents PDF, Pictures…)
Carrying case
