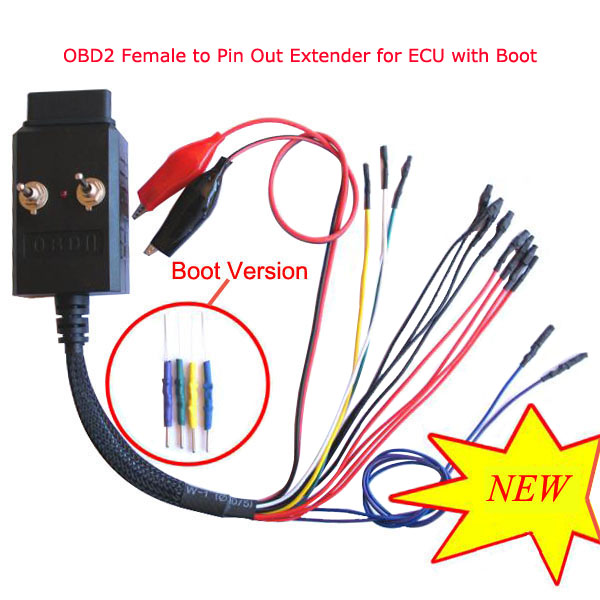

Name: OBD-II Female to Pin Out Extender for ECU with Boot

Description:

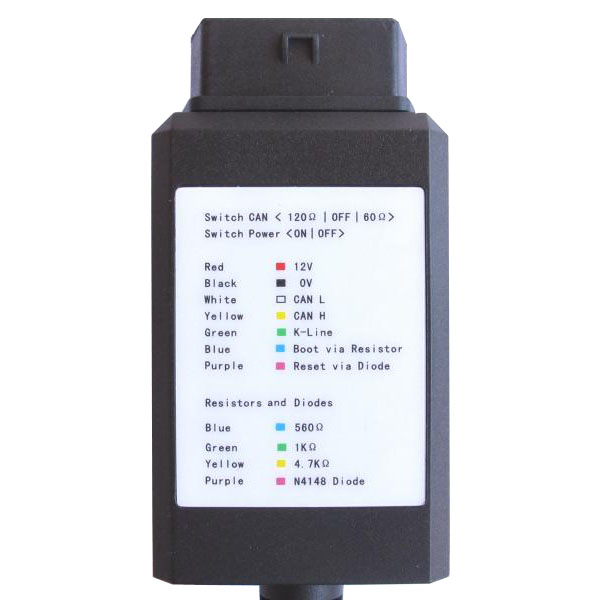

Switch ON/OFF
Switch CAN Line 120Ω - OFF - 60Ω
LED ON/OFF
Power line +12V and GND crocodile clip
Black wire - large plug (GND) *4 pcs
Red wire - small plug (+12V) *2 pcs
Red wire - large plug (+12V)*2 pcs
Green wire - small plug (K-Line)
Yellow wire - small plug (CAN-H)
White wire - small plug (CAN-L)
Blue wire - Boot via resistor 560Ω - 1KΩ - 4.7KΩ
Purple wire - Reset K-Line with diode

OBD-II/F to Pinout Extender for ECU with Boot is Compatible with following:

Abritus,
Alientech KESS and KTAG
AMT-Cartech MPPS all version
ByteShooter
CEE-Team
CMDFlash
FGTech Galletto
I/O Terminal Tool,
MagicMOTORSSPORT MagPro2 XFlasher
CarProg
