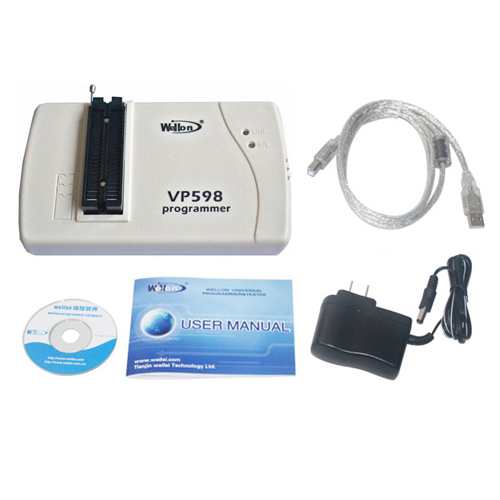

Name: original Wellon VP598 Programmer

Description:

New high quality car ECU chip tunning tool VP-598 Universal Programmer is a upgrade version of Wellon VP390 Programmer.

Features:

48 Pin ZIF Socket with popular pin-drivers.
Interface is compatible with computer via USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automatically Identifies the manufacturer and type of E(E)PROMs, auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5V Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion

Supported OS: Windows XP/Vista/7(32bit and 64bit)/Windows 8(32bit and 64bit)

Supported Languages:

Chinese(Simplified), Chinese(Traditional), English, Korean, Poland, Italian, Portuguese, Dutch, Turkish, Hungary

Supported Devices:

PROM: N/CMOS E(E)PROM, Series E(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC TEST: TTL (74 series), CMOS (40/45 series) Logic IC , DRAM SRAM memory device

Software Update:

Wellon updates software and device regularly. You can get the latest software free of charge through Internet.

Specifications:

Dimension: 168*98*23mm
Weight: 265g.
Power Adapter: AC input 100V to 240V; 50/60Hz, DC output 9V/0.6A
