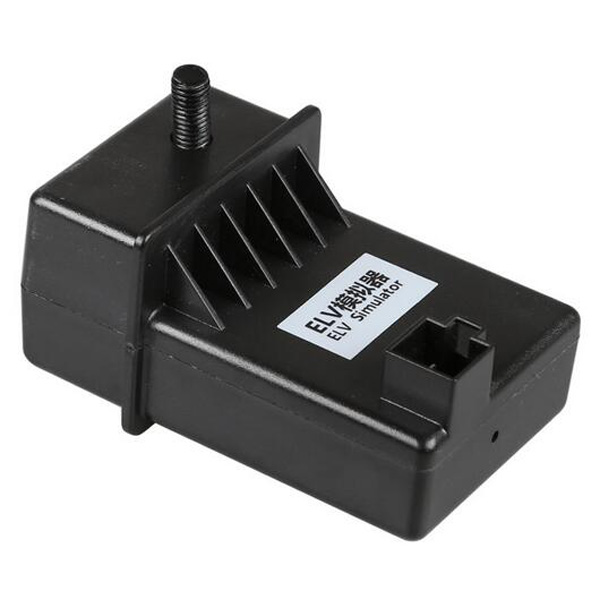

Name: XHORSE ELV Emulator Renew ESL for Benz W204 W207 W212 with VVDI MB Tool BGA

Description:

How to know if the ESL is damaged or NEC is locked?

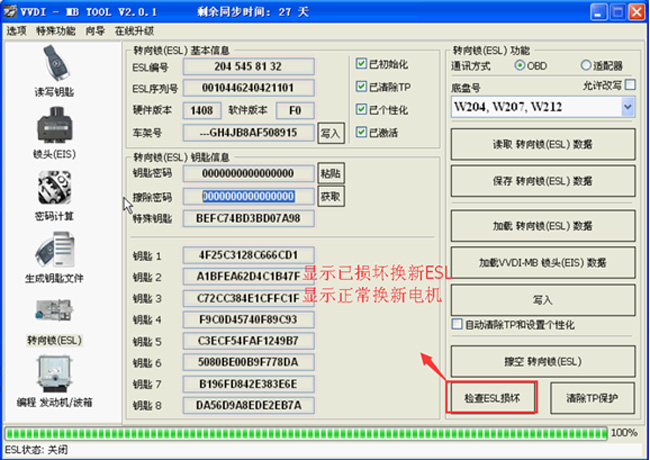

Open VVDI MB Tool BGA software, click “Check ESL damage” and you may get following information:

ESL is working: Means the motor is damaged and you need a new full set of ESL motor.

ESL is damaged: need to replace new ESL.

How to replace ESL with VVDI MB BGA Tool?

Step 01:
Erase EIS, then rewrite EIS and personalize ESL, finally ESL is synchronized.

Note: If you not erase ESL at first, but only personalize ESL, the ESL will not be synchronized.

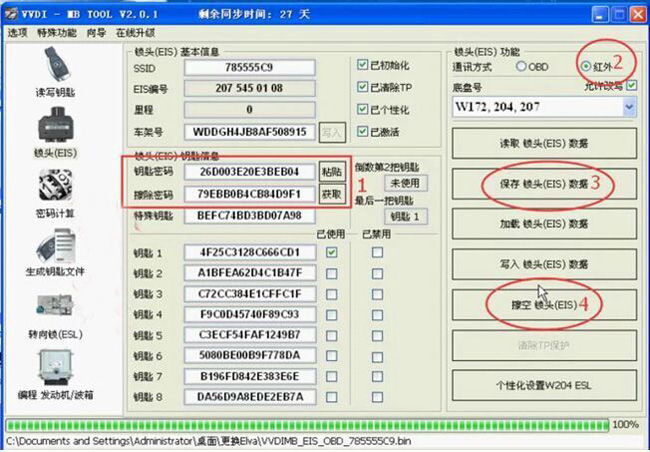

To erase EIS, both Key Password and Erase Password are required.

1) For the key password, you can get it by adding keys.
2) For the Erase password, it can be automatically get out by VVDI MB Tool at 90% percent success rate. If no success, please Email us the EIS data for help.
3) After input the two passwords, click "Save EIS data", then "Erase EIS". Now the EIS is full new.

Step 02:
Load EIS data
Tick "IR" to write EIS data and "OBD" to write VIN.

Step 03:

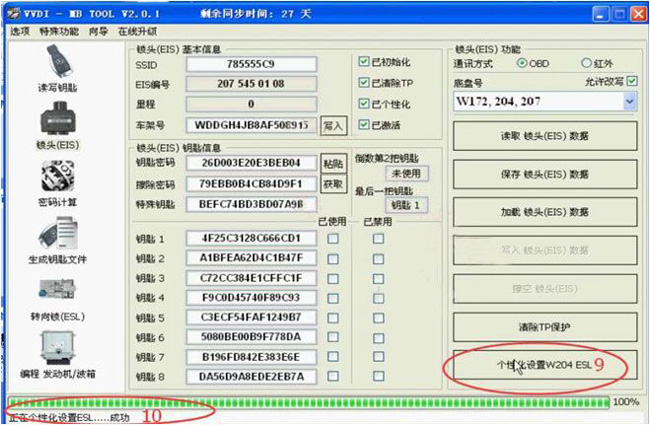

Click "Personalize W204 ESL"

Step 04:

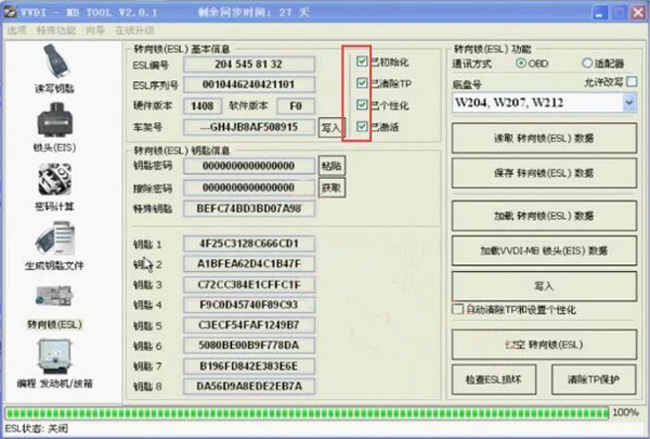

Now, the options "Initialized", "TP Cleared" and "Personalized" are ticked except "Activated".

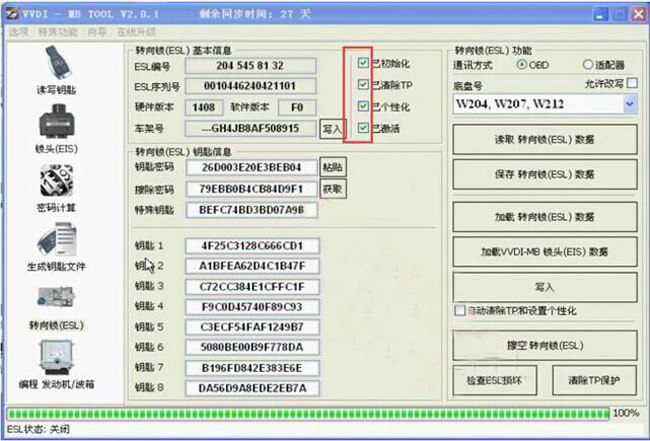

Insert the original car key then EIS and ESL is in "Activated" status.
Finally renew ESL successfully.

Note:

It is difficult to buy for Mercedes 204/207 EIS and they are expensive. If you have 204/207 all key lost, you are advised to use W212 EIS for replacement and the ESL needs to be removed.
